For: Puch

11049

Spare parts catalog | Puch X30 NS / NL (CH)

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 42.80

Incl. 25% VAT.

Description

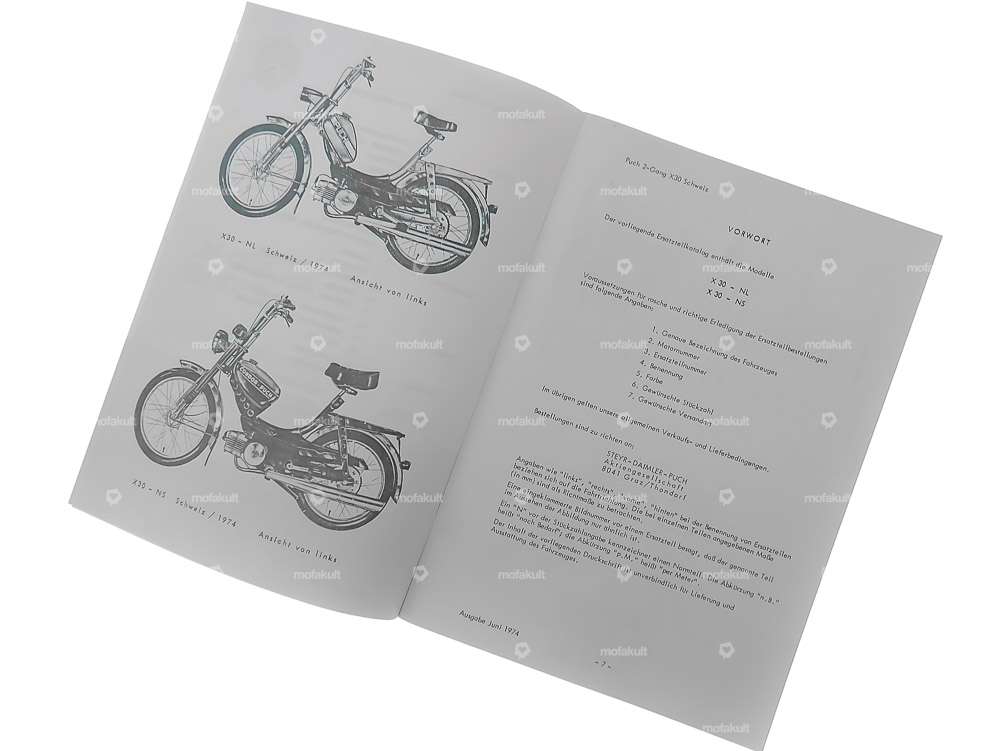

Spare parts catalog for the Puch X30 models NS and NL

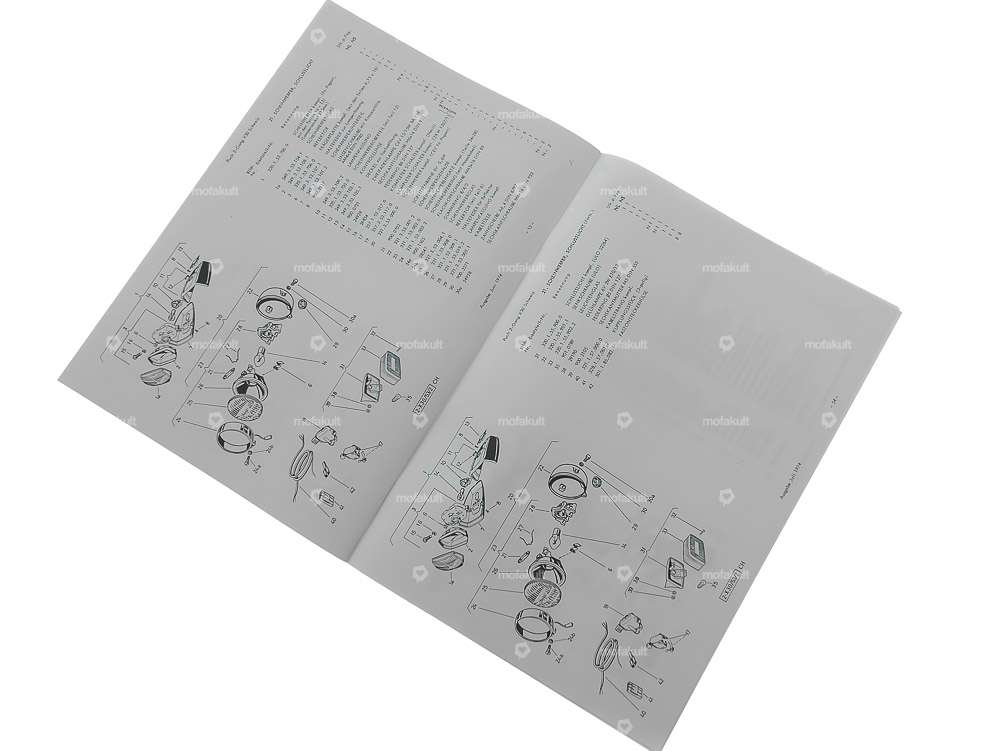

The complete moped was recorded in exploded drawings. Each individual component is provided with the quantity, spare part number and assembly location.

Super Swiss catalog from 1974 with 60 interesting pages.

MaterialPaper
Number of pages60 pcs
LanguageGerman
Puch
