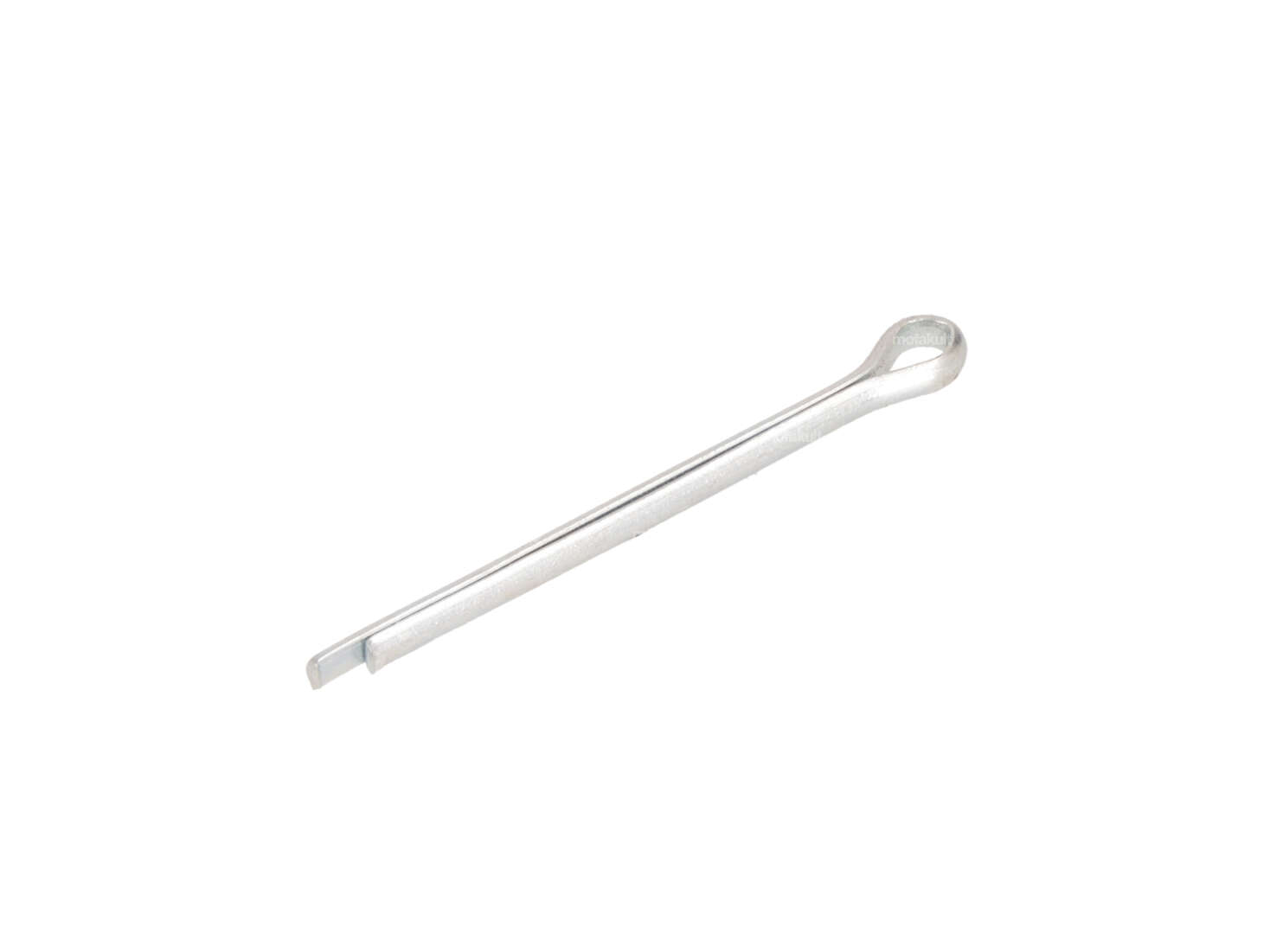

High-quality locking pin with Ø 1.8 mm (Ø 3.6 mm loop) and 32 mm total length for securing the decompressor valve pin on all Piaggio mopeds or for universal use.
The split pin is pushed through the sheet metal bracket and valve pin at the same time during installation and then the two wings are opened. This prevents the decorative pin from falling down and the oil spring from falling out.
| Ø Pin | 1.8 mm |
| Material | Steel |
| Surface | galvanized (blue) |
| Area of application | Standard |
| Total length | 32 mm |
| Ø External head | 3.5 mm |
| Piaggio OEM number | 02/012768 |
| Universal | |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo Gilera CBA Gilera Citta |
