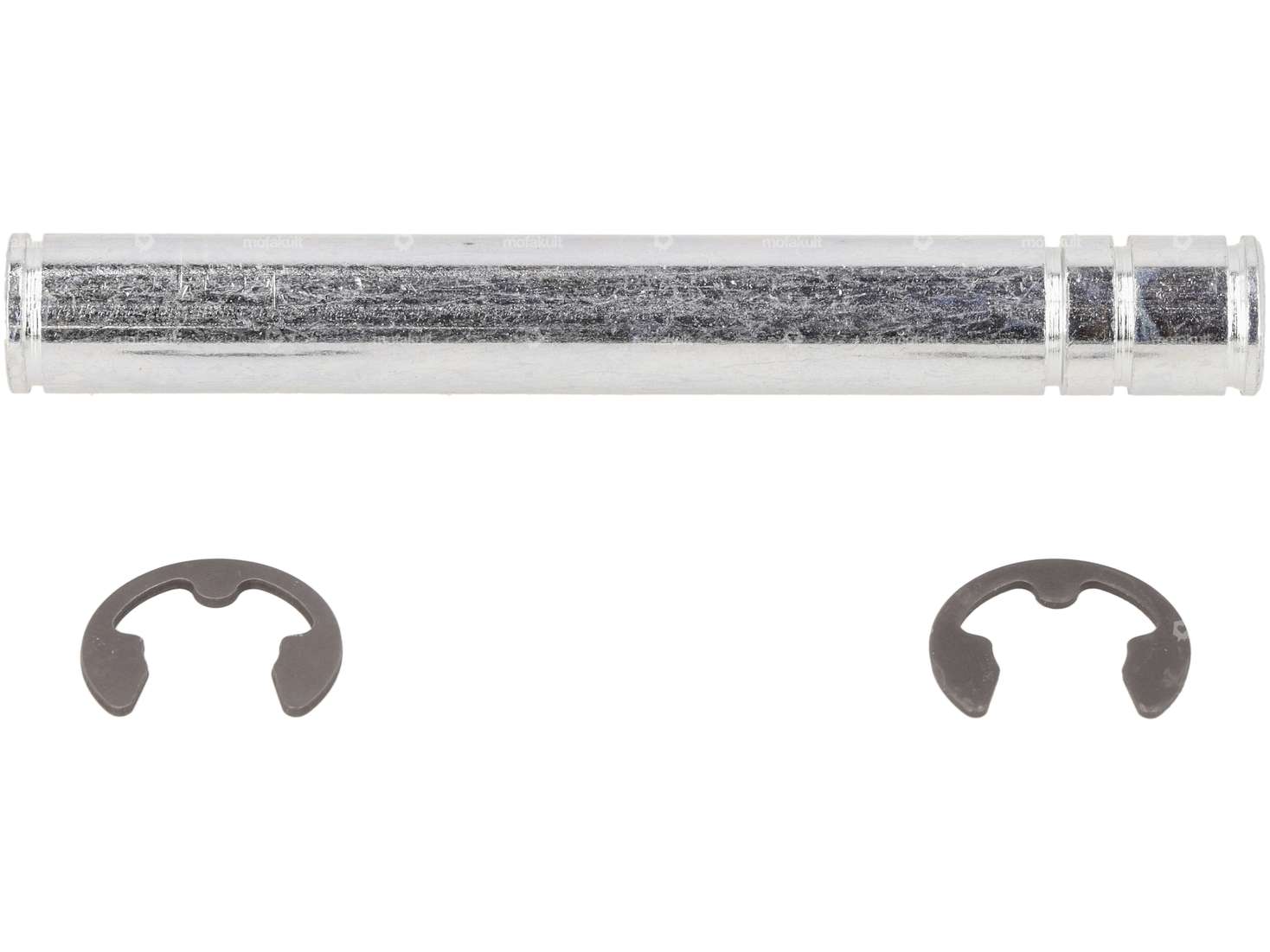

Pivot axle made of galvanized steel suitable for Piaggio Ciao (from 1977), Si, Bravo and Super-Bravo (from 1982) mopeds / mopeds.
Two BZ disks are included in the scope of delivery. These can be attached in 3 different positions.
The bolt can therefore be mounted on stems of different widths. The innermost notch is for Ciao, the middle one for Si and the outermost one for Piaggio Bravo and Superbravo models.
Ø 14 mm
Length: 112 mm
Note: Ciao models prior to 1977 had a 10 mm diameter axle bolt ex works. Check the dimensions before purchasing.
You will find the corresponding bolt in the accessories section.
| Manufacturer | Made in Italy |
| Material | Steel |
| Surface | galvanized (blue) |
| Color | silver |
| Total length | 112 mm |
| Mounting type | Circlip |
| Number of fixing points | 2 pcs |
| Piaggio OEM number | 164167, 214490 |
| Piaggio | Ciao - PX, C24 Si Bravo / Super Bravo |
