Montageanleitung

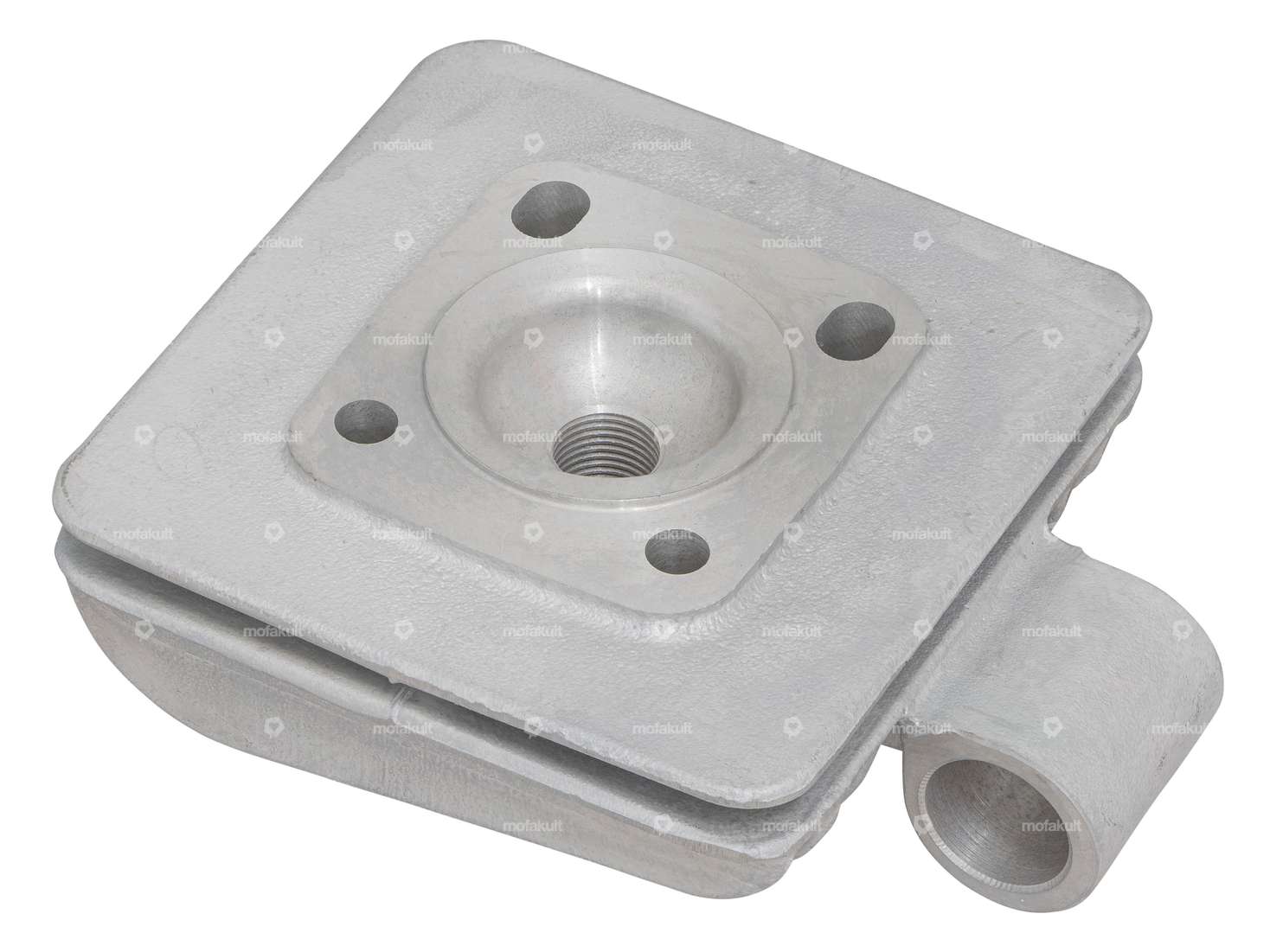

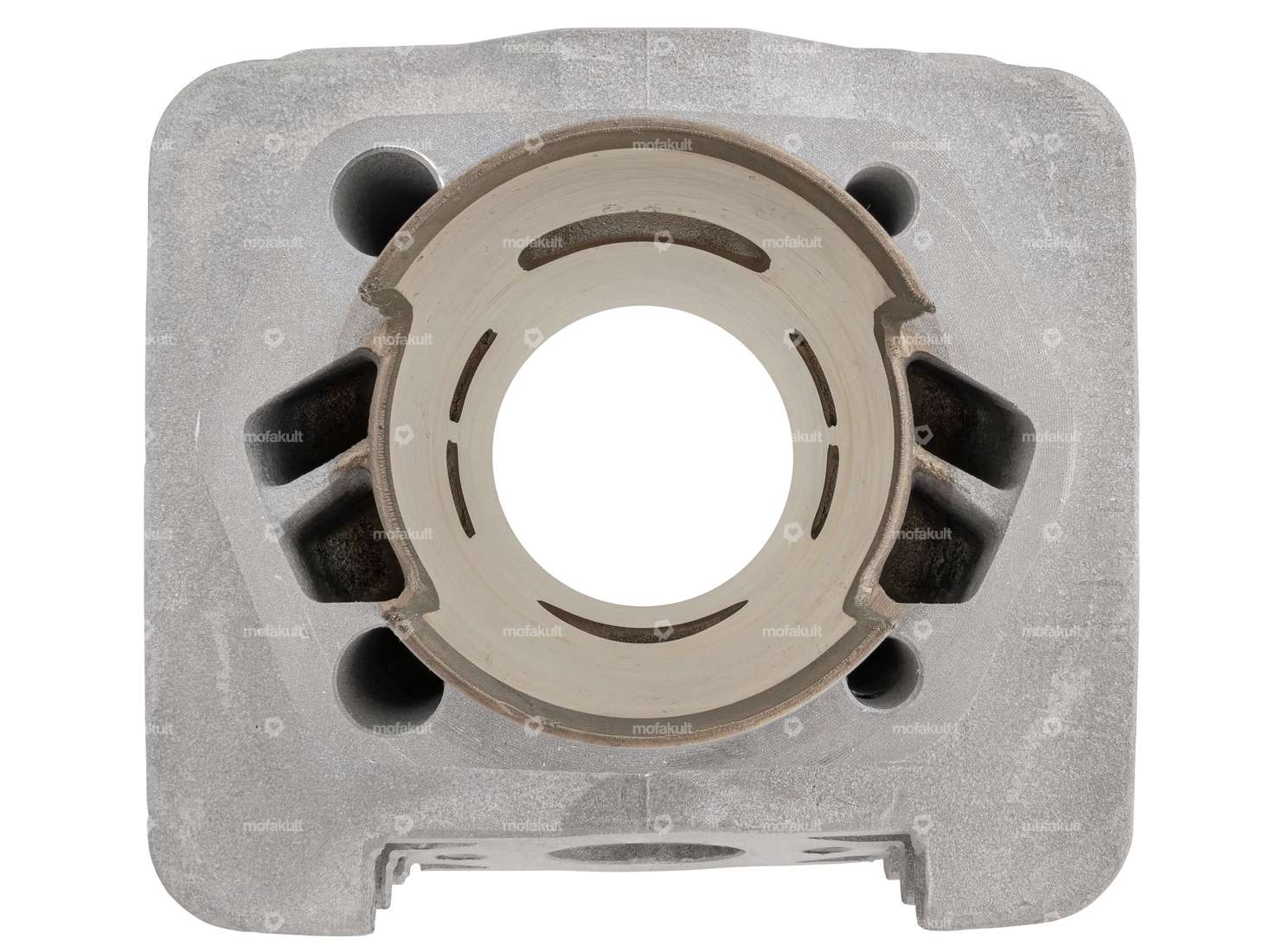

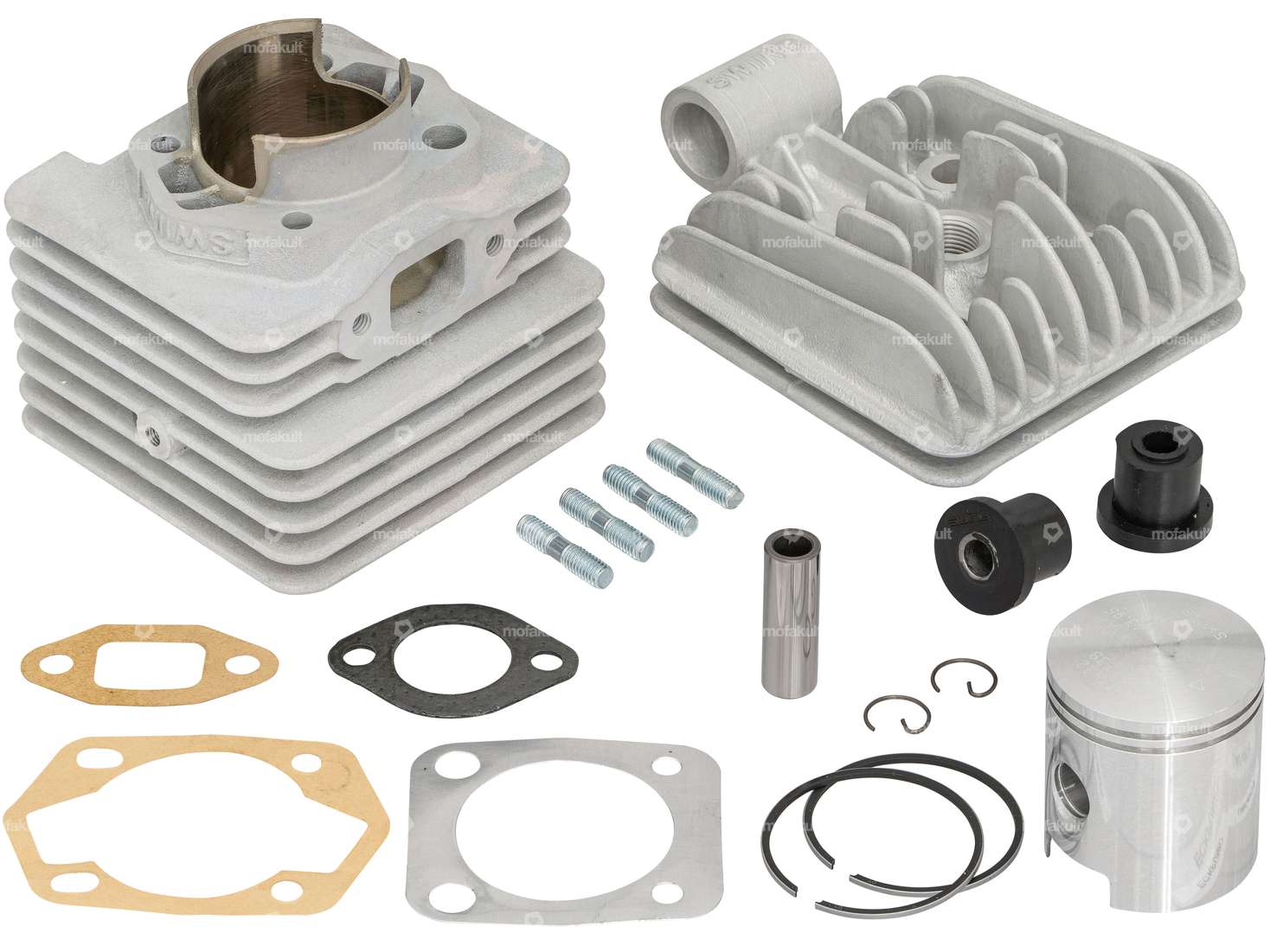

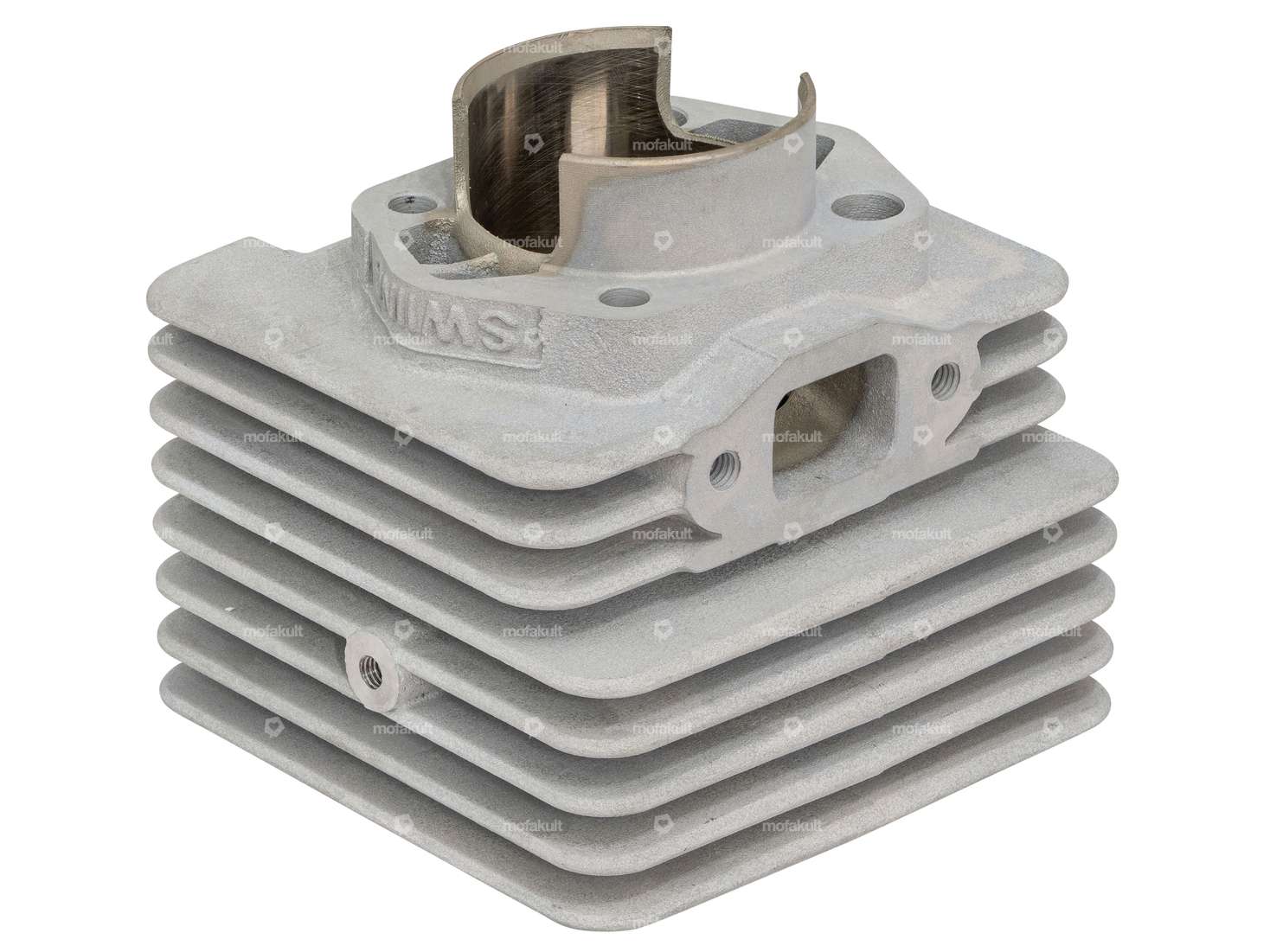

44 mm racing cylinder incl. head for your Zündapp Belmondo moped / moped.
Fits Zündapp Belmondo mopeds, Zündapp Bergsteiger M25/M50 mopeds, as well as Alpa Spezial 3000 and Alpa Black River small motorcycles which have a Zündapp type 247 engine installed.
The high-quality racing kit including cylinder head from the quality brand swiing® ingenious paired with the legendary VERTEX piston in OEM quality is guaranteed to exceed all expectations and set new milestones in the moped scene.
With the right settings, you can get a whopping 5.9 hp on the rear wheel. Don't believe us? You can find the corresponding performance diagram in the pictures.
Hole pattern [mm]: 44 x 44 · Inlet window: 22.3 x 15.5 · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 44 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 21.3 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Decompressor: No · Camouflaged: No · Area of application: Tuning
Manufacturer: swiing® revival parts · Material: Rubber, Steel · Ø inside: 8.2 mm · Ø outside: 19 mm · Ø Bundle: 25.5 mm · Total length: 21 mm
| Nominal diameter | 44 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Displacement | 65 ccm |
| Surface | sandblasted |
| Crankshaft stroke | 42 mm |
| Ø cylinder neck | 48 mm |
| Ø outlet inside | 21.3 mm |
| Hole spacing inlet | 38 mm |
| Area of application | Tuning |
| Inlet window | 22.3 x 15.5 |
| Number of fixing points | 4 pcs |
| Thread inlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Ø piston pin (B) | 12 mm |
| Outlet type | slanted |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Camouflaged | No |
| Zündapp | Belmondo (Type 247-71) |
Ratings
Accessories & related products

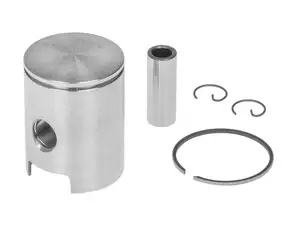

swiing® ingenious piston 39 mm Vertex | Zündapp Belmondo, Bergsteiger
Nominal diameter: 39 mm · Manufacturer: swiing® ingenious parts · Ø outside piston (A): 38.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 26.3 mm · Curvature (D): 1.5 mm · Total piston height (E): 51.5 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Oblique push · Piston ring height: 1.5 mm · Weight piston kit: 82 g
EUR 73.40

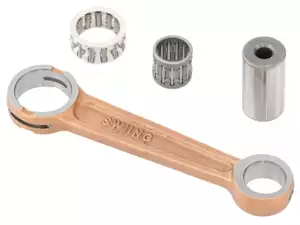

swiing® revival connecting rod | Zündapp
