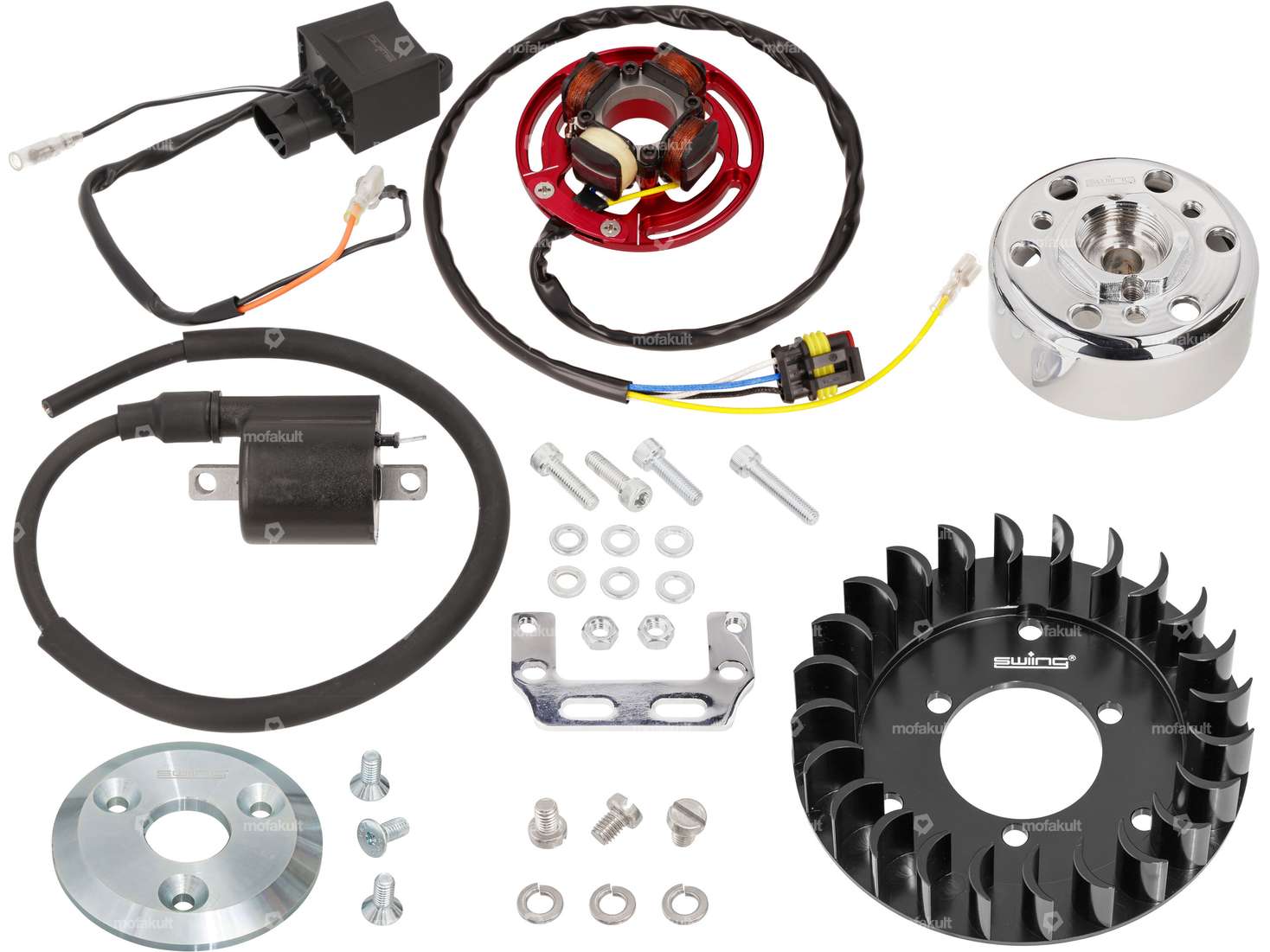

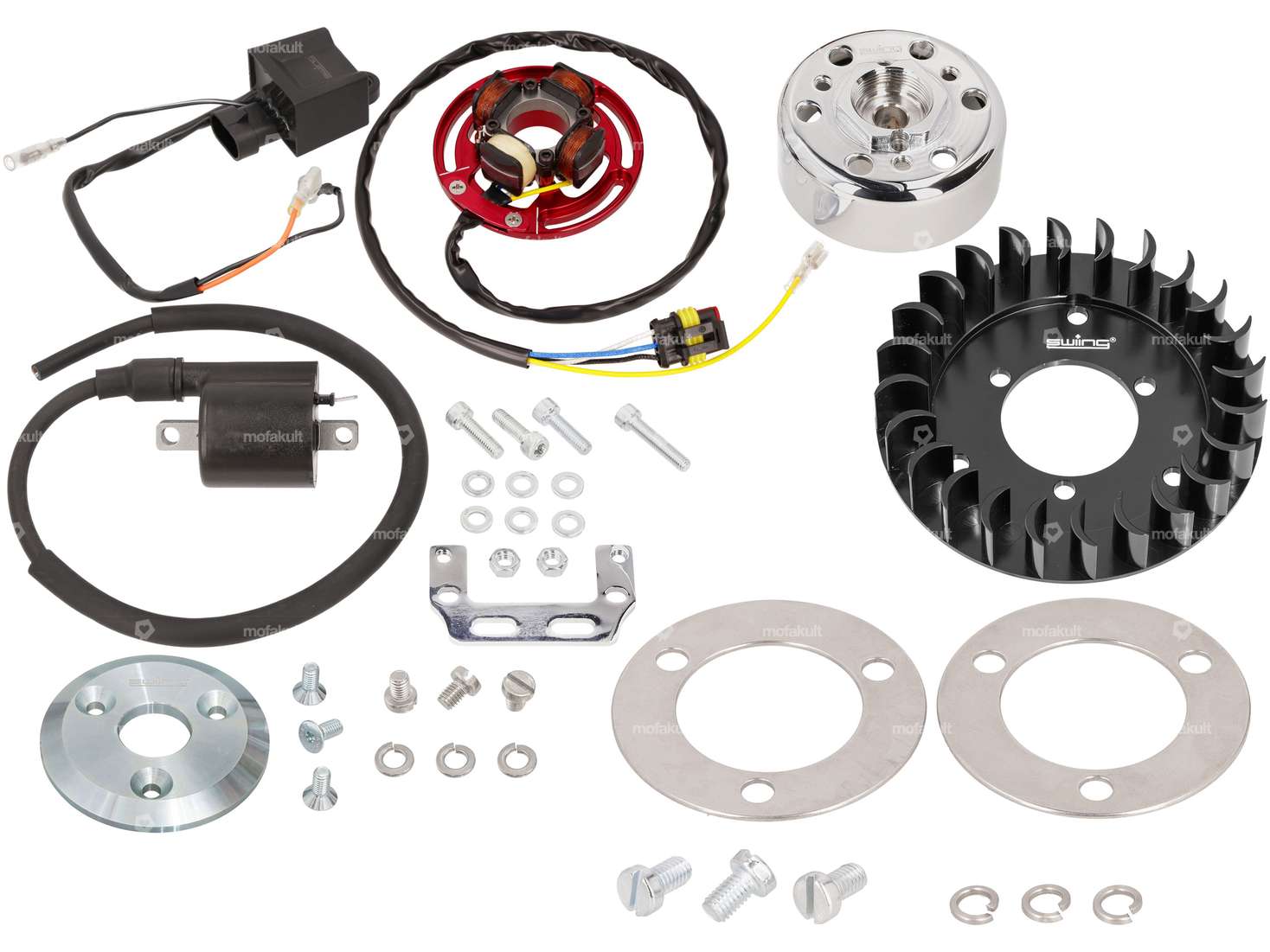

Complete set of the 12V swiing® ingenious EVO ignition with built-in 60W light coil and fan wheel. Suitable for your Sachs moped / moped with 502, 50/2, 50/3, 50/4 engine and fan cooling.
The racing ignition comes complete with CNC-milled fan wheel and constantly supplies your cylinder with the optimum cooling.

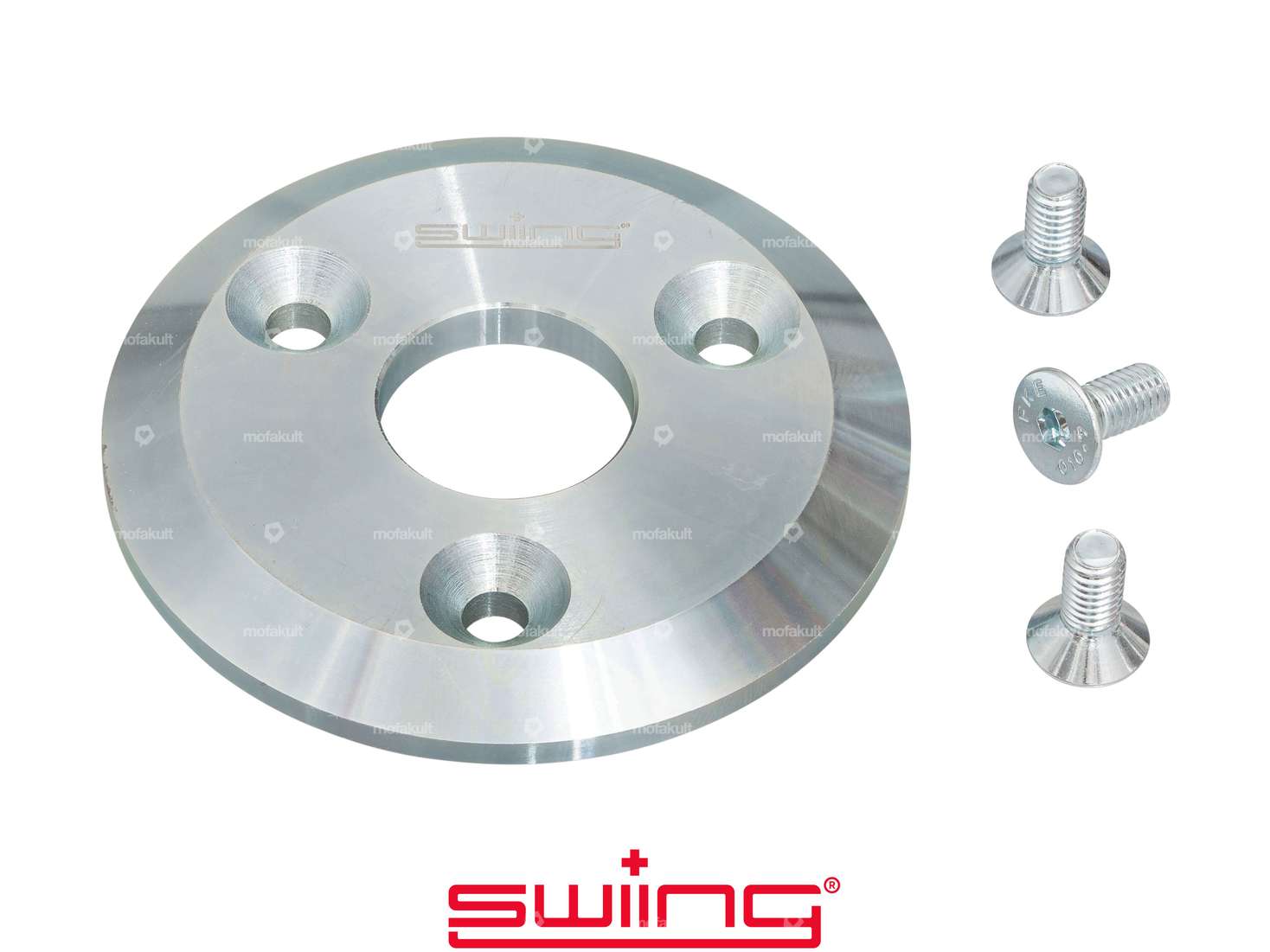

The small rotor results in better acceleration and throttle response. If you want an even smoother idle, you can order the additional weight (optional) at the same time.
Advantages of the EVO tuning ignition:
- Always a constant, strong spark
- No more misfires
- One-time adjustment
- Little to no wear
- Large adjustment range thanks to long slots
The following special features characterize this ignition:

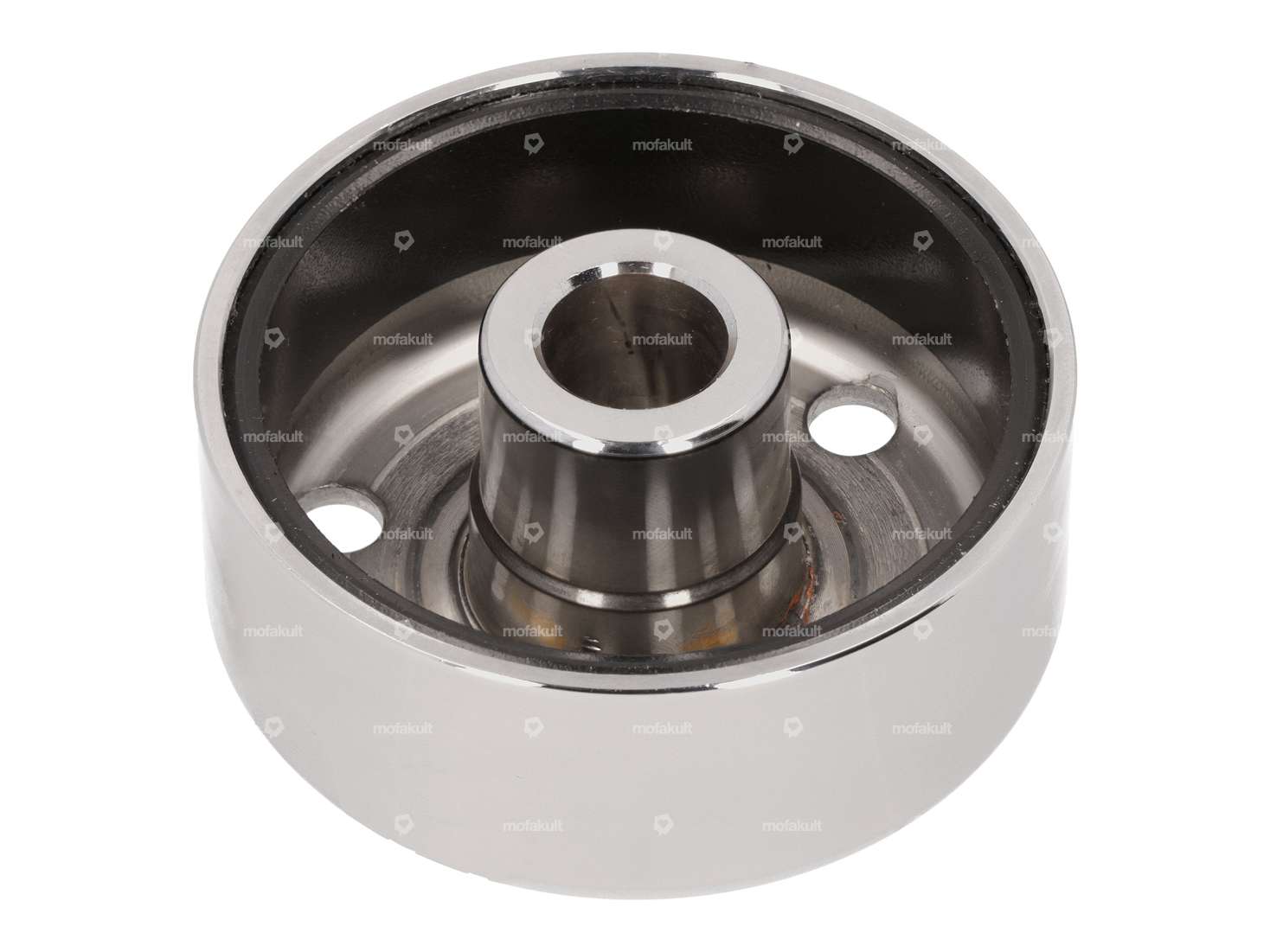

- From the factory more flywheel mass than HPI ignitions, therefore smoother engine idling (382 grams)
- Fine balanced flywheel for less vibration
- Trigger thread with normal M26x1.5 mm pitch, so normal Bosch/Ducati flywheel pullers can be used
- Easy adjustment of the ignition timing

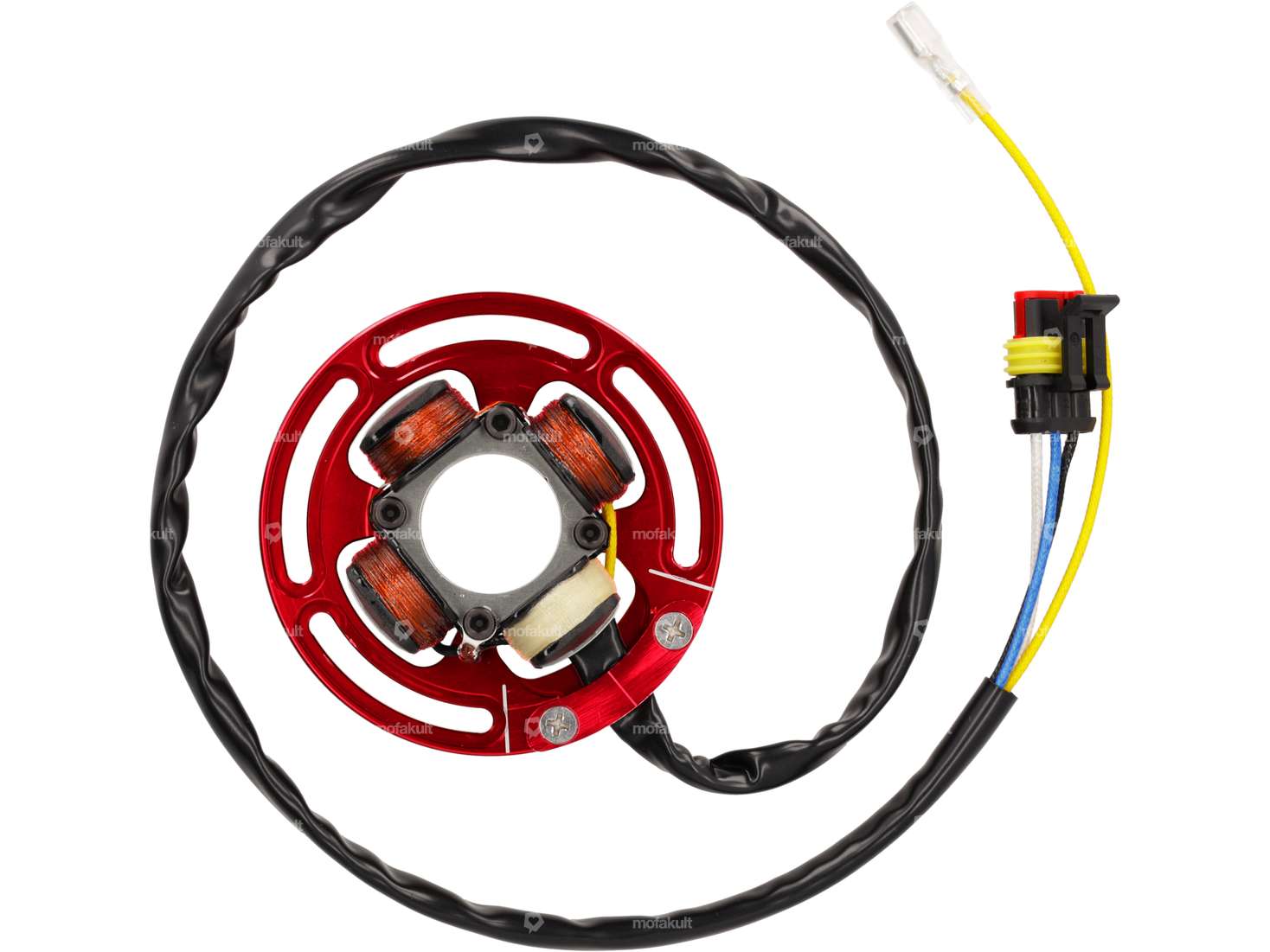

- The stator was designed for high heat loads;designed for high heat loads, no more failures due to overheating
- Optimized ignition curve (adjustment 12° - 14°)
- Light voltage: 12 Volt
- Light output: 60 Watt
- Ø outside flywheel: 75 mm
- Flywheel cone: ratio 1:5 (standard for Puch & Sachs crankshafts)
- Ø outer stator plate: 90 mm
Installation instructions:
- Right-turning engines: Set the piston to TDC, the marking on the base plate at 11 o'clock (to the left of the swiing logo) must match the marking on the flywheel, this achieves a timing point of 2 mm before TDC.
- Left-turning engines: Set the piston to TDC, the marking on the base plate at 13 o'clock (to the right of the swiing logo) must match the marking on the flywheel; this achieves a timing point of 2 mm before TDC.
- Flywheel tightening torque: 37 - 39 Nm (no keyway available)

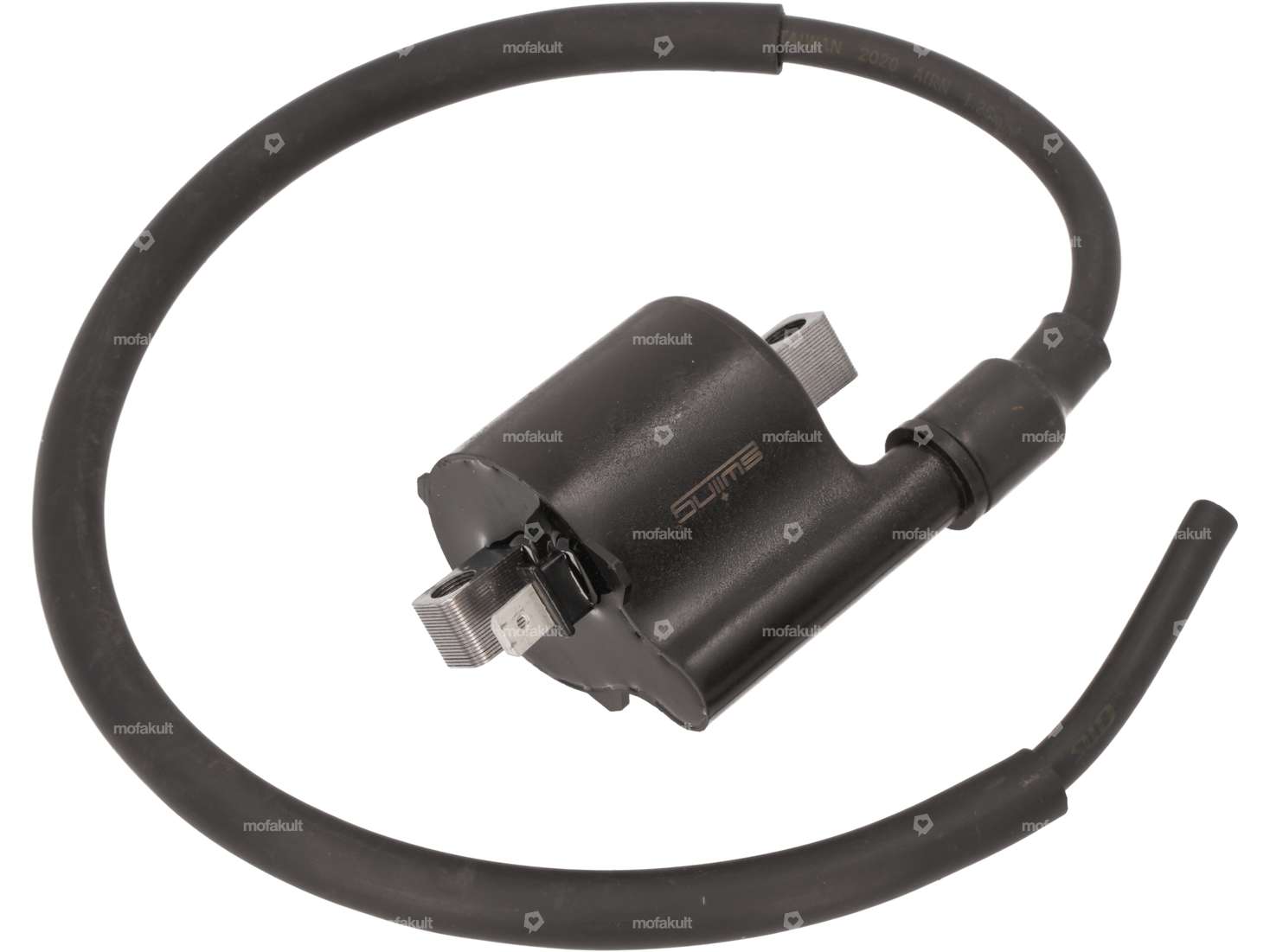

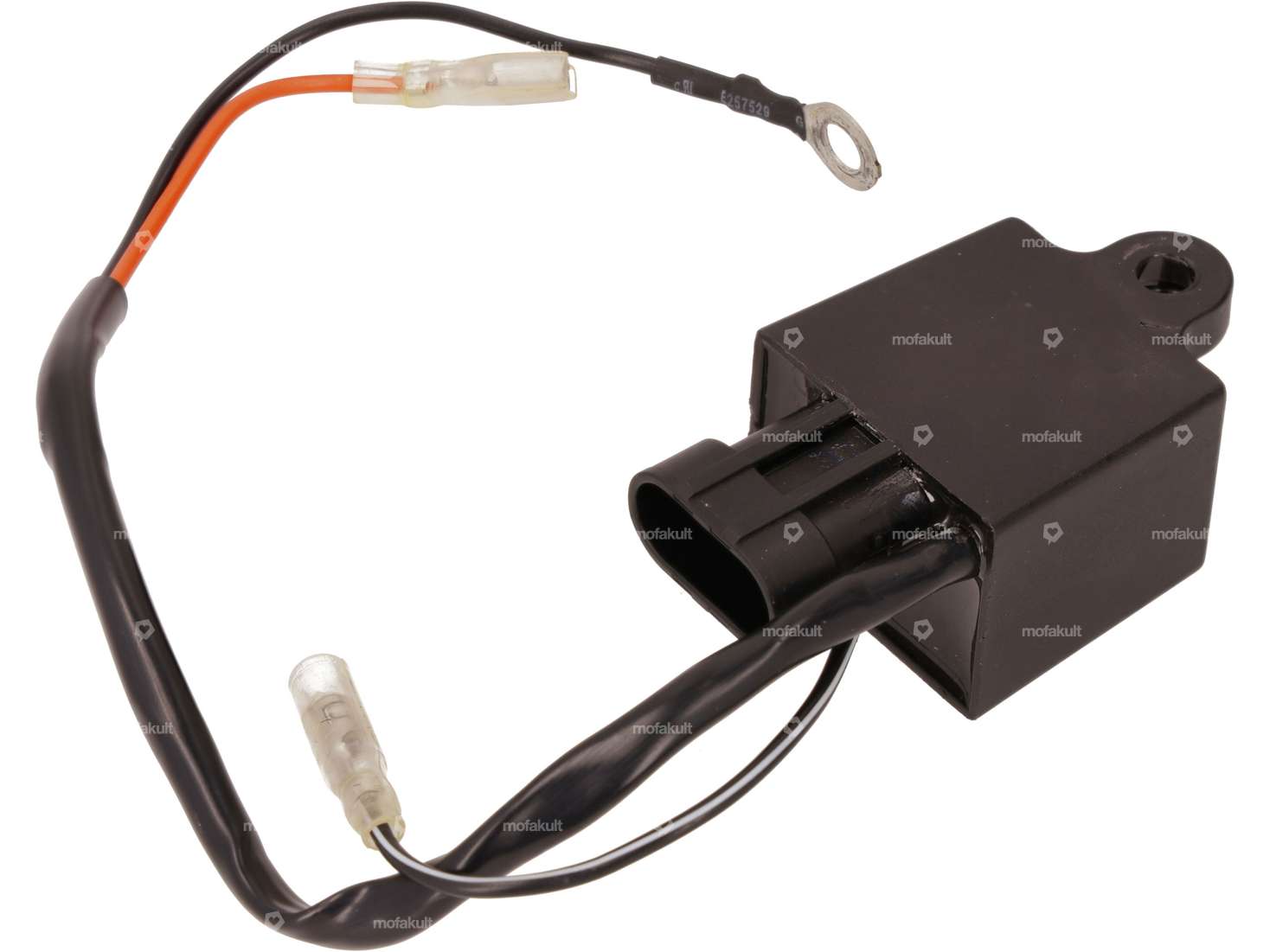

- The CDI and ignition coil must be supplied with a good ground (earthing), otherwise they can be damaged within a short time.
- The lighting system should also be equipped with a 12 V voltage regulator.

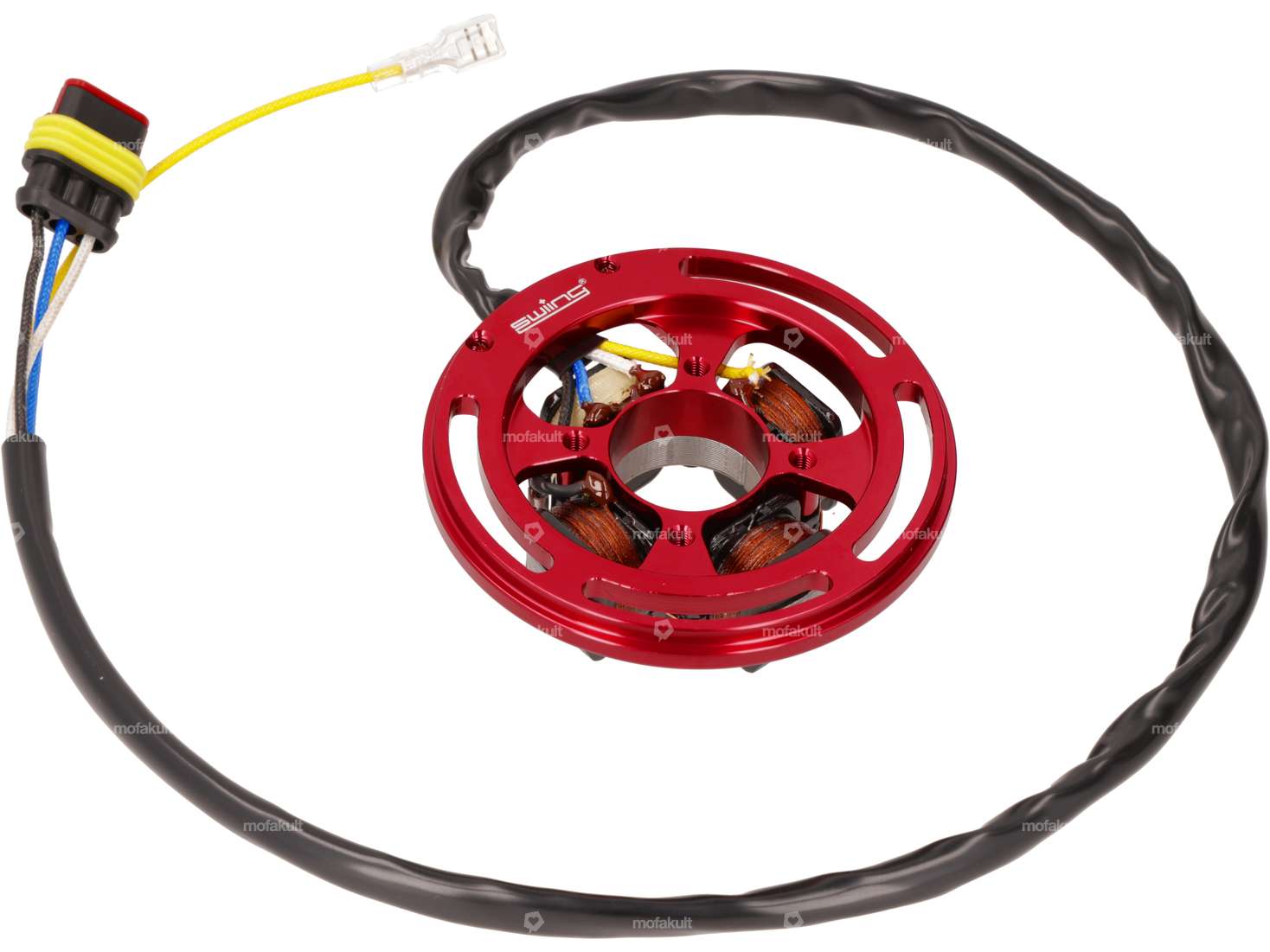

Correct pinning of the Superseal plug:
- 1 = black
- 2 = blue
- 3 = white
Attention: Under no circumstances should excessively long screws be used to mount the fan wheel, as otherwise the stator winding may be damaged. A suitable screw set is included in the scope of delivery.
When you purchase this complete set, you will receive a substantial percentage off the retail price of the individual parts.
The ignition is compatible with cable starters, which also fit the HPI, you can find these in the accessories section.
Exclusive product for the highest demands of the quality brand swiing®.
Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Color: black · Ø outside: 110 mm · Ø inside: 39 mm · Ø mounting hole: 6 mm · Ø bolt circle: 48 mm · Number of fixing points: 6 pcs · Height: 25 mm · Weight: 116 g · Alternative version of the Pony OEM number: A1026 · Alternative version of the Sachs OEM number: 0211 070 105
Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Thread type: M6x1 (standard thread) · Drive: Slot · Number of components: 6 pcs
Manufacturer: swiing® ingenious parts
| Manufacturer | swiing® ingenious parts |
| Tension | 12 V |
| Light coil voltage | 12 V |
| Performance | 60 W |
| Mounting type | Screws |
| Direction of rotation | any |
| Ø mounting plate | 90 mm |
| Ø Internal flywheel | 63.5 mm |
| Ø Flywheel outside | 75 mm |
| Area of application | Tuning, High End, Racing |
| Number of fixing points | 3 pcs |
| Sachs | 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
