For: Sachs

21013

swiing® ingenious piston 40 mm | Sachs 503

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 67.30

Incl. 25% VAT.

Description

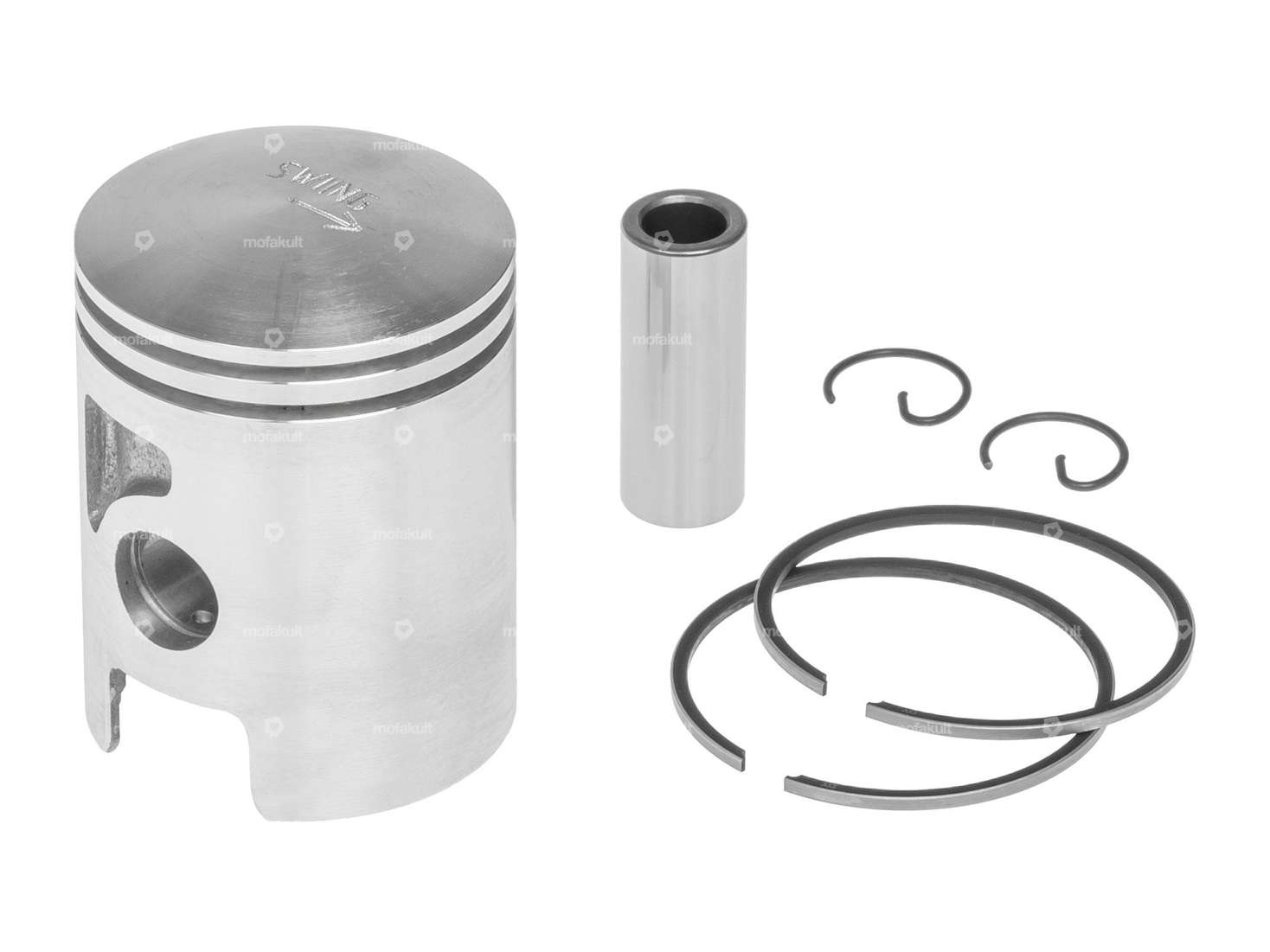

40.0 mm piston with two rectangular piston rings with internal locking (IS) suitable for the swiing racing cylinder made of aluminum for Sachs 503 mopeds / mopeds.
The inner surfaces of the piston have been milled flat for optimum guiding of the connecting rod. The two hard chrome-plated piston rings have a positive effect on the service life.
In addition, the piston has two holes for optimum lubrication of the piston pin.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter40 mm
Manufacturerswiing® ingenious parts
Thick piston ring1.7 mm
Ø outside piston (A)39.97 mm
Compression height (C)28 mm
Curvature (D)3.5 mm
Total piston height (E)54 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Weight piston kit83 g
Sachs

503 - AAL , ABL , 2AL / 2BL
