logo_swiing ingenious parts

For: Puch

20363

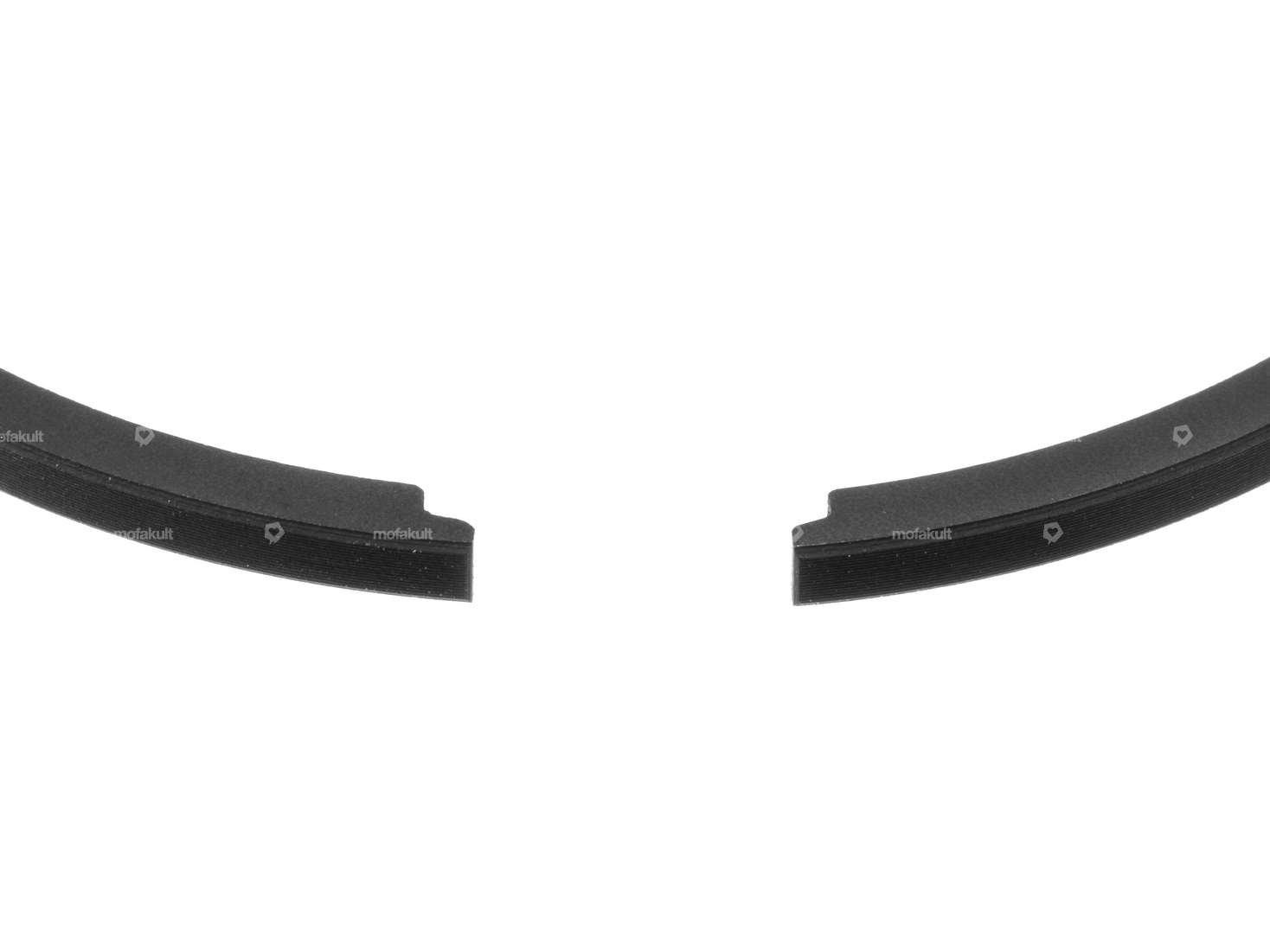

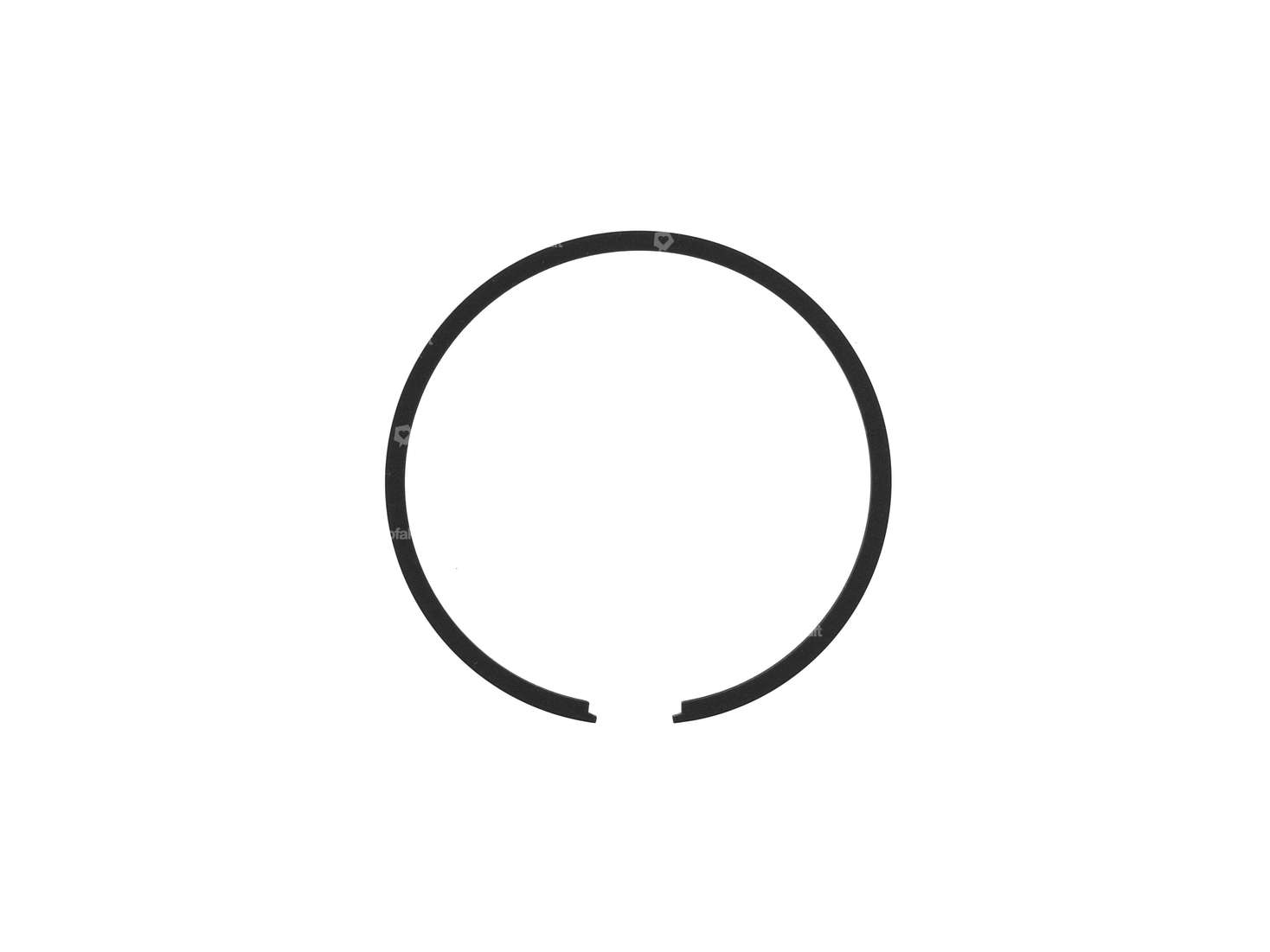

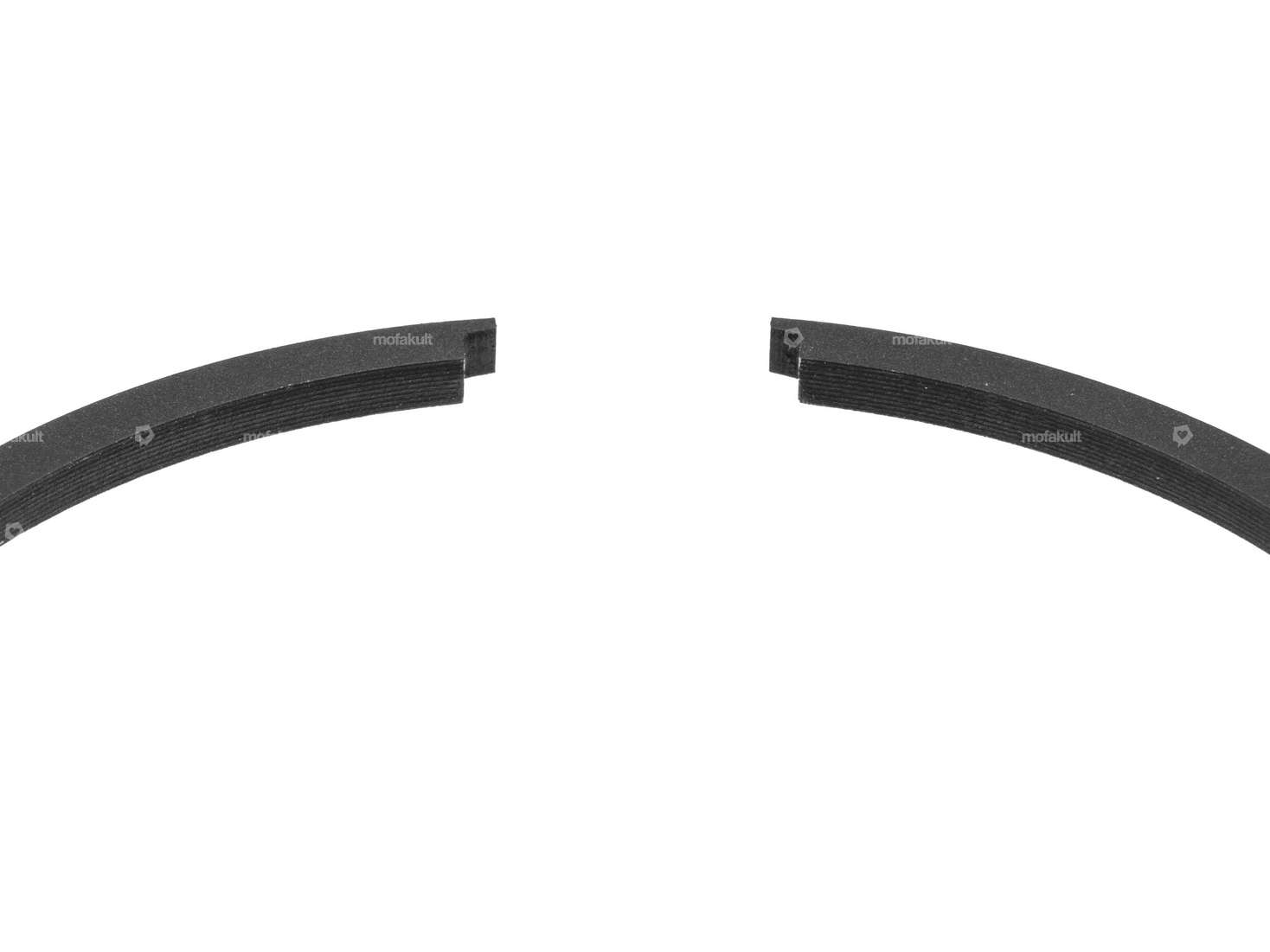

swiing® ingenious piston ring 45x1.5 mm black | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 8.45

Incl. 25% VAT.

Description

Black 45 x 1.5 mm rectangular piston ring with internal fuse (IS) suitable for the swiing® ingenious 45 mm cylinder kit of your Puch Maxi S / N, X30 Sport NS / NL, X30 Sport NG-2A or Supermaxi mopeds, mopeds.

The detailed dimensioning of the piston ring according to the technical drawing can be found in the details. In addition, you can find out about the common piston rings, their stems and locking types on the legend in the pictures.

Piston ring 45 mm black

Piston ring 45 mm black

20360

Nominal diameter: 45 mm

Manufacturerswiing® ingenious parts
Surfaceblackened
Nominal diameter45 mm
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Thick piston ring1.8 mm
Height1.5 mm
Area of applicationTuning
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
