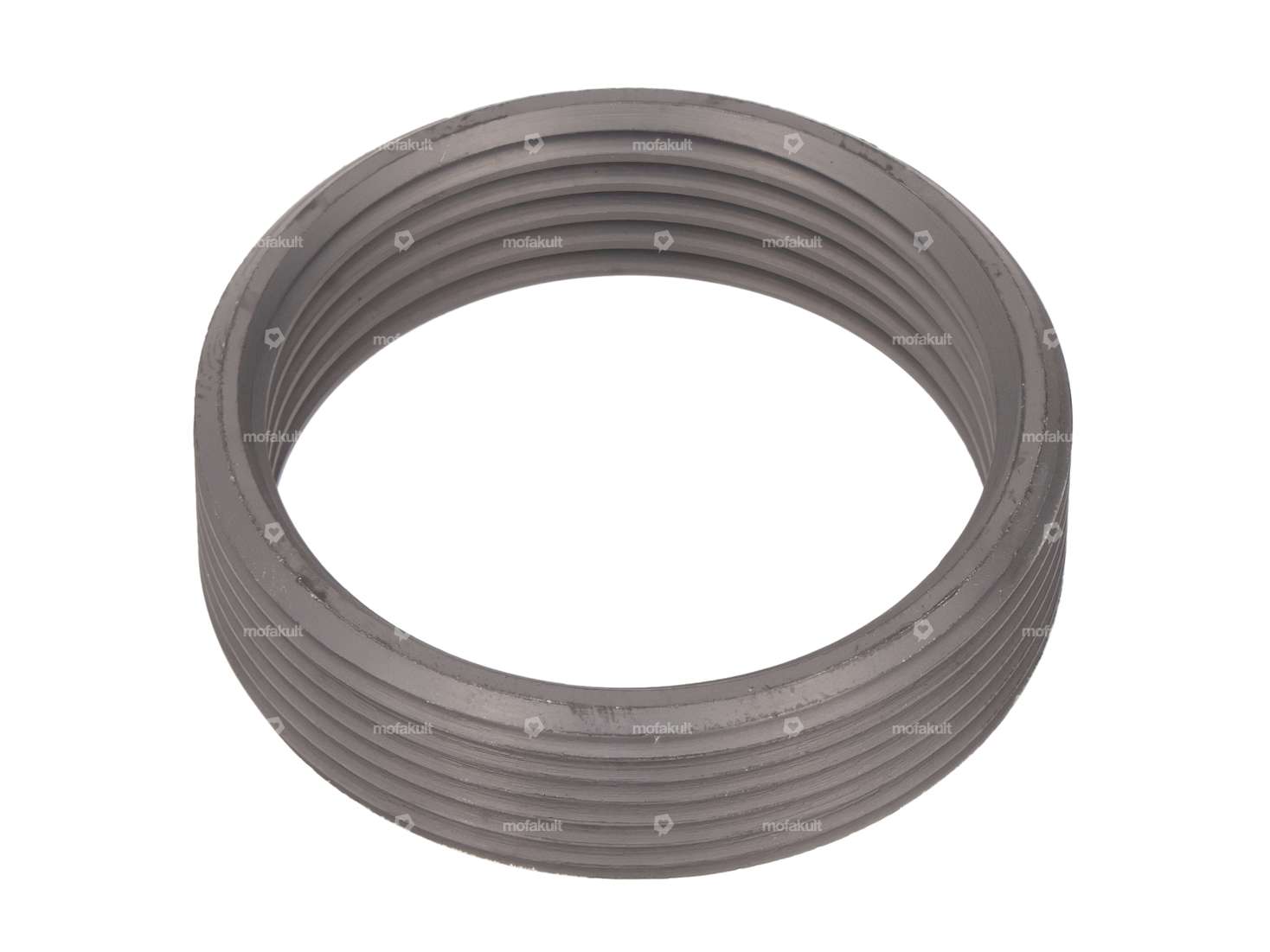

&Transition thread to be able to fit a 32 mm flame tube to original Sachs 50/2 cylinders.

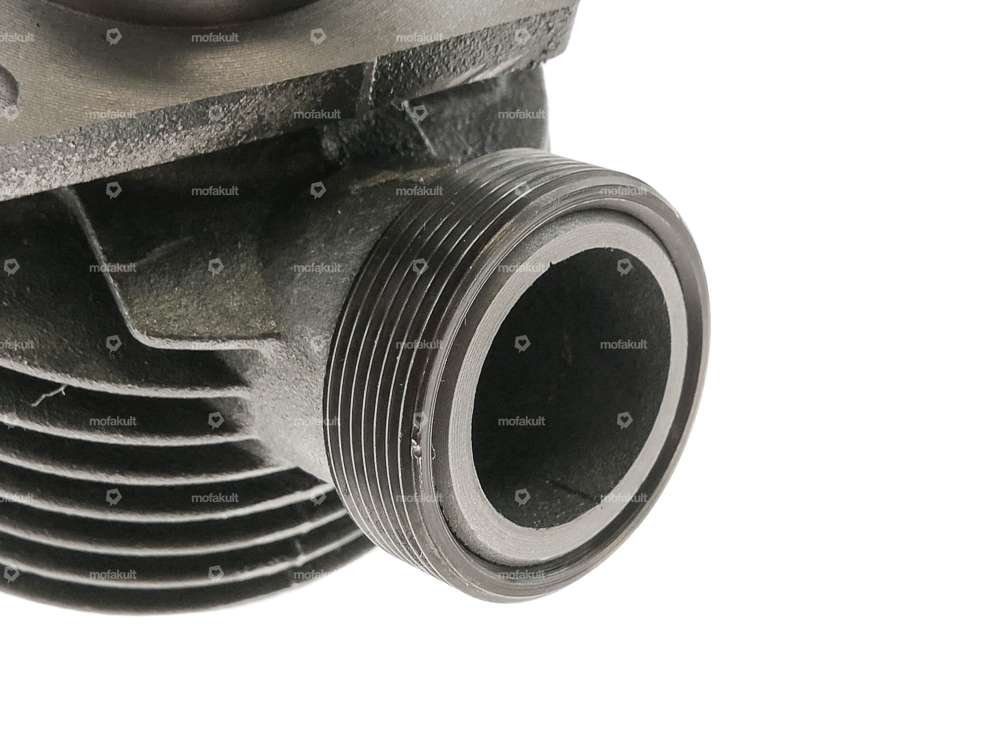

The transition fitting is fitted to the outlet of the cylinder. We recommend securing the M32x2 connection with Loctite.
Now the 32 mm flame tube can be used in conjunction with the M40x1.5 ¨union nut.
Internal thread: M35 x 2 mm
External thread: M40 x 1.5 mm
You will find all the relevant attachments below in the accessories section.
Exclusive product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® ingenious parts |
| Color | black |
| Ø outside | 40 mm |
| Thread type | M35x2 (standard thread), MF40x1.5 (fine pitch thread) |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
