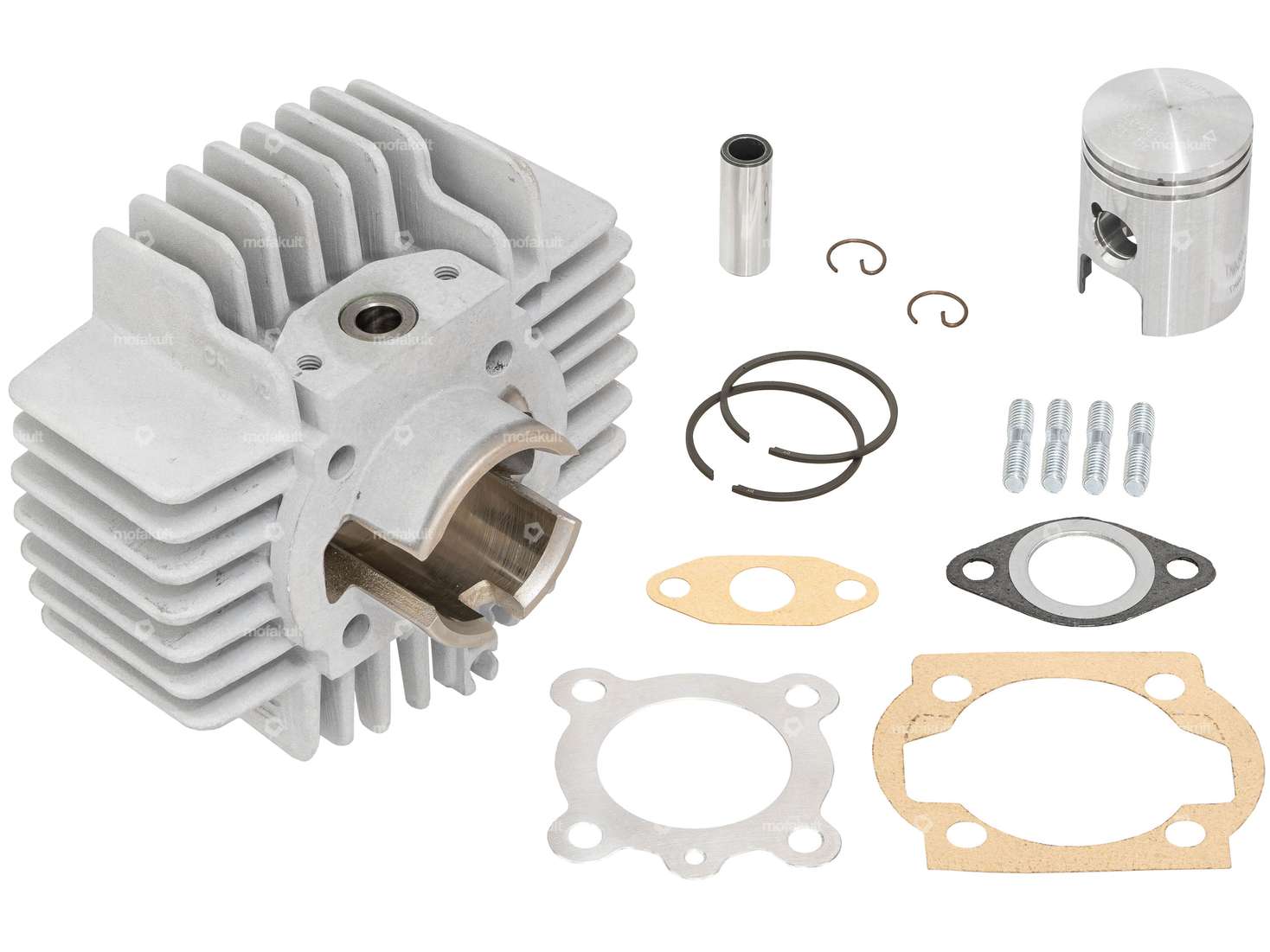

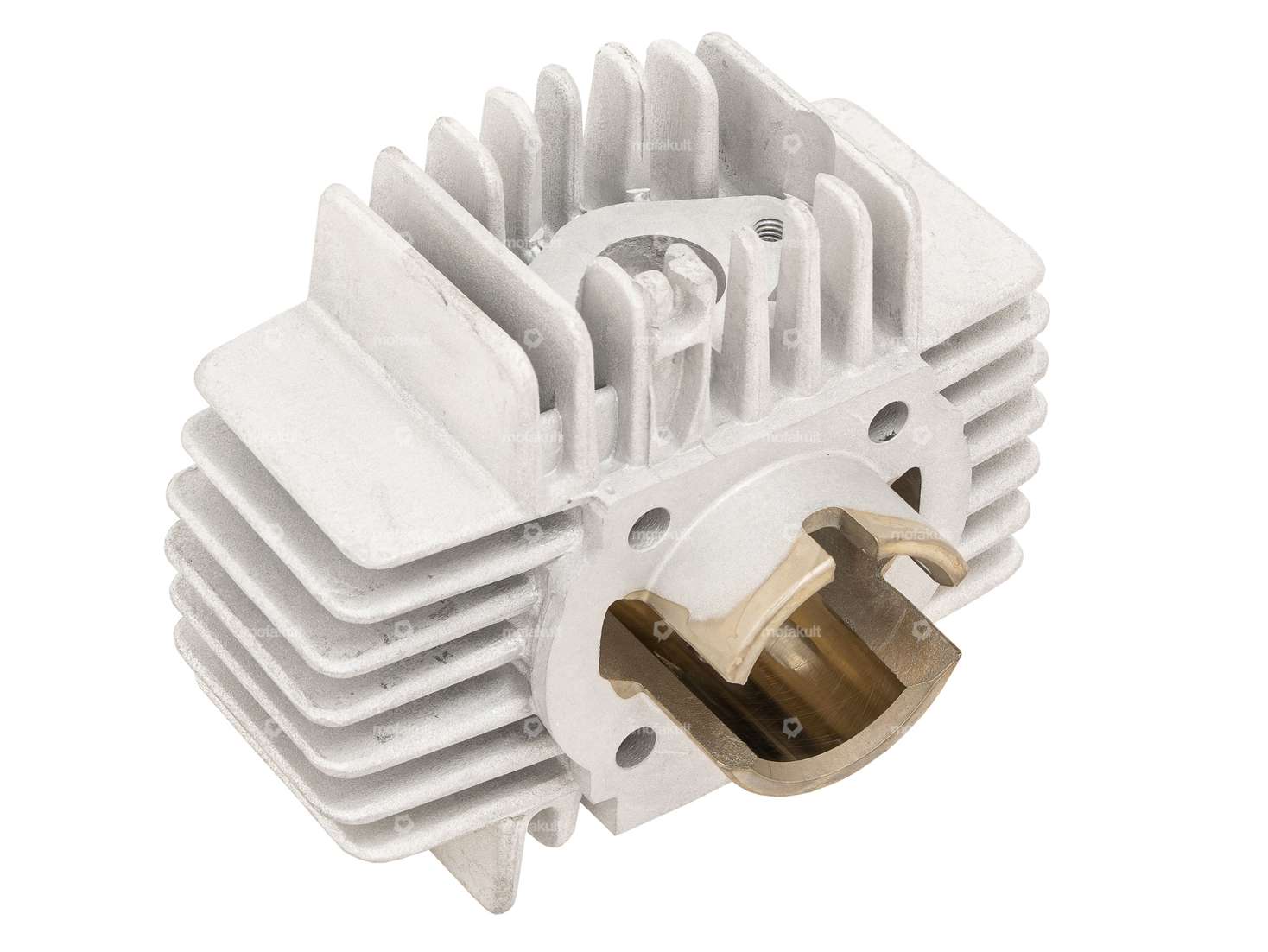

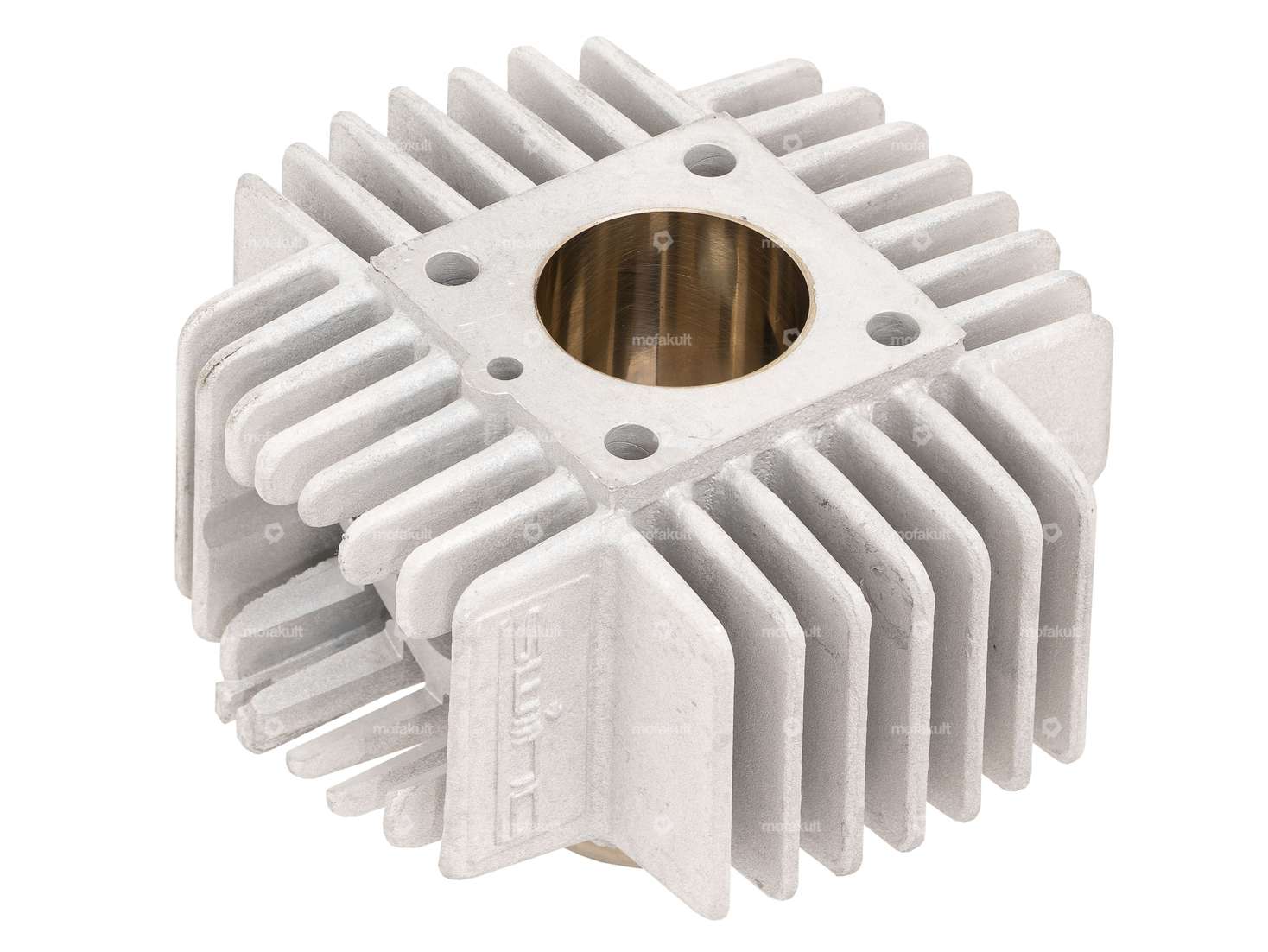

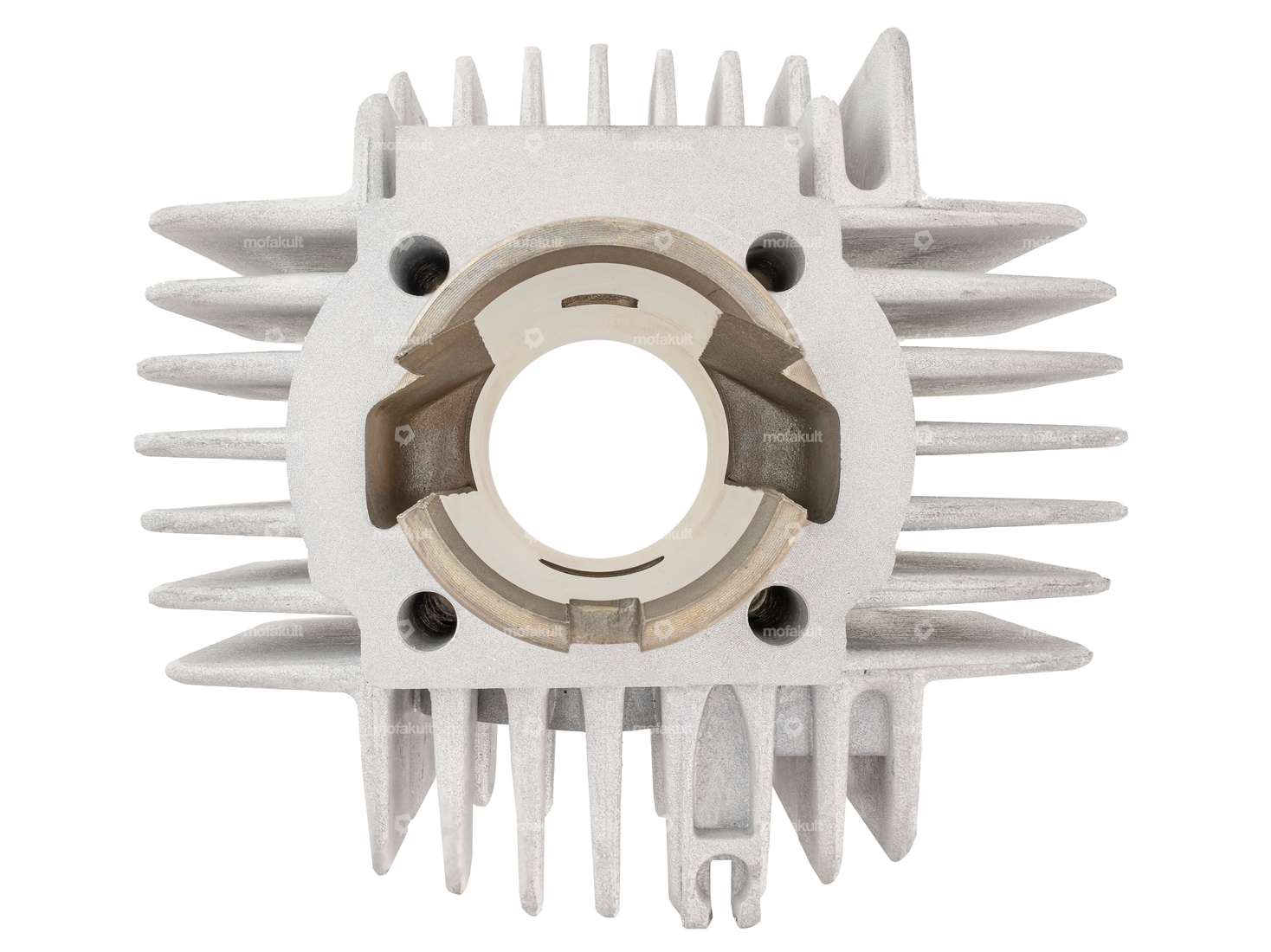

swiing® revival 38 mm cylinder kit 1.6 PS CH12 (Vertex-Edition) Original | Puch

EUR 183.70

Incl. 25% VAT.

Description

The high-quality 38 mm original cylinder is now also available exclusively with «Vertex» pistons.
This cylinder fits various Puch mopeds / mopeds such as Maxi S / N, Puch X30 NS / NL, Puch X30 NG-2A.

Vertex pistons are world-renowned for their quality and design.

With this cylinder, you will reach your destination quickly and powerfully.

  • The intake window has been moved slightly downwards to achieve better timing
  • Lubrication holes on the piston to the piston pin.
  • The inner flats on the piston were milled flat for clean guidance of the connecting rod bearing
  • The piston skirt has been optimized
  • The inlet angles of the transfer ports have been adjusted
  • Intake and exhaust largely milled flat (exhaust and intake manifold can be fitted without any problems)

With these optimizations, the 38 mm cylinder kit delivers a full 1.6 hp to the rear tire with the correct setting. This makes it the most powerful 38 mm cylinder with seal for Puch ever!

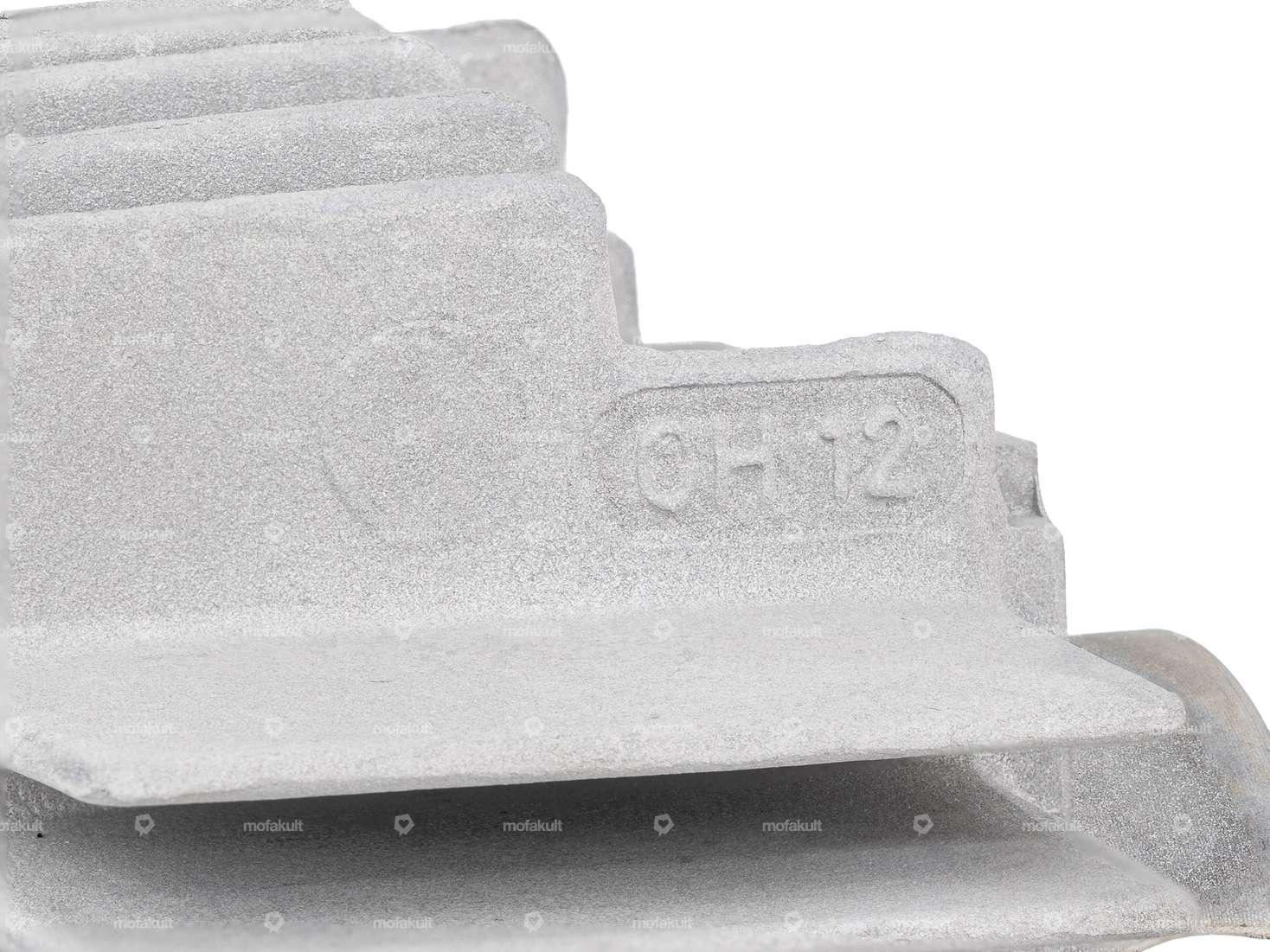

Of course, the original «CH12» is also cast in.

Note: Please note the installation direction when assembling. The piston is inserted with the arrow pointing towards the outlet on the exhaust side.

Attention: This cylinder is a reproduction product which is not approved for use on public roads.

Nostalgic product for the highest demands of the quality brand swiing®.

Download Montageanleitung
Manufacturerswiing® revival parts
MaterialAluminum
CamouflagedYes
Surfacesandblasted
Displacement50 ccm
Nominal diameter38 mm
Crankshaft stroke43 mm
Ø piston pin (B)12 mm
Ø cylinder neck48 mm
Ø outlet inside20 mm
Ø Inlet inside9 mm
Hole spacing inlet38 mm
Area of applicationStandard
Hole pattern [mm]44 x 44
Thread inletM6x1 (standard thread)
Number of fixing points4 pcs
Outlet typestraight
Hole spacing outlet42 mm
Thread outletM6x1 (standard thread)
DecompressorYes
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
