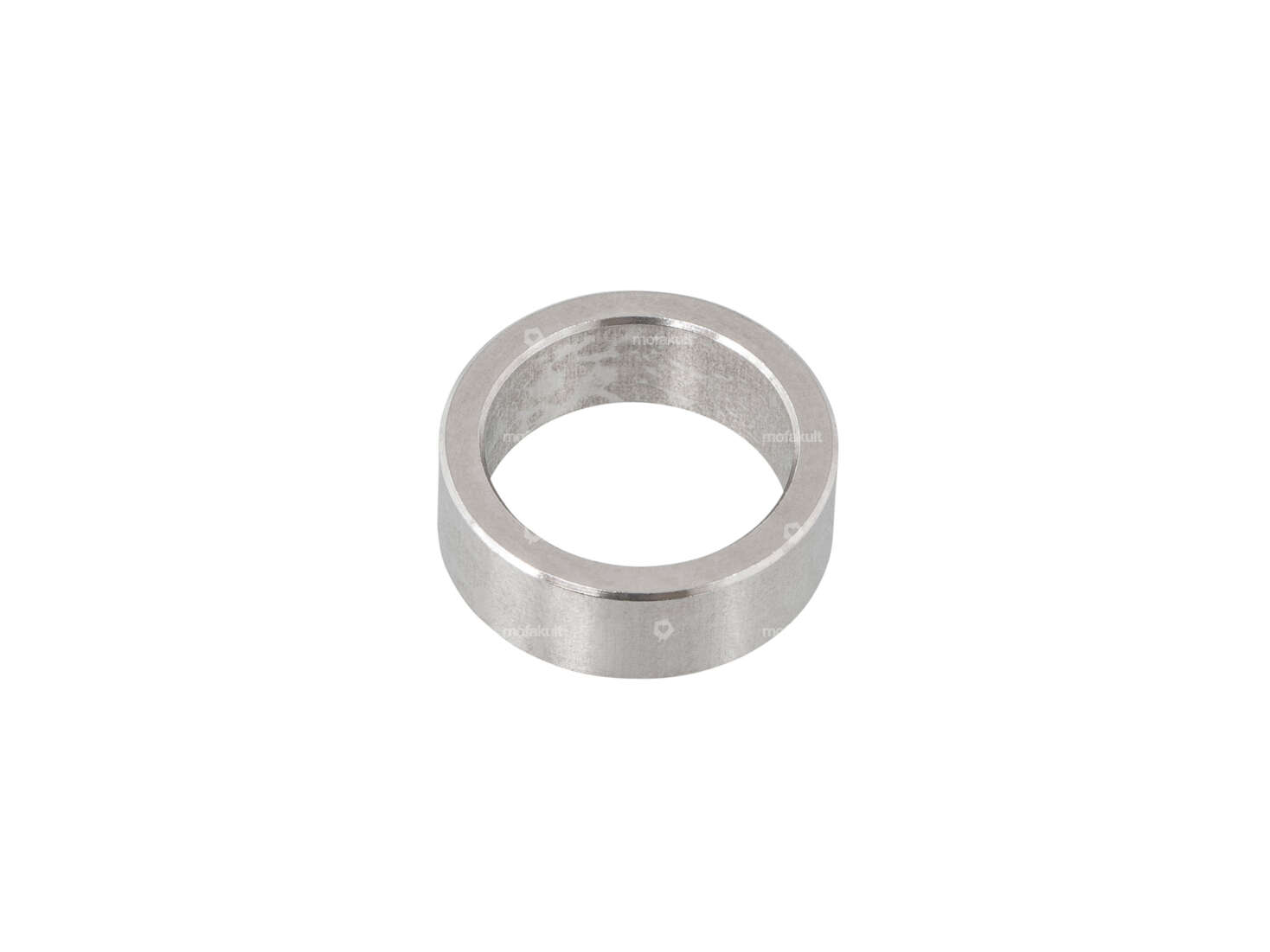

swiing® revival Beilagring shift lever Inox | Sachs 50/2 ML/AML (A1723)

Repair instructions | Sachs 502 (50/2 MLC, 50/AMLC)

Material: Paper · DIN format: A5 · Number of pages: 70 pcs · Language: German

swiing® revival manual shift spring | Sachs 50/2, 503 2AL, 2BL (A1337)

Spring design: Tension spring · Total length: 28 mm · Ø wire: 1.25 mm · Length spring hook: 8 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: burnished · Color: gray · Ø inside: 6 mm · Ø outside: 8.5 mm · Pony OEM number: A1337 · Sachs OEM no.: 0239 102 100

swiing® revival engine revision set large | Sachs 50/2 HG

Manufacturer: swiing® revival parts · Area of application: Standard

swiing® ingenious 41 mm cylinder kit tuning diaphragm | Sachs 50/2 (CH)

Nominal diameter: 41 mm · Manufacturer: GPO · Manufacturer: swiing® ingenious parts · Material: Gray cast iron · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Ø cylinder neck: 44 mm · Ø Outlet outside: 35 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 19 mm · Inlet window: 57.5 x 19 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 68 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 37 x 37 · Camouflaged: Yes · Area of application: Tuning

Shift fork | Sachs 50/2, 503 2AL/2BL (A2755)

Material: Steel · Surface: raw · Pony OEM number: A2755 · Sachs OEM no.: 0286 366 000

Gearshift Sachs 50

Material: Steel

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Subcategory: Spark plug connector · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

Oil seal NBR 15/30/7 B AS | Sachs 503, 50/2

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: B - With sheet metal outer casing / one sealing lip. · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Ø inside: 15 mm · Ø outside: 30 mm · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000

NSK E15 shoulder ball bearing 15/35/8 (A1149)

Bearing type: Shoulder bearing · Stock number: E15 · Width: 8 mm · Inner ring width: 8 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Groove ring: No · Area of application: Standard · Material: Brass · Material: Steel · Surface: blank · Ø inside: 15 mm · Ø outside: 35 mm · Pony OEM number: A1149 · Sachs OEM no.: 0232 017 006

GPO rubber grommet ignition cable | Sachs 50/2 (A1922)

Manufacturer: GPO · Material: Rubber · Color: black · Pony OEM number: A1922 · Sachs OEM no.: 0260 018 100

Rubber grommet round 2 cables | Sachs 502, 503, 504, 505, 535, 508 (A1923)

Total length: 7 mm · Ø Cable bushing: 2.2 mm · Ø Bundle: 10.5 mm · Waistband height: 2 mm · Material: Rubber · Color: black · Ø outside: 12.8 mm · Ø mounting hole: 8.5 mm · Pony OEM number: A1923 · Sachs OEM no.: 0260 020 000

GPO sealing ring 12.8/19/2.4 shift/clutch lever | Sachs 50/2, 503 A3844

Manufacturer: GPO · Material: NBR · Ø inside: 12.8 mm · Ø outside: 19 mm · Thickness: 2.4 mm · Pony OEM number: A3844 · Sachs OEM no.: 0650 017 000

Protective cap shift/clutch lever | Sachs 50/2, 503 2AL/2BL (A1687)

Material: Steel · Surface: galvanized (blue) · Height: 2.4 mm · Ø inside: 14.15 mm · Ø outside: 20 mm · Pony OEM number: A1687 · Sachs OEM no.: 0246 012 000

GPO 70° carburetor pipe bend M6x0.75

Manufacturer: GPO · Width across flats nut: 8 mm · Component group Carburetor: Adjusting screws, float, etc. · Material: Brass · Thread type: MF6x0.75 (fine pitch thread) · Ø outside: 6 mm · Total length: 35 mm · Total length: 41.5 mm · Internal thread: M5x0.8 (standard thread) · Angle: 70 ° · Height: 36 mm · Height: 37 mm

swiing® revival sealing rubber fan cover black | Sachs 50/2, 50/3, 50/4 (A1938)

Manufacturer: swiing® revival parts · Ø Bundle: 20.5 mm · Waistband height: 2 mm · Material: Polyvinyl chloride (PVC-U_hard) · Ø inside: 16.95 mm · Ø outside: 22.1 mm · Total length: 7.9 mm · Color: black · Ø mounting hole: 17 mm · Material thickness: 7.8 mm · Pony OEM number: A1938 · Sachs OEM no.: 0260 044 000

swiing® revival locking plate drive wheel Inox | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A1717)

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Number of lobes: 1 pcs · Thickness: 0.5 mm · Pony OEM number: A1717 · Sachs OEM no.: A1717 · Sachs OEM no.: 0246 049 000
