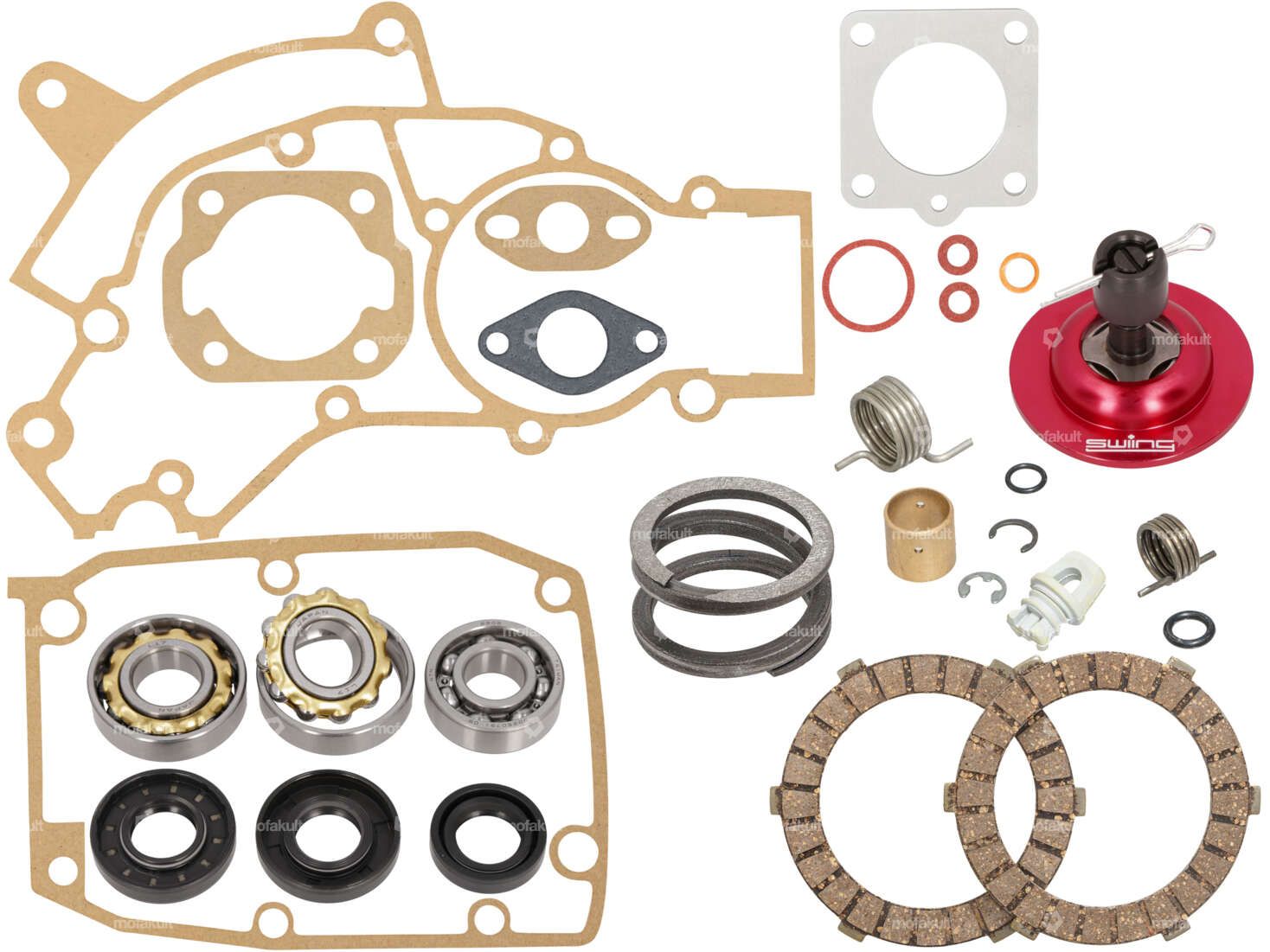

swiing® revival engine revision set large | Puch X30 Sport NS/NL

GPO clutch plates (pair) | Puch X30

Manufacturer: GPO · Number of slats: 2 pcs · Area of application: Standard

swiing® revival gasket set Z50 engine | Puch X30 NS / NL

Manufacturer: swiing® revival parts · Material: Sealing paper · Number of components: 10 pcs · Ø outlet inside: 22 mm · Area of application: Standard · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Hole spacing inlet: 32 - 38 mm

Motorex engine oil (gear oil) manual 450 ml

Manufacturer: Motorex · Viscosity (SAE): 80W · Oil type: GL4 · Contents: 450 ml · Area of application: Gearbox lubrication with clutch · Gearbox type: Foot control · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C

swiing® revival bearing & shaft seals | Puch Z50

Manufacturer: NTN · Manufacturer: SKF · Manufacturer: swiing® revival parts · Material: Plastic · Material: Steel · Number of components: 6 pcs · Area of application: Standard

swiing® revival shim set crankshaft L17 | Puch Z50

Nominal diameter inside: 17 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Ø outside: 23.8 mm · Ø inside: 17.1 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm

swiing® ingenious crankshaft "High End" | Puch X30 NS / NL (Z50)

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 57 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 70 mm · Area of application: Racing · Area of application: Tuning · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 10 mm · Thread length: 13 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 20 mm · Length 2nd paragraph: 19 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 954 g · Number of gears: 2 pcs

swiing® ingenious clutch spring reinforced +20% | Puch Z50

Spring design: Pressure spring · Ø wire: 4.6 mm · Ø inside: 30 mm · Manufacturer: swiing® ingenious parts · Ø outside: 39 mm · Number of components: 1 pcs · Material: Spring steel · Color: blue · Area of application: Tuning · Total length: 20.5 mm · Surface: coated

swiing® ingenious clutch spring reinforced +40% | Puch Z50

Spring design: Pressure spring · Manufacturer: swiing® ingenious parts · Material: Spring steel · Surface: coated · Color: red · Number of components: 1 pcs · Ø outside: 39 mm · Ø inside: 30 mm · Ø wire: 4.5 mm · Total length: 23.5 mm · Area of application: Tuning

swiing® revival drawbar 2-slats High End | Puch Z50

Manufacturer: swiing® revival parts · Material: Aluminum · Material: Steel · Surface: anodized · Surface: blackened · Color: black · Color: red · Ø outside: 44.8 mm · Total length: 35 mm · Area of application: High End
