For: Puch

15777

swiing® revival piston 38 mm | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 55.00

Incl. 25% VAT.

Description

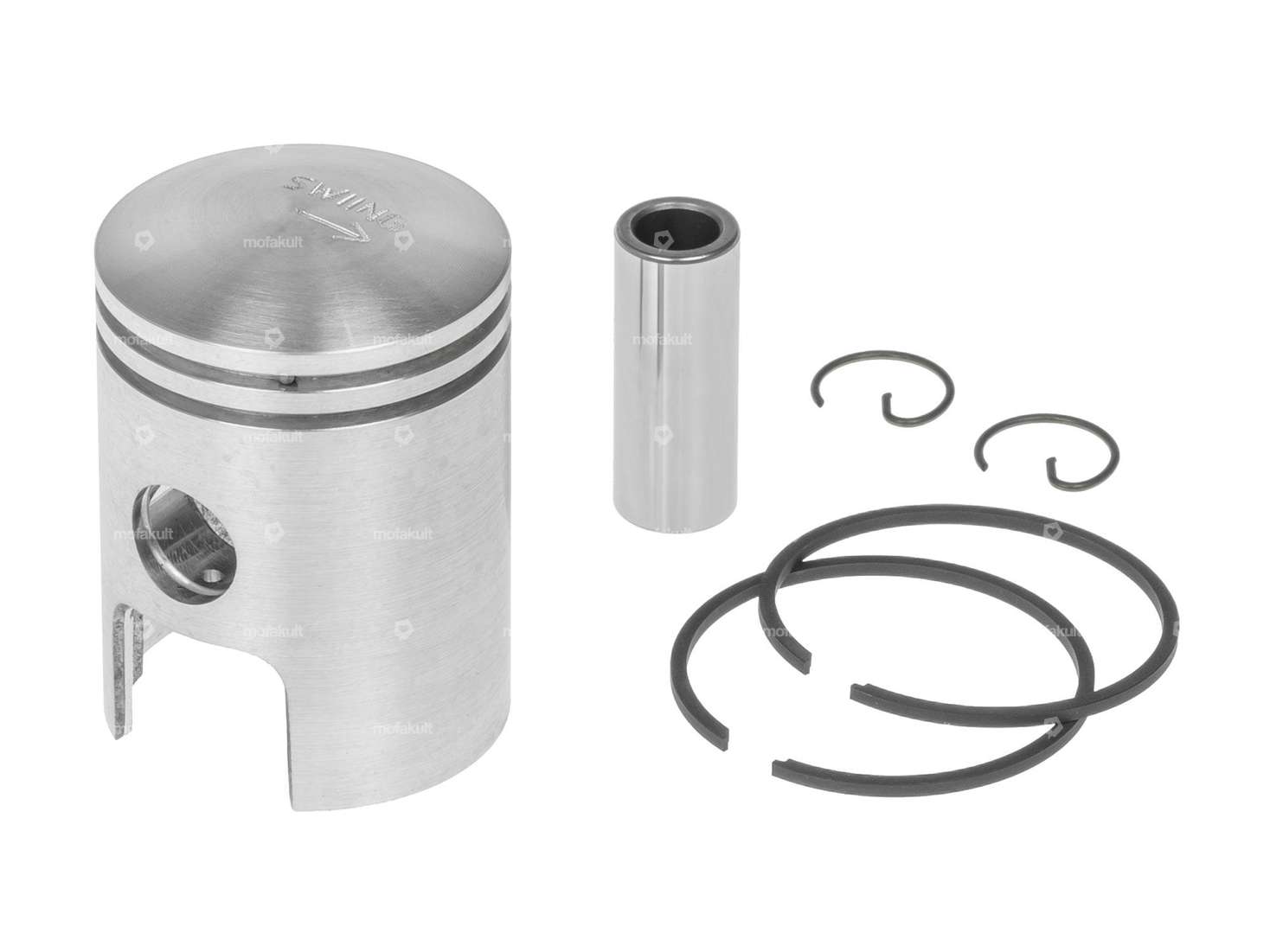

38.0 mm replacement piston with two 1.5 mm rectangular piston rings with internal fuse (IS) for the corresponding Puch cylinder kit for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Manufacturerswiing® revival parts
Nominal diameter38 mm
Ø outside piston (A)37.95 mm
Compression height (C)22.45 mm
Curvature (D)3.8 mm
Total piston height (E)52.7 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Ø piston pin (B)12 mm
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Weight piston kit77 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
