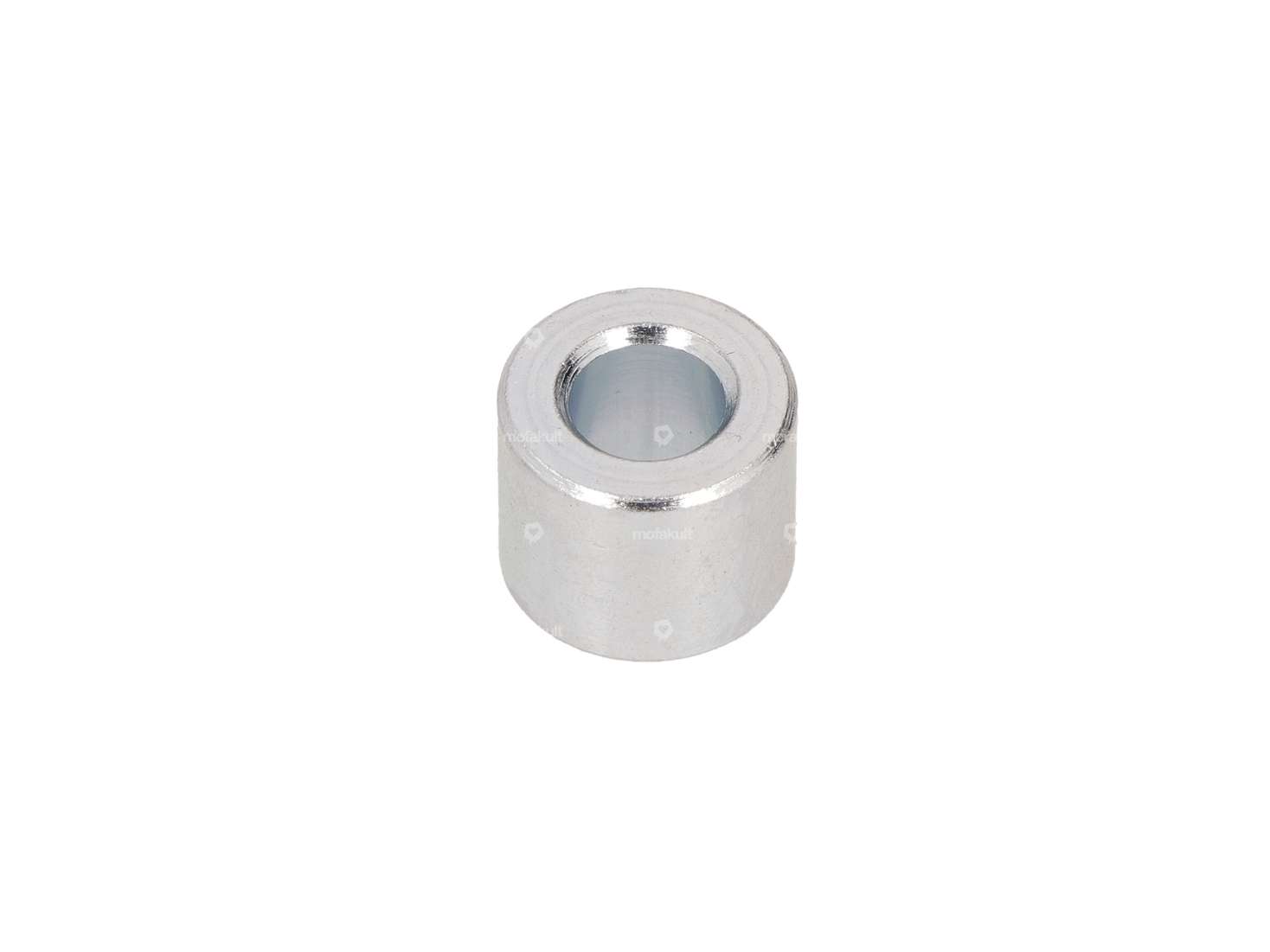

swiing® revival spacer sleeve pick-up ignition | Tomos A35, A52, A55

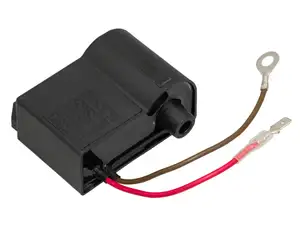

Ignition box CDI Tomos Quadro (2 connections)

Color: black · Ø cable holder: 7 mm · Number of fixing points: 2 pcs · Area of application: Standard · Tomos OEM number: 2230627

Ignition for E-Start & Kickstart | Tomos

Manufacturer: Tomos · Area of application: Original · Area of application: Standard · Tension: 12 V · Performance: 80 W · Mounting type: Screws · Number of fixing points: 2 pcs · Tomos OEM number: 233720

Ignition box CDI / E-Start (4 connections) | Tomos Classic, Sprint, Fun Sport'R

Material: Plastic · Surface: raw · Color: black · Ø cable holder: 7 mm · Number of fixing points: 2 pcs · Hole spacing: 33.5 mm · Hole spacing: 40 mm · Ø mounting hole: 5 mm · Total length: 71.5 mm · Width: 40 mm · Height: 54 mm · Area of application: Original · Tomos OEM number: 233729

Spring washer M6 (6.2x11.8x1.6) galvanized

Ø inside: 6.4 mm · Ø outside: 11.4 mm · Material: Spring steel · Area of application: Standard · Surface: galvanized (blue) · Thickness: 1.8 mm · Nominal diameter (thread): 6 mm · Thread size: M6

Pick-up CDI ignition | Tomos

Total length: 24.2 mm · Width: 47 mm · Height: 32.2 mm · Material: Plastic · Material: Sheet metal (steel) · Area of application: Standard · Surface: raw · Number of fixing points: 2 pcs · Ø mounting hole: 6.9 mm · Hole spacing: 35 mm

Screw M6x20 cylinder head hexagon socket, galvanized

Drive: Hexagon socket · Total length: 25.9 mm · Width across flats: 5 mm · Material: Steel · Surface: galvanized (blue) · Screw head: Cylinder head · Thread type: M6x1 (standard thread) · Ø External head: 9.9 mm · Shank: No · Strength class: 8.8 · Thread length: 20 mm

Spring washer M6 6.4/12/0.5 galvanized

Ø inside: 6.4 mm · Ø outside: 12 mm · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Thickness: 0.5 mm · Nominal diameter (thread): 6 mm · Thread size: M6

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 30 mm · Thread type: M6x1 (standard thread) · Diameter: 5.95 mm · Thread length: 12 mm · Strength class: 10.9

Spacer washer 19/26/0.5

Ø inside: 19 mm · Ø outside: 26 mm · Material: Steel · Surface: blank / oiled · Nominal diameter inside: 19 mm · Thickness: 0.5 mm

GPO oil seal set | Tomos A35

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Width: 7 mm · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 35 mm · Ø outside: 24 mm · Ø outside: 35 mm · Ø outside: 47 mm · Manufacturer: GPO · Material: NBR · Surface: rubberized

Dell'Orto float needle SHA / PHBG carburetor

Manufacturer: Dell'Orto · Component group Carburetor: Adjusting screws, float, etc. · Carburetor type: PHBG · Carburetor type: SHA

Dowel pin Ø 9.8 x 16 mm Motor housing Tomos

Total length: 16 mm · Ø outside: 9.8 mm · Manufacturer: Tomos · Tomos OEM number: 223440

Lock washer pinion nut | Tomos

Ø inside: 22.6 mm · Ø outside: 44 mm · Manufacturer: Tomos · Number of lobes: 1 pcs · Tomos OEM number: 209079

Nut M22x1 Pinion | Tomos

Drive: External hexagon · Width across flats: 30 mm · Height: 8 mm · Manufacturer: Tomos · Nut type: Hexagon nut · Thread type: MF22x1 (fine pitch thread) · Tomos OEM number: 209080

Shim 19/26/0.5 Clutch basket / hub 1st gear | Tomos

Ø inside: 19.1 mm · Nominal diameter inside: 19 mm · Ø outside: 26 mm · Thickness: 0.5 mm · Tolerance: DIN 988 (-0.03 mm) · Manufacturer: Tomos · Material: Spring steel · Surface: Hardened · Tomos OEM number: 209119

swiing® ingenious screw oil drain steel magnetic | Puch

Drive: External hexagon · Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Screw head: Hexagon · Thread type: M8x1.25 (standard thread) · Width across flats Screw: 13 mm · Thread length: 7 mm · Total length: 24 mm
