Locking plate

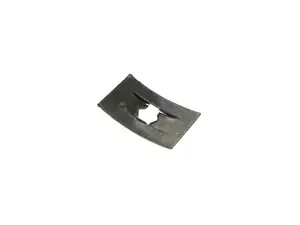

Fuse plate emblem original | Piaggio Ciao, SI, Bravo, Boxer & Vespa

Manufacturer: Piaggio · Clamping range: 3 - 5 mm · Total length: 13 mm · Width: 8 mm · Piaggio OEM number: 008108

swiing® revival locking plate nut Variomatic Inox | Piaggio Ciao, SI, Bravo, Boxer

Material: Chrome steel (colloquially known as stainless steel) · Manufacturer: swiing® revival parts · Number of lobes: 1 pcs · Ø inside: 8.15 mm · Ø outside: 33.5 mm · Area of application: Original · Area of application: Standard

swiing® revival locking plate drive wheel Inox | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A1717)

Material: Chrome steel (colloquially known as stainless steel) · Manufacturer: swiing® revival parts · Number of lobes: 1 pcs · Thickness: 0.5 mm · Pony OEM number: A1717 · Sachs OEM no.: A1717 · Sachs OEM no.: 0246 049 000

CIF locking plate clutch Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF

swiing® revival locking plate | Puch X30 ZA50

Manufacturer: swiing® revival parts · Material: Steel · Number of lobes: 3 pcs · Thickness: 0.9 mm · Ø inside: 16.5 mm

swiing® revival locking plate gear nut M10 | Puch X30

Manufacturer: swiing® revival parts · Material: Steel · Number of lobes: 1 pcs · Ø inside: 10.45 mm · Thread size: M10

M12 locking plate 2 tabs

Material: Steel · Number of lobes: 2 pcs · Ø inside: 12.7 mm · Thickness: 1 mm · Width: 6 mm · Thread size: M12 · Width 2: 9 mm

Locking plate starter clutch Mono & Vario original | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Leaf spring · Manufacturer: Piaggio · Material: Spring steel · Piaggio OEM number: 220441

Clamping ring 3.75/12/0.3

Place of use: Universal · Fuse type: Outside · Material: Spring steel · Surface: blackened · Ø inside: 3.75 mm · Ø outside: 12 mm · Nominal diameter: 4 mm · Height: 1.7 mm · Thickness: 0.3 mm

swiing® revival lock washer sprocket mounting coaster wheel Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Number of lobes: 2 pcs

Clamping ring 9.65/20/0.4

Place of use: Universal · Fuse type: Outside · Material: Spring steel · Surface: blackened · Ø inside: 9.65 mm · Ø outside: 20 mm · Nominal diameter: 10 mm · Height: 2.3 mm · Thickness: 0.4 mm

Locking plate countershaft | Puch X30 Velux

Number of lobes: 2 pcs · Ø inside: 12.7 mm · Thickness: 1 mm · Width: 6 mm · Width 2: 9 mm

Lock washer M21x1 Nut | Sachs

Material: Steel · Surface: galvanized (blue) · Ø inside: 21 mm · Ø outside: 32 mm · Thickness: 0.5 mm · Pony OEM number: A5612 · Sachs OEM no.: 0244 052 000

swiing® revival locking plate pinion | Cilo 502

Manufacturer: swiing® revival parts · Ø inside: 15 mm · Ø inside: 17 mm · Ø outside: 29.9 mm · Thickness: 0.8 mm

M12 locking plate 1 lug

Manufacturer: Made in Portugal · Thread size: M12 · Ø inside: 13.4 mm · Ø outside: 32 mm · Number of lobes: 1 pcs · Thickness: 0.8 mm

Locking plate pinion M10

Material: Steel · Thread size: M10 · Ø inside: 12 mm · Ø outside: 24.8 mm · Number of lobes: 1 pcs · Thickness: 1 mm

Locking plate spider | Tomos

Material: Steel · Surface: galvanized (blue) · Ø inside: 45 mm · Number of lobes: 4 pcs · Tomos OEM number: 222583

Clamping ring 5.75/16/0.4

Place of use: Universal · Fuse type: Outside · Material: Spring steel · Surface: blackened · Ø inside: 5.75 mm · Ø outside: 16 mm · Nominal diameter: 6 mm · Height: 2.3 mm · Thickness: 0.4 mm

M12 locking plate for gearbox crankshaft | Zündapp Belmondo (Type 247)

Manufacturer: Made in Portugal · Number of lobes: 3 pcs · Ø inside: 12.25 mm · Thread size: M12

M8 lock washer 2 tabs

Material: Steel · Surface: galvanized (blue) · Thread size: M8 · Ø inside: 8.4 mm · Ø outside: 17 mm · Number of lobes: 2 pcs · Width: 8 mm · Total length: 11 mm · Thickness: 0.75 mm · Length 2: 20 mm · Width 2: 8 mm

Lock washer pinion nut | Puch X30 Velux

Puch OEM number: 350.1.13.018.1

Clamping ring 2.8/10.5/0.3

Place of use: Universal · Fuse type: Outside · Material: Spring steel · Surface: blackened · Ø inside: 2.8 mm · Ø outside: 10.5 mm · Nominal diameter: 3 mm · Height: 1.5 mm · Thickness: 0.3 mm

M10 locking plate gear wheel 3 teeth | Puch X30 Velux

Material: Steel · Number of lobes: 3 pcs · Ø inside: 10.3 mm · Thread size: M10

Clutch hub spring washer | Tomos

Manufacturer: Tomos · Ø inside: 10.5 mm · Ø outside: 18 mm · Tomos OEM number: 031978

Circlip A12 x 1

Place of use: Universal · Fuse type: Outside · Material: Spring steel · Surface: blackened · Nominal diameter: 12 mm · Thickness: 1 mm

M10 locking plate 1 domed nose

Thread size: M10 · Ø inside: 10.7 mm · Ø outside: 25.9 mm · Number of lobes: 1 pcs · Total length: 3.5 mm

M8 locking plate clutch | Puch X30 Velux

Material: Steel · Thread size: M8 · Ø inside: 8.15 mm · Ø outside: 20.1 mm · Number of lobes: 1 pcs · Thickness: 1 mm

M10 lock washer 2 tabs

Material: Steel · Surface: galvanized (blue) · Thread size: M10 · Ø inside: 10.5 mm · Ø outside: 21 mm · Number of lobes: 2 pcs · Width: 10 mm · Total length: 13 mm · Thickness: 0.75 mm · Length 2: 22 mm · Width 2: 10 mm

M10 lock washer 1 tab

Material: Steel · Surface: galvanized (blue) · Thread size: M10 · Ø inside: 10.5 mm · Ø outside: 26 mm · Number of lobes: 1 pcs · Width: 10 mm · Total length: 22 mm · Thickness: 0.75 mm

Lock washer pinion nut | Tomos

Manufacturer: Tomos · Ø inside: 22.6 mm · Ø outside: 44 mm · Number of lobes: 1 pcs · Tomos OEM number: 209079

swiing® revival lock washers sprocket 4-hole Grimeca rim Inox | Puch / Sachs

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Number of lobes: 4 pcs · Thickness: 1 mm · Ø bolt circle: 115 mm

M6 lock washer 2 tabs

Material: Steel · Surface: galvanized (blue) · Thread size: M6 · Ø inside: 6.4 mm · Ø outside: 12.5 mm · Number of lobes: 2 pcs · Width: 7 mm · Total length: 9 mm · Thickness: 0.5 mm · Length 2: 18 mm · Width 2: 7 mm

Locking plate clutch spring | Tomos

Manufacturer: Tomos · Tomos OEM number: 209039

Clamping ring 6.7/17/0.4

Place of use: Universal · Fuse type: Outside · Material: Spring steel · Surface: blackened · Ø inside: 6.7 mm · Ø outside: 17 mm · Nominal diameter: 7 mm · Height: 2.3 mm · Thickness: 0.4 mm

M5 locking plate 2 tabs

Material: Steel · Surface: galvanized (blue) · Thread size: M5 · Ø inside: 5.3 mm · Ø outside: 10 mm · Number of lobes: 2 pcs · Width: 6 mm · Total length: 8 mm · Thickness: 0.5 mm · Length 2: 16 mm · Width 2: 6 mm

swiing® revival locking plate fork steerer nut | Piaggio SI, Bravo, SUPERbravo, Boss

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Ø inside: 28 mm · Ø outside: 36 mm · Thickness: 2 mm · Piaggio OEM number: 267743

Locking plate Ø 10 mm pinion | Kreidler

Manufacturer: Made in Portugal · Ø inside: 10 mm · Ø outside: 32.1 mm · Number of lobes: 1 pcs · Total length: 3.2 mm

M6 lock washer 1 tab

Material: Steel · Surface: galvanized (blue) · Thread size: M6 · Ø inside: 6.4 mm · Ø outside: 19 mm · Number of lobes: 1 pcs · Width: 7 mm · Total length: 18 mm · Thickness: 0.5 mm

M8 lock washer 1 tab

Material: Steel · Surface: galvanized (blue) · Thread size: M8 · Ø inside: 8.4 mm · Ø outside: 22 mm · Number of lobes: 1 pcs · Width: 8 mm · Total length: 20 mm · Thickness: 0.75 mm

M14 locking plate 2 tabs

Material: Steel · Surface: galvanized (blue) · Thread size: M14 · Ø inside: 15.2 mm · Ø outside: 27.5 mm · Number of lobes: 2 pcs · Width: 11.9 mm · Total length: 17 mm · Thickness: 1 mm · Length 2: 30 mm · Width 2: 11.9 mm

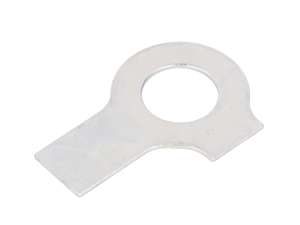

M12 locking plate 1 tab

Material: Steel · Surface: galvanized (blue) · Thread size: M12 · Ø inside: 13 mm · Ø outside: 30 mm · Number of lobes: 1 pcs · Width: 12 mm · Total length: 28 mm · Thickness: 1 mm

M12 locking plate 2 tabs

Material: Steel · Surface: galvanized (blue) · Thread size: M12 · Ø inside: 13 mm · Ø outside: 24 mm · Number of lobes: 2 pcs · Width: 12 mm · Total length: 15 mm · Thickness: 1 mm · Length 2: 28 mm · Width 2: 12 mm

swiing® revival lock washers sprocket 6-hole Inox | Puch Maxi

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Number of lobes: 6 pcs · Thickness: 1 mm · Ø bolt circle: 106 mm

Locking plate for motor adjustment

Width: 14 mm · Total length: 34 mm

M8 locking plate 1 domed nose

Thread size: M8 · Ø inside: 8.6 mm · Ø outside: 21.9 mm · Number of lobes: 1 pcs · Total length: 4.2 mm

Locking plate sprocket | Kreidler

Manufacturer: Made in Portugal · Ø inside: 72 mm · Number of lobes: 5 pcs · Ø bolt circle: 89 mm

swiing® revival lock washers sprocket 6-hole Inox | Peugeot 103

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Number of lobes: 6 pcs · Thickness: 1 mm · Ø bolt circle: 115 mm

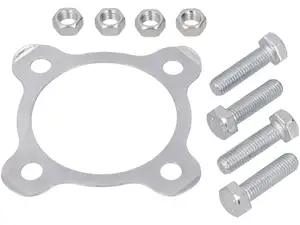

Galvanized lock washer set spider | Hercules Prima, Optima

Ø outside: 60 mm · Ø inside: 50 mm · Screw head: Hexagon · Width across flats: 11 mm · Material: Steel · Surface: galvanized (blue) · Number of lobes: 4 pcs · Thickness: 0.8 mm · Ø bolt circle: 66 mm · Thread size: M7 · Hercules OEM number: 0815 233 000 · Hercules OEM number: 0816 218 000 · Hercules OEM number: 0820 211 000

swiing® revival lock washers sprocket 5-hole Grimaca rim Inox | Puch / Sachs

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Number of lobes: 6 pcs · Thickness: 1 mm · Ø bolt circle: 115 mm

swiing® revival locking plate fork steerer nut | Piaggio Ciao

Material: Steel · Surface: nickel-plated · Manufacturer: swiing® revival parts · Number of lobes: 2 pcs · Thickness: 2 mm · Ø inside: 25.5 mm · Ø outside: 33.5 mm · Area of application: Original · Piaggio OEM number: 189305

M6 locking plate 1 domed nose

Thread size: M6 · Ø inside: 6.6 mm · Ø outside: 18.9 mm · Number of lobes: 1 pcs · Total length: 3.2 mm

M5 lock washer 1 tab

Material: Steel · Surface: galvanized (blue) · Thread size: M5 · Ø inside: 5.3 mm · Ø outside: 19 mm · Number of lobes: 1 pcs · Width: 6 mm · Total length: 17 mm · Thickness: 0.5 mm

Locking plate crankshaft bearing | Solex

Number of lobes: 3 pcs

Locking plate auxiliary shaft | Vespa Largeframe

Material: Steel · Surface: galvanized (blue) · Ø inside: 9.1 mm · Number of lobes: 1 pcs · Thickness: 1.05 mm · Piaggio OEM number: 016305
