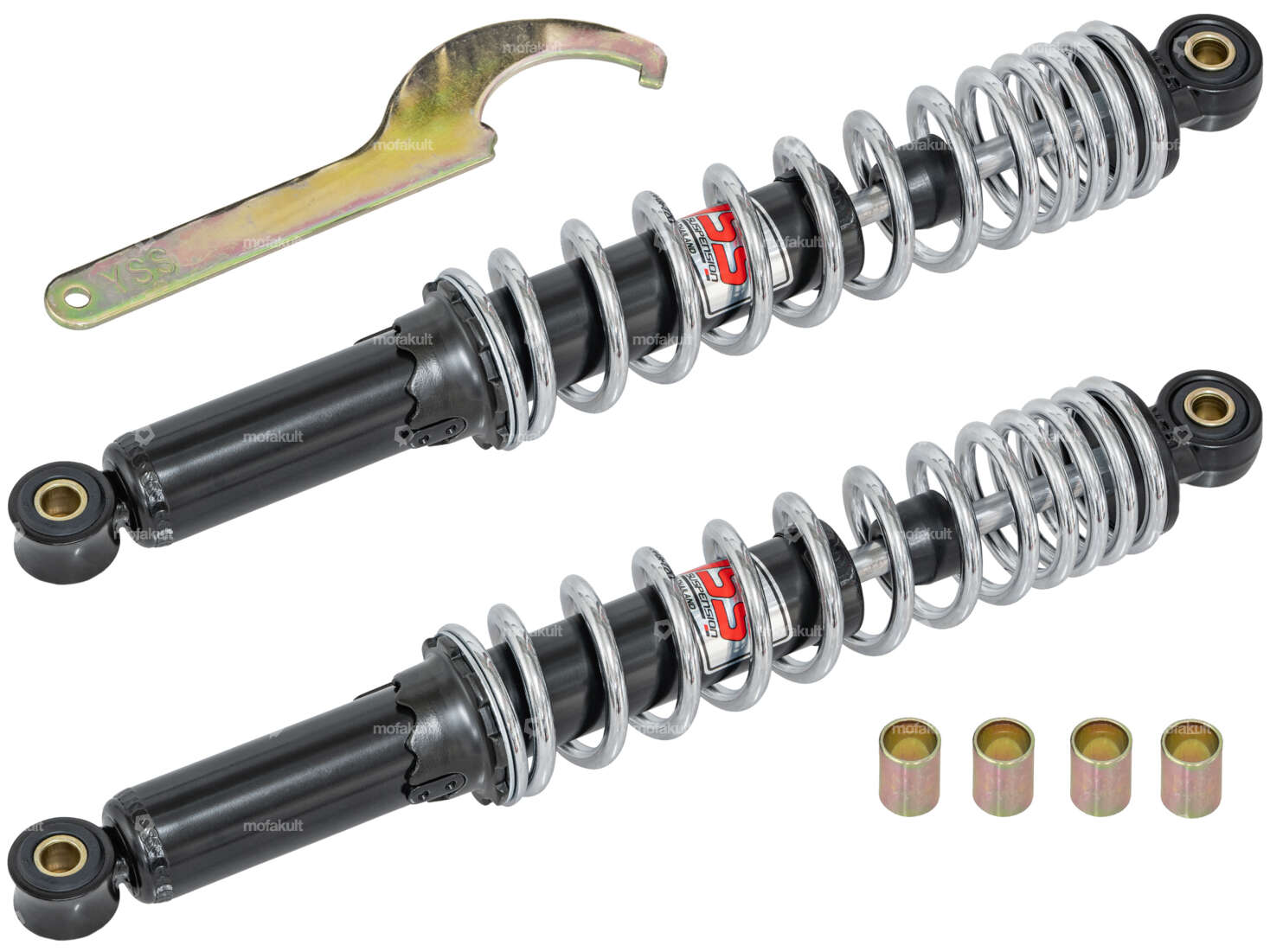

Adjustable oil pressure shock absorbers in black with chrome-plated coil spring for your moped, moped and small motorcycle.
The hardness or preload of the springs can be adjusted in five stages thanks to the special spring mount. The rear springs should always be secured with large washers to prevent the bearing bushes from shifting when lateral forces occur.
Length (mount – mount): 360 mm
Ø outer spiral spring: 52 mm
Ø spars: 32 mm
Ø bushings for fastening: 10 mm / 12 mm
Color: black / chrome
The scope of delivery corresponds to one pair.
You can find rear springs from other manufacturers as well as the washers and fastening material in the accessories section.
Quality product from the manufacturer YSS.
| Manufacturer | YSS |
| Material | Steel |
| Surface | varnished, chrome-plated |
| Color | black, Chrome |
| Damping type | Hydraulic (oil) |
| Adjustable | Yes |
| Ø spars | 32 mm |
| Total length | 395 mm |
| Ø Fastening inside | 10 mm, 12 mm |
| Number of fixing points | 2 pcs |
| Mounting type | Nuts & bolts |
| Ø outside | 52 mm |
| Hole spacing | 360 mm |
