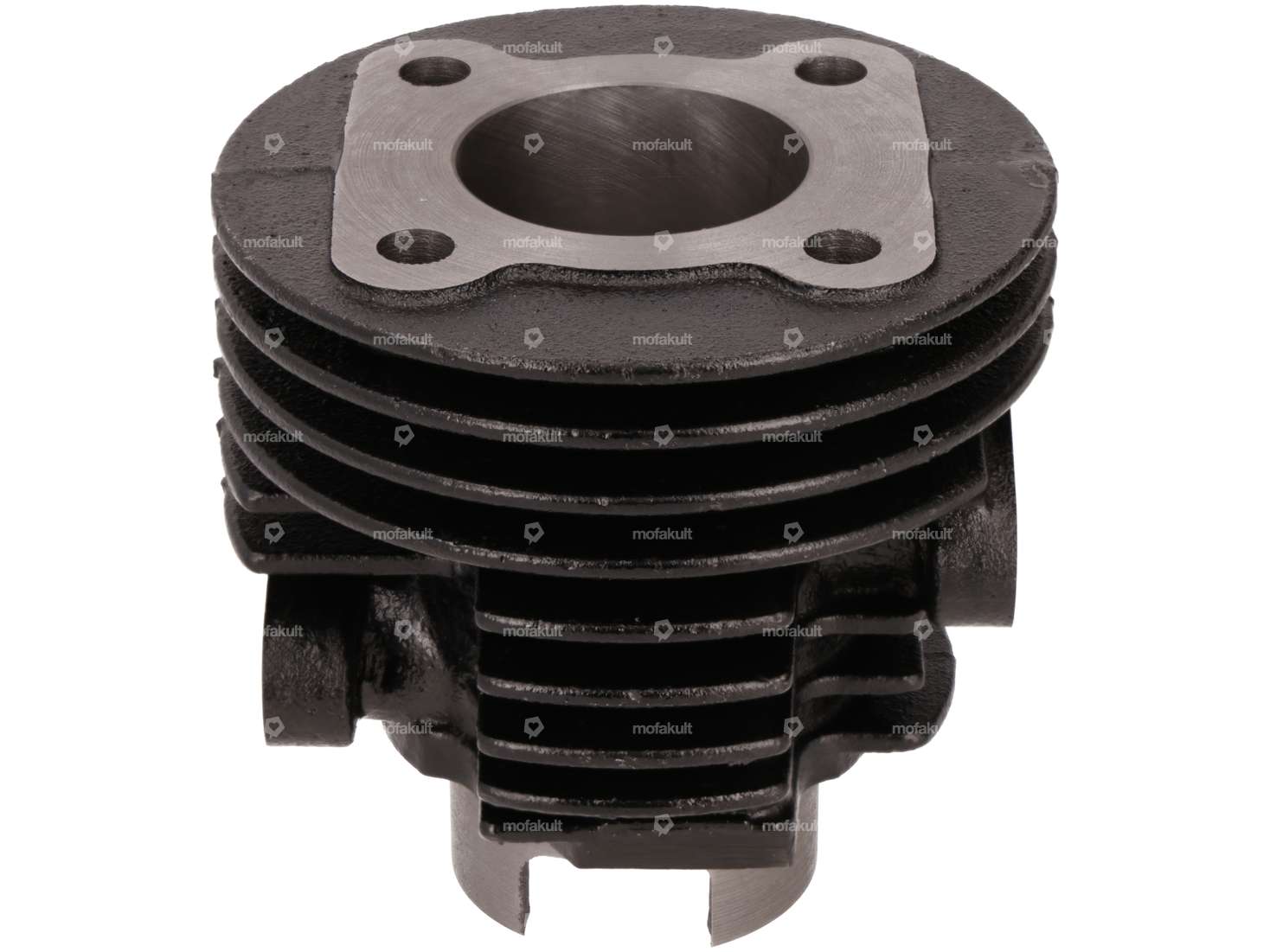

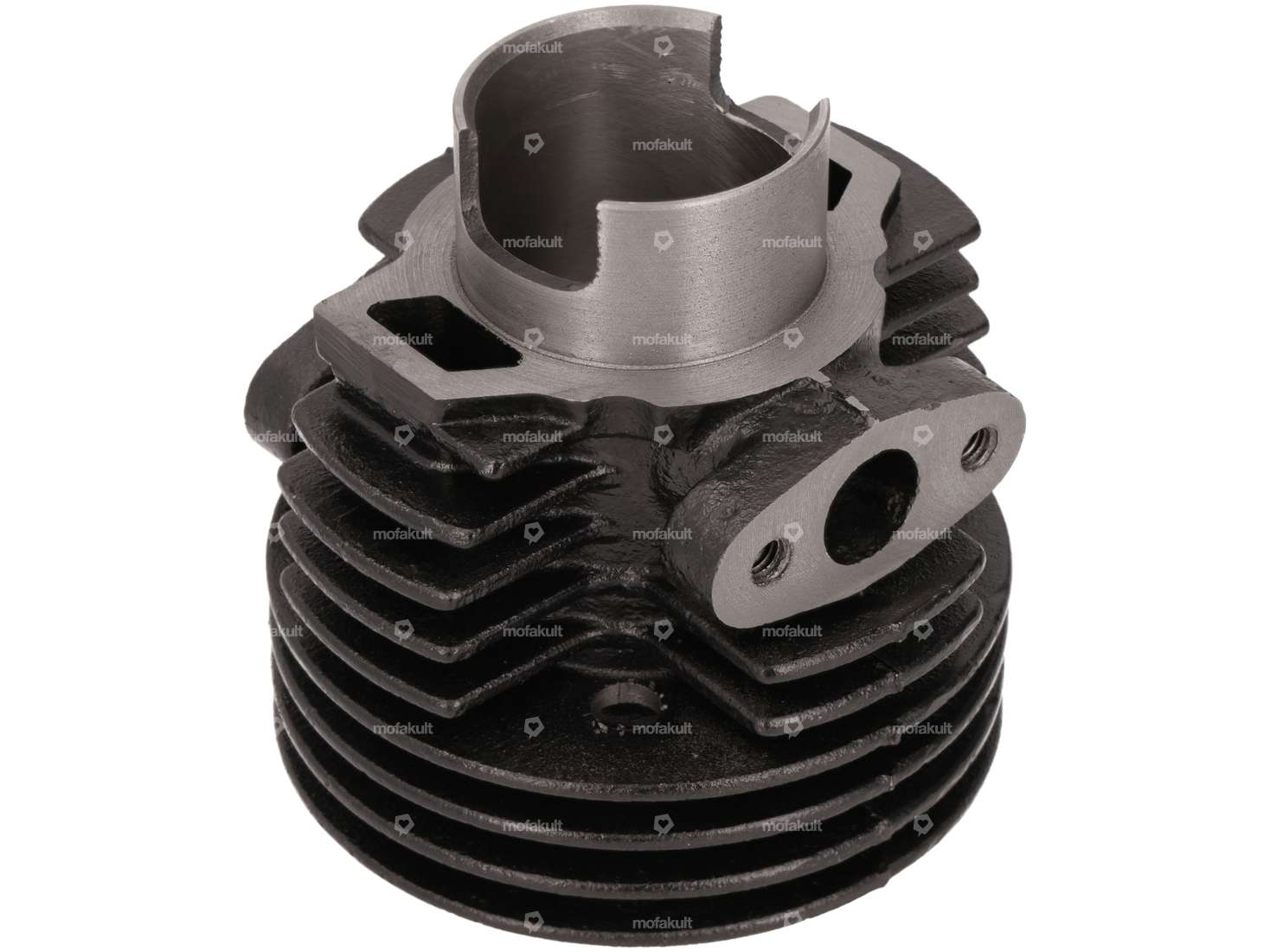

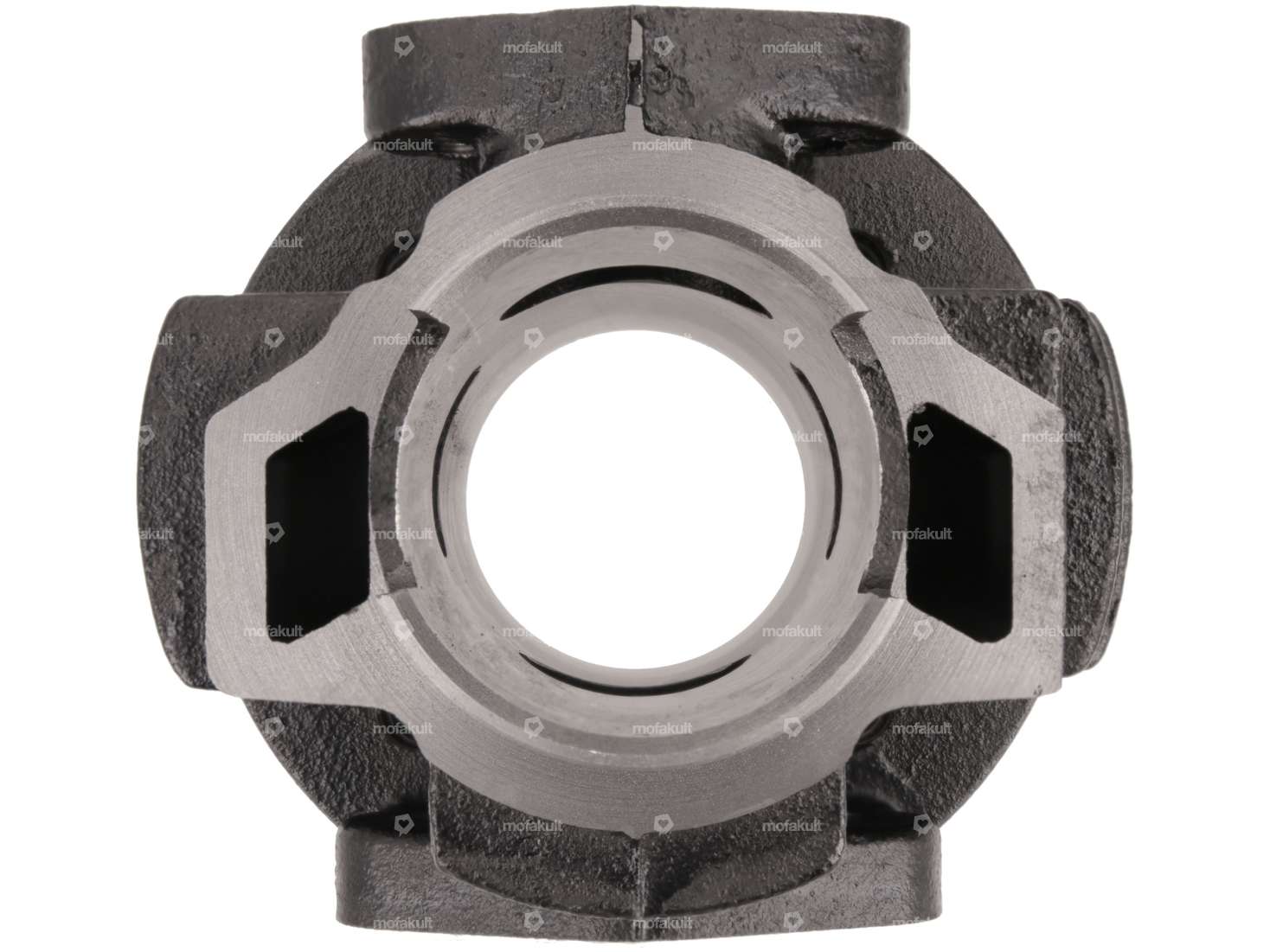

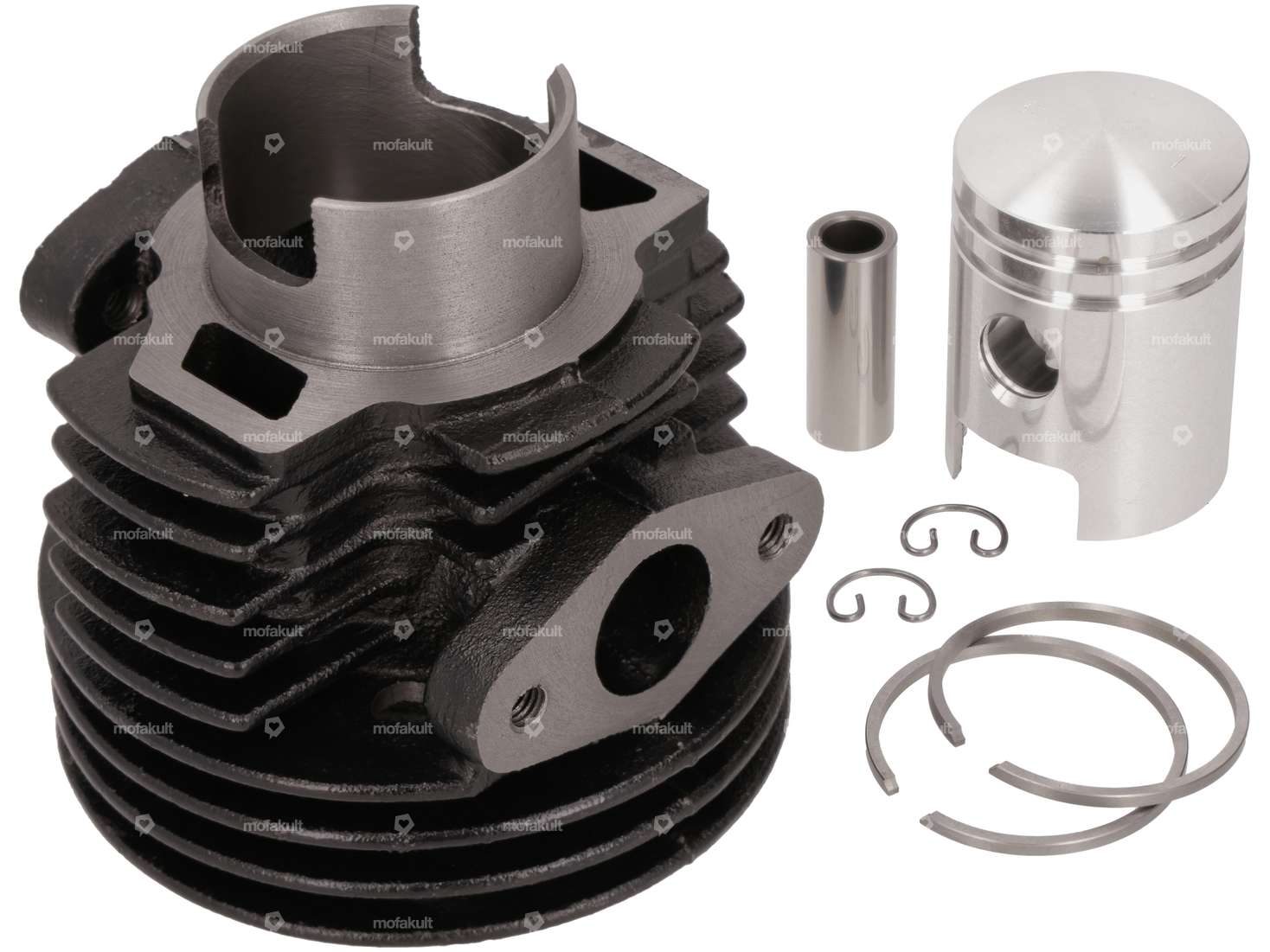

Bladed 38 mm cylinder kit with 12 mm piston pin. This reproduction cylinder has a larger inlet than the original cylinder.
Fits Puch X30 Velux and Puch X30 NG-2AH mopeds.
Attention: On Velux engines, the small slot at the sealing surface to the cylinder must be filled to ensure that the cylinder kit is tight.
The Wekem 2K liquid metal, which can be found in the accessories, is recommended for this purpose.
The set includes the following fixed parts:
Hole pattern [mm]: 44 x 44 · Manufacturer: GPO · Material: Gray cast iron · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 38 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Area of application: Tuning
Details
| Nominal diameter | 38 mm |
| Area of application | Tuning |
| Material | Gray cast iron |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Thread inlet | M6x1 (standard thread) |
| Number of fixing points | 4 pcs |
| Hole spacing inlet | 32 mm |
| Ø piston pin (B) | 12 mm |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Camouflaged | No |
Suitable for the following models
| Puch | ZA50 (fan-cooled) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
