For: Puch

10592

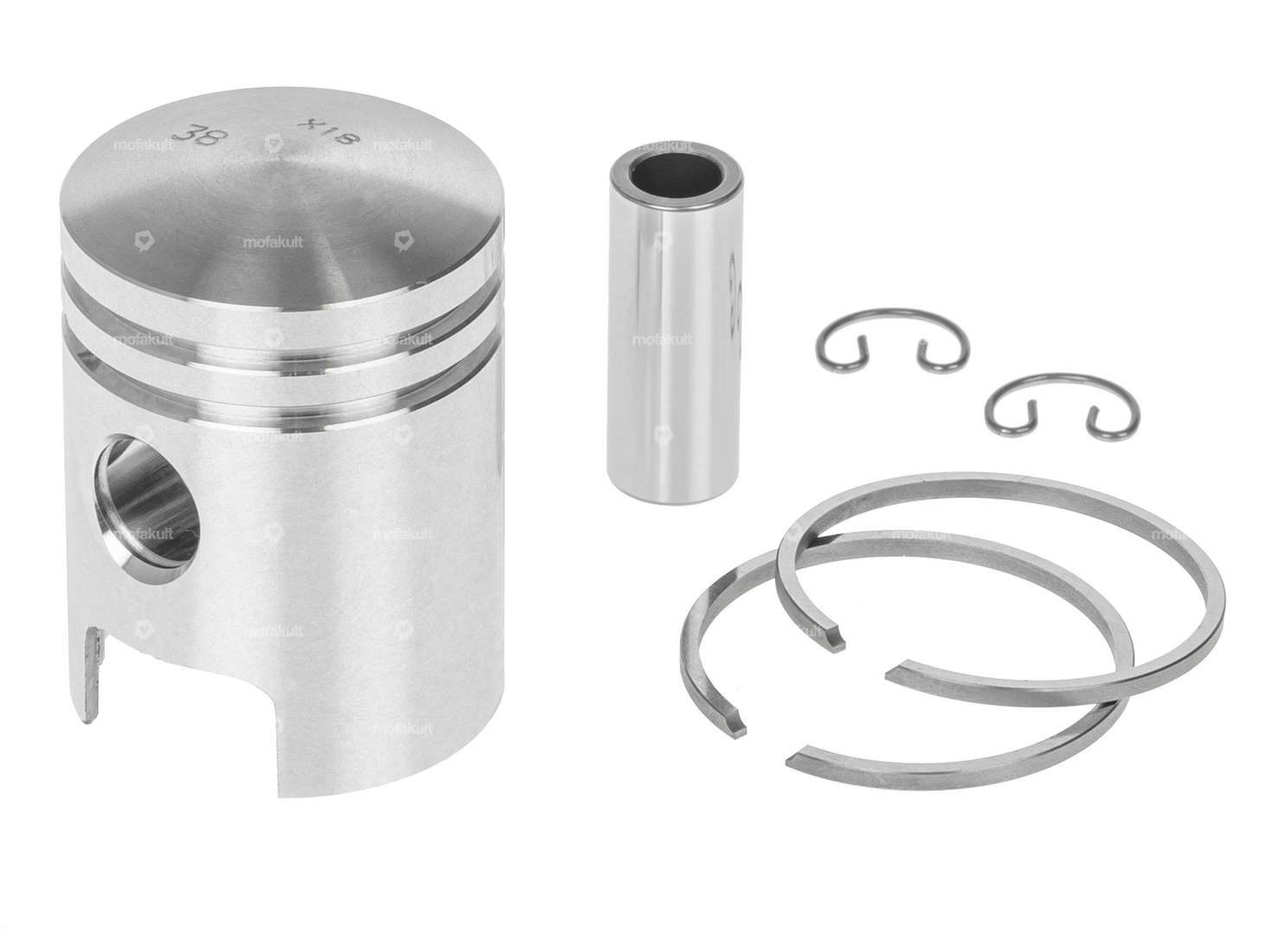

Meteor piston 38 mm #1 | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 61.20

Incl. 25% VAT.

Description

38.0 mm piston with two 2 mm rectangular piston rings with flank lock (FS) suitable for original Puch Maxi, X30 Sport mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerMeteor
Nominal diameter38 mm
Ø outside piston (A)37.95 mm
Compression height (C)22.7 mm
Curvature (D)3.3 mm
Total piston height (E)52.5 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Ø piston pin (B)12 mm
Tolerance group1
Weight piston kit79 g
Puch OEM number349.1.10.106.0/21
Puch

E50

ZA50 (air-cooled)

ZA50 (fan-cooled)

Z50 (X30 Sport)

Z50 (X30 Velux)

2-speed MS, MV, MV50

3-speed VSD, DS, VZ, MC
