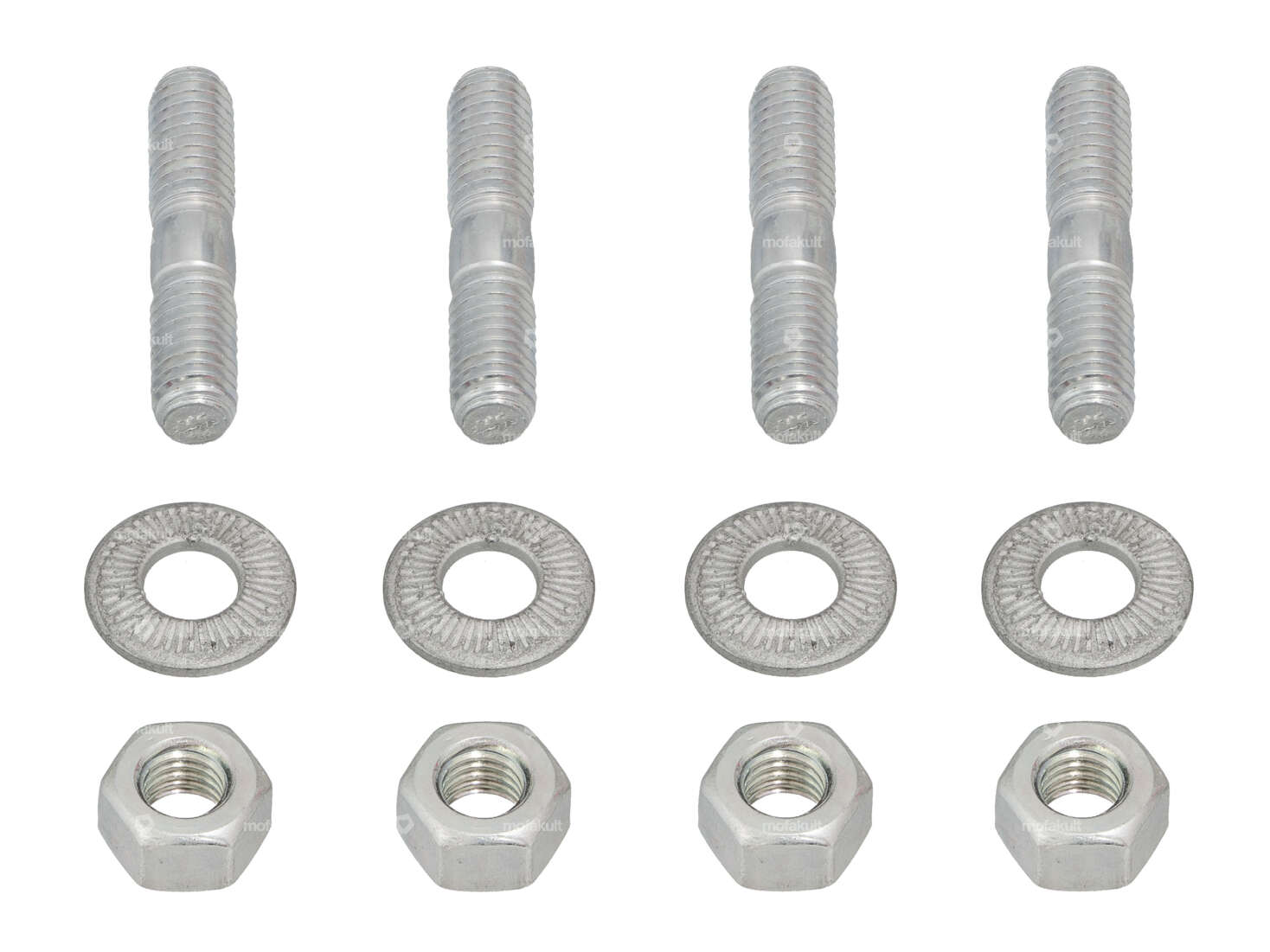

swiing® revival stud bolt set M6x30 (10.9 strength) galvanized

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Manufacturer: swiing® revival parts · Material: Steel · Nominal diameter (thread): 6 mm · Surface: galvanized (blue) · Diameter: 5.95 mm · Total length: 30 mm · Thread type: M6x1 (standard thread) · Strength class: 10.9 · Thread length: 12 mm

Elring Curil T2 sealing compound 70 ml (polyurethane) non-hardening green

Manufacturer: Elring · Area of application: Chemistry · Contents: 70 ml · Color: green · Gap dimension (max.): 0.2 mm · Temperature resistance (min.): -55 - 250 °C

Loctite 243 medium-strength threadlocker 10 ml

Manufacturer: Loctite · Area of application: Chemistry · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Color: blue · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Temperature resistance (min.): -75 - 200 °C · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

swiing® revival stud bolt M6x38 inlet/outlet galvanized (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Nominal diameter (thread): 6 mm · Surface: galvanized (blue) · Diameter: 5.9 mm · Total length: 38 mm · Thread type: M6x1 (standard thread) · Strength class: 10.9 · Thread length: 11 mm · Thread length: 19 mm

Bikeservice M6 stud bolt assembly/disassembly tool

Manufacturer: Bike service · Area of application: Special tool · Thread type: M6x1 (standard thread)

Stud bolt M6/M7 x 35 mm (extended) Inlet/outlet

Material: Steel · Nominal diameter (thread): 6 mm · Nominal diameter (thread): 7 mm · Surface: burnished · Total length: 35 mm · Thread type: M6x1 (standard thread) · Thread type: M7x1 (standard thread)

swiing® ingenious stud bolt set M6 / M5 Sachs (12.9 strength) Special

Manufacturer: swiing® ingenious parts · Material: Steel · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Surface: burnished · Surface: galvanized (blue) · Drive: External hexagon · Width across flats: 8 mm · Diameter: 6 mm · Total length: 27.3 mm · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Thread length: 9.5 mm · Strength class: 10 · Strength class: 12.9 · Thread length: 14 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival Stud Bolt Set M6x106 | Puch

Manufacturer: swiing® revival parts · Material: Steel · Nominal diameter (thread): 6 mm · Surface: galvanized (blue) · Drive: External hexagon · Width across flats: 10 mm · Diameter: 5.9 mm · Total length: 106 mm · Thread type: M6x1 (standard thread) · Thread length: 13 mm · Thread length: 18.5 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

GPO piston 40 mm (12 mm KoBo) | Puch X30 Velux fan-cooled

Manufacturer: GPO · Ø outside piston (A): 39.94 mm · Compression height (C): 22.5 mm · Curvature (D): 3.4 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 40 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Weight piston kit: 89 g

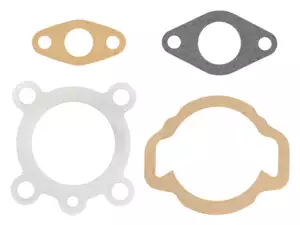

GPO gasket set 38 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux

Number of components: 4 pcs · Manufacturer: GPO · Area of application: Standard · Ø cylinder: 38 mm · Ø outlet inside: 22 mm · Hole spacing inlet: 38 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Hole spacing outlet: 42 mm

GPO gasket set 40 - 41 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux

Number of components: 4 pcs · Manufacturer: GPO · Area of application: Tuning · Ø cylinder: 40 mm · Ø cylinder: 41 mm · Ø outlet inside: 22 mm · Hole spacing inlet: 38 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Hole spacing outlet: 42 mm

Piston 38 mm (12 mm KoBo) short shirt | Puch fan-cooled

Ø outside piston (A): 37.95 mm · Compression height (C): 22.9 mm · Curvature (D): 3.2 mm · Total piston height (E): 50.1 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Weight piston kit: 74 g

GPO 40 mm cylinder kit 12 mm KoBo | Puch X30 Velux, NG-2AH

Nominal diameter: 40 mm · Manufacturer: GPO · Material: Gray cast iron · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 43 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Camouflaged: No · Area of application: Tuning
