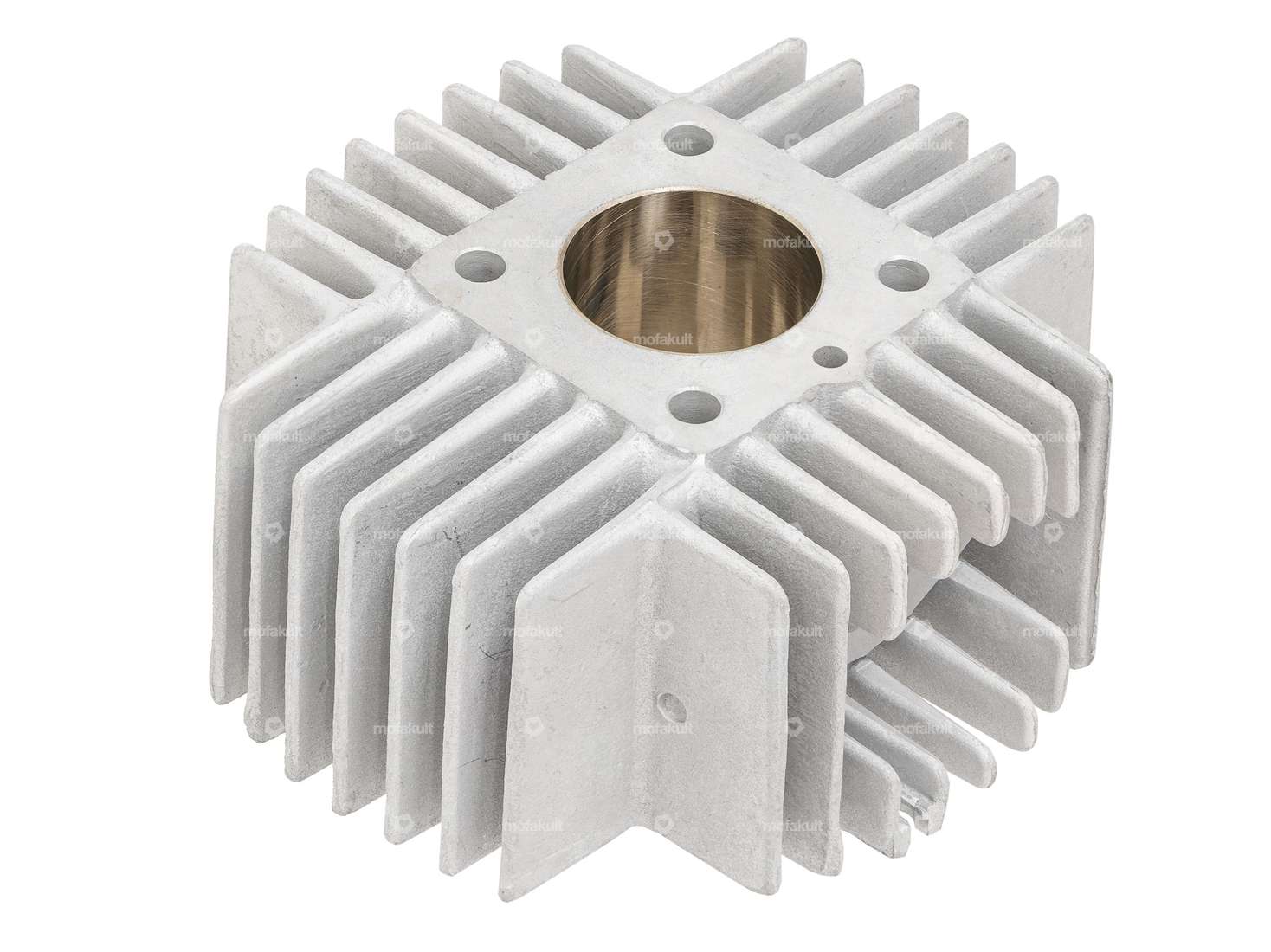

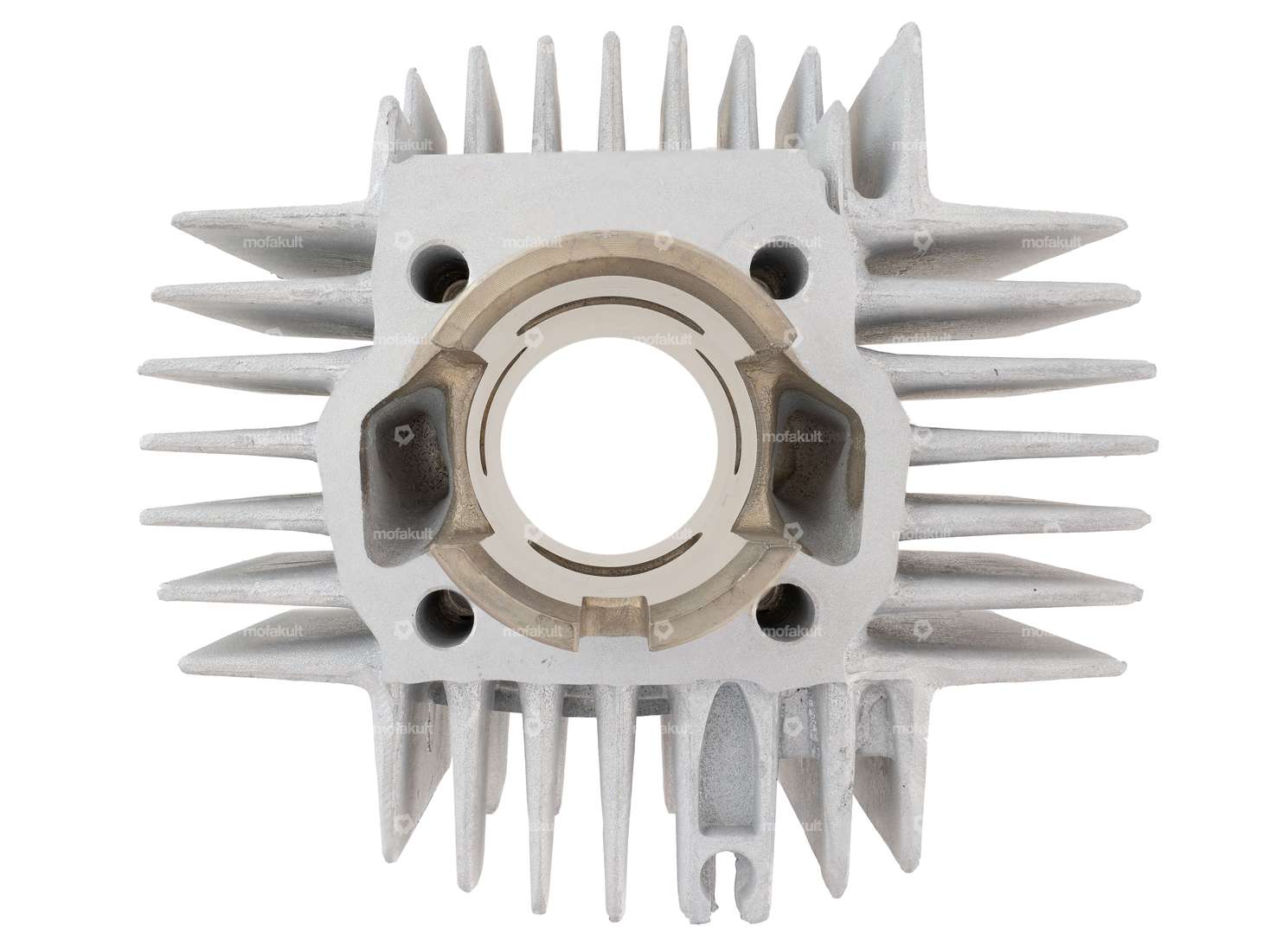

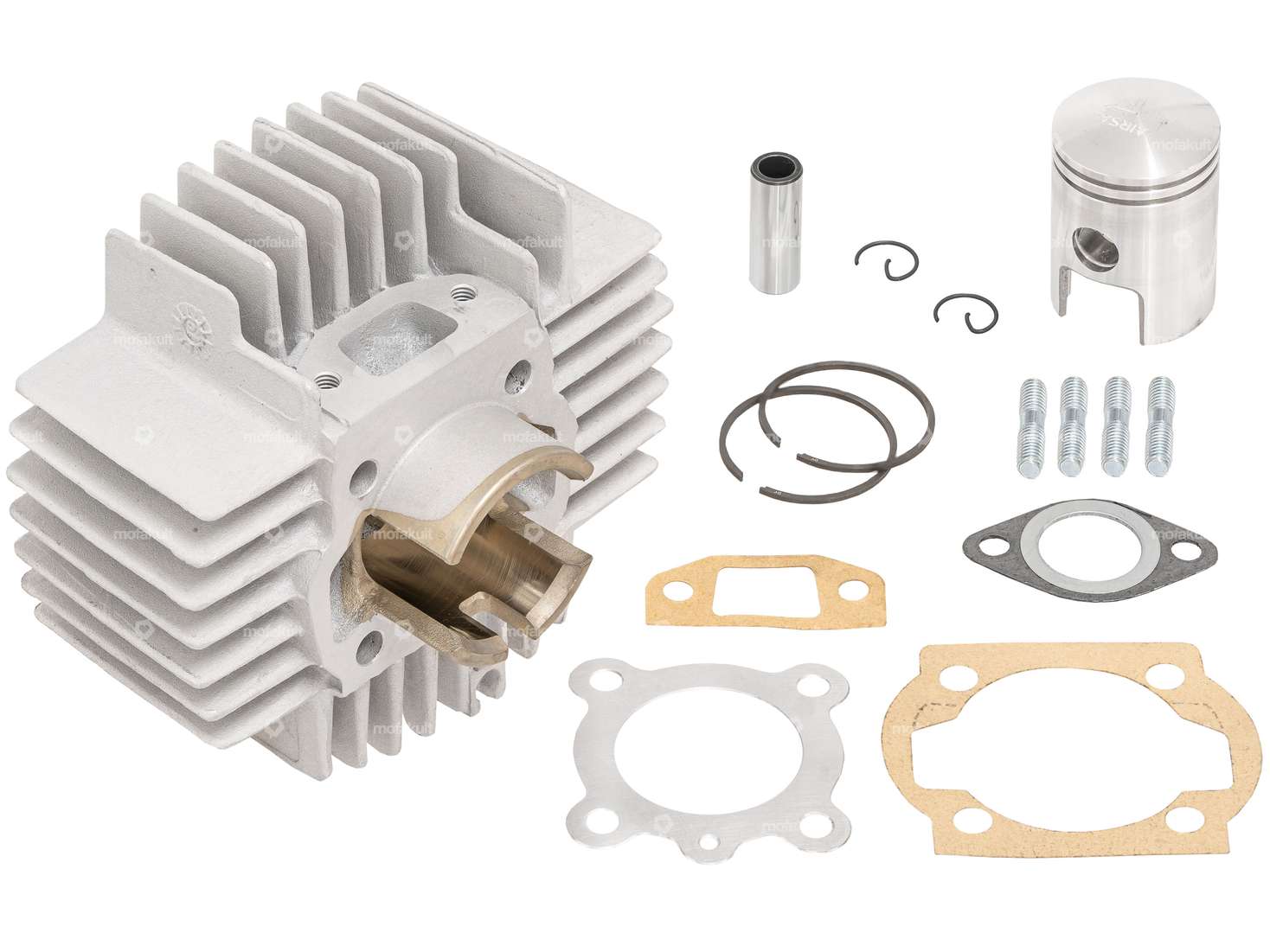

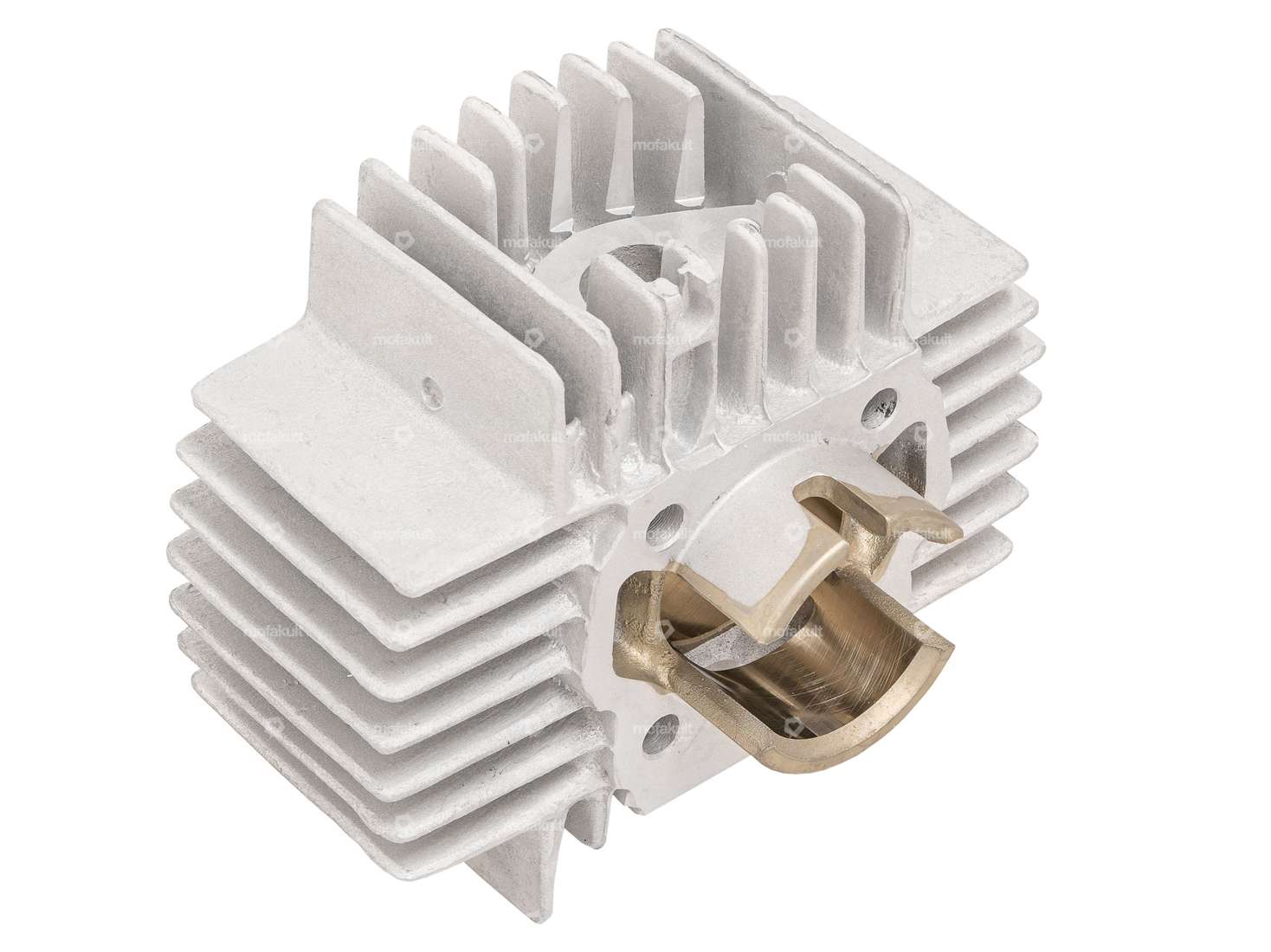

Airsal 38 mm cylinder kit 50 cc camouflaged | Puch Maxi, X30

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 38 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Candle thread: short · Decompressor: No · Total length: 135 mm · Width: 125 mm · Height: 55 mm · Area of application: Standard

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Thread type: M6x1 (standard thread) · Total length: 30 mm · Nominal diameter (thread): 6 mm · Strength class: 10.9 · Thread length: 12 mm

Airsal piston 38 mm | Puch

Manufacturer: Airsal · Nominal diameter: 38 mm · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.3 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.6 mm

swiing® revival stud bolt M6x106 (10.9 strength class)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 106 mm · Nominal diameter (thread): 6 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Thread length: 20 mm · Puch OEM number: 360.1.10.034.1

Airsal gasket set 38 mm | Puch

Manufacturer: Airsal · Number of components: 4 pcs · Ø cylinder: 38 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Area of application: Tuning

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Color: green · Contents: 1000 ml

Airsal piston ring 38x1.5 mm hard chrome-plated | Puch

Nominal diameter: 38 mm · Manufacturer: Airsal · Surface: hard chrome plated · Height: 1.5 mm · Piston ring impact: Internal fuse (IS)

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Dimension needle bearing: 12/15 x 14.2 · Ø inside: 12 mm · Ø outside: 15 mm · Manufacturer: swiing® ingenious parts · Width: 14.2 mm · Alternative version of the Pony OEM number: A4222 · Alternative version of the Sachs OEM number: 0232 157 001 · Tomos OEM number: 035548

GPO 15 mm carburetor tuning | Puch

Manufacturer: GPO · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Nozzle size: 62 · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Width: 50 mm · Height: 95 mm · Area of application: Tuning

15 mm intake manifold | Puch E50

Camouflaged: Yes · Material: Aluminum · Ø inside: 14.5 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 54 mm · Height flange center hole: 43 mm · Total length: 47 mm · Area of application: Tuning

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 38 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Candle thread: short · Decompressor: No · Total length: 135 mm · Width: 125 mm · Height: 55 mm · Area of application: Standard

GPO mushroom air filter grille, Bing SRE (Ø=20 mm)

Manufacturer: GPO · Mounting type: Bride · Mounting type: Plug connection clamped · Material: Metal · Material: Rubber · Color: Chrome · Color: black · Filter type: Grille · Ø outside: 61 mm · Ø Internal connection: 20 mm · Length rubber part: 63.5 mm · Length of filter section: 49 mm · Area of application: Tuning · Total length: 113 mm · Camouflaged: No

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Thread type: M6x1 (standard thread) · Total length: 30 mm · Nominal diameter (thread): 6 mm · Strength class: 10.9 · Thread length: 12 mm

Exhaust 22 mm 2-piece replica (with number) | Puch

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 920 mm · Ø outside: 58 mm · Ø Flame tube outside: 22 mm · Exhaust type: Flute · Flame tube attachment: Flange · Number of fixing points: 4 pcs · Mounting type: Stud bolts & nuts · Mounting type: Welded lug

swiing® ingenious 15 mm intake manifold camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Mounting type: Screws · Material: Aluminum · Total length: 46 mm · Number of fixing points: 2 pcs · Ø inside: 15 mm · Total height: 53 mm · Height flange center hole: 43 mm · Ø External connection: 20 mm · Area of application: Tuning · Camouflaged: Yes · Hole spacing inlet: 38 mm · Puch OEM number: 349.2.15.330.1 · Puch OEM number: 349.2.15.130.1

Airsal tuning set 38 mm (budget) | Puch E50, ZA50

Nominal diameter: 50 mm · Manufacturer: Airsal · Manufacturer: GPO · Manufacturer: NGK · Material: Aluminum · Displacement: 50 ccm · Ø piston pin (B): 12 mm · Outlet type: straight · Camouflaged: No · Area of application: Tuning
