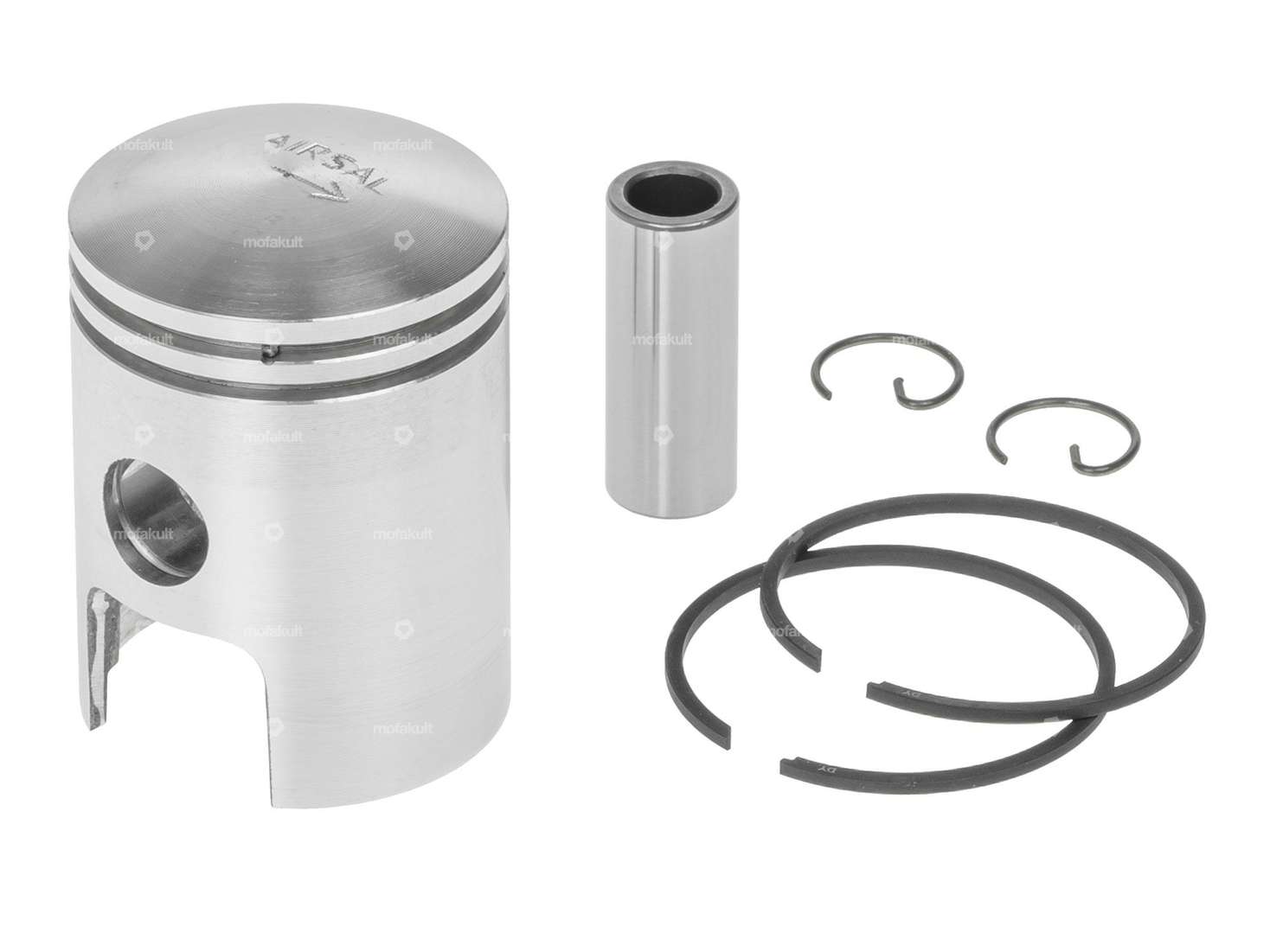

38.0 mm replacement piston with two 1.5 mm rectangular piston rings with internal fuse (IS) suitable for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
Corresponding assembly tools, piston rings, piston pin retainers etc. can be found in the accessories section.
Quality product from the Spanish manufacturer Airsal.
| Manufacturer | Airsal |
| Ø outside piston (A) | 37.95 mm |
| Compression height (C) | 22.3 mm |
| Curvature (D) | 3.8 mm |
| Total piston height (E) | 52.5 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 38 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Thick piston ring | 1.6 mm |
| Ø piston pin (B) | 12 mm |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Ratings
Accessories & related products
Airsal 38 mm cylinder kit 50 cc camouflaged | Puch Maxi, X30
Nominal diameter: 38 mm · Manufacturer: Airsal · Area of application: Tuning · Camouflaged: Yes · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Ø cylinder neck: 48 mm · Ø outlet inside: 20 mm · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Inlet window: 23.5 / 20 x 14.5 · Hole spacing outlet: 42 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Outlet type: straight · Thread outlet: M6x1 (standard thread)
EUR 119.00
Airsal 38 mm cylinder kit (large ribs) | Puch
Nominal diameter: 38 mm · Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 22 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Inlet window: 24 / 20 x 14 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Camouflaged: No
EUR 119.00

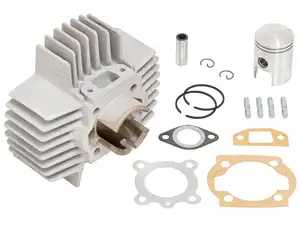

Airsal 38 mm cylinder kit (large ribs) fast version | Puch
