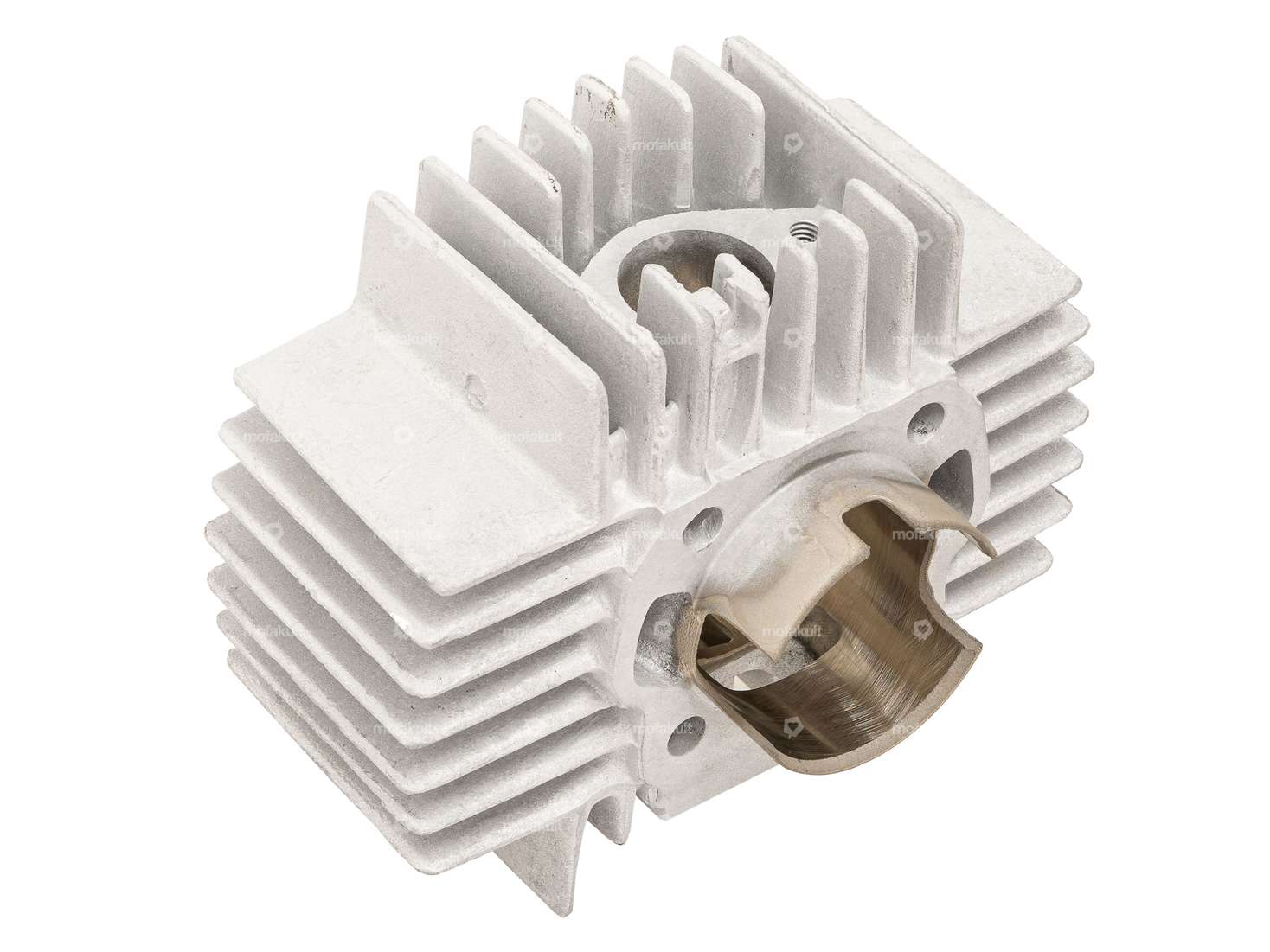

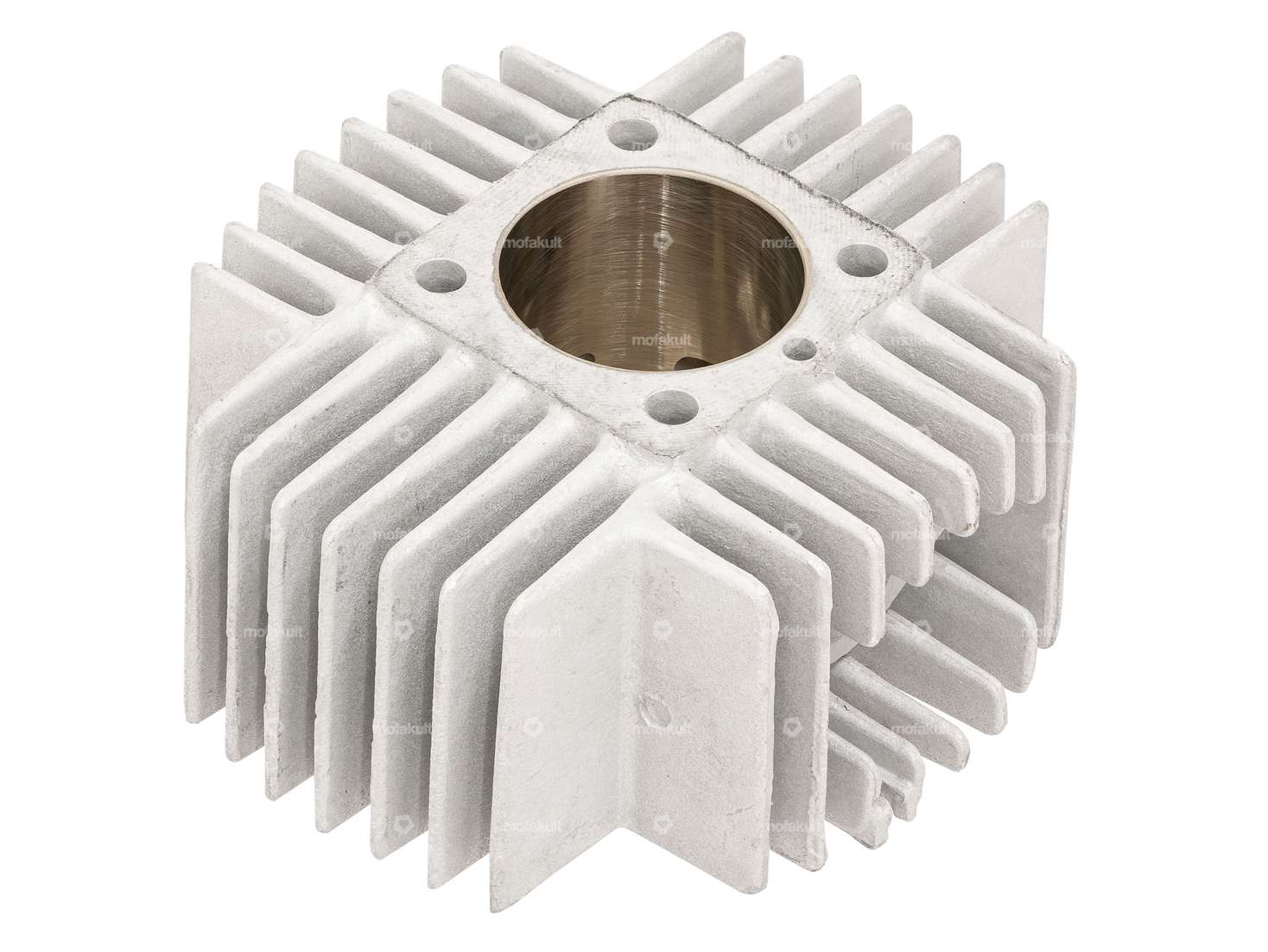

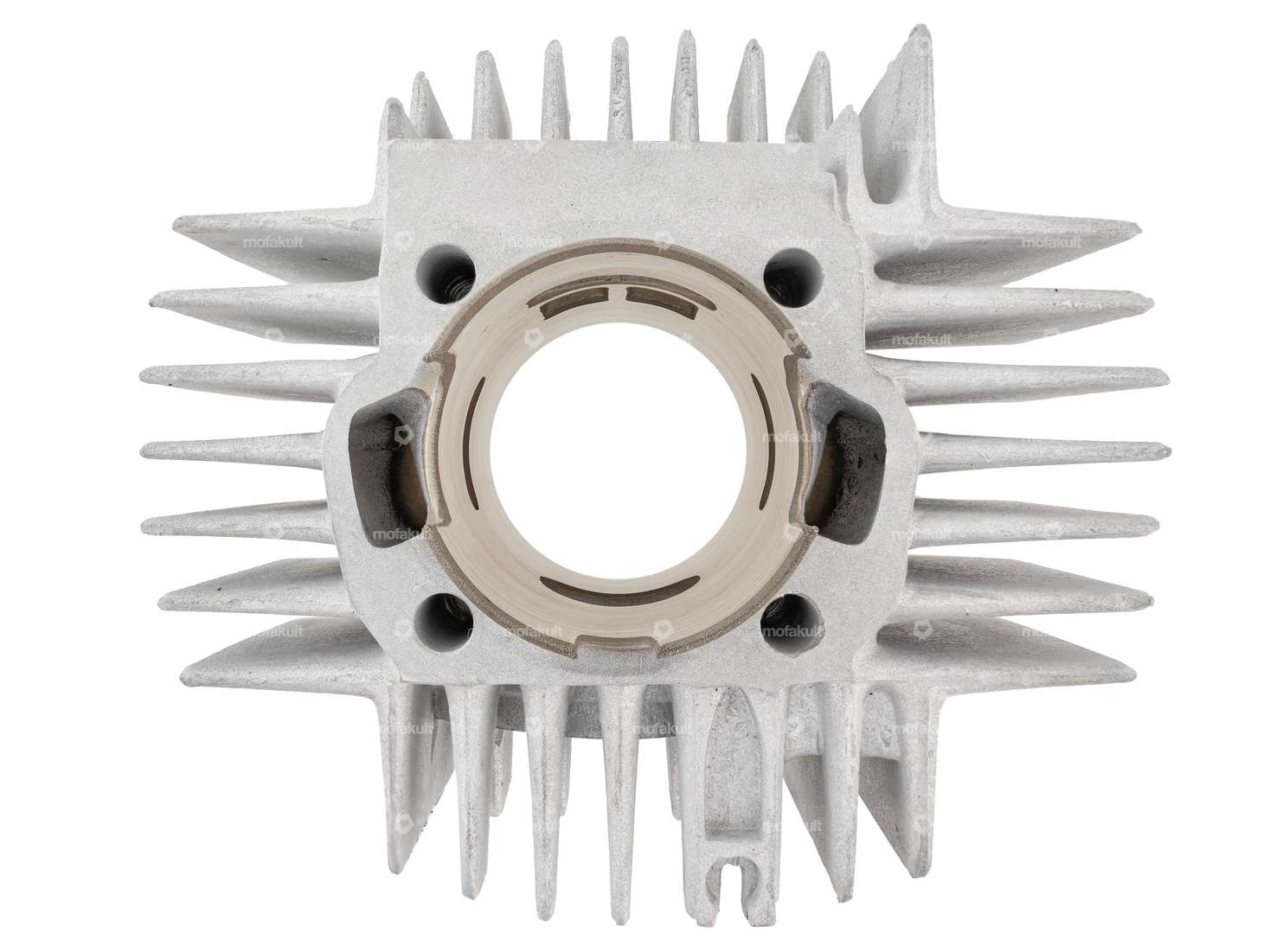

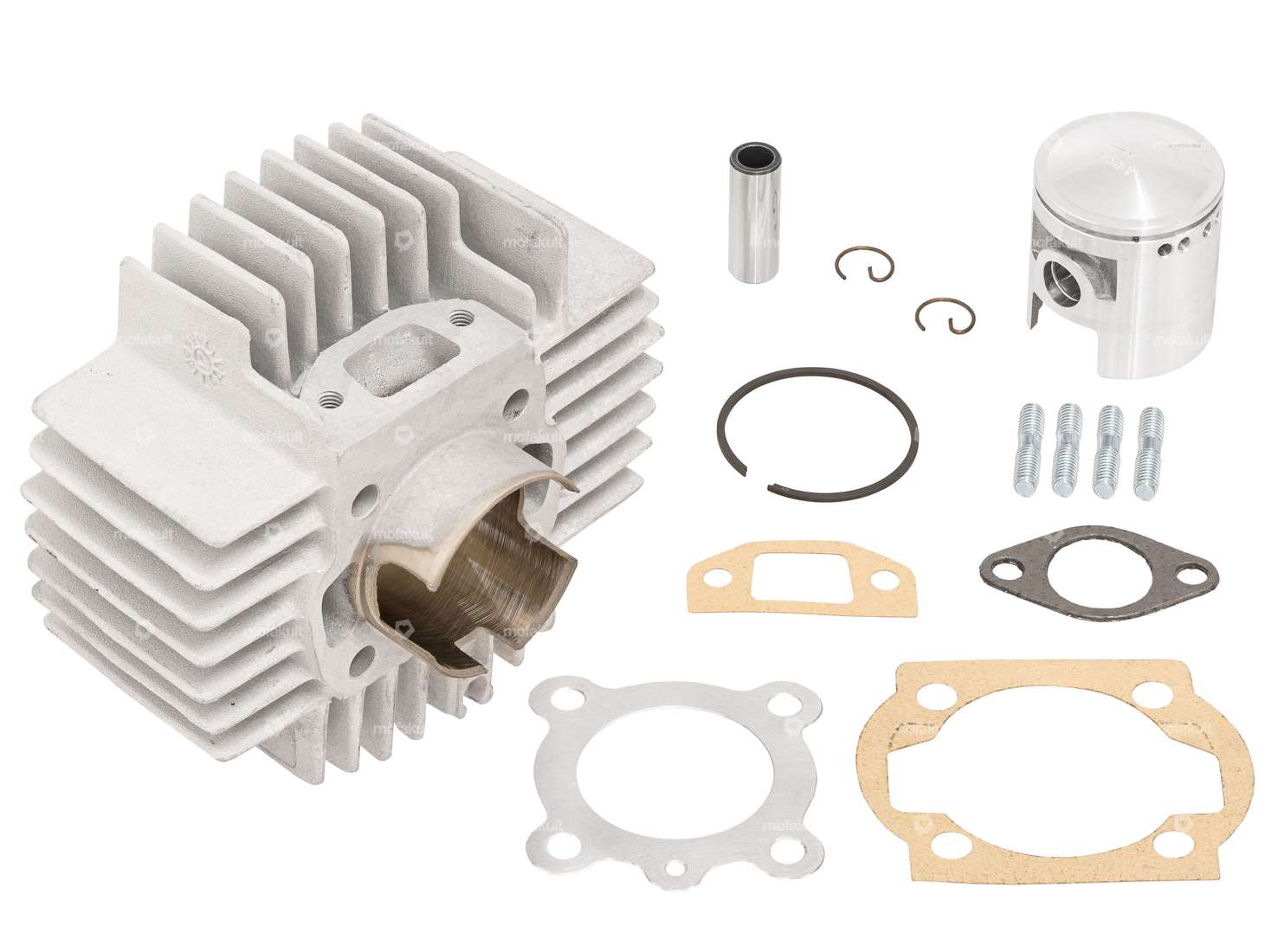

Airsal 45 mm cylinder kit 70 ccm camouflaged | Puch

Airsal piston 45 mm | Puch

Nominal diameter: 45 mm · Manufacturer: Airsal · Ø outside piston (A): 44.95 mm · Compression height (C): 22.45 mm · Curvature (D): 4.3 mm · Total piston height (E): 50.3 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 2 mm · Ø piston pin (B): 12 mm · Weight piston kit: 91 g

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Total length: 30 mm · Diameter: 5.95 mm · Thread length: 12 mm · Strength class: 10.9

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Ø cylinder: 45 mm · Width: 125 mm · Height: 55 mm · Hole pattern [mm]: 44 x 44 · Candle thread: short · Number of fixing points: 4 pcs · Total length: 135 mm · Area of application: Tuning · Decompressor: No

swiing® revival stud bolts M6 x 106 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Total length: 106 mm · Thread length: 12 mm · Thread length: 20 mm · Puch OEM number: 360.1.10.034.1

Airsal gasket set 44 - 45 mm

Manufacturer: Airsal · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 44 mm · Ø cylinder: 45 mm · Number of components: 4 pcs · Hole spacing inlet: 38 mm · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 mm · Area of application: Tuning · Decompressor: Yes

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

Airsal piston ring 45x1.5 mm hard chrome-plated | Puch

Manufacturer: Airsal · Surface: hard chrome plated · Diameter: 45 mm · Nominal diameter: 45 mm · Piston ring impact: Internal fuse (IS) · Height: 1.5 mm

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Bearing type: Needle roller and cage assembly · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

Outlet seal Ø 27 Steel ring

Place of use: Outlet · Area of application: Tuning · Material: Sealing carton · Material: Sheet metal (steel) · Reinforced: Yes · Thickness: 2.1 mm · Ø outlet inside: 27 mm · Ø screw holder: 6.3 mm · Hole spacing outlet: 42.5 mm

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Total length: 30 mm · Diameter: 5.95 mm · Thread length: 12 mm · Strength class: 10.9

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Ø cylinder: 45 mm · Width: 125 mm · Height: 55 mm · Hole pattern [mm]: 44 x 44 · Candle thread: short · Number of fixing points: 4 pcs · Total length: 135 mm · Area of application: Tuning · Decompressor: No

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival stud bolt set M6 x 106 | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Drive: External hexagon · Total length: 106 mm · Diameter: 5.9 mm · Thread length: 13 mm · Thread length: 18.5 mm · Width across flats: 10 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

swiing® ingenious 15 mm carburetor camouflaged | Puch

Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Area of application: Tuning · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SRE · Total length: 66 mm · Ø Internal connection: 20 mm · Width: 50 mm · Height: 95 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Nozzle size: 62 · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Puch OEM number: 349.1.15.100.0 · Puch OEM number: 349.2.15.800.0 · Puch OEM number: 349.4.15.500.0 · Puch OEM number: 349.4.15.000.0 · Puch OEM number: 349.4.15.300.0 · Puch OEM number: 349.6.15.400.0 · Puch OEM number: 349.7.15.700.0 · Puch OEM number: 349.8.15.400.0 · Puch OEM number: 349.9.15.300.0

swiing® ingenious 17 mm SRF carburetor camouflaged | Puch Maxi, Supermaxi, X30 NS / NL

Nominal diameter: 17 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Width: 47 mm · Carburetor type: SRE · Mounting type: Plug connection clamped · Ø Internal connection: 23 mm · Total length: 65 mm · Ø Inside entrance: 17 mm · Height: 89 mm · Height: 109 mm · Ø Output inside: 17.1 mm · Ø Air filter connection: 27.5 mm · Ø fuel hose connection: 5 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Area of application: Tuning · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.2 · Nozzle size: 74 · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m

GPO 45 mm cylinder head Racing high-compression | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 45 mm · Width: 125 mm · Total length: 135 mm · Ø screw holder: 7.4 mm · Height: 55 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Candle thread: short · Area of application: Tuning · Decompressor: No

swiing® ingenious intake manifold 17 mm SRF camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: Yes · Ø inside: 17 mm · Ø External connection: 23 mm · Mounting type: Stud bolts & nuts · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 53.5 mm · Height flange center hole: 42 mm · Total length: 38 mm · Area of application: Performance · Area of application: Racing · Area of application: Tuning
