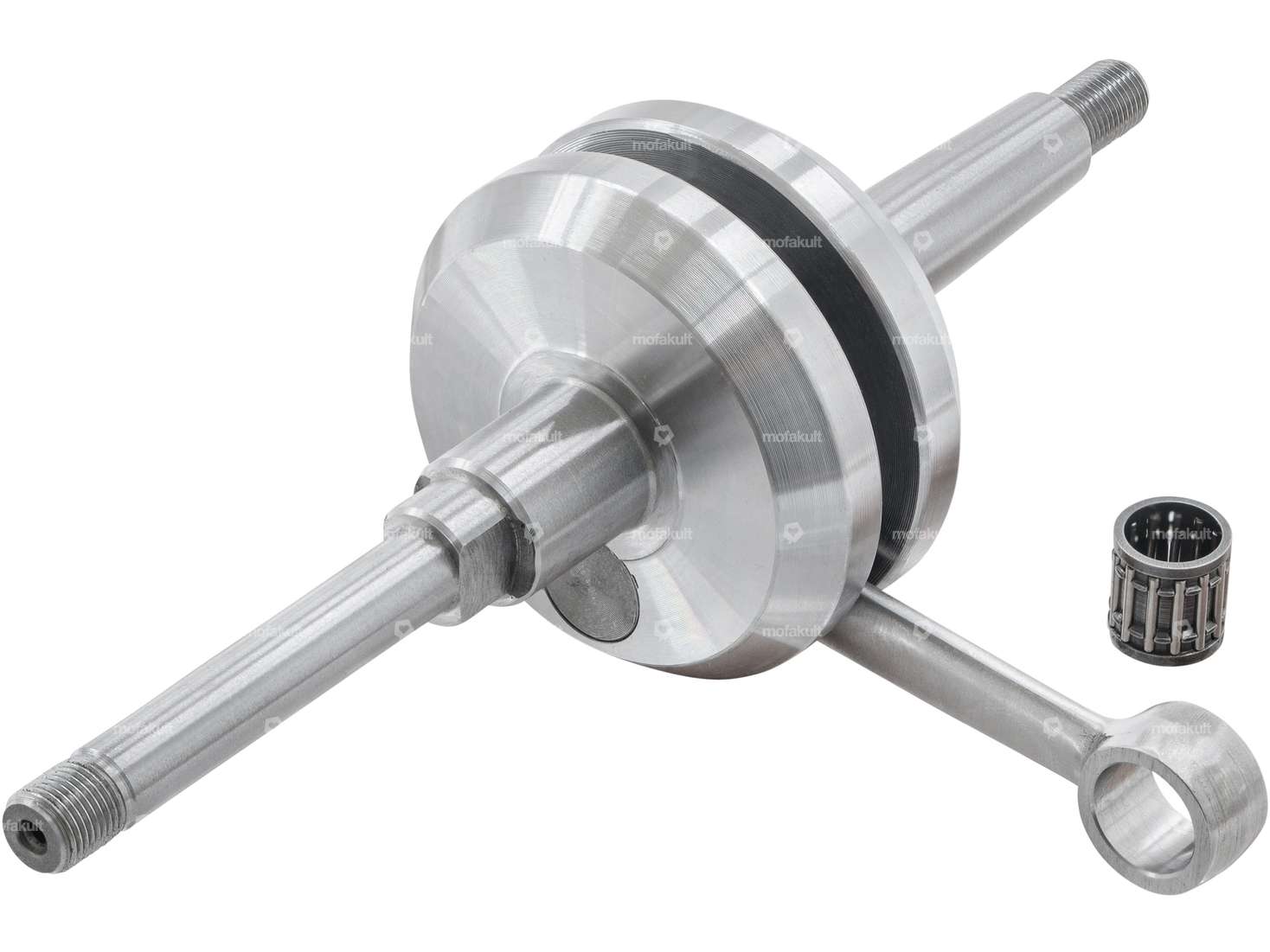

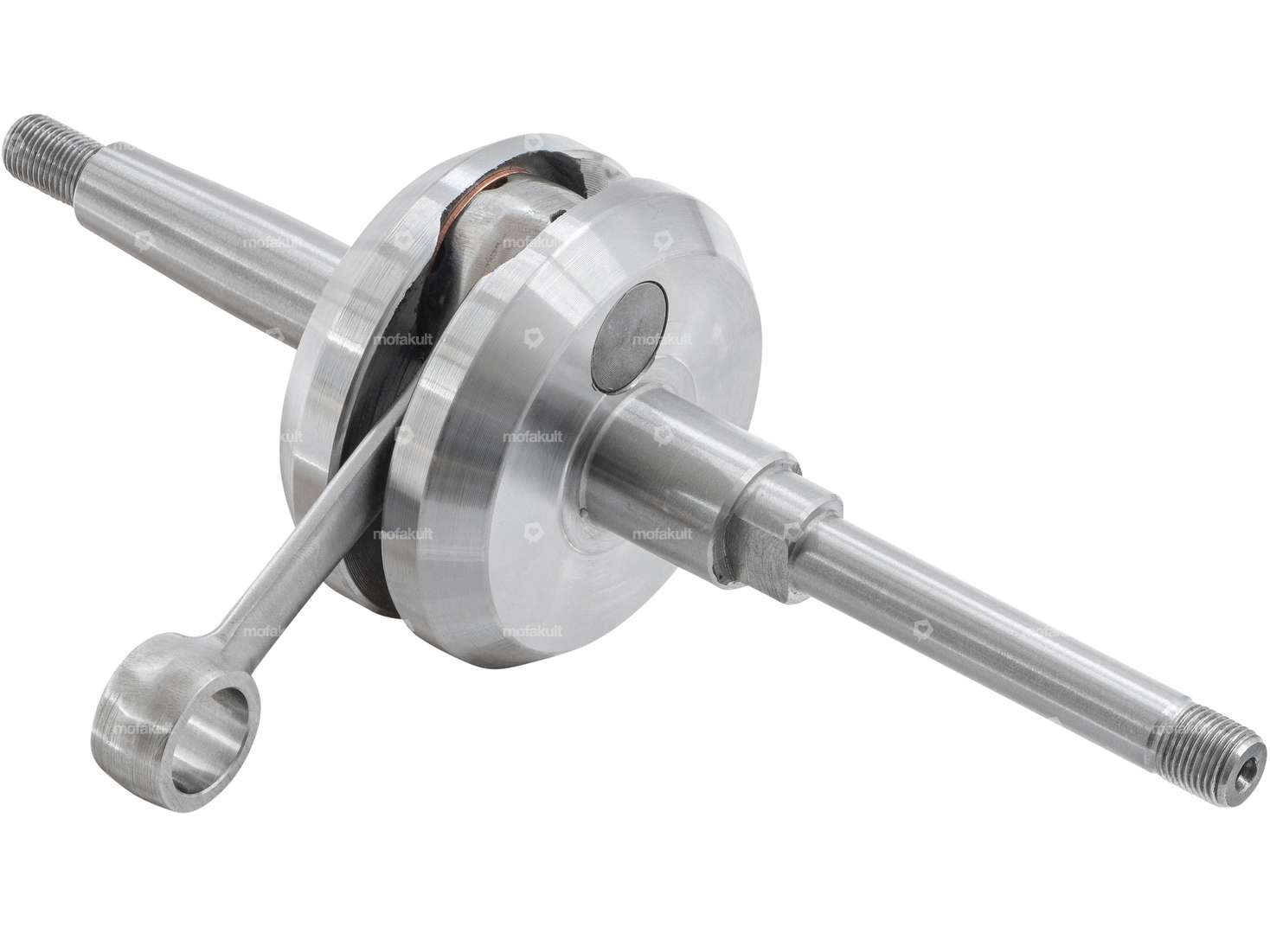

Crankshaft suitable for your Peugeot 103 moped / moped with breaker cable.
Dimensions of the crankshaft:
- Total length of clutch-side crankpin: 100 mm
- Total length of clutch-side crankpin: 72.3 mm
- Length 1st shoulder (clutch-side): 22 mm
- Length 2nd shoulder (clutch side) 9 mm
- Length 3rd shoulder (clutch side) 57 mm
- Ø 1st shoulder (clutch side): 20 mm
- Ø 2nd heel (clutch side): 15.9 mm
- Ø 3rd heel (clutch side): 10.9 mm
- Thread (clutch side): MF11x1 mm
- Length of shoulder (coupling side): 12 mm
- Ø shoulder (end side): 17 mm
- Thread (on end face): MF10x1 mm
- Ø Crank webs: 68.5 mm
- Width of crank webs: 36 mm
- Ø Connecting rod eye top: 15 mm
- Ø Connecting rod pin bottom: 16 mm
- Conrod length (center-to-center): 76 mm
- Stroke: 39.1 mm
- Weight (incl. connecting rod): 995 grams
- Needle bearing dimension: Ø 12 / 15 x 15.6 mm (axe 12)
The needle bearing is included in the scope of delivery.
Note: Due to the large cone, this crankshaft can only be used for contact ignition and not for electronic ignition.
You can find other parts such as the racing crankshaft for your Peugeot 103 in the accessories section.
Quality product from the Spanish manufacturer Airsal.
| Thread type | MF10x1 (fine pitch thread), MF11x1 (fine pitch thread) |
| Dimension needle bearing | 12 / 15 x 15.6 mm (axe 12) |
| Manufacturer | Airsal |
| Material | Steel |
| Cheek type | Full cheeks |
| Weight | 995 g |
| Crankshaft stroke | 39 mm |
| Ø piston pin (B) | 12 mm |
| Connecting rod length center-center | 76 mm |
| Total length of crankpin on clutch side | 100 mm |
| Number of gears | 1 pcs |
| Total length crankpin ignition side | 72.3 mm |
| Ø crank webs | 68.5 mm |
| Ø Connecting rod eye | 15 mm |
| Ø Bearing seat (clutch side) | 20 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Thread length | 10 mm, 15 mm |
| Area of application | Standard |
| Wide crank webs | 36 mm |
| Length 1st paragraph | 22 mm |
| Length 2nd paragraph | 9 mm |
| Length 3rd paragraph | 57 mm |
| Ø 1st step (on the coupling side) | 20 mm |
| Ø 2nd shoulder (on the clutch side) | 15.9 mm |
| Ø 3rd step (on the clutch side) | 10.9 mm |
| Length of shoulder (ignition side) | 12 mm |
| Peugeot |
