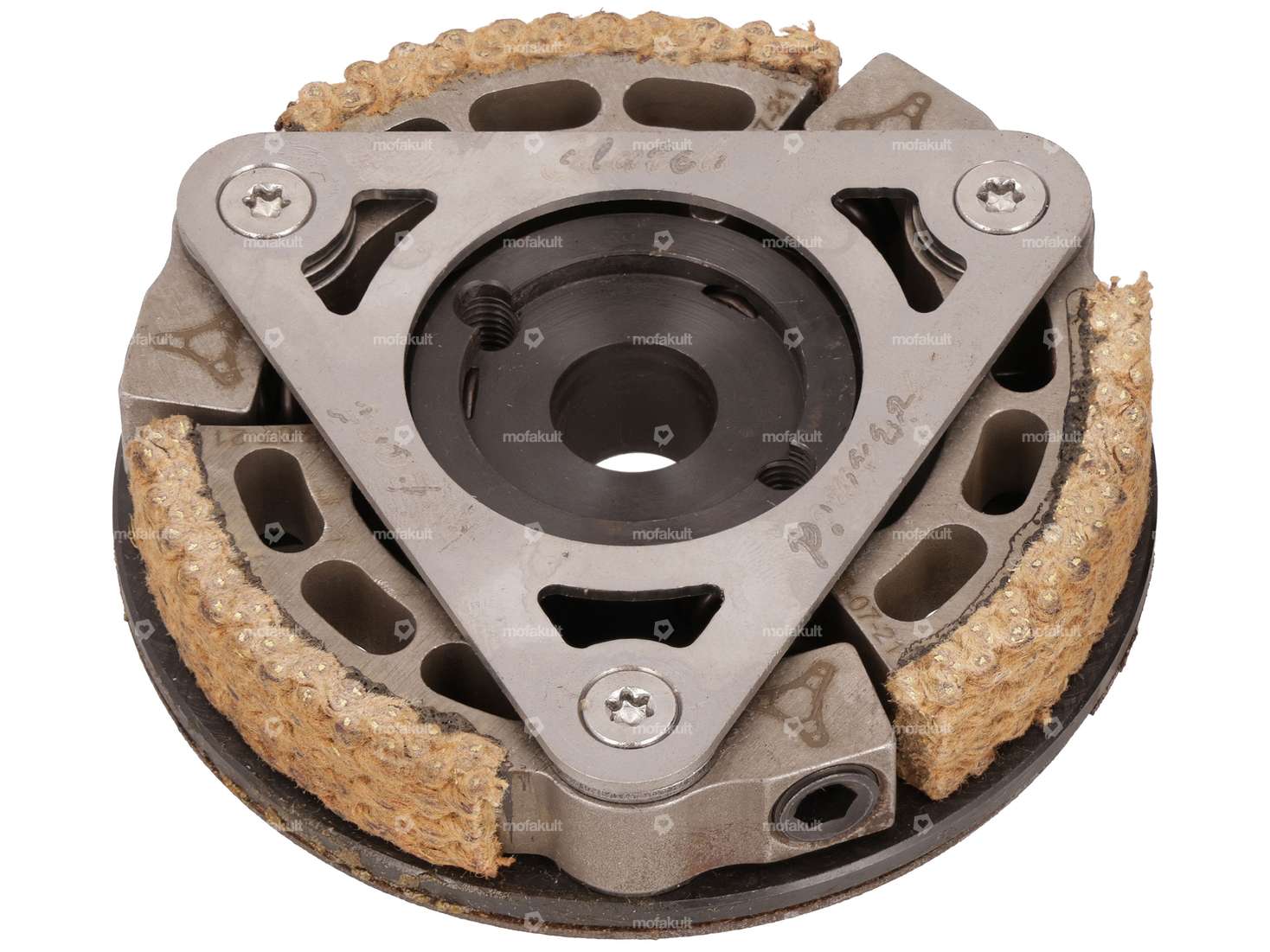

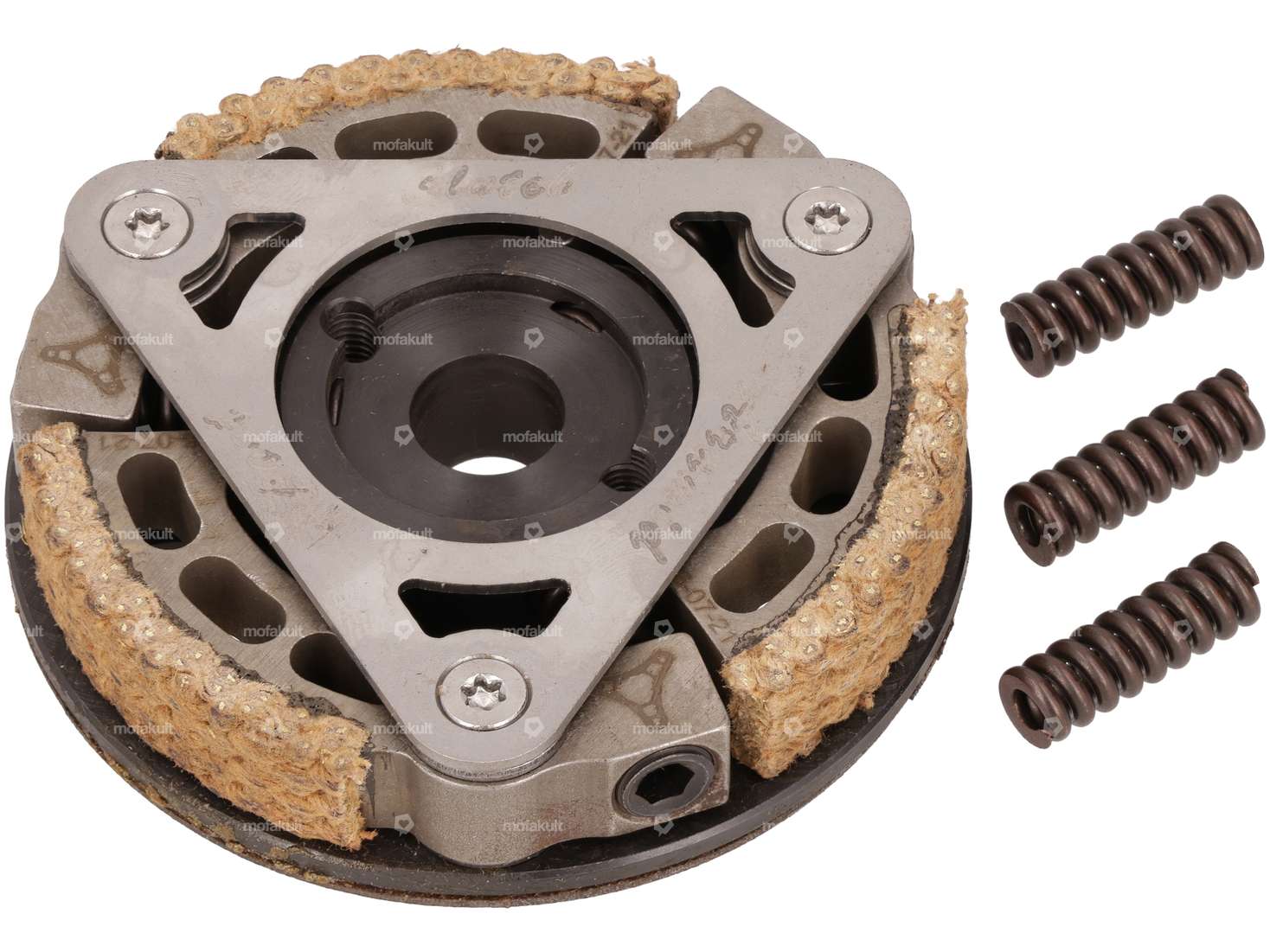

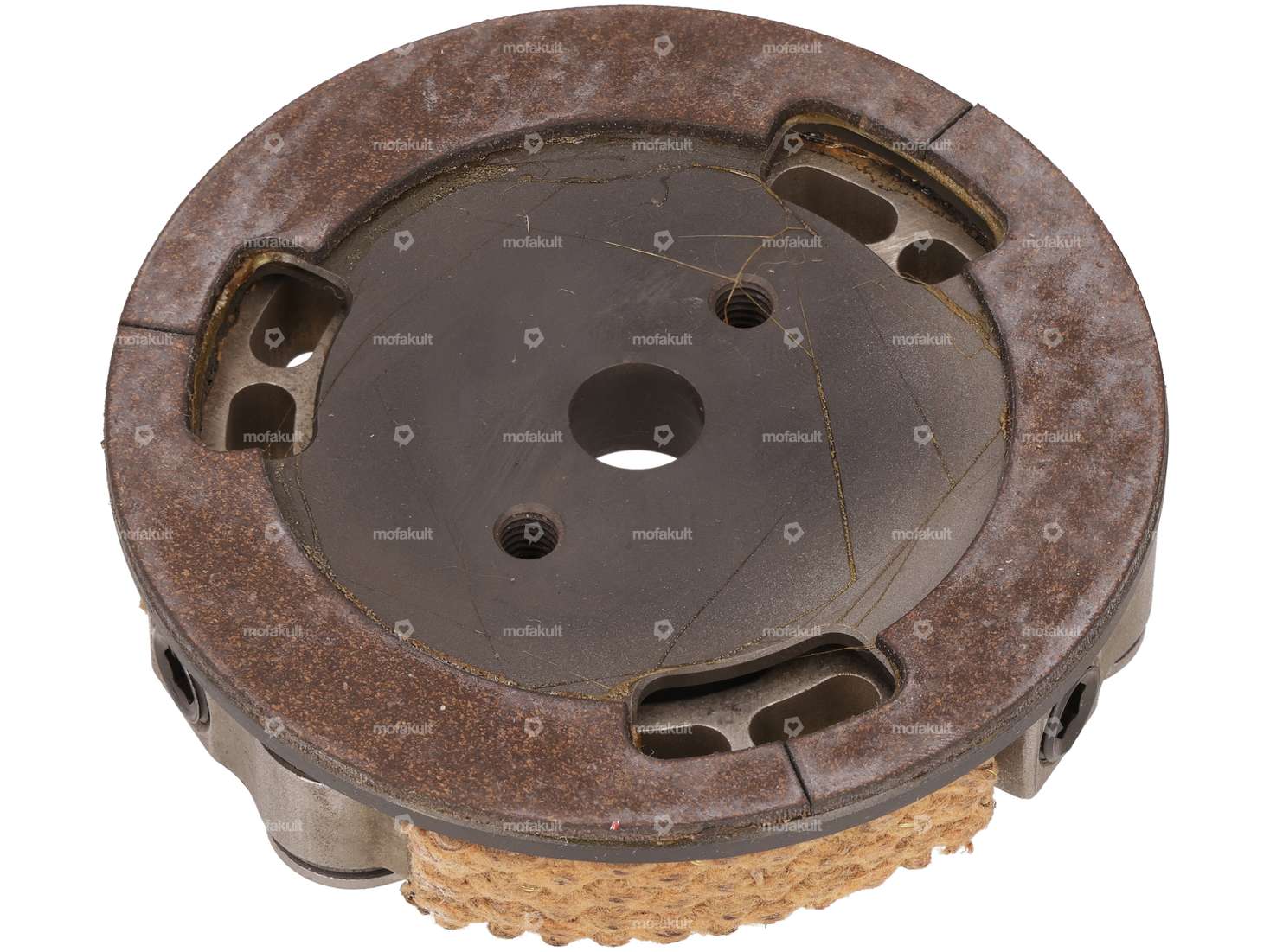

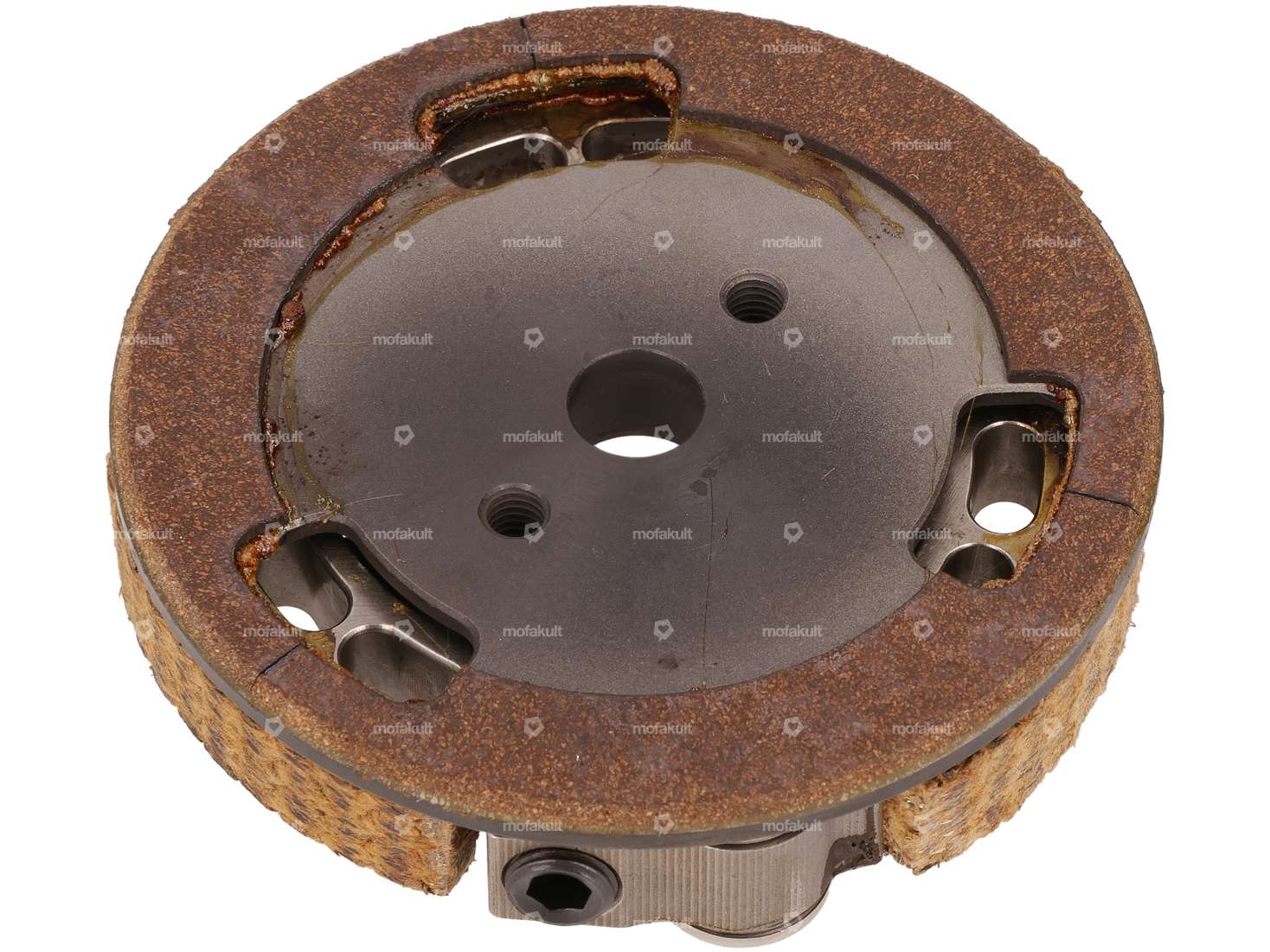

ASP clutch 3-jaw "woven" Aramid | Puch E50

HK clutch "supersport" | Puch Maxi S / N (E50)

Manufacturer: HK Clutches · Material addition: Aramid (known as Kevlar®) · Ø outside: 93.3 mm · Recording type: Cone mounting · Number of jaws: 3 pcs · Number of springs: 3 pcs · Area of application: Cross · Area of application: High End · Area of application: Racing

ASP clutch shoe "woven" Aramid | Puch E50

Manufacturer: ASP · Material addition: Aramid (colloquially known as Kevlar) · Number of jaws: 1 pcs · Thickness: 12 mm · Area of application: Racing · Area of application: Tuning

ASP clutch conversion kit "sheet" 3-jaw Aramid | Puch E50

Manufacturer: ASP · Material: Steel · Material addition: Aramid (colloquially known as Kevlar) · Number of jaws: 3 pcs · Thickness: 12 mm · Number of springs: 6 pcs · Area of application: Racing · Area of application: Tuning

ASP clutch conversion kit "woven" 3-jaw Aramid | Puch E50

Manufacturer: ASP · Material: Steel · Material addition: Aramid (colloquially known as Kevlar) · Area of application: Racing · Area of application: Tuning · Number of jaws: 3 pcs · Thickness: 12 mm · Number of springs: 6 pcs

HRT Clutch KTM SX50 | Puch E50

Manufacturer: Made in Switzerland · Material: Aluminum · Material: Steel · Material addition: Metal · Recording type: Cone mounting · Number of jaws: 3 pcs · Area of application: High End · Area of application: Racing

ASP clutch springs reinforced 50 N/mm | Puch E50

Spring design: Pressure spring · Spring rate: 50 N/mm · Ø wire: 1.8 mm · Ø inside: 4.6 mm · Ø outside: 8.2 mm · Total length: 27 mm · Manufacturer: ASP · Number of components: 3 pcs · Material: Spring steel · Area of application: Racing · Area of application: Tuning

Large outlet seal with metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Reinforced: Yes · Ø outlet inside: 27 mm · Thickness: 2.1 mm · Ø screw holder: 6.3 mm · Hole spacing outlet: 42.5 mm · Area of application: Tuning

swiing® revival M8x12 oil drain plug & copper ring | Puch E50, Z50

Width across flats Screw: 13 mm · Manufacturer: swiing® revival parts · Material: Copper · Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: M8x1.25 (standard thread) · Drive: External hexagon · Drive: Slot · Screw head: Hexagon · Thread length: 12 mm · Total length: 18 mm · Puch OEM number: 901.1053

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Area of application: Gearbox lubrication with clutch · Gearbox type: Automatic machine · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Gilardoni italkit 47 mm cylinder kit 75 ccm | Puch

Nominal diameter: 47 mm · Manufacturer: Gilardoni italkit · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Area of application: Tuning · Outlet type: slanted · Decompressor: No

swiing® revival nut / spring washer clutch E50 | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.8D · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon · Height: 8 mm · Width across flats: 17 mm

swiing® revival gasket gearbox cover engine 1 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Ø inside: 106 mm · Ø outside: 116 mm · Thickness: 1 mm · Number of components: 1 pcs · Number of fixing points: 4 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Area of application: High End · Area of application: Racing · Area of application: Tuning · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 968 g · Number of gears: 1 pcs

swiing® ingenious bearing & oil seal set C4 High End (old model) | Puch E50

Manufacturer: swiing® ingenious parts · Area of application: Standard · Number of components: 7 pcs

swiing® ingenious inlet seal 3 mm | Puch

Manufacturer: swiing® ingenious parts · Material: Sealing carton · Place of use: Admission · Thickness: 3 mm · Hole spacing inlet: 38 mm · Ø screw holder: 6.5 mm
