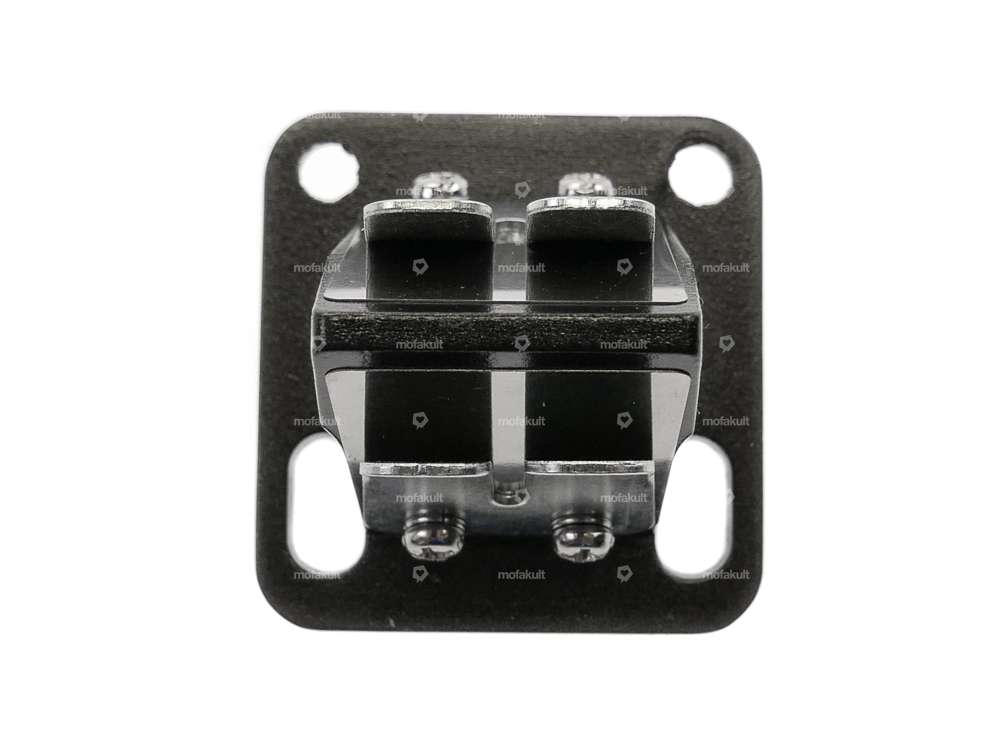

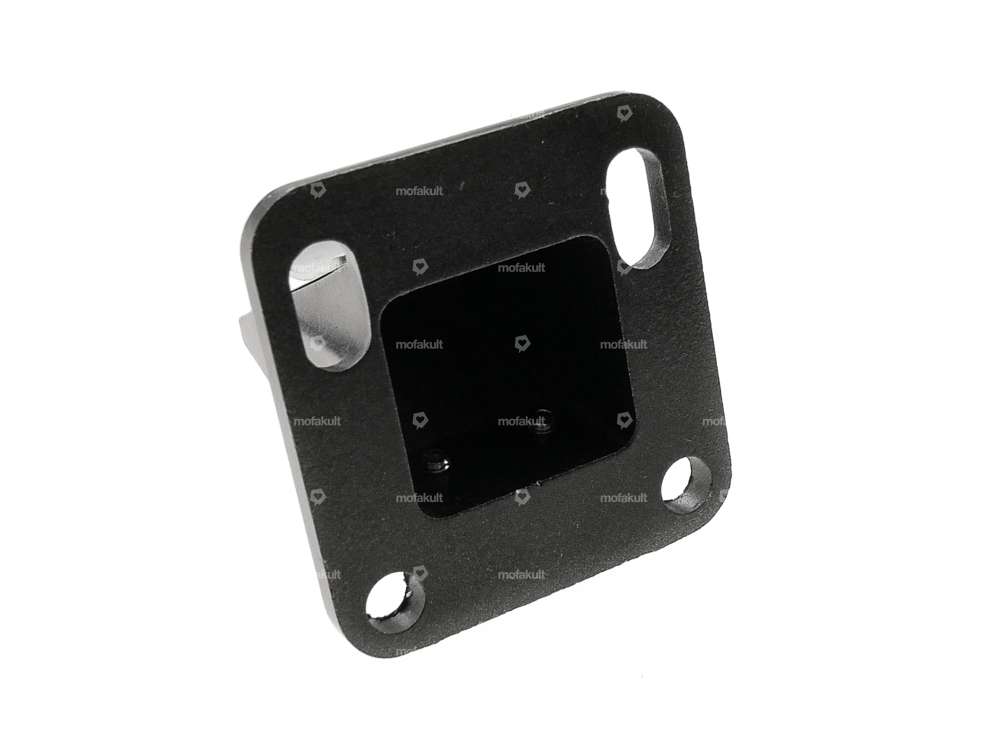

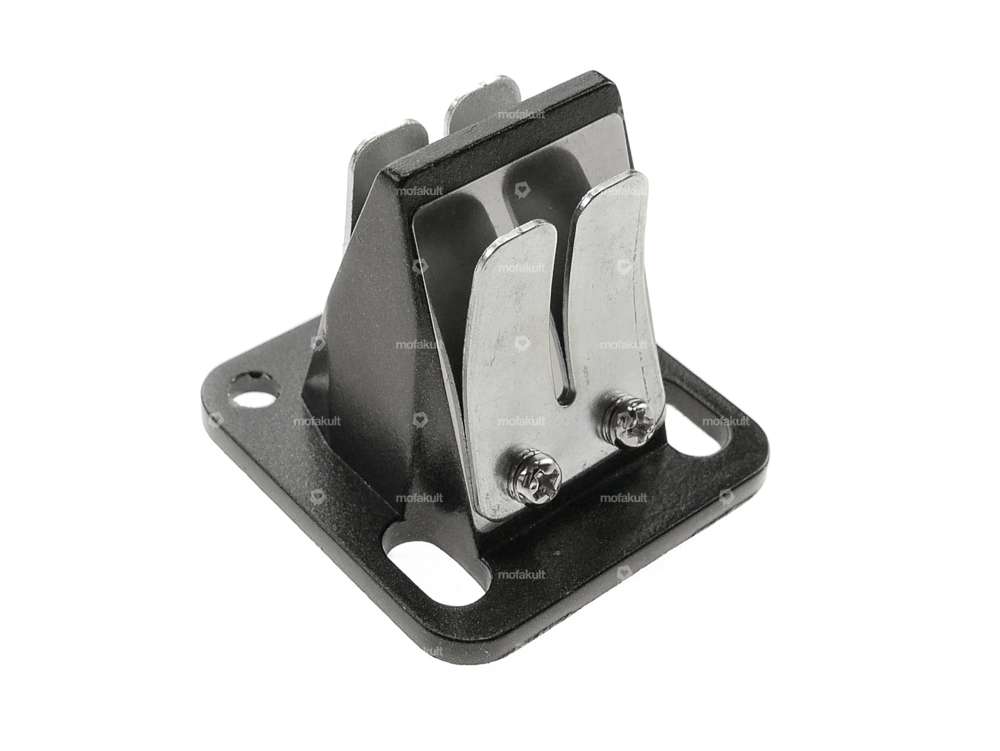

Membrane system from the Athena brand for cylinders with membrane system, both for Puch and Sachs mopeds.
The matching cylinders are listed below in the accessories.
The diaphragm plates are made of steel.
Quality product from the Italian manufacturer Athena.
| Manufacturer | Athena |
| Number of flaps | 2 pcs |
| Membrane material | Spring steel |
| Number of fixing points | 4 pcs |
| Mounting type | Screws |
| Area of application | Tuning |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
| Sachs | 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT), 2A (HG) 508 - 1 A 535 |
