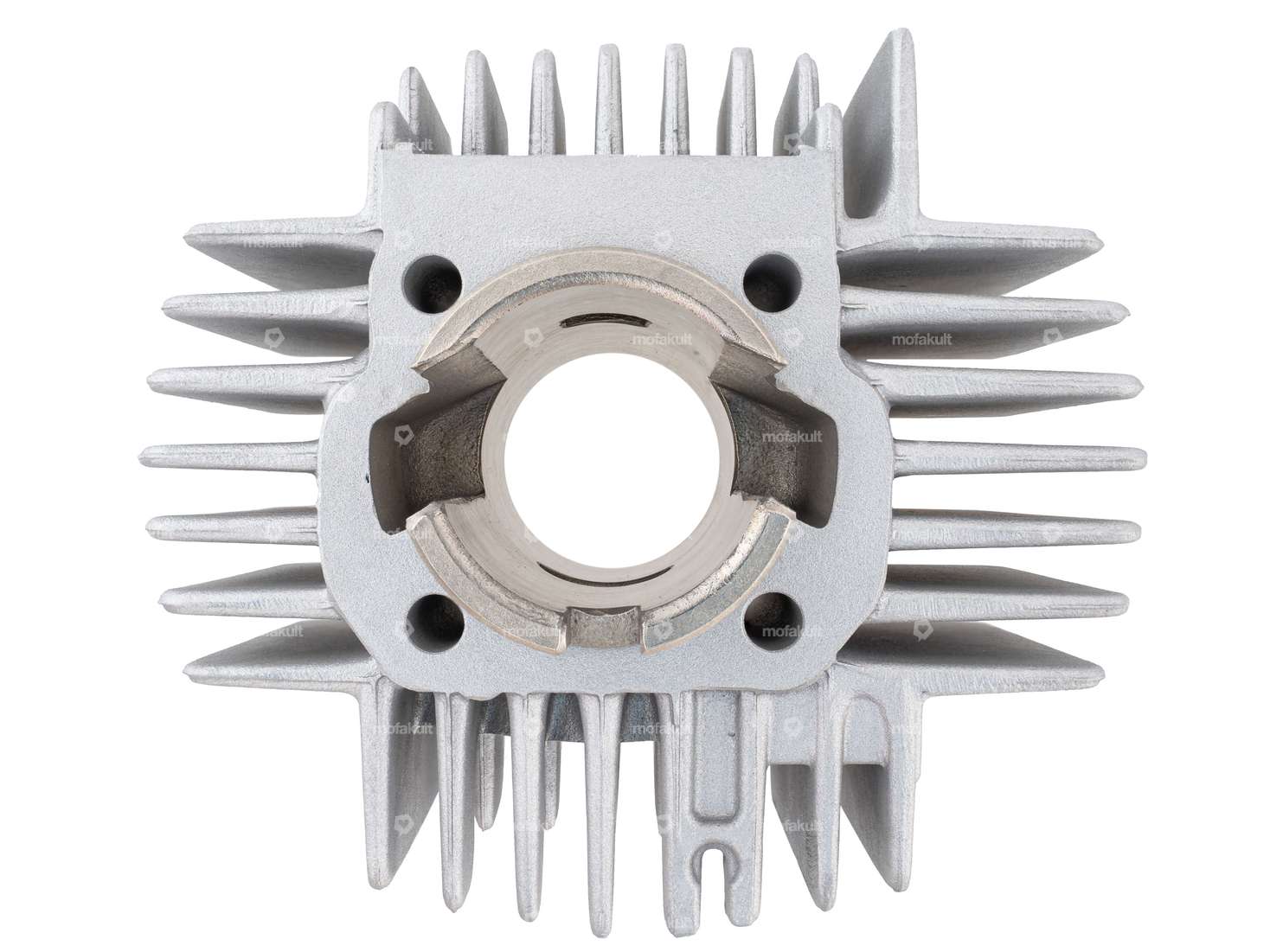

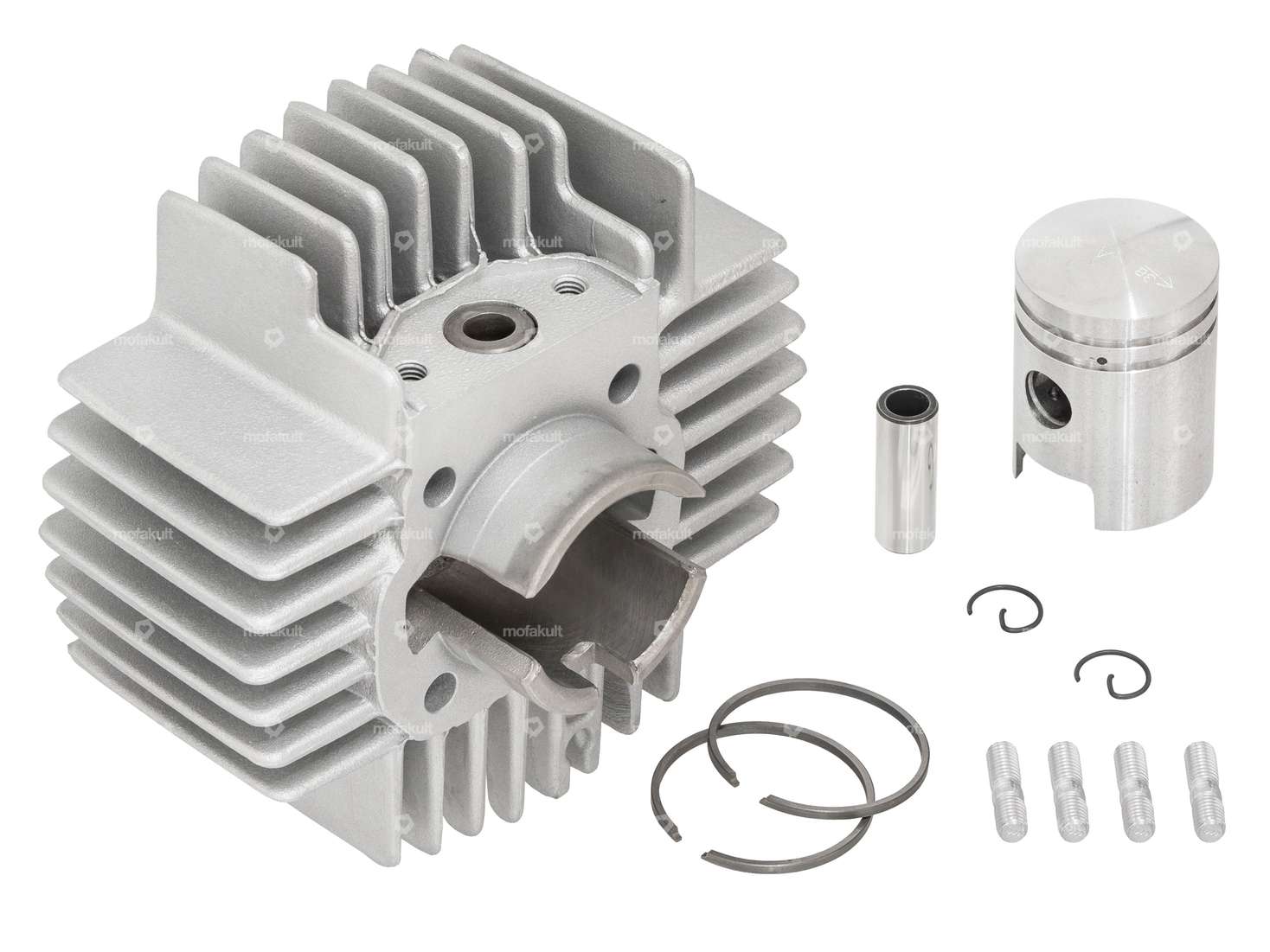

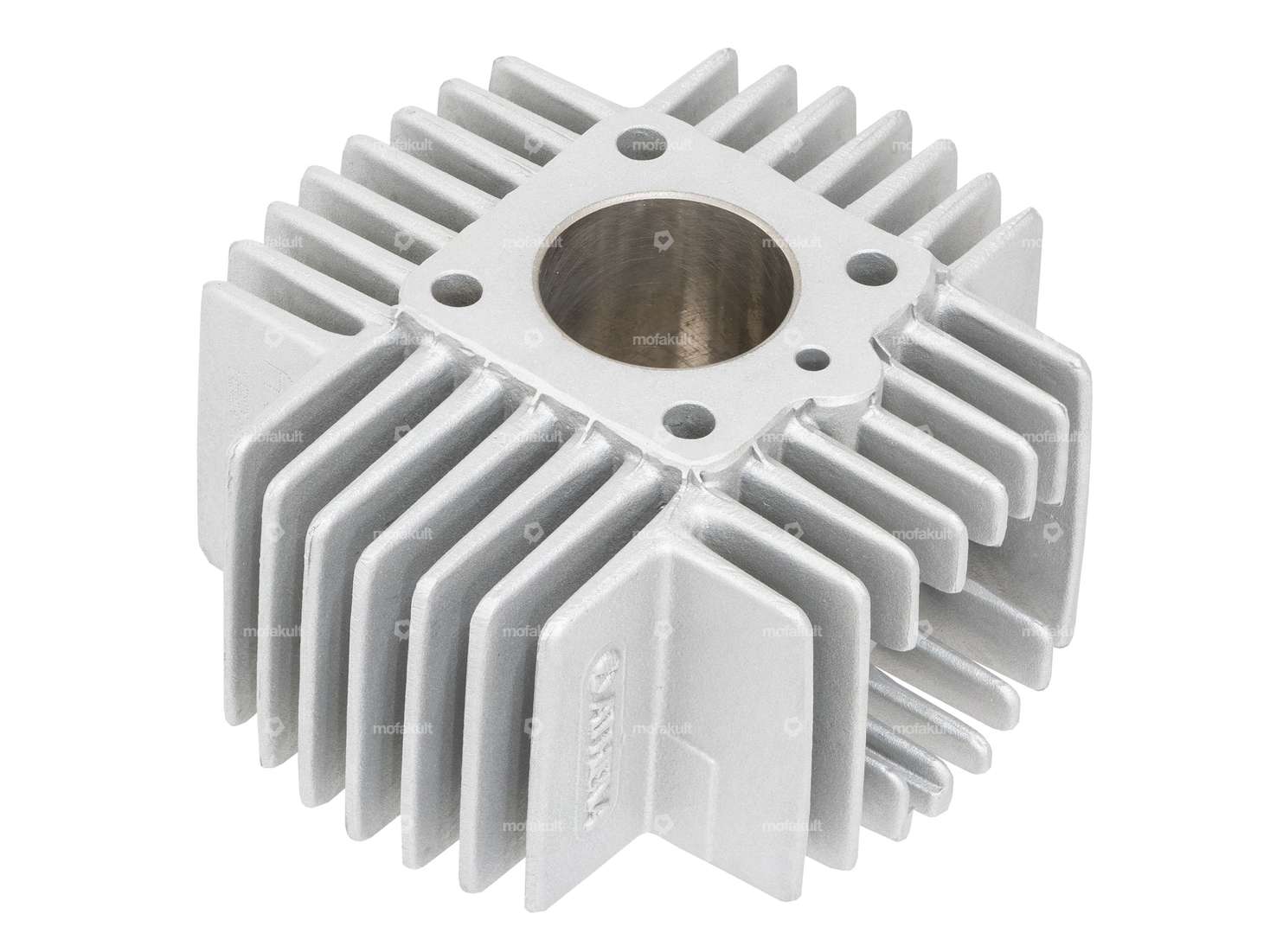

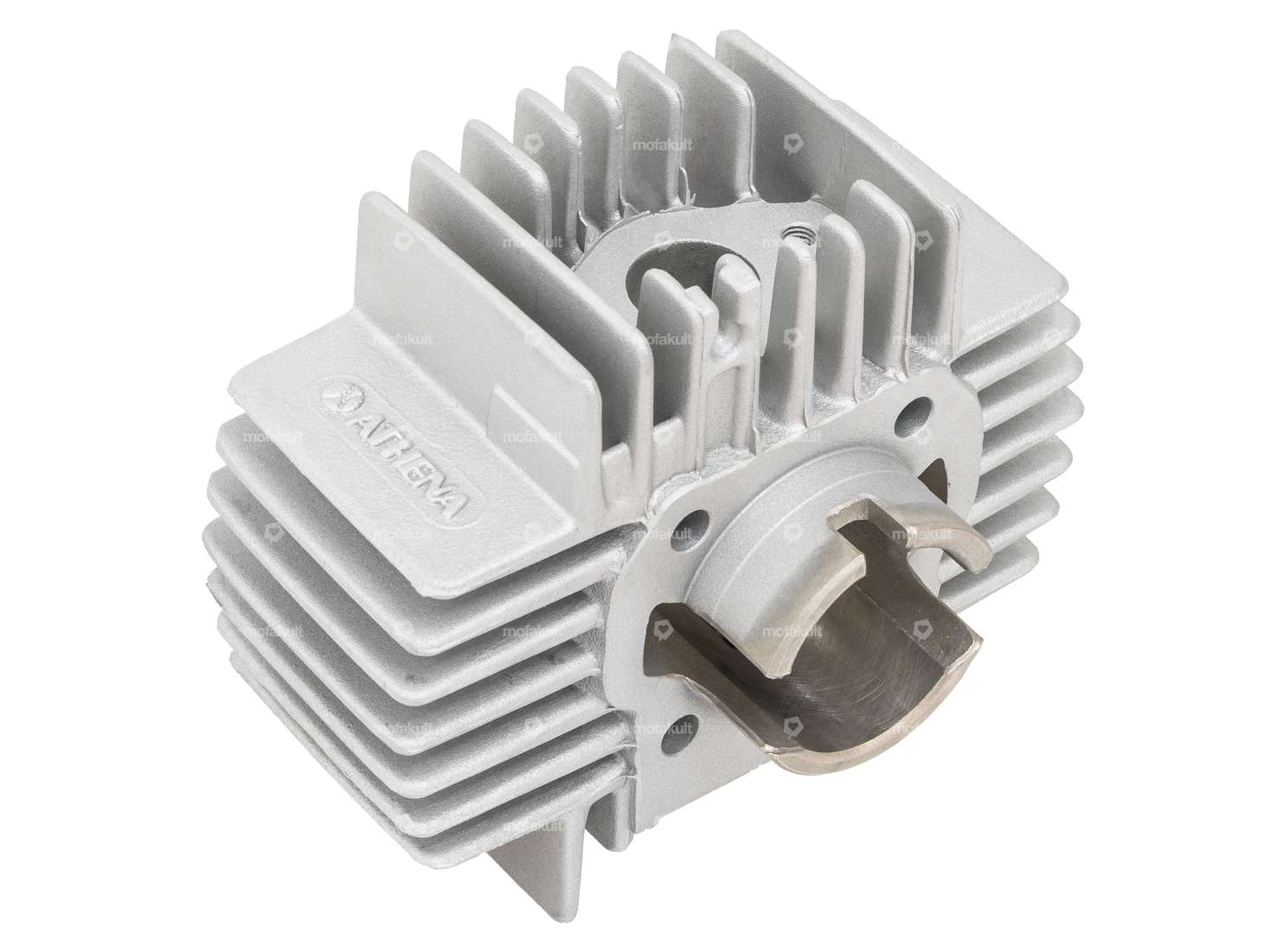

Athena 38 mm cylinder kit with seal | Puch

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Width: 125 mm · Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 38 mm · Total length: 135 mm · Height: 55 mm · Candle thread: short · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Area of application: Standard · Decompressor: No

swiing® revival stud bolt M6x106 (10.9 strength class)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 6 mm · Total length: 106 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Thread length: 20 mm · Puch OEM number: 360.1.10.034.1

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Material: Sealing paper · Ø outlet inside: 20 mm · Ø cylinder: 38 mm · Thickness: 0.39 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 1.7 mm · Number of components: 4 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Hole spacing inlet: 32 - 38 mm · Area of application: Standard

Athena piston 38 mm original cylinder #A | Puch

Manufacturer: Athena · Ø outside piston (A): 37.96 mm · Compression height (C): 22.6 mm · Curvature (D): 3.56 mm · Total piston height (E): 52.66 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Weight piston kit: 78 g

Athena piston ring 38x1.5 mm hard chrome-plated | Puch

Manufacturer: Athena · Surface: hard chrome plated · Nominal diameter: 38 mm · Piston ring impact: Internal fuse (IS) · Height: 1.5 mm

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Bearing type: Needle roller and cage assembly · Ø inside: 12 mm · Ø outside: 15 mm · Width: 14.2 mm · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Width: 125 mm · Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 38 mm · Total length: 135 mm · Height: 55 mm · Candle thread: short · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Area of application: Standard · Decompressor: No

swiing® revival bottom bracket bushing nylon | Puch Maxi, X30 Sport, Velux, NG-2AH

Bearing type: Plain bearing · Ø inside: 16.2 mm · Ø outside: 20.2 mm · Manufacturer: swiing® revival parts · Material: Nylon · Color: black · Ø Bundle: 24.1 mm · Total length: 19 mm · Puch OEM number: 349.1.42.005.1

Circlip A16 x 1

Place of use: Universal · Nominal diameter: 16 mm · Fuse type: Outside · Material: Spring steel

swiing® revival crankshaft "original" with mounted bearings | Puch E50

Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Weight: 873 g · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Thread length: 11 mm · Ø piston pin (B): 12 mm · Thread length: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Area of application: Standard · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs · Puch OEM number: 349.1.10.115.0 · Puch OEM number: 900.6203 · Puch OEM number: 900.6233 · Puch OEM number: 901.3801 · Puch OEM number: 902.3835

15 mm circlip clutch basket E50 engine

Place of use: Clutch · Nominal diameter: 15 mm · Fuse type: Outside · Ø inside: 13.8 mm · Ø outside: 17 mm · Manufacturer: Puch · Material: Spring steel · Thickness: 0.95 mm

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Material: Sealing paper · Ø outlet inside: 20 mm · Ø cylinder: 38 mm · Thickness: 0.39 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 1.7 mm · Number of components: 4 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Hole spacing inlet: 32 - 38 mm · Area of application: Standard

swiing® revival 12 mm carburetor "original" | Puch

Nominal diameter: 12 mm · Width: 50 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Color: gray · Carburetor type: SRE · Ø fuel hose connection: 6 mm · Nozzle size: 52 · Ø Inside entrance: 12 mm · Total length: 65 mm · Ø Output inside: 12 mm · Height: 108 mm · Ø Air filter connection: 20 mm · Mounting type: Plug connection clamped · Ø Internal connection: 20 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Area of application: Standard · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.15 · Clamping screw torque (max.): 4 N/m · Puch OEM number: 349.6.15.400.0 · Puch OEM number: 349.7.15.700.0

swiing® revival 12 mm intake manifold | Puch E50

Ø inside: 12 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Camouflaged: No · Hole spacing inlet: 38 mm · Mounting type: Screws · Total height: 53 mm · Number of fixing points: 2 pcs · Height flange center hole: 43 mm · Ø External connection: 20 mm · Total length: 45.5 mm · Area of application: Original

swiing® revival 12 mm carburetor set "original" | Puch E50

Manufacturer: swiing® revival parts · Camouflaged: No · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Nominal diameter: 12 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 12 mm · Area of application: Standard · Ø Output inside: 12 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 52 · Mounting type: Flange · Mounting type: Plug connection clamped · Hole spacing inlet: 38 mm · Clamping screw torque (max.): 4 N/m
