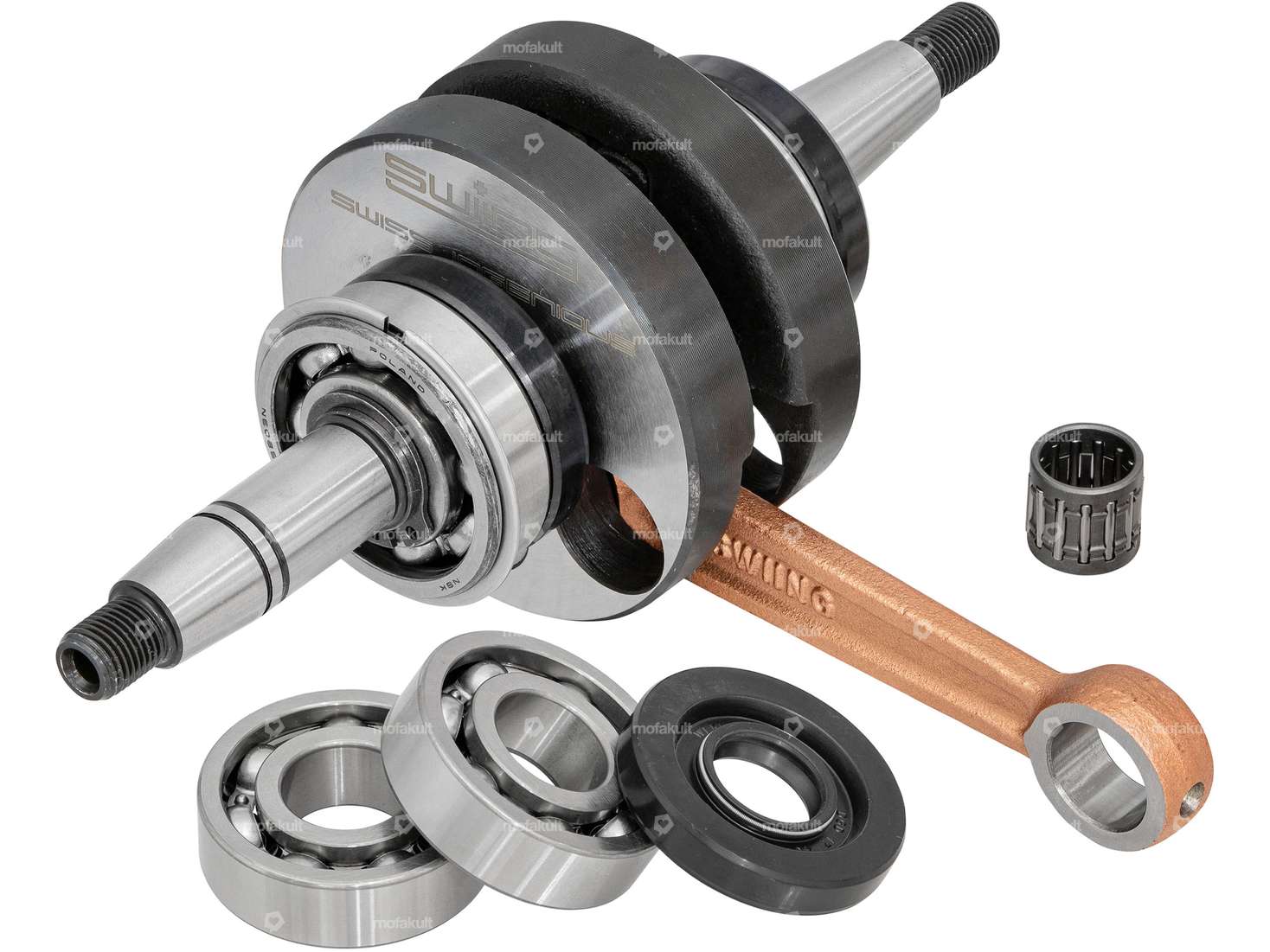

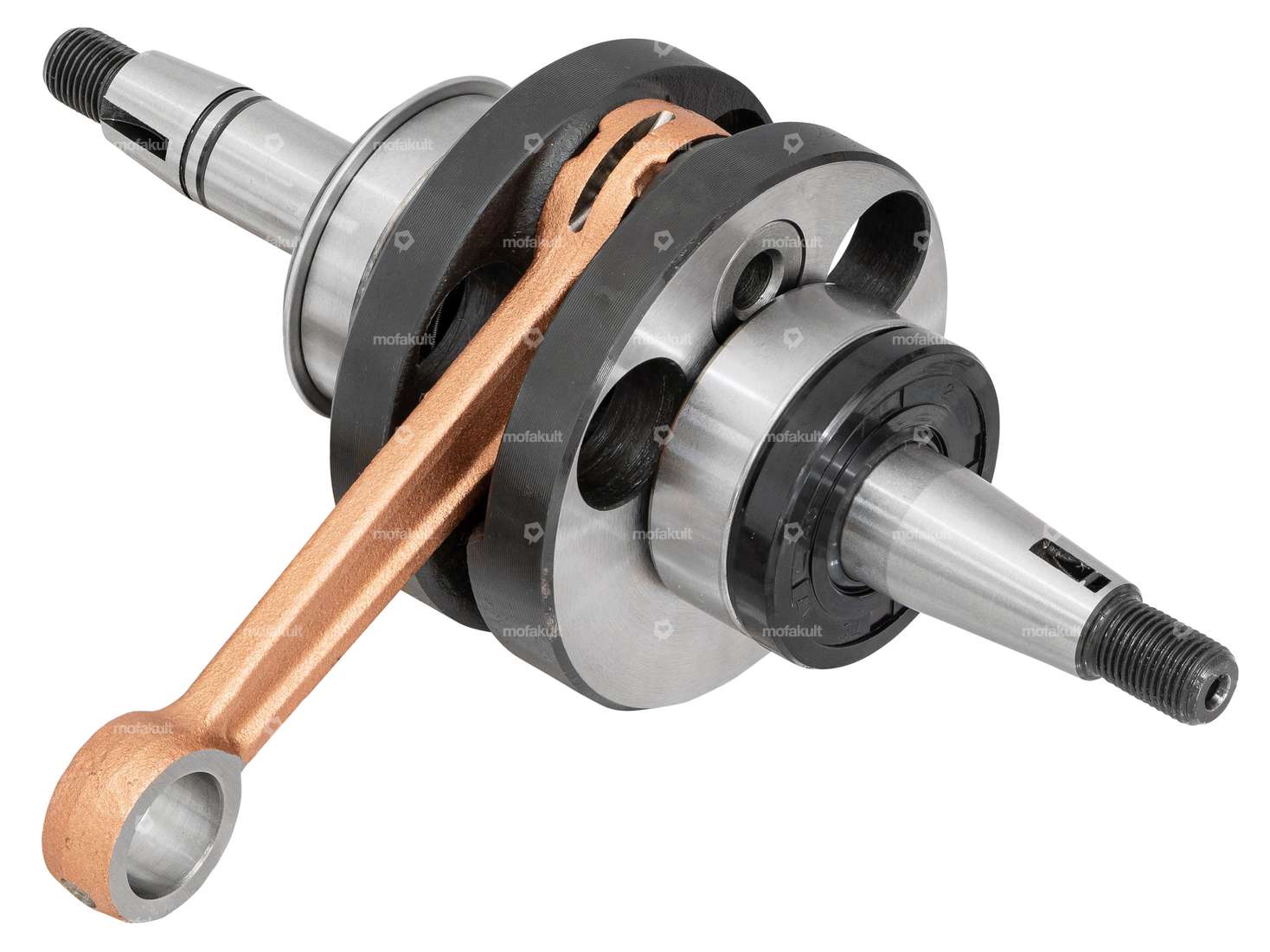

Original crankshaft suitable for Puch Maxi S / N, Supermaxi LG1 moped / moped with E50 engine.
This crankshaft was specially developed for use in original engines and impresses with the highest manufacturing quality and dimensional accuracy. It has impressively demonstrated its durability and resistance in a wide range of load tests.
| Manufacturer | swiing® revival parts |
| Thread length | 11 mm, 15 mm |
| Material | Steel |
| Area of application | Standard |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Connecting rod length center-center | 90 mm |
| Total length of crankpin on clutch side | 74 mm |
| Total length crankpin ignition side | 66 mm |
| Ø crank webs | 69.9 mm |
| Ø Connecting rod eye | 15 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Dimension needle bearing | 12 / 15 x 14.2 mm (axe 12) |
| Wide crank webs | 34 mm |
| Length 1st paragraph | 9 mm |
| Length 2nd paragraph | 14.5 mm |
| Length 3rd paragraph | 25 mm |
| Ø 1st step (on the coupling side) | 22 mm |
| Ø 2nd shoulder (on the clutch side) | 17 mm |
| Ø 3rd step (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 26.3 mm |
| Weight | 873 g |
| Number of gears | 1 pcs |
| Puch OEM number | 349.1.10.115.0, 901.3801, 900.6203, 902.3835, 900.6233 |
| Puch | E50 |
