For: Puch

11308

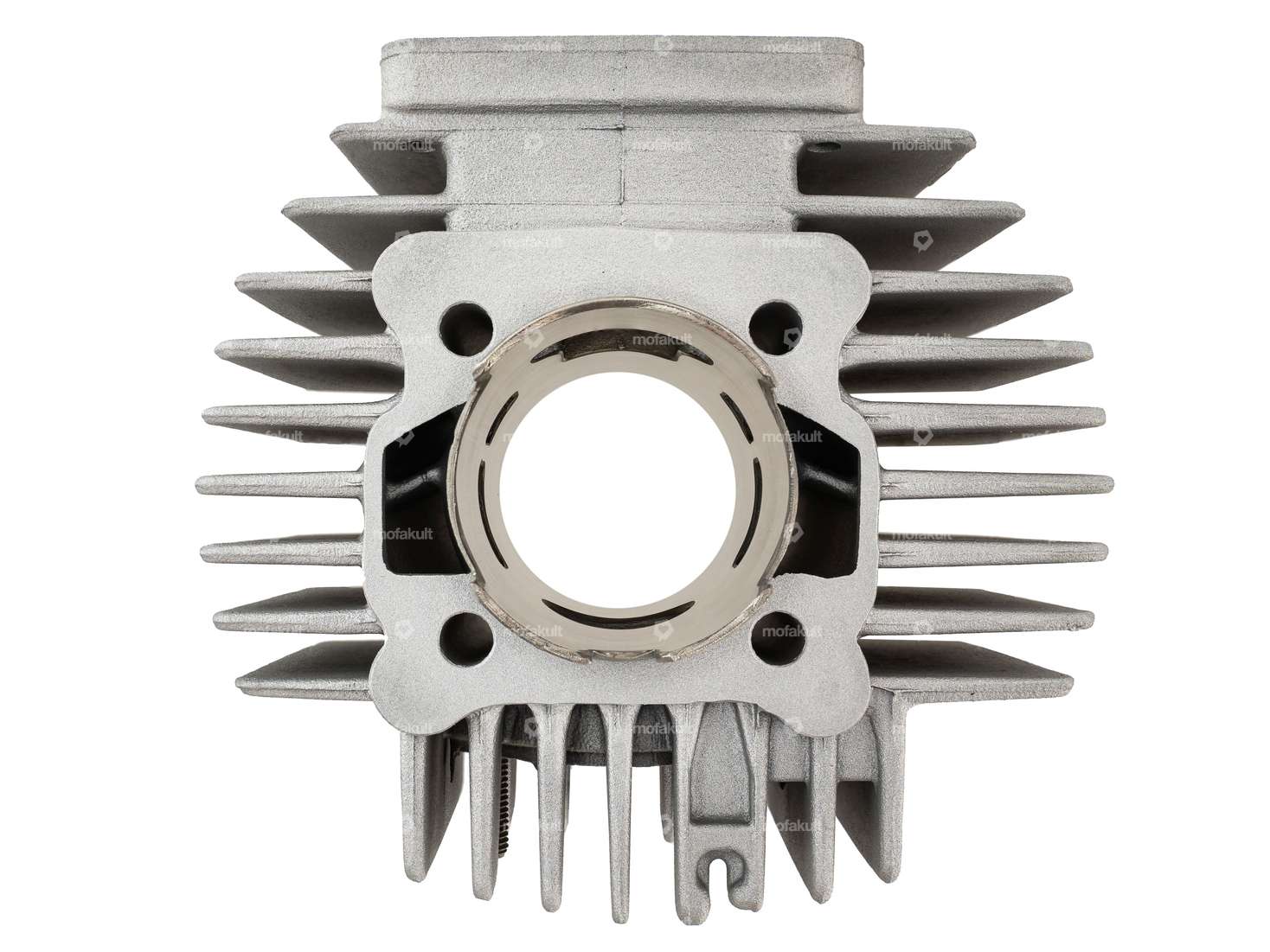

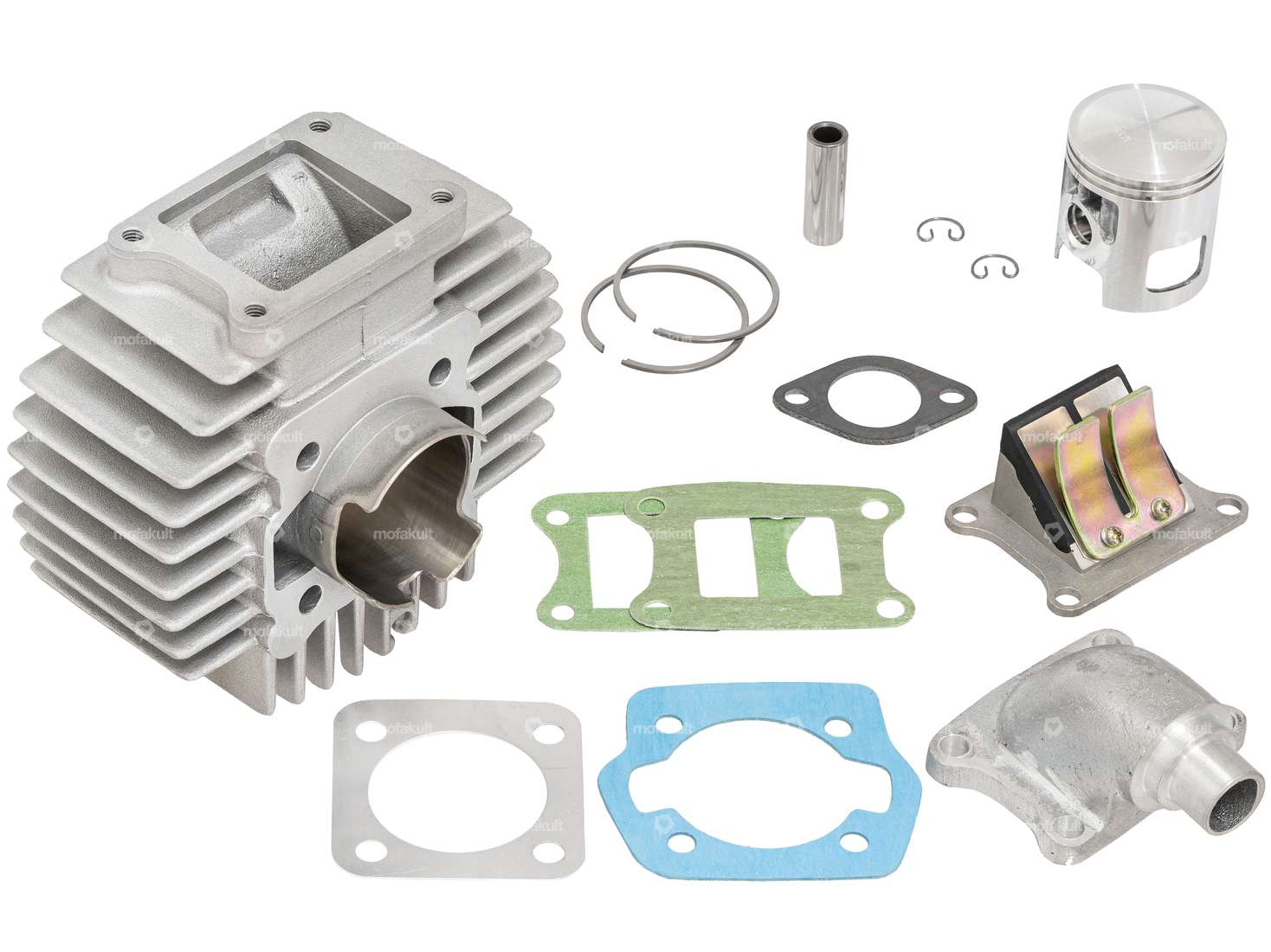

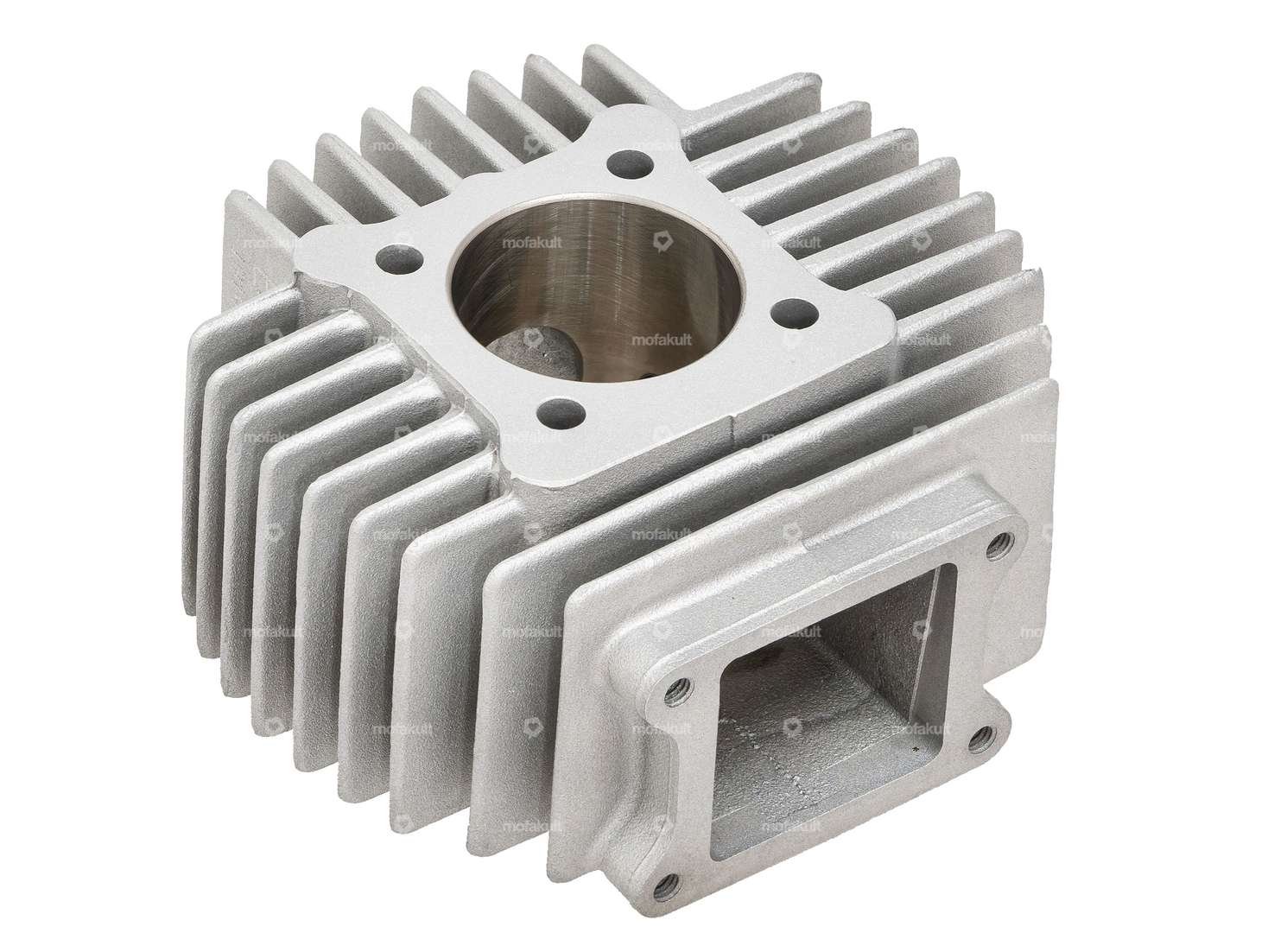

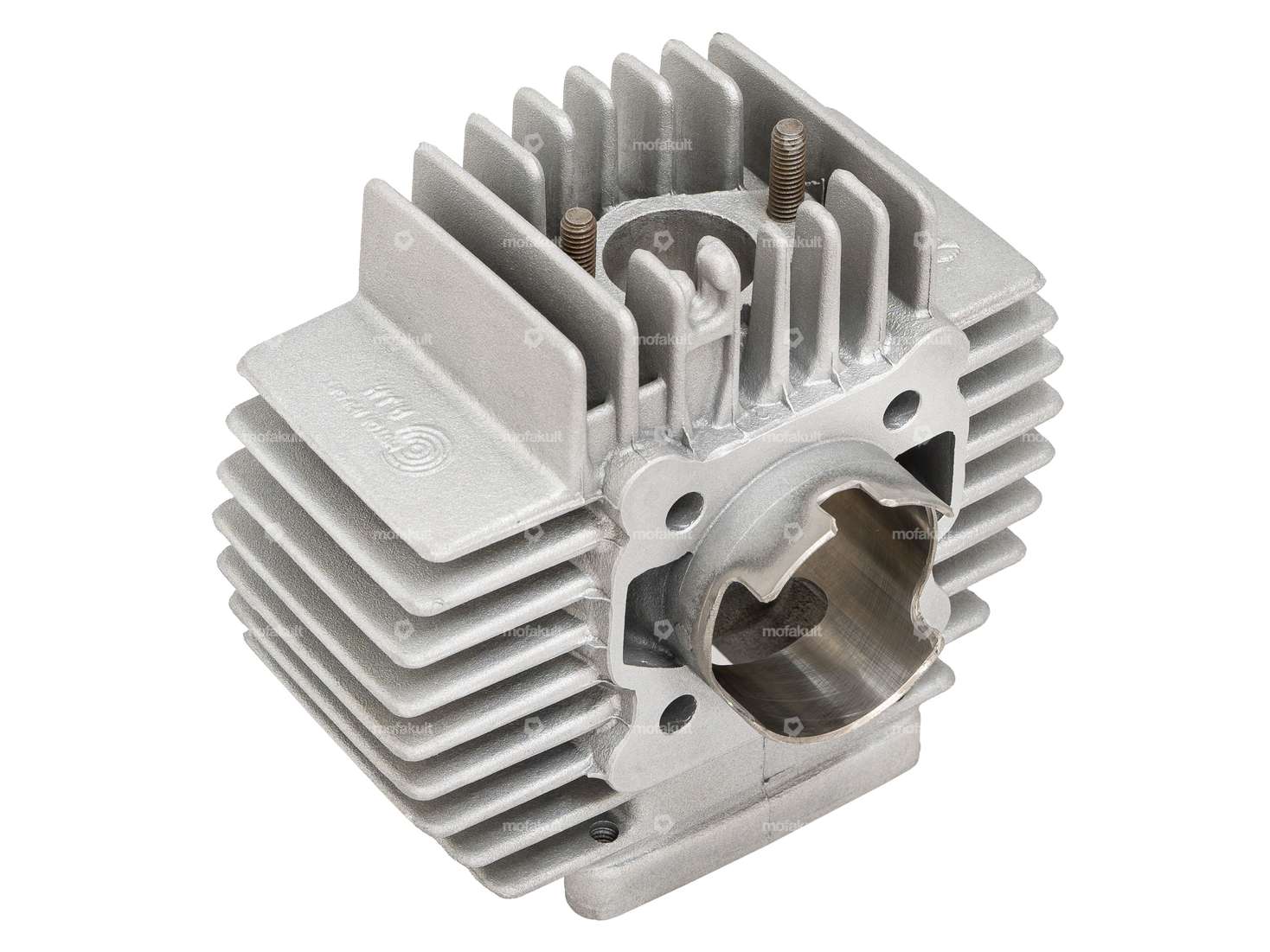

Athena 45 mm cylinder kit incl. diaphragm AJH | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 361.50

Incl. 25% VAT.

Description

Powerful racing kit with 45 mm bore and diaphragm inlet suitable for various Puch mopeds and small motorcycles.
The housing does not need to be spindled for use. However, the racing set lock must be removed to use this cylinder.

Nominal diameter45 mm
ManufacturerAthena
MaterialAluminum
Area of applicationTuning
Displacement70 ccm
Crankshaft stroke43 mm
Ø cylinder neck47.8 mm
Surfacesandblasted
Ø outlet inside26 mm
Ø Inlet inside16 mm
Inlet window38 x 25
Thread inletM6x1 (standard thread)
Hole spacing inlet60 mm, 40 mm
Ø piston pin (B)12 mm
Outlet typestraight
Hole spacing outlet42 mm
Thread outletM6x1 (standard thread)
Hole pattern [mm]44 x 44
DecompressorNo
CamouflagedNo
Number of fixing points4 pcs
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
