For: Puch

19811

Athena piston 45 mm AJH #C | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 78.90

Incl. 25% VAT.

Description

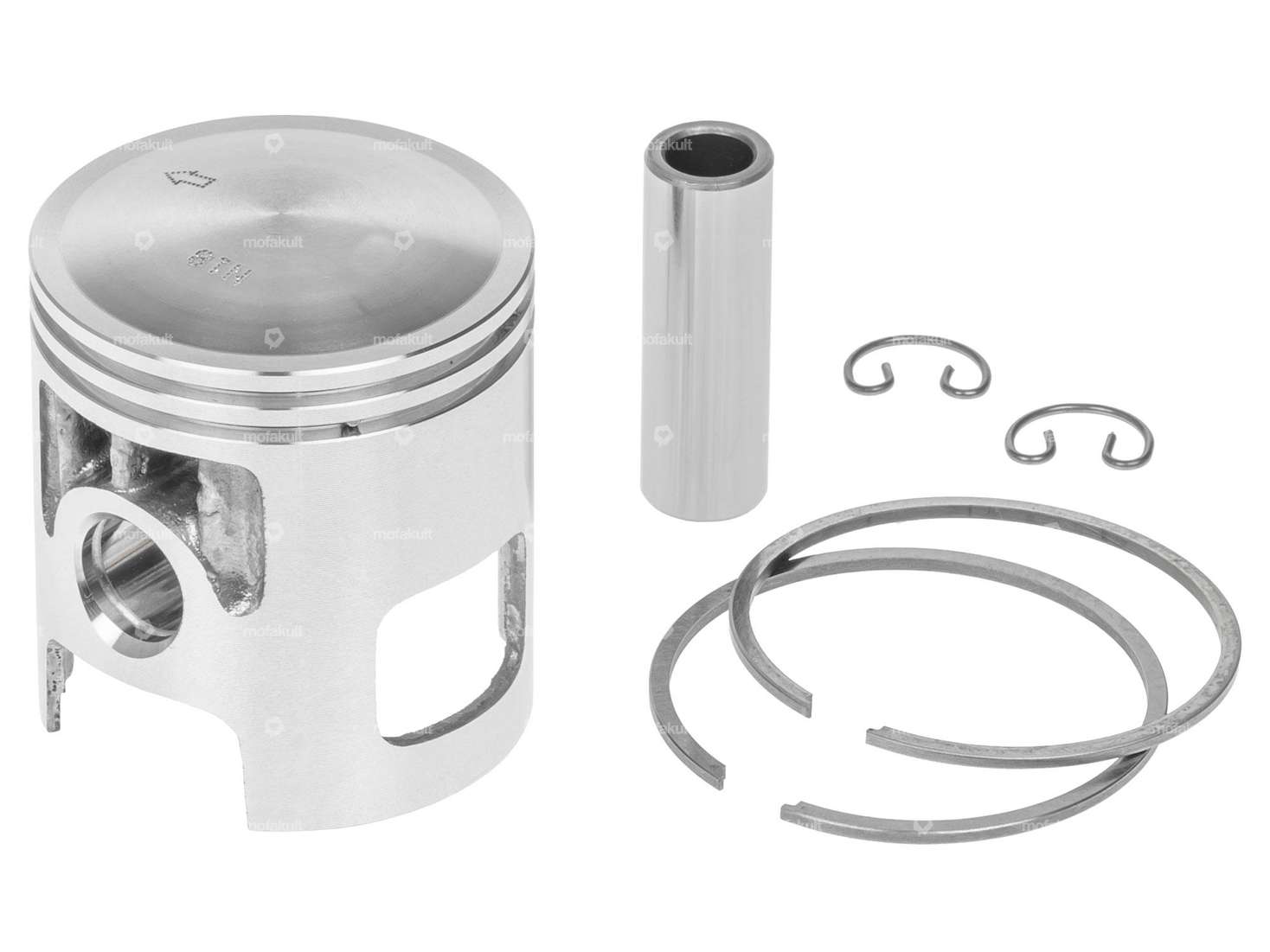

45 mm replacement piston with two 1.5 mm rectangular piston rings with internal fuse (IS) for various Puch mopeds / mopeds with Athena AJH cylinders.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Tolerance type: C

The piston kit contains piston pins, piston clips and piston rings.

You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.

Quality product from the Italian manufacturer Athena.

ManufacturerAthena
Ø outside piston (A)44.91 mm
Compression height (C)25 mm
Curvature (D)2.8 mm
Total piston height (E)50.8 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Nominal diameter45 mm
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance groupC
Weight piston kit95 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
