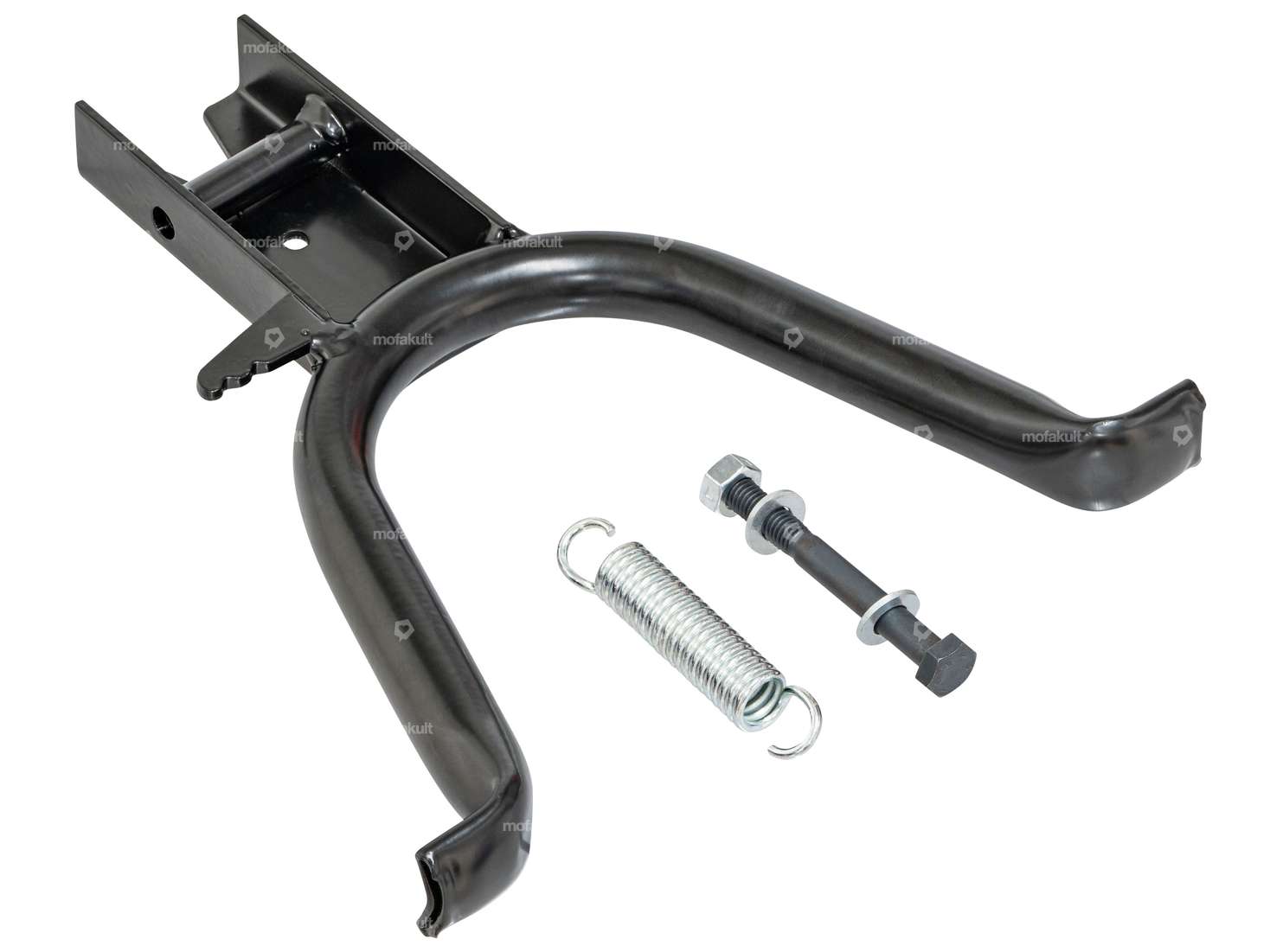

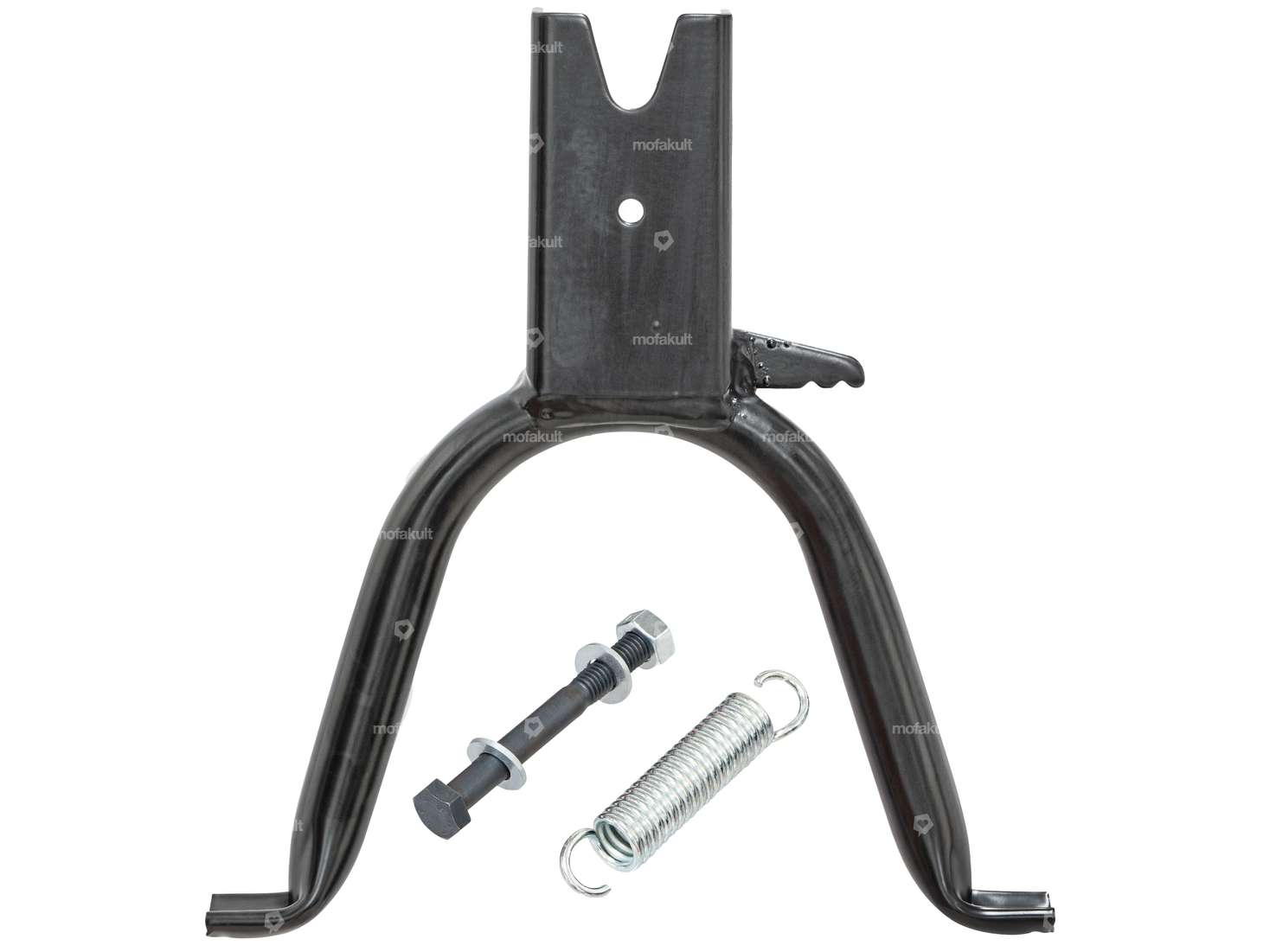

Center stand suitable for Tomos A3 and A35 mopeds / mopeds.
The stand is supplied including the required connecting elements and spring.
You can find the counterpart without spring and bolt as well as other parts for your Tomos in the accessories section.
Quality product from the Italian manufacturer Buzzetti.
Details
| Manufacturer | Buzzetti |
| Material | Steel |
| Surface | varnished |
| Color | black |

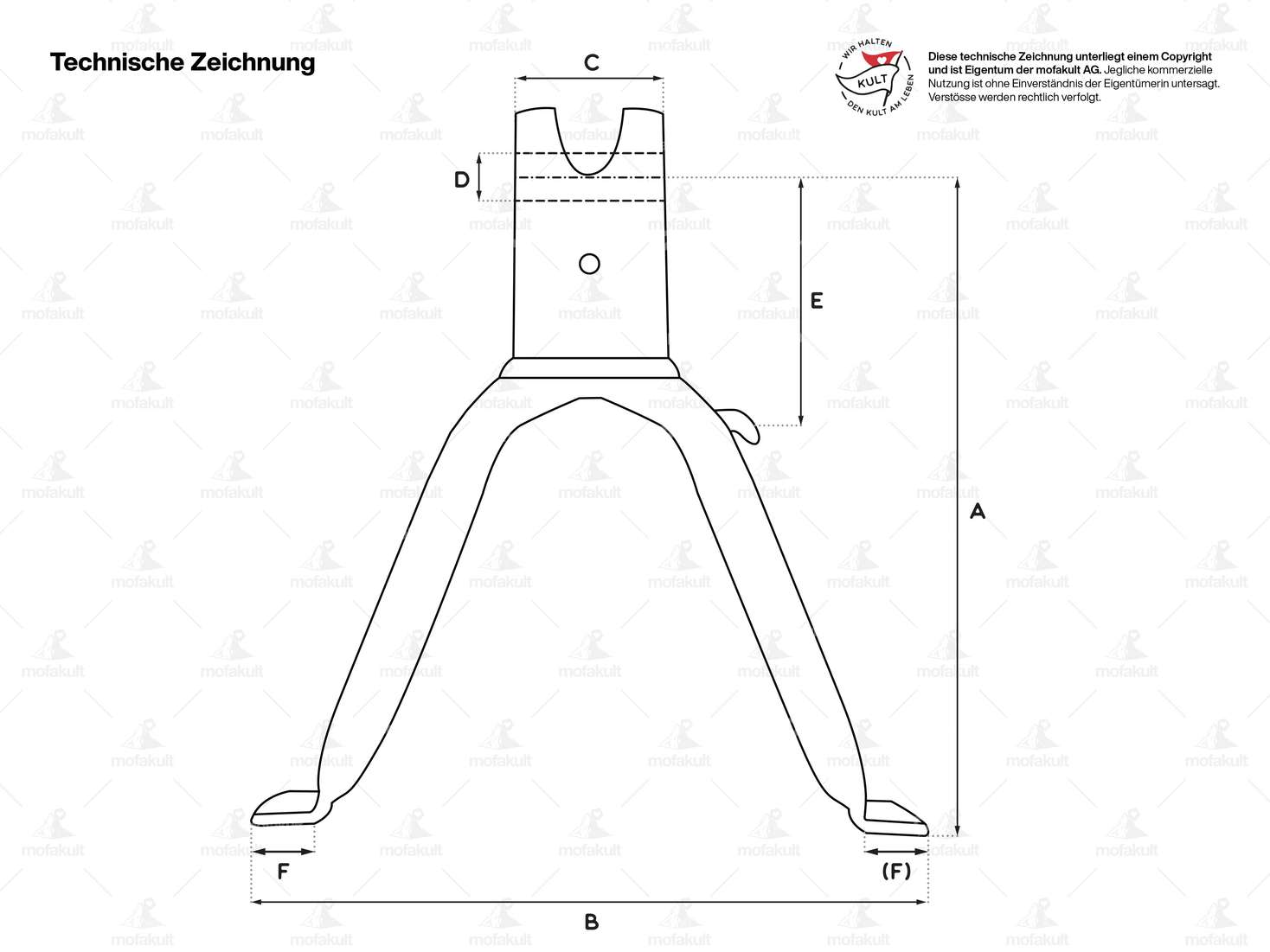

| Stand base - center mount (A) | 205 mm |
| Total width of stand base (B) | 215 mm |
| Wide receptacle (C) | 52 mm |
| Ø Receptacle (D) | 8.1 mm |
| Spring nipple distance - center pivot axis (E) | 60 mm |
| Wide upright foot (F) | 20 mm |
| Total height | 240 mm |
| Tomos OEM number | 237153S91 |
Suitable for the following models
| Tomos |
