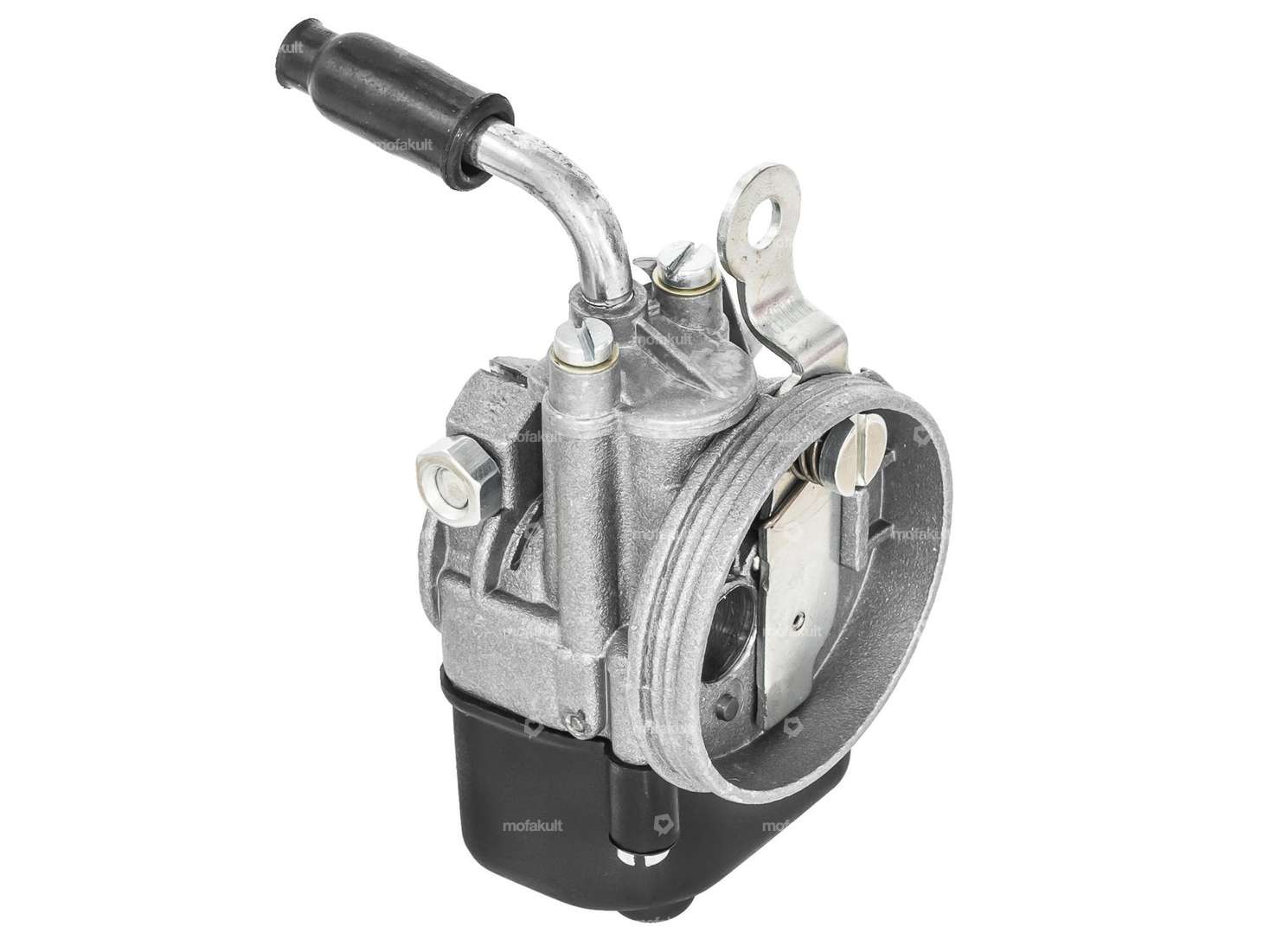

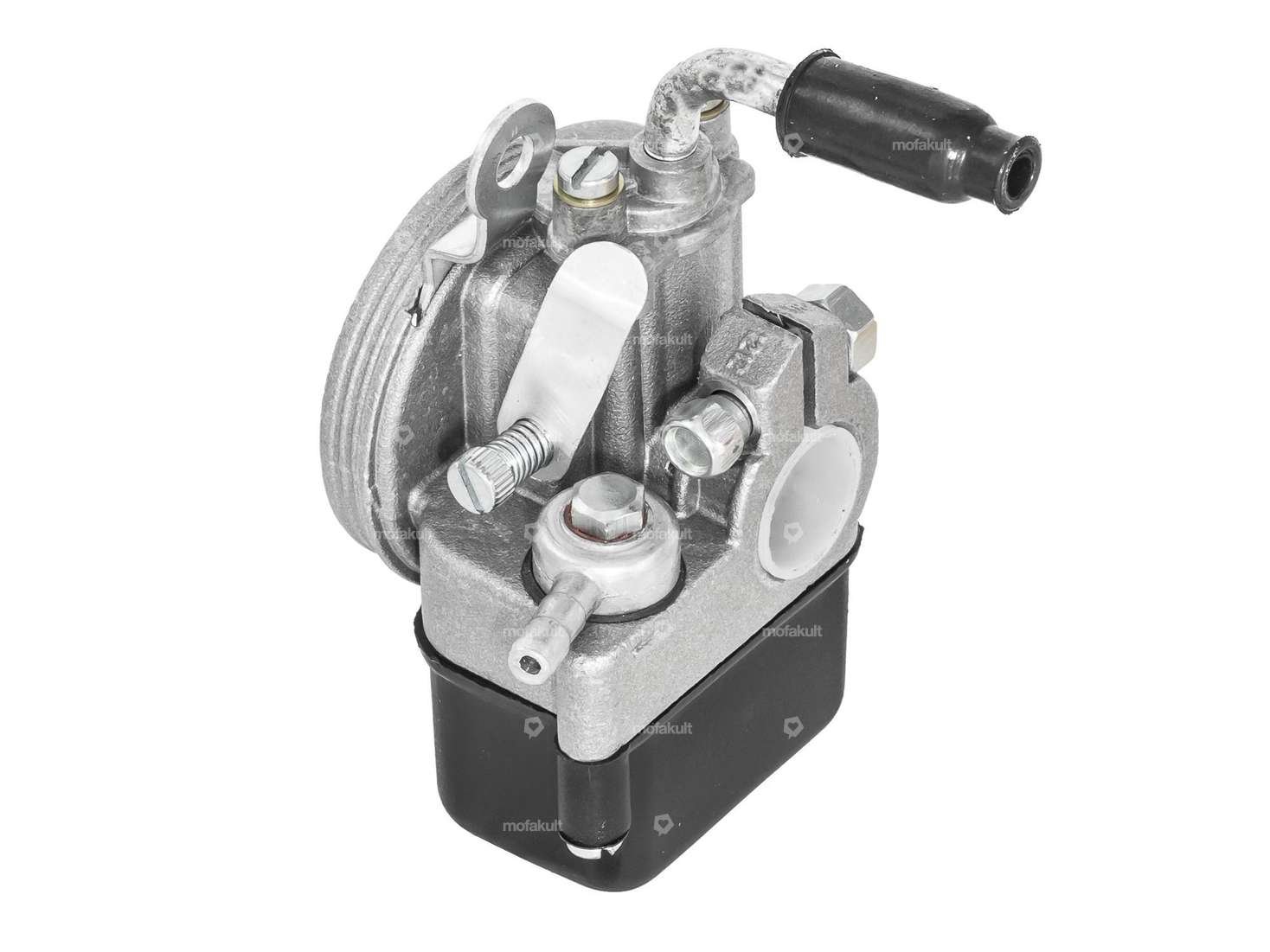

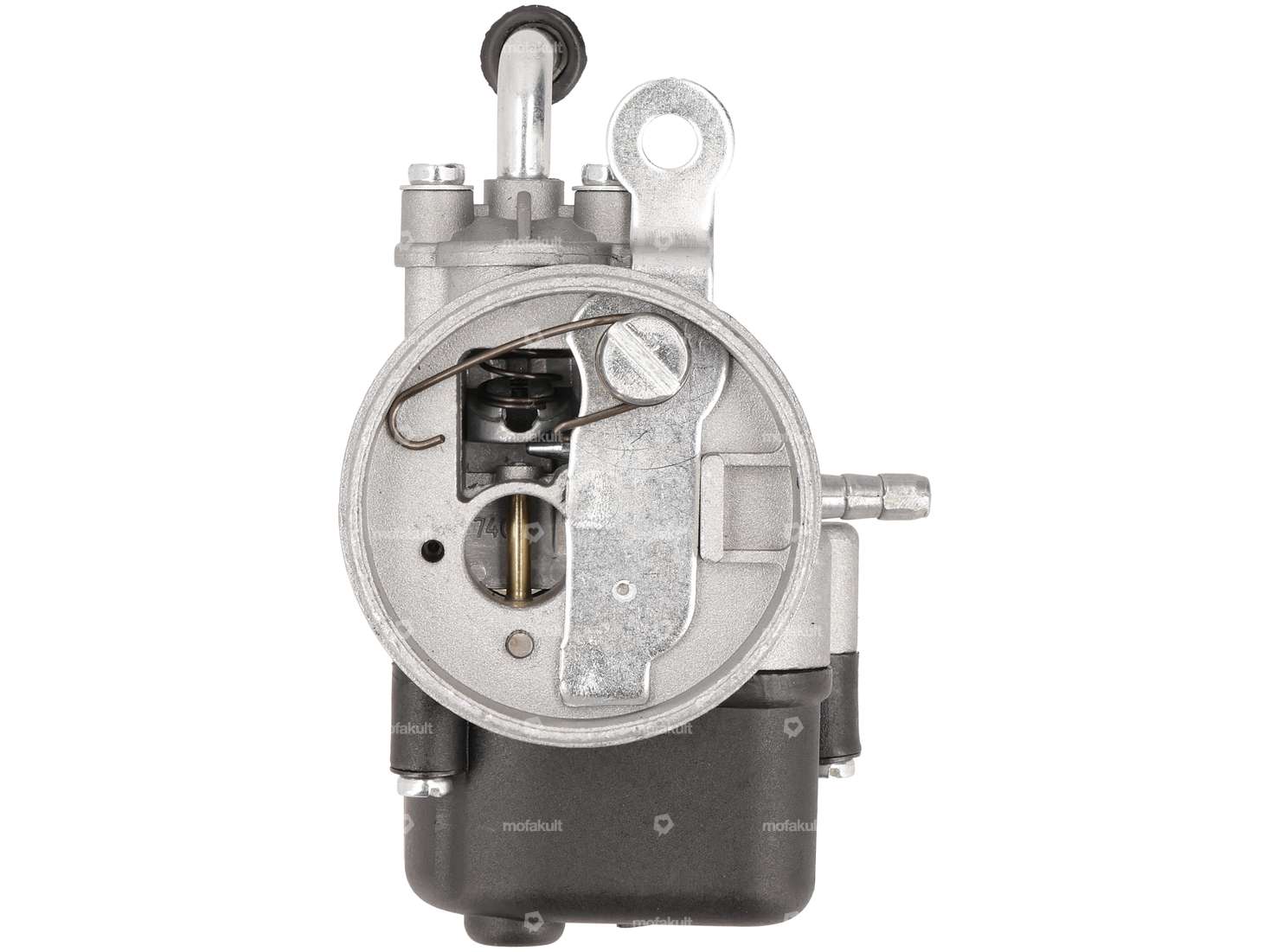

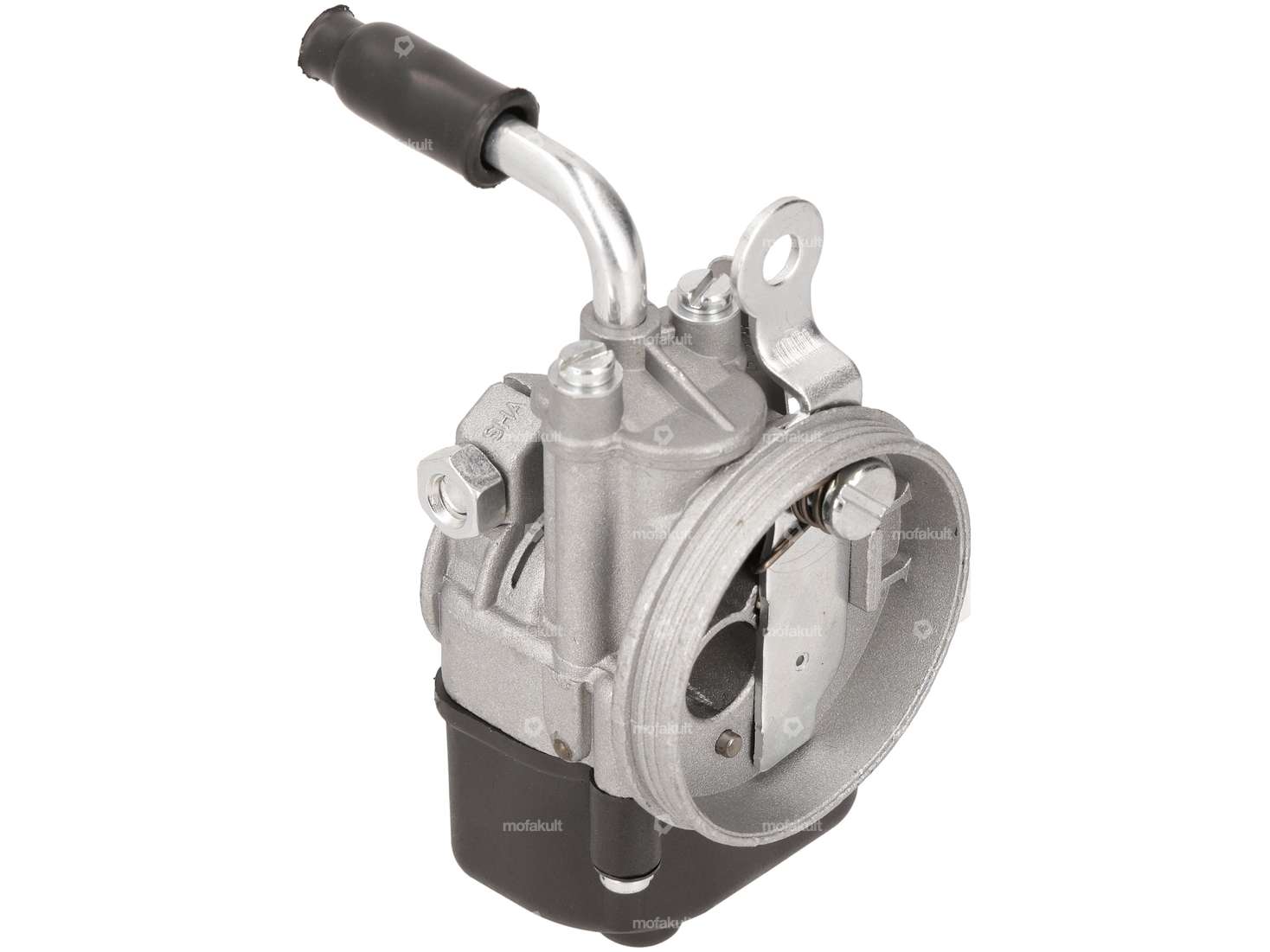

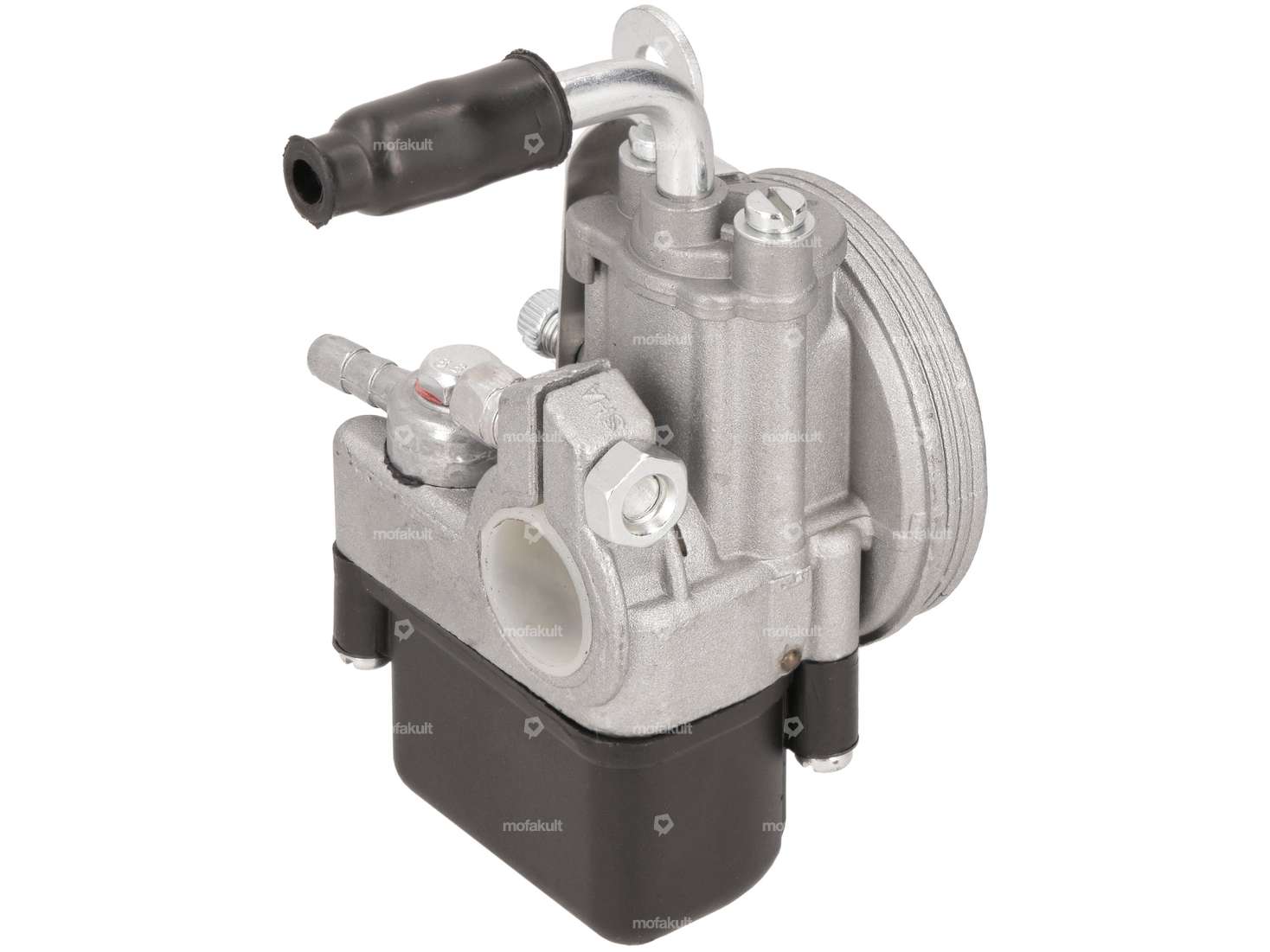

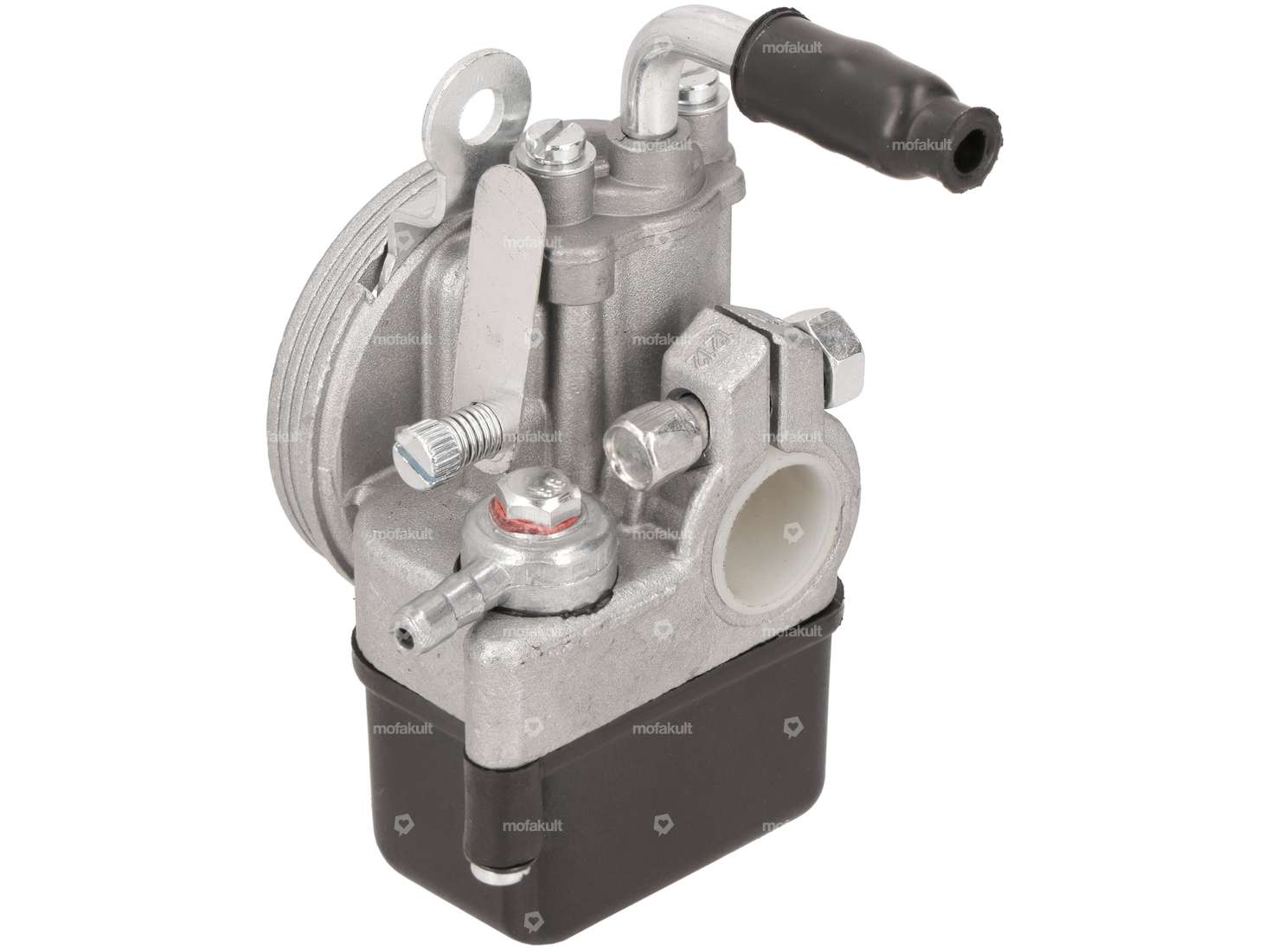

Favourable 12 / 12 replica carburettor for your Piaggio Ciao moped / moped.
The carburettor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburettor type: SHA type 3 (SHA3)
Main thread size (M5): 48
Inlet connection diameter: 16 mm (or 18 mm after removing the reducer). 18 mm after removing the reducing sleeve)
Ø outside air filter connection: 50.5 mm
Ø passage on air filter side: 12 mm
Ø passage on intake manifold side: 12 mm
Total height: 87 mm (without pipe bend)
Total length: 45 mm
Total width: 60 mm
Note: The finish of the aftermarket carburettors varies. The idle throttle bore is not perfect on all of them. We also recommend that you clean the carburetor again before installation, as some metal shavings from production can be found in the carburetor. If you want to be on the safe side and avoid problems, go straight for the original Dell'Orto product.
You can find suitable jets, air filters and original Dell'Orto carburettors in the accessories section.
Good quality reproduction product from the Asian market.
Details
| Manufacturer | Quenching |
| Material | Aluminum |
| Area of application | Tuning |
| Component group Carburetor | Carburetor complete |
| Color | black |
| Nominal diameter | 12 mm |
| Carburetor type | SHA (Piaggio) |
| Choke control | Hand choke |
| Total length | 45 mm |
| Ø fuel hose connection | 5.5 mm, 4.8 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 48 |
| Ø without reducing sleeve | 18 mm |
| Ø Internal connection | 16 mm |
| Ø Inside entrance | 12 mm |
| Mounting type | Plug connection clamped |
| Ø Output inside | 12 mm |
| Ø Air filter connection | 50.5 mm |
| Mixed oil connection | No |
| Width | 60 mm |
| Vacuum connection | No |
| Height | 104 mm |
| Camouflaged | No |
Suitable for the following models
| Piaggio | Ciao - PX, C24 |
Accessories & related products
Malossi air filter | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Area of application: Tuning · Material: Plastic · Color: black · Ø outside: 53.2 mm · Filter type: Foam · Width: 95 mm · Total length: 31.2 mm · Height: 88.7 mm · Mounting type: Plug connection clamped · Ø Internal connection: 51 mm · Camouflaged: No
EUR 24.30
Air filter 2 PS (DGM) original | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Piaggio · Area of application: Original · Area of application: Tuning · Material: Plastic · Color: black · Ø outside: 51 mm · Filter type: Grille · Width: 94 mm · Total length: 26.5 mm · Height: 89 mm · Mounting type: Plug connection clamped · Ø Internal connection: 49.7 mm
EUR 19.50

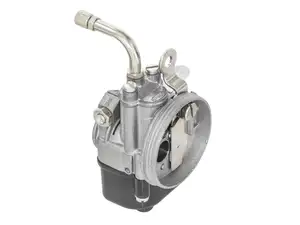

Dell'Orto 12/12 SHA carburetor hand choke | Piaggio Ciao PX, C24
Nominal diameter: 12 mm · Manufacturer: Dell'Orto · Area of application: Tuning · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: SHA (Piaggio) · Choke control: Hand choke · Width: 60 mm · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.1 mm · Ø fuel hose connection: 6 mm · Total length: 55 mm · Height: 110 mm · Ø without reducing sleeve: 18 mm · Nozzle size: 48 · Mounting type: Plug connection clamped · Ø Inside entrance: 12 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Mixed oil connection: No · Vacuum connection: No · Camouflaged: No
EUR 79.40
swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG
Total length: 8 mm · Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Drive: Slot · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 30 · Nozzle size: 31 · Nozzle size: 32 · Nozzle size: 33 · Nozzle size: 34 · Nozzle size: 35 · Nozzle size: 36 · Nozzle size: 37 · Nozzle size: 38 · Nozzle size: 39 · Nozzle size: 40 · Nozzle size: 41 · Nozzle size: 42 · Nozzle size: 43 · Nozzle size: 44 · Nozzle size: 45 · Nozzle size: 46 · Nozzle size: 47 · Nozzle size: 48 · Nozzle size: 49 · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60 · Nozzle size: 61 · Nozzle size: 62 · Nozzle size: 63 · Nozzle size: 64 · Nozzle size: 65 · Nozzle size: 66 · Nozzle size: 67 · Nozzle size: 68 · Nozzle size: 69 · Nozzle size: 70 · Nozzle size: 71 · Nozzle size: 72 · Nozzle size: 73 · Nozzle size: 74 · Nozzle size: 75 · Nozzle size: 76 · Nozzle size: 77 · Nozzle size: 78 · Nozzle size: 79 · Nozzle size: 80 · Nozzle size: 81 · Nozzle size: 82 · Nozzle size: 83 · Nozzle size: 84 · Nozzle size: 85 · Nozzle size: 86 · Nozzle size: 87 · Nozzle size: 88 · Nozzle size: 89 · Nozzle size: 90 · Nozzle size: 91 · Nozzle size: 92 · Nozzle size: 93 · Nozzle size: 94 · Nozzle size: 95 · Nozzle size: 96 · Nozzle size: 97 · Nozzle size: 98 · Nozzle size: 99 · Nozzle size: 100 · Nozzle size: 101 · Nozzle size: 102 · Nozzle size: 103 · Nozzle size: 104 · Nozzle size: 105 · Nozzle size: 106 · Nozzle size: 107 · Nozzle size: 108 · Nozzle size: 109 · Nozzle size: 110 · Nozzle size: 111 · Nozzle size: 112 · Nozzle size: 113 · Nozzle size: 114 · Nozzle size: 115 · Nozzle size: 116 · Nozzle size: 117 · Nozzle size: 118 · Nozzle size: 119 · Nozzle size: 120
EUR 4.30
swiing nozzle set M5 (32 - 50) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Quantity: 10 pcs · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Total length: 8 mm · Nozzle size: 32 · Nozzle size: 34 · Nozzle size: 36 · Nozzle size: 38 · Nozzle size: 40 · Nozzle size: 42 · Nozzle size: 44 · Nozzle size: 46 · Nozzle size: 48 · Nozzle size: 50
EUR 25.60
swiing® ingenious 16 mm intake manifold | Cilo 502
Material: Aluminum · Surface: anodized · Manufacturer: swiing® ingenious parts · Area of application: Tuning · Ø inside: 16 mm · Ø External connection: 19 mm · Hole spacing inlet: 32 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Color: black-matt
EUR 59.80

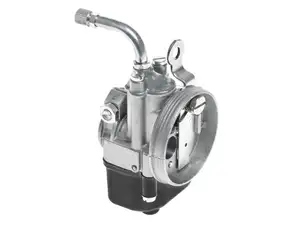

Dell'Orto 12/12 SHA carburetor | Piaggio Ciao PX, C24
