Real junk that definitely does not belong on your moped! The quality is so bad that the item only serves as a memorial - you can't buy it from mofakult.

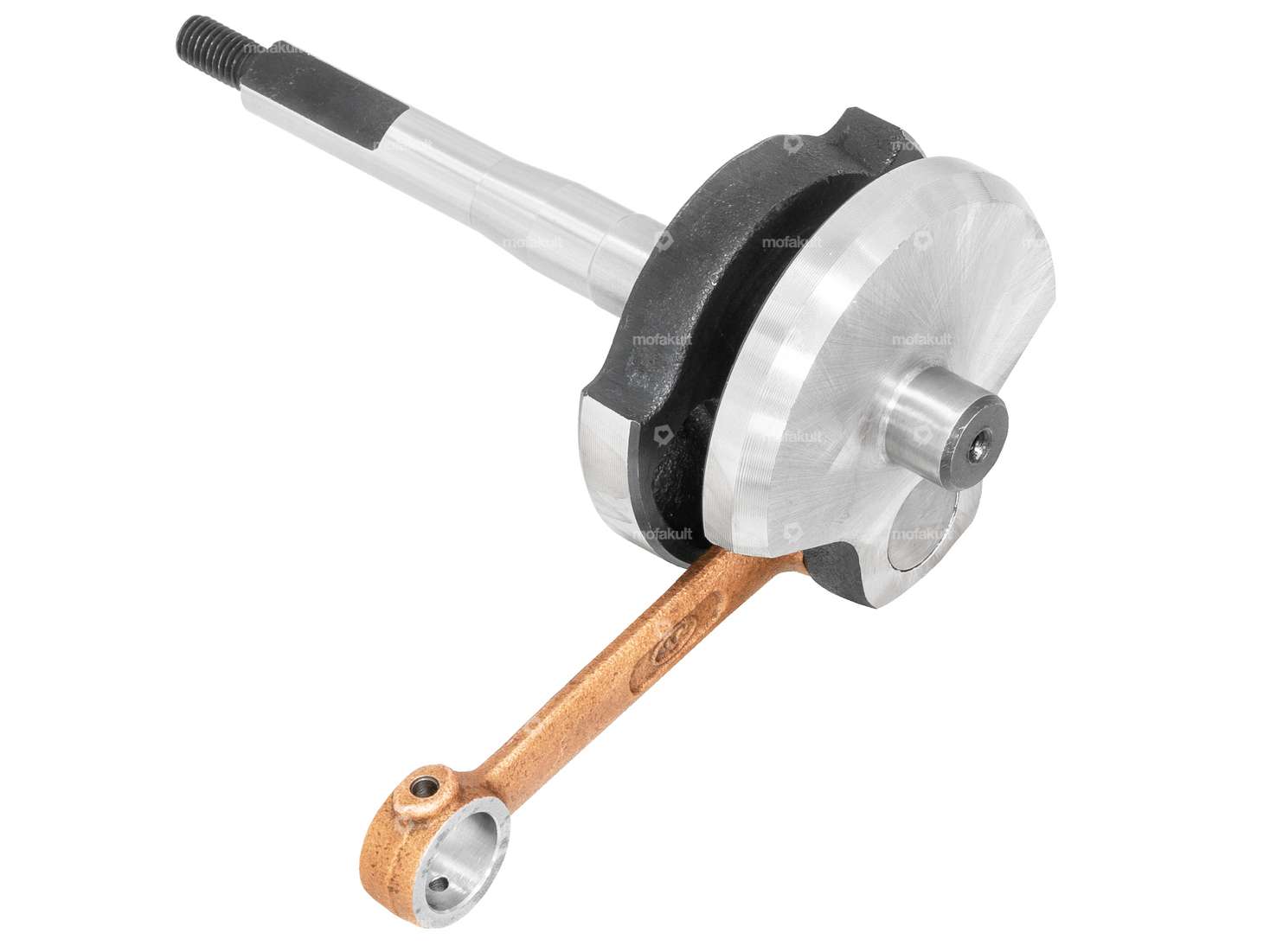

Crankshaft for all Piaggio moped & moped models (Ciao, Si, Bravo, Boxer, Grillo).
This crankshaft fits all cylinders with 12 mm piston pin. However, as the crank web has not been machined properly, it protrudes from the housing and is therefore unusable.
You can find usable alternatives in the accessories section.
Original Piaggio spare part number: 1841545

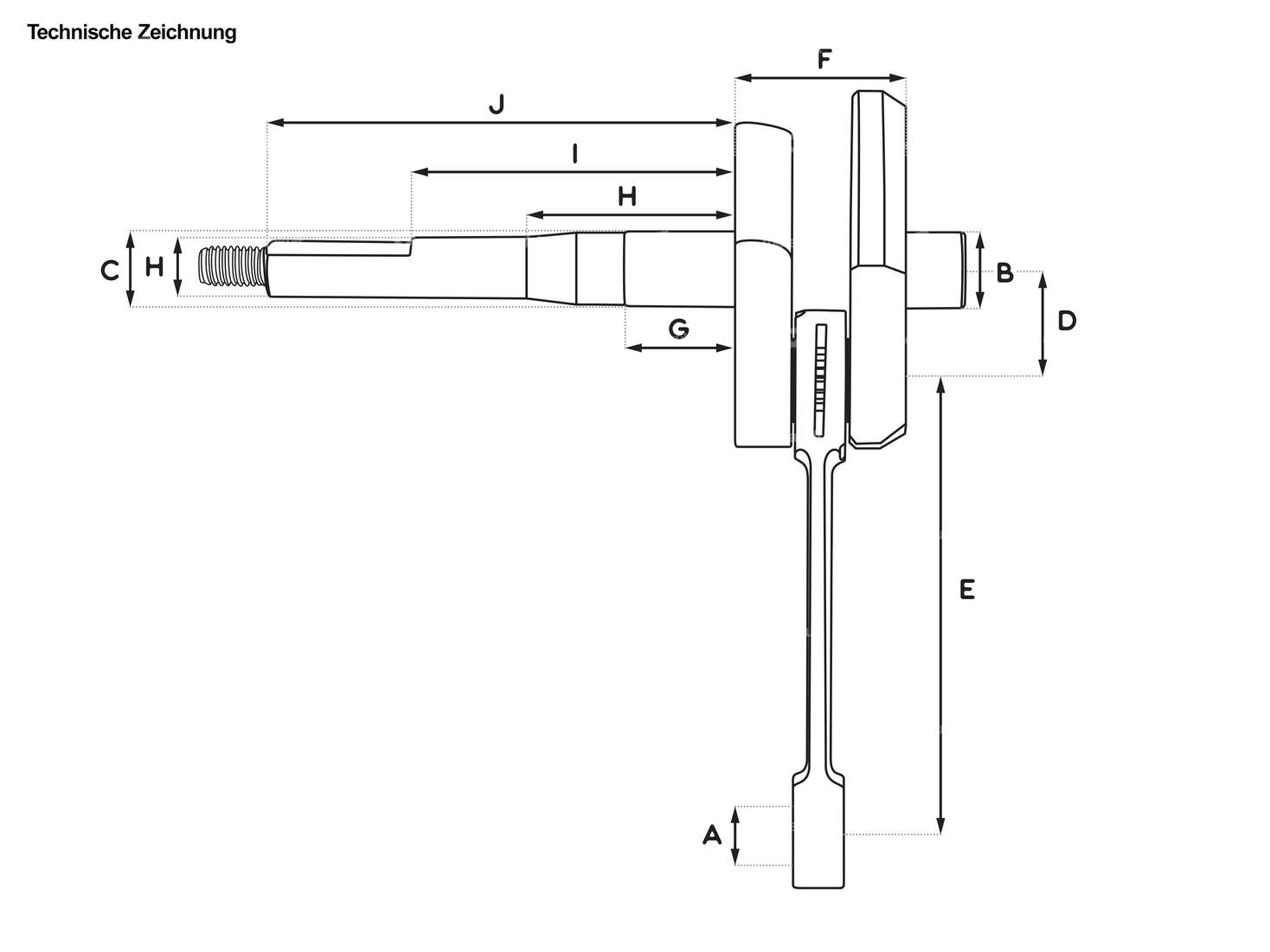

| Manufacturer | Quenching |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Ø coupling pin / vario pin | 12 mm |
| Connecting rod length center-center | 87 mm |
| Number of gears | 1 pcs |
| Total length crankpin ignition side | 90 mm, 106 mm |
| Ø crank webs | 69.8 mm |
| Thread length | 16 mm |
| Ø Connecting rod eye | 15 mm |
| Bearing seat right | 15 mm |
| Ø piston pin (B) | 12 mm |
| Thread type | M8x1.25 (standard thread) |
| Area of application | Standard |
| Ø Bearing seat (ignition side) | 15 mm |
| Dimension needle bearing | 12 / 15 x 14.7 mm (axe 12) |
| Wide crank webs | 32.9 mm |
| Length 1st paragraph | 20.3 mm |
| Length 2nd paragraph | 44 mm |
| Length 3rd paragraph | 63.5 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 14.4 mm |
| Ø 3rd step (on the clutch side) | 12 mm |
| Weight | 697 g |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Ratings
Accessories & related products
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing cage: Silver cage · Ø inside: 12 mm · Manufacturer: swiing® ingenious parts · Bearing type: Needle roller and cage assembly · Ø outside: 15 mm · Width: 16.2 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos OEM number: 035548
EUR 17.20
swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer
Width across flats trigger: 10 mm · Width across flats trigger: 17 mm · Width across flats Screw: 19 mm · Manufacturer: swiing® ingenious parts · Number of components: 2 pcs · Material: Steel · Surface: blackened · Surface: galvanized (blue) · Total length: 100 mm · Diameter: 12 mm · Diameter: 24 mm · Area of application: (Dis)assembly tool · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread)
EUR 22.10
Mazzucchelli crankshaft "Original" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Weight: 698 g · Number of gears: 1 pcs · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Thread type: M8x1.25 (standard thread) · Ø Connecting rod eye: 15 mm · Area of application: Original · Area of application: Standard · Bearing seat right: 15 mm · Thread length: 16 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 °
EUR 178.80

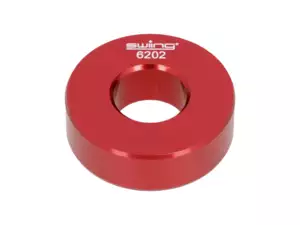

swiing® ingenious 6202 Bearing dummy 15/35/11 Aluminum
