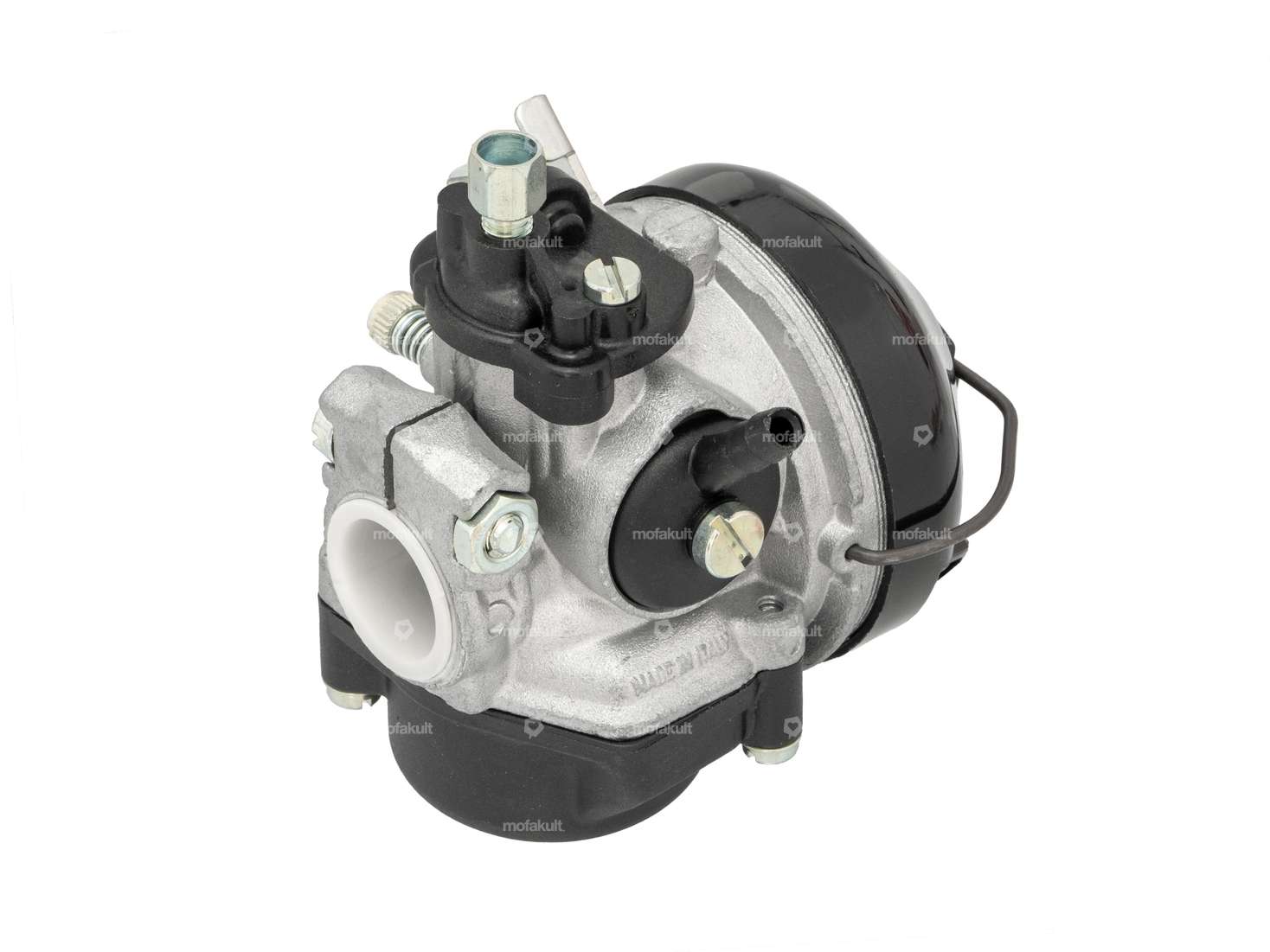

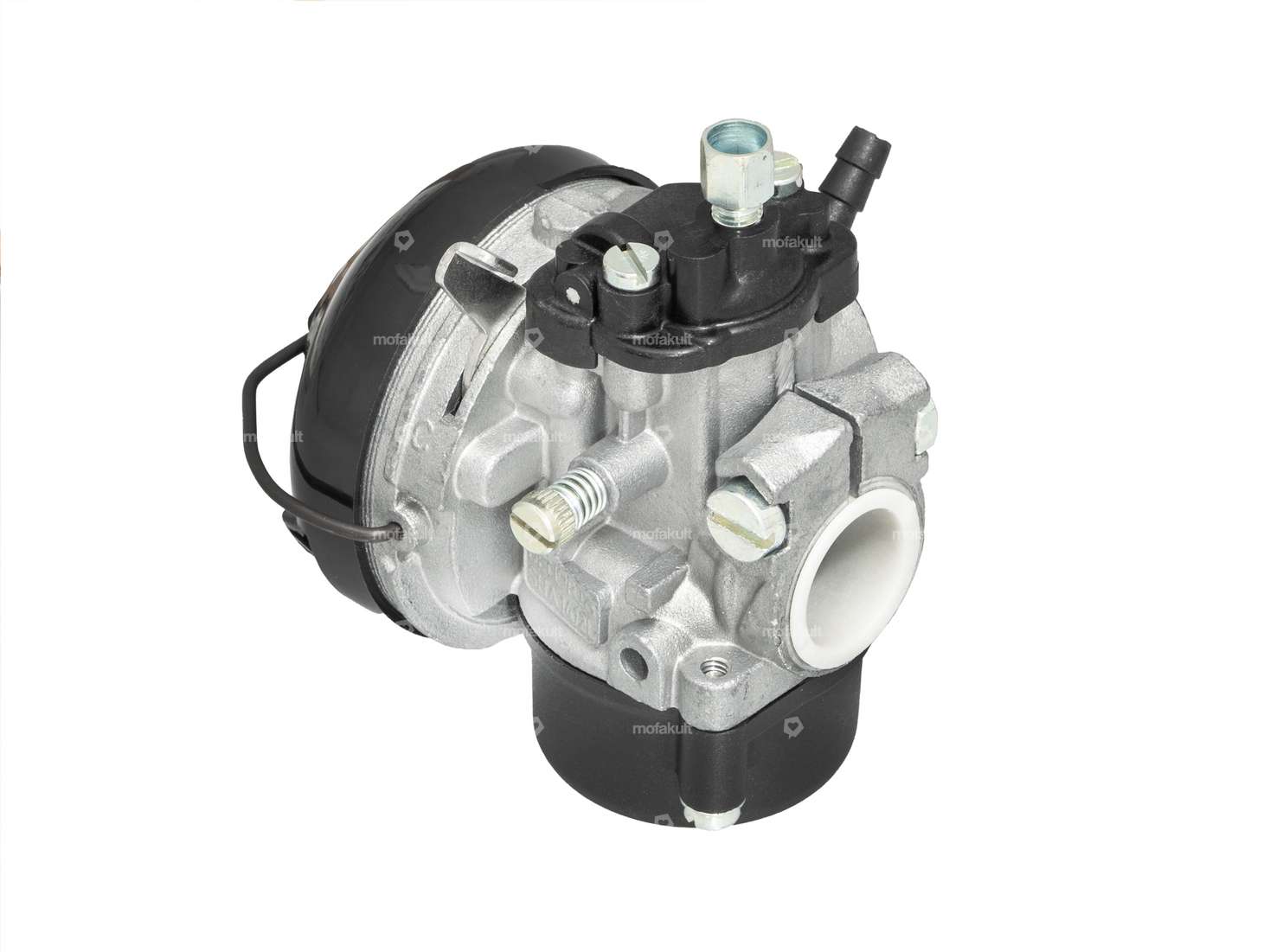

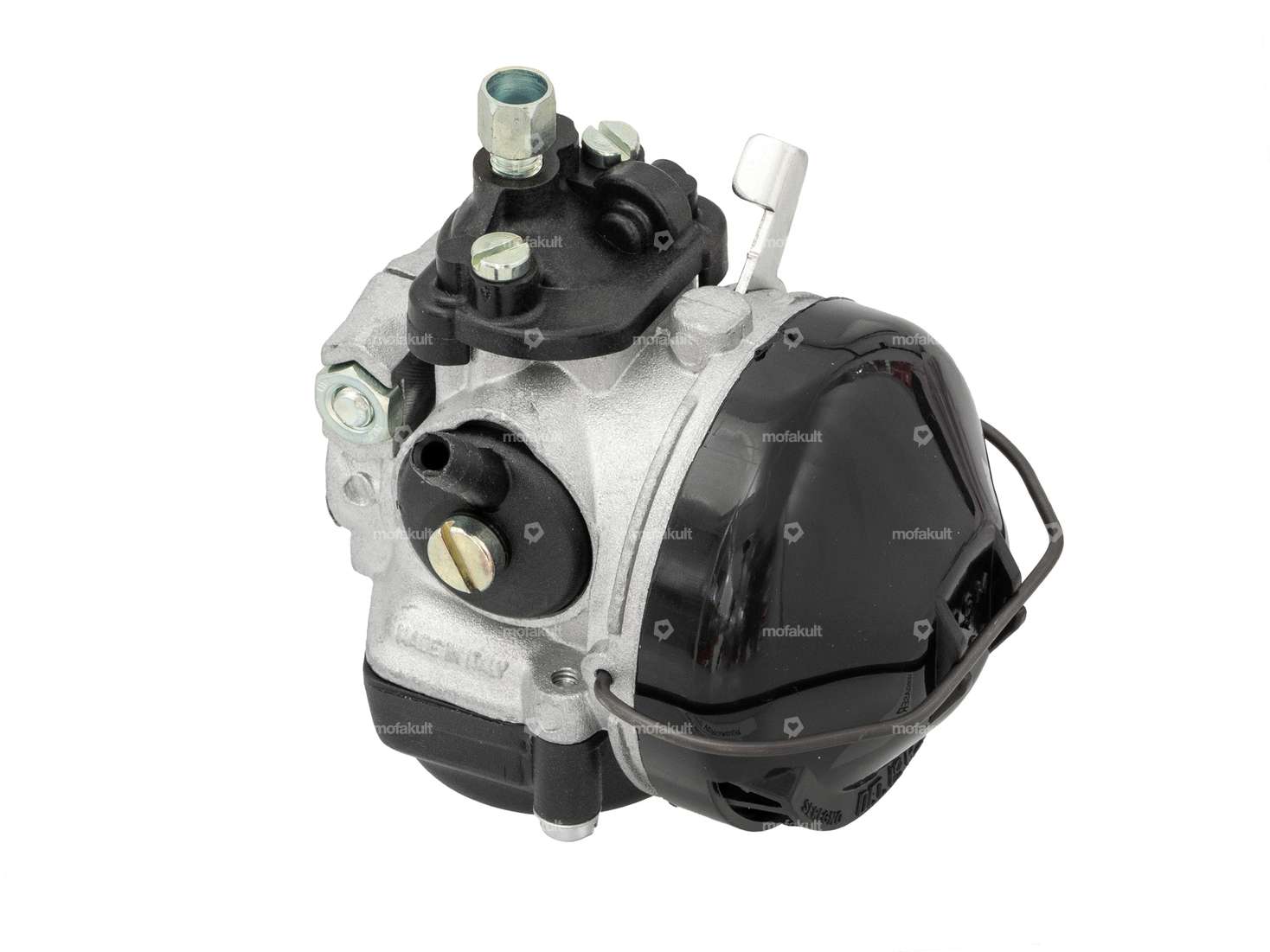

Dell'Orto 14/12 L SHA carburetor hand choke

EUR 85.30

Incl. 25% VAT.

Product description

The Dell'Orto 14 / 12 L SHA carburetor impresses with its compact design and can be used universally for various mopeds, mopeds and small motorcycles.

The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).

Carburettor type: SHA type 4 (SHA4)
Main diameter (M5): 57
Ø Intake port connection: 18 mm (or 21 mm after removing the reducer). 21 mm after removing the reducing sleeve)
Ø external air filter connection: 59 mm
Ø passage on air filter side: 12 mm
Ø passage on intake manifold side: 14 mm
Total height: 95 mm
Total length: 58 mm
Total width: 65 mm

Matching nozzles, intake manifolds and air filters can be found in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

Nominal diameter14 mm
ManufacturerDell'Orto
Component group CarburetorCarburetor complete
Carburetor typeSHA
Width65 mm
Area of applicationStandard, Tuning
Choke controlHand choke
Height95 mm
Total length58 mm
Ø fuel hose connection6 mm
Nozzle threadM5x0.8 (standard thread)
Mounting typePlug connection clamped
Nozzle size57
Ø without reducing sleeve21 mm
Ø Internal connection18 mm
Ø Inside entrance12 mm
Ø Output inside14 mm
Ø Air filter connection59 mm
