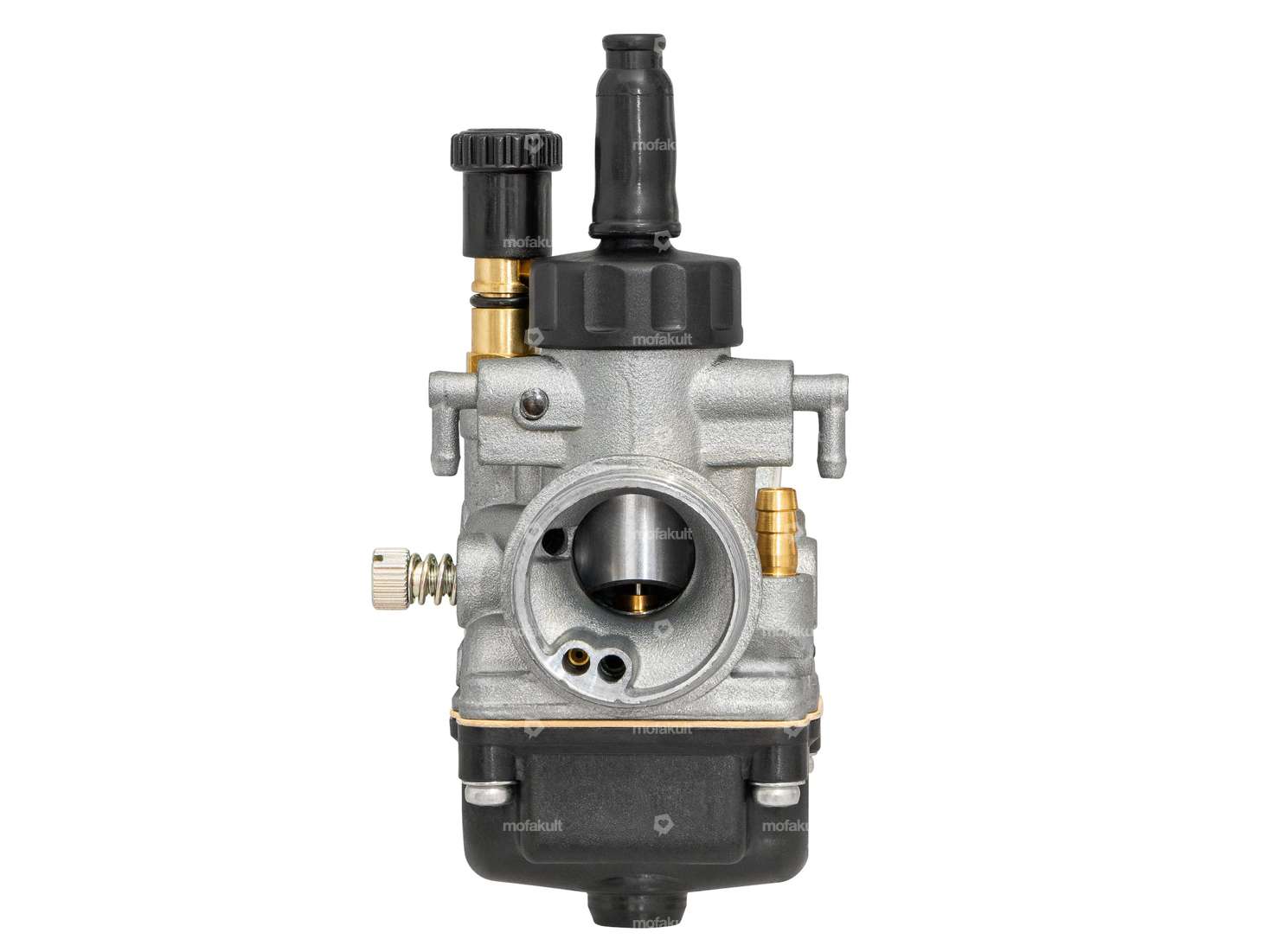

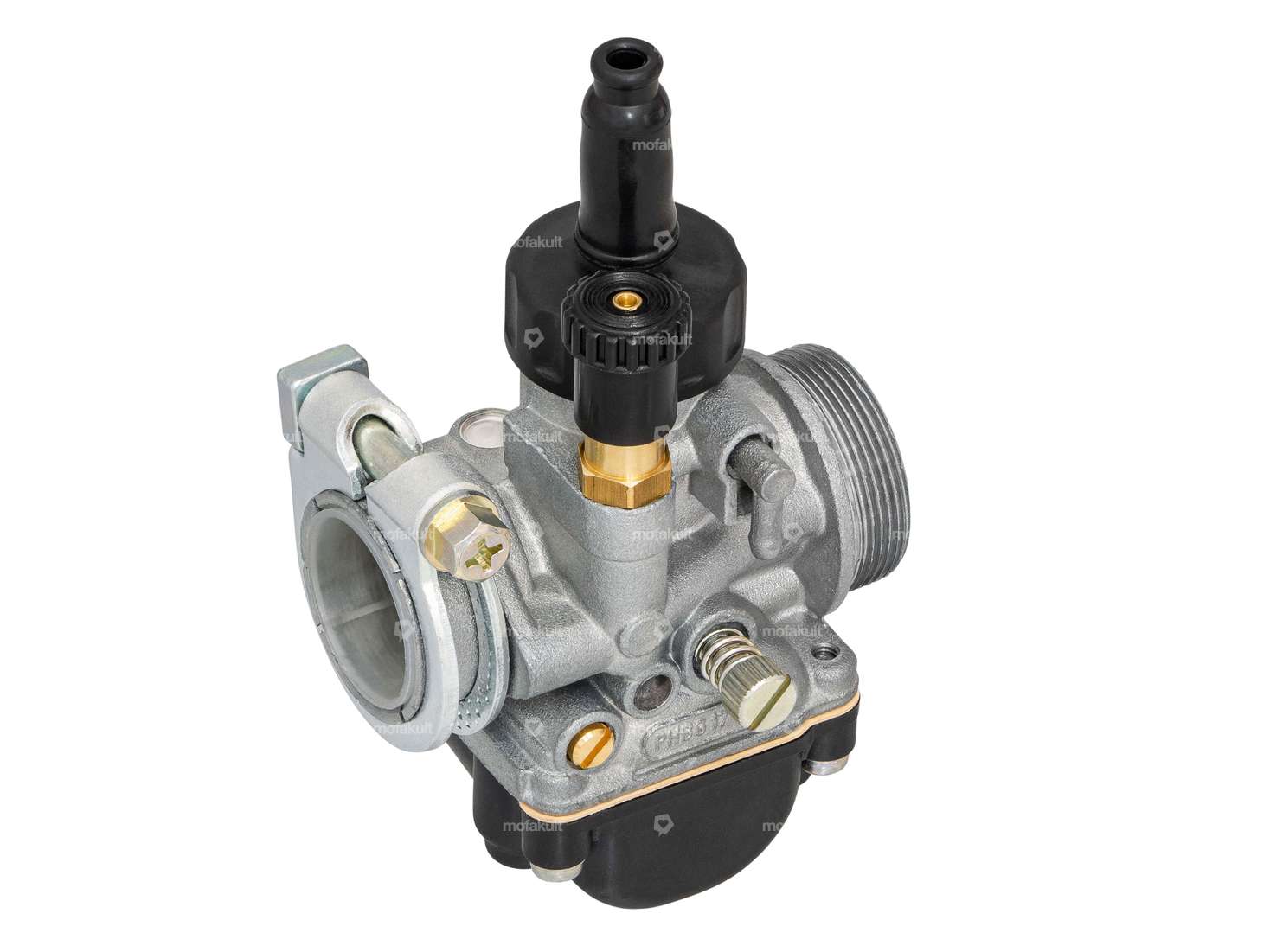

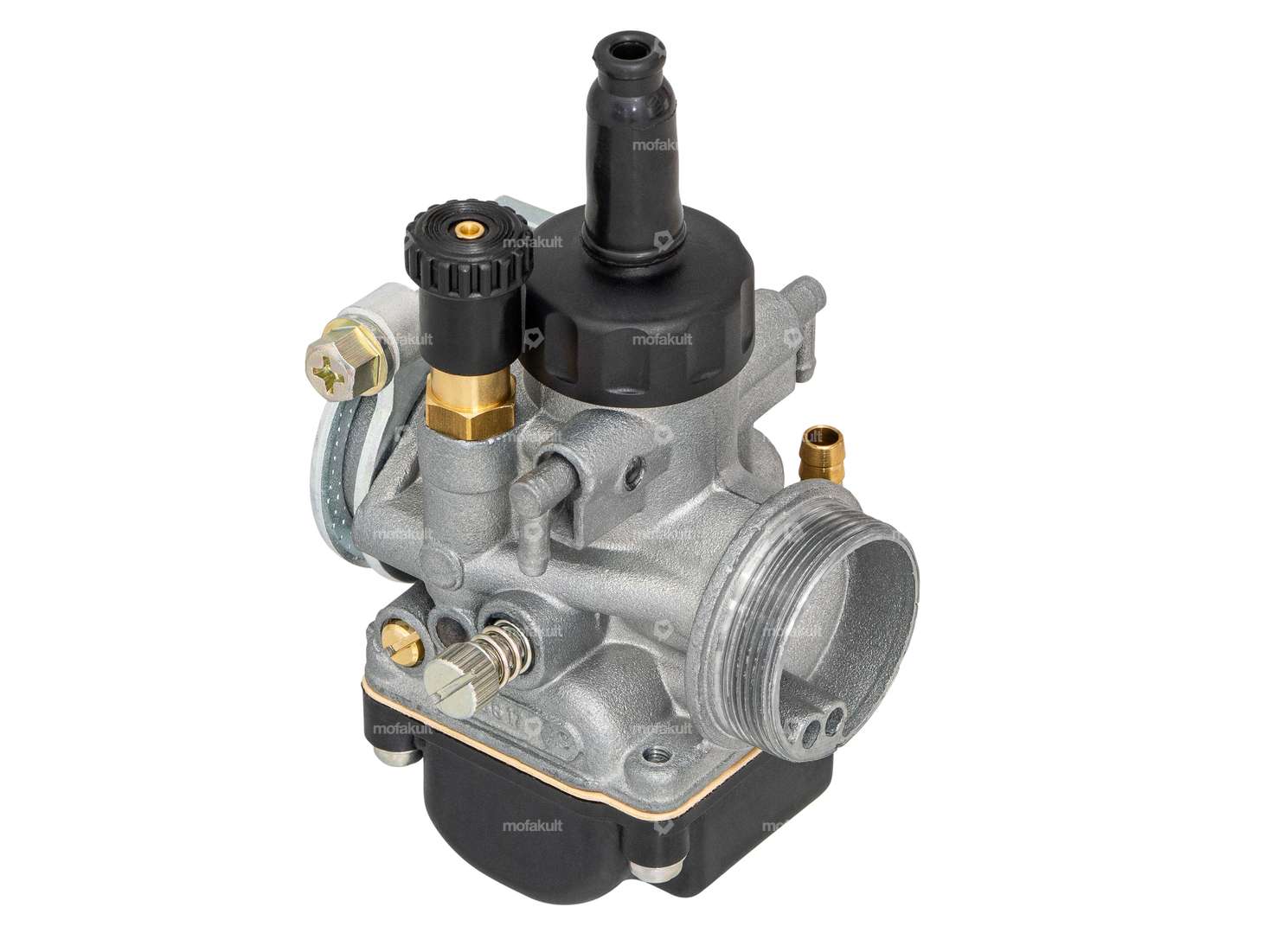

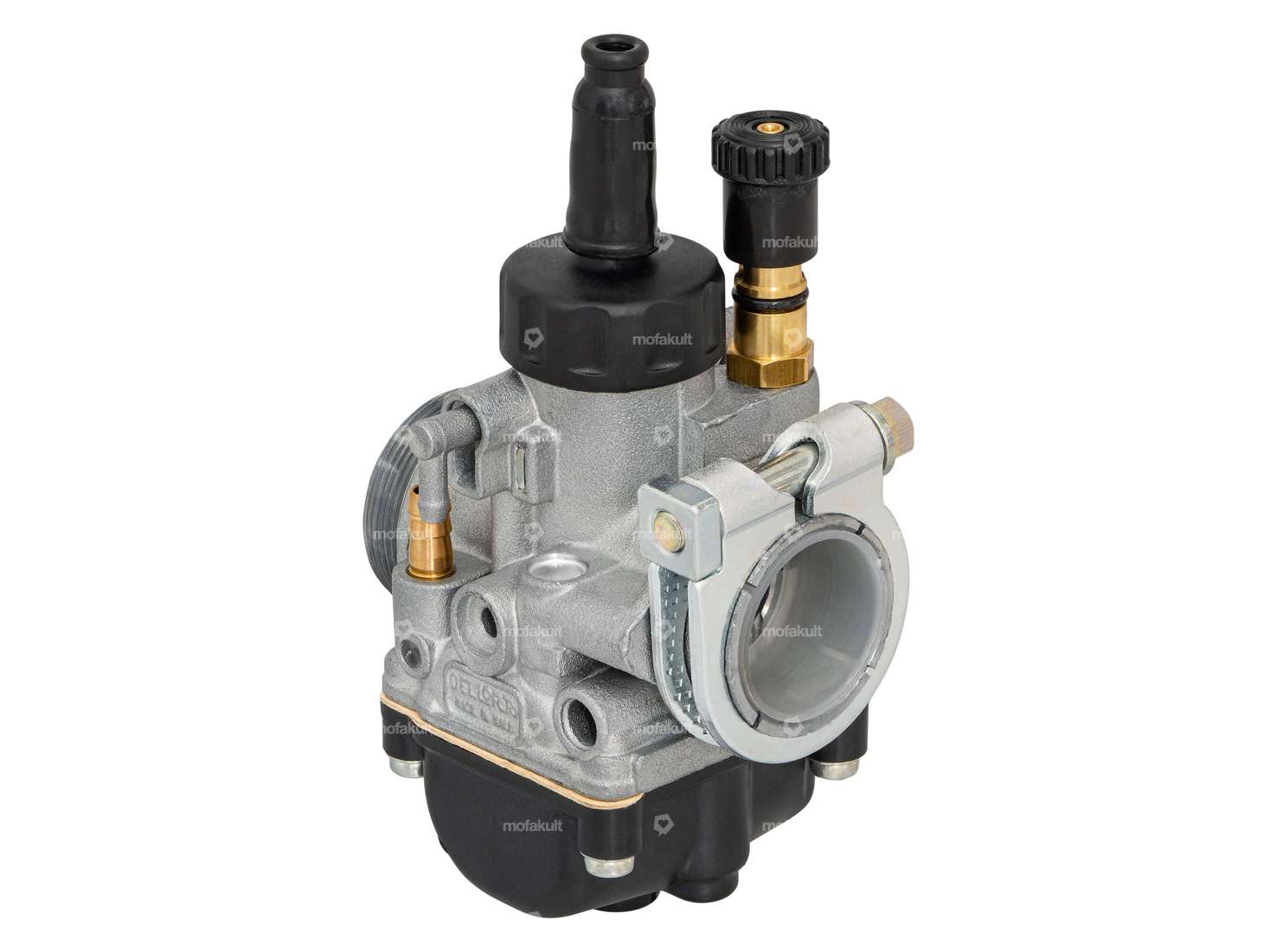

Dell'Orto 17 mm PHBG AS carburetor hand choke

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 153.10

Incl. 25% VAT.

Description

17 mm PHBG racing carburetor for universal use for your moped, moped and small motorcycle.
This high-quality racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 70 cc.

The tuning carburetor has a manually operated choke (start slide / starter flap). The cover is newly screwed for easy installation.
The fuel/air mixture can be perfectly adjusted using the main and secondary lines and the mixture adjustment screw.

The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.

Main thread size (M5): 78 (with throttle plate)
Adjacent thread size (idle thread): 50
Choked thread size: 60
Air filter connection diameter: 32 mm (M32 x 1.25)
Inlet connection diameter: 24 mm (or 26 mm after removing the reducer). 26 mm after removing the reduction sleeve)
Total height: 125 mm
Total width: 75 mm

Matching nozzles, air filters and intake manifolds can be found in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

Width66 mm
ManufacturerDell'Orto
Mounting typePlug connection clamped
MaterialAluminum
Component group CarburetorCarburetor complete
Colorblack
Nominal diameter17 mm
Carburetor typePHBG AS
Total length71.6 mm
Height123 mm
Ø without reducing sleeve26 mm
Area of applicationTuning
Ø Internal connection24 mm
Ø Air filter connection32 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Ø fuel hose connection6 mm, 5.3 mm
Mixed oil connectionNo
Vacuum connectionYes
Choke controlHand choke
Choke nozzle size60
Nozzle threadM5x0.8 (standard thread)
Nozzle block262AU
Nozzle size78
CamouflagedNo
Size of secondary nozzle50
