Universal

10165

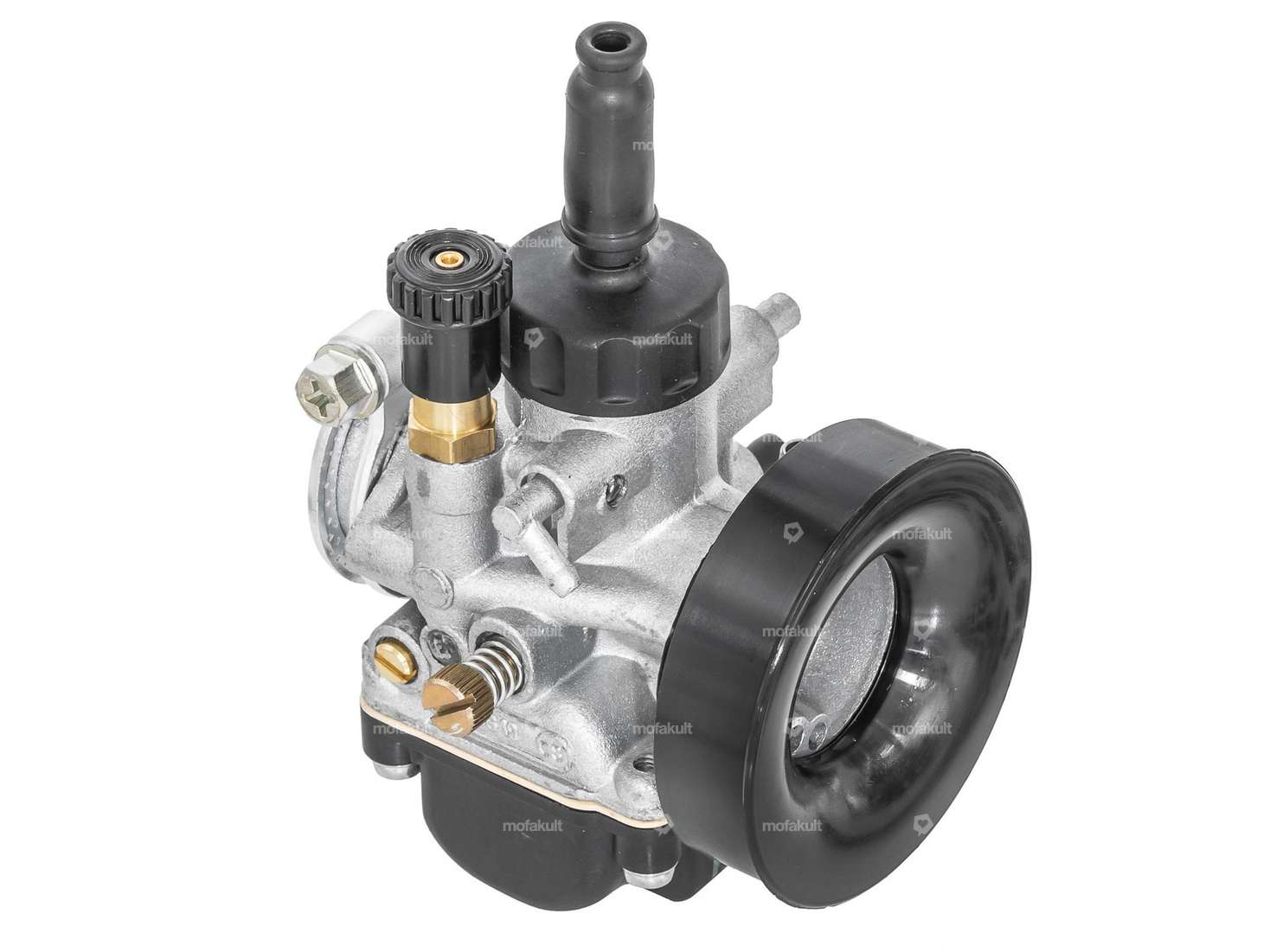

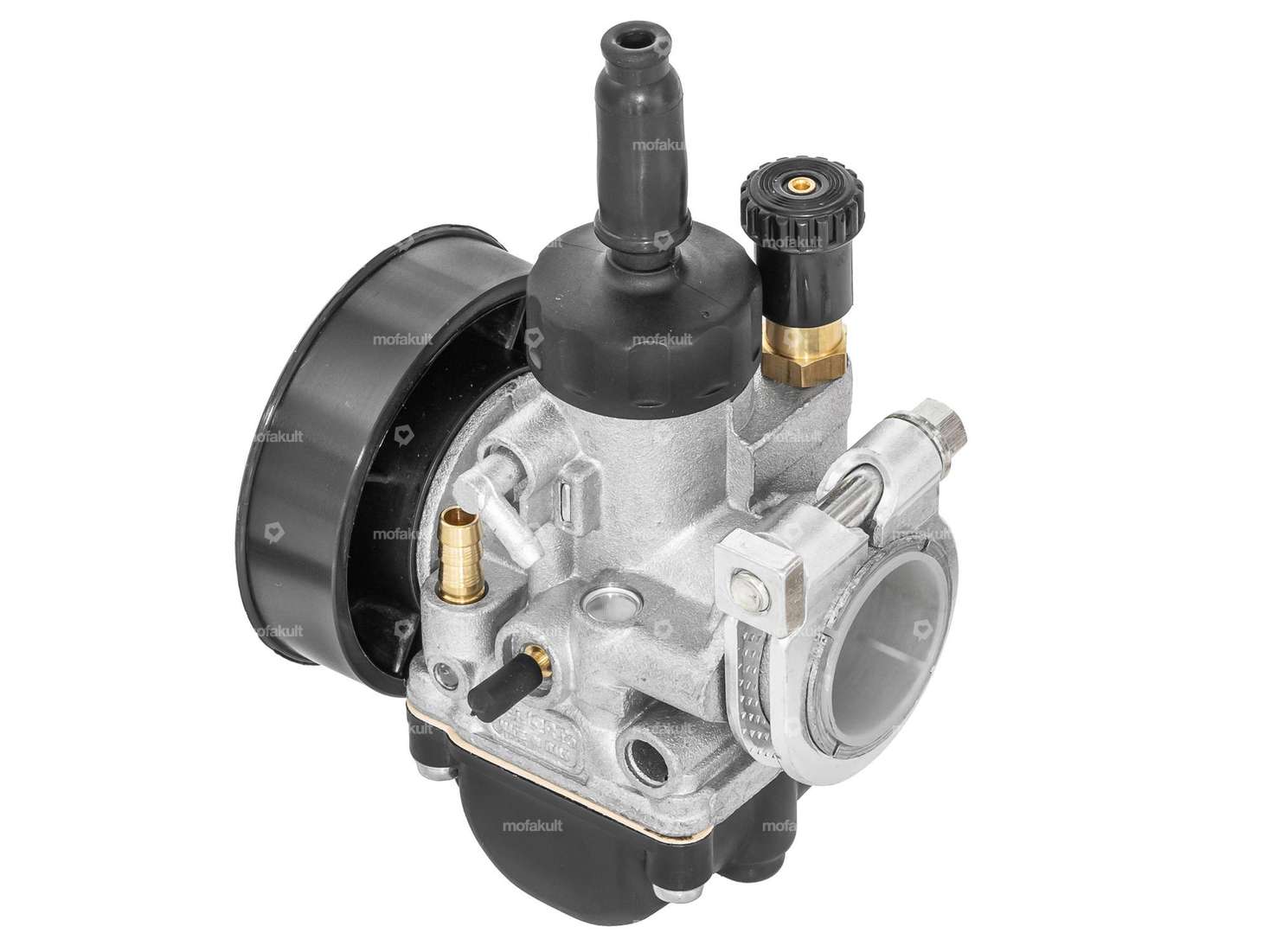

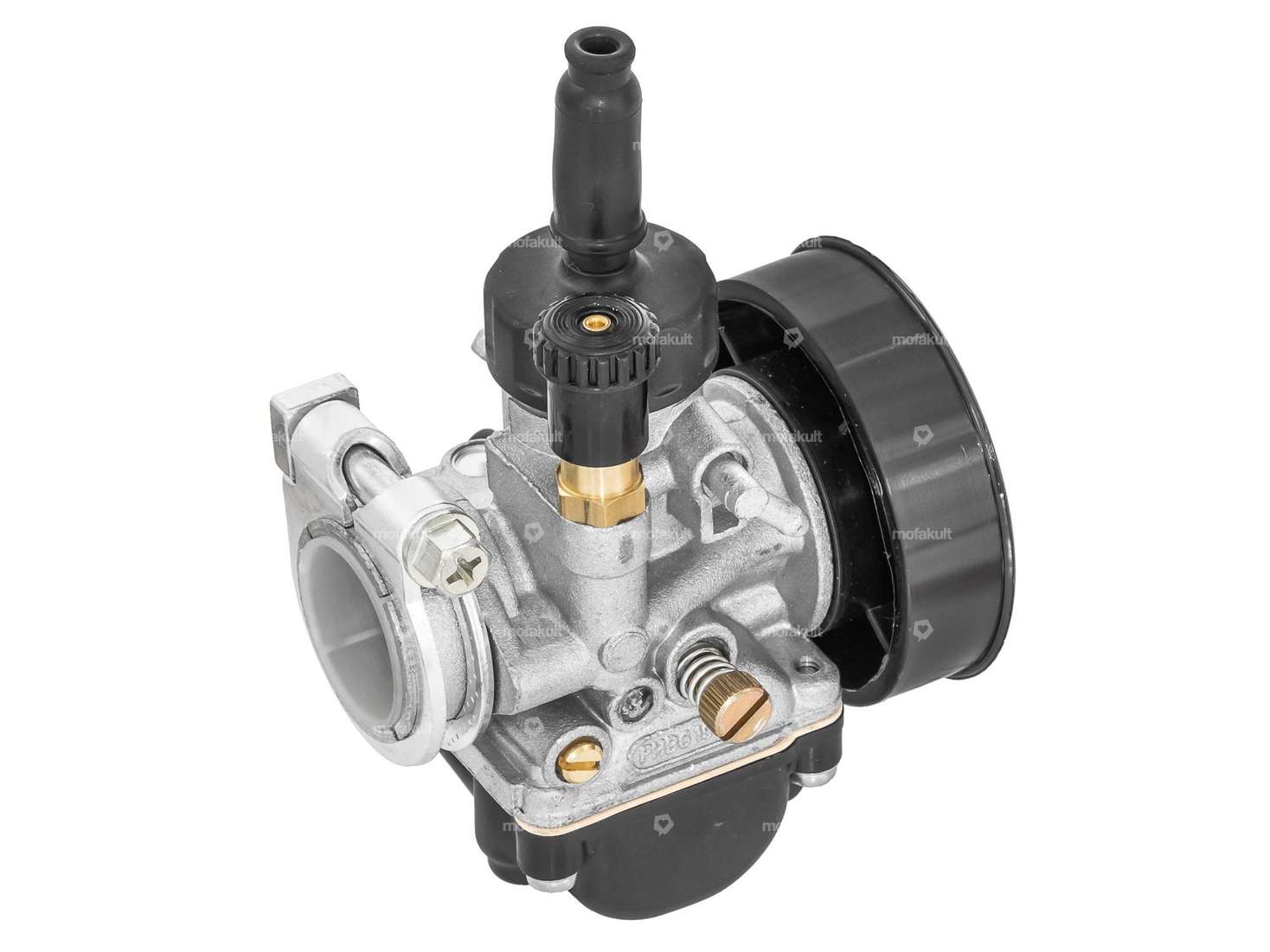

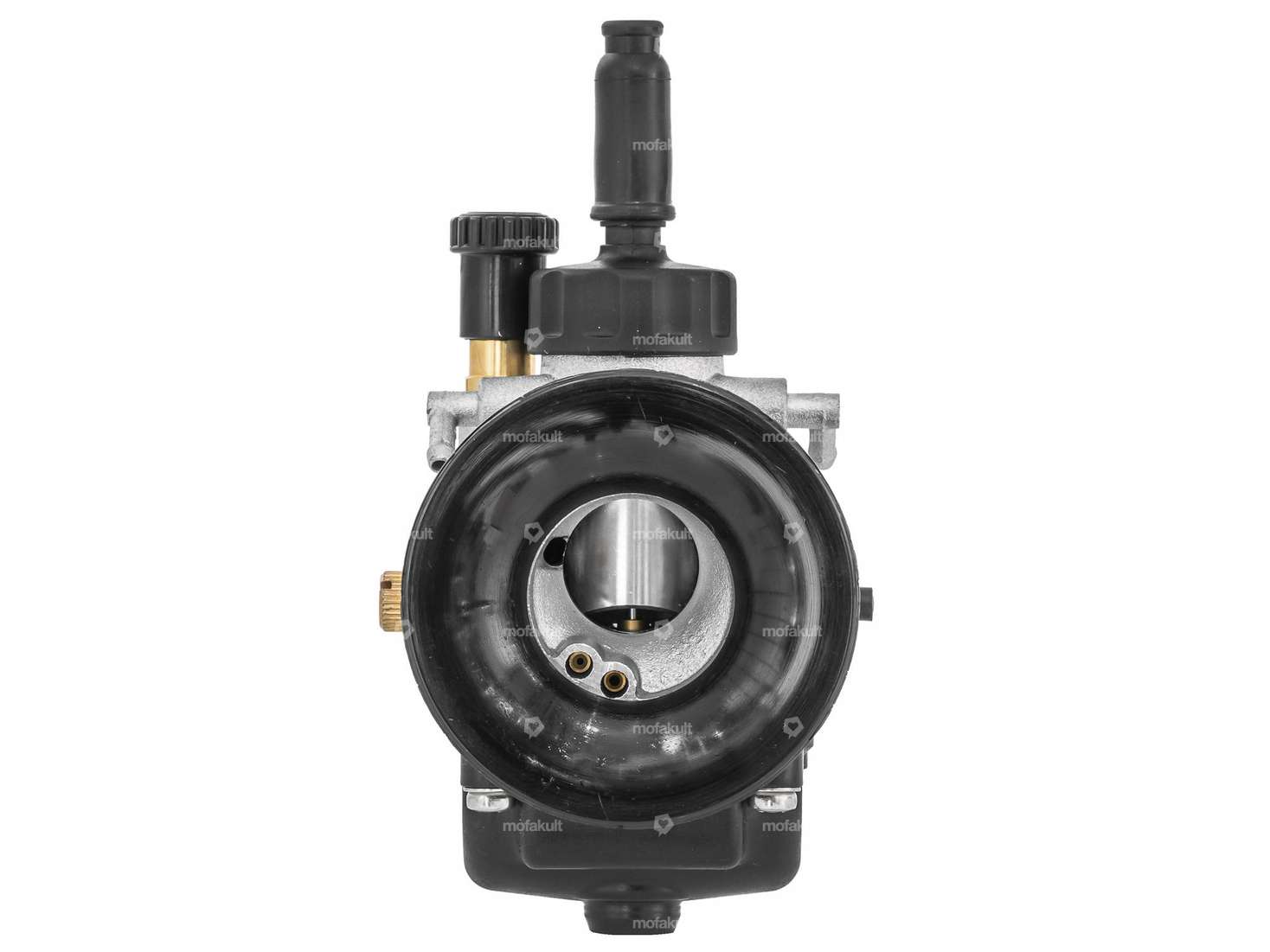

Dell'Orto 19 mm PHBG CS carburetor hand choke

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 147.00

Incl. 25% VAT.

Description

19 mm PHBG racing carburetor for universal use for your moped, moped and small motorcycle.
This high-quality racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 75 cc.

The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary lines and the mixture adjustment screw.

On the air filter side, the carburetor has an M32x1.25 thread on which an intake funnel is mounted. This can be removed if necessary in order to attach the air filter directly to the thread.

Main thread size (M5): 75
Side thread size (idle thread): 45
Choked thread size: 60
Connection diameter of air filter without intake funnel: 32 mm (M32 x 1.25)
Connection diameter of air filter with intake funnel: 60 mm
Connection diameter of intake manifold: 24 mm (resp. 26 mm after removing the reduction sleeve)
Total height: 130 mm
Total width: 85 mm

Matching nozzles, air filters and intake manifolds can be found in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

ManufacturerDell'Orto
CamouflagedNo
MaterialAluminum
Area of applicationTuning, Racing
Component group CarburetorCarburetor complete
Carburetor typePHBG CS
Colorblack
Nominal diameter19 mm
Ø Internal connection24 mm
Ø without reducing sleeve26 mm
Ø Inside entrance19 mm
Ø Output inside19 mm
Width70 mm
Ø Air filter connection32 mm, 60 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Ø fuel hose connection6 mm, 5.4 mm
Mixed oil connectionYes
Mounting typePlug connection clamped
Vacuum connectionYes
Choke controlHand choke
Choke nozzle size60
Nozzle threadM5x0.8 (standard thread)
Total length82 mm
Nozzle size75
Height124 mm
Size of secondary nozzle45
