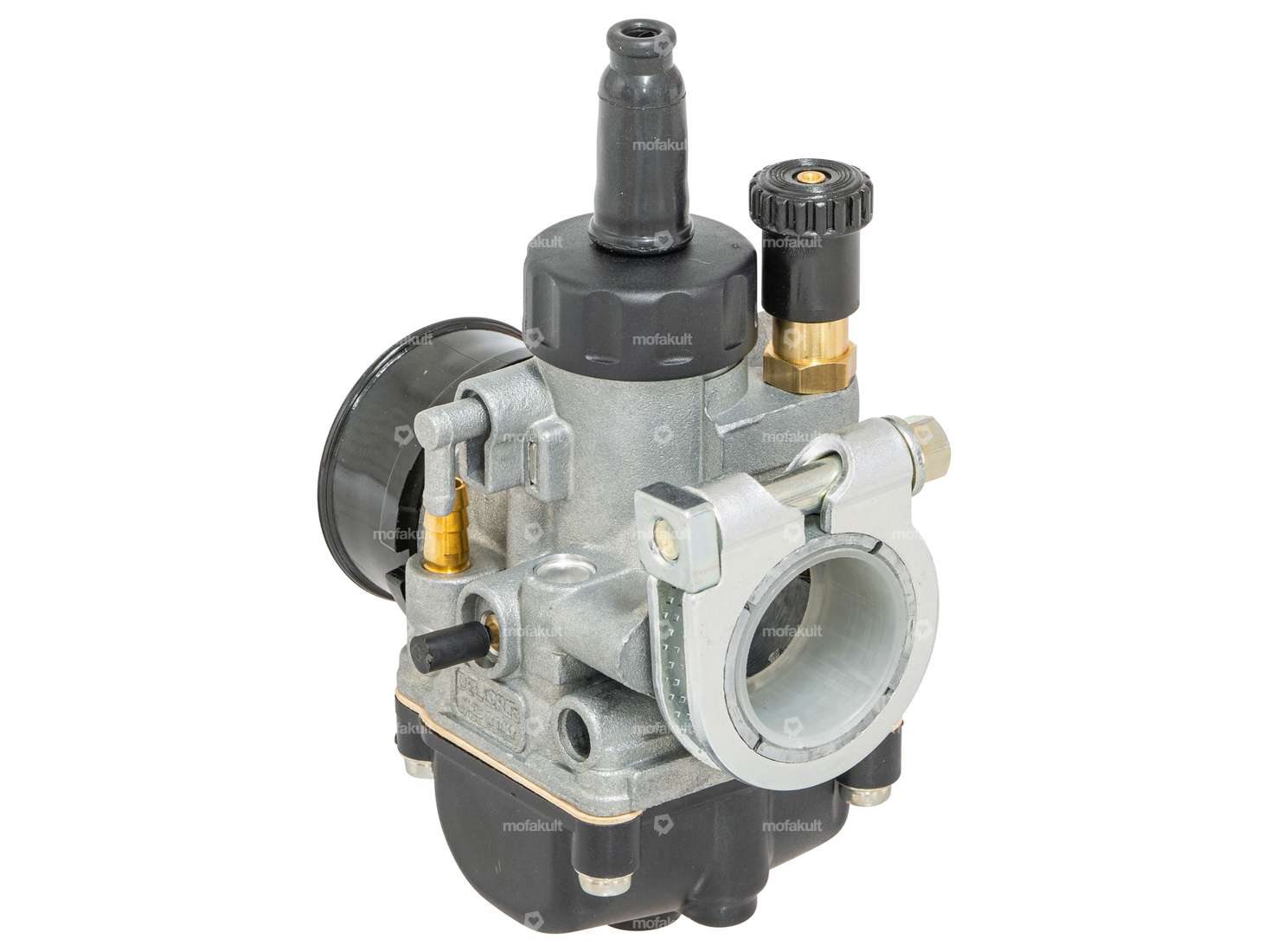

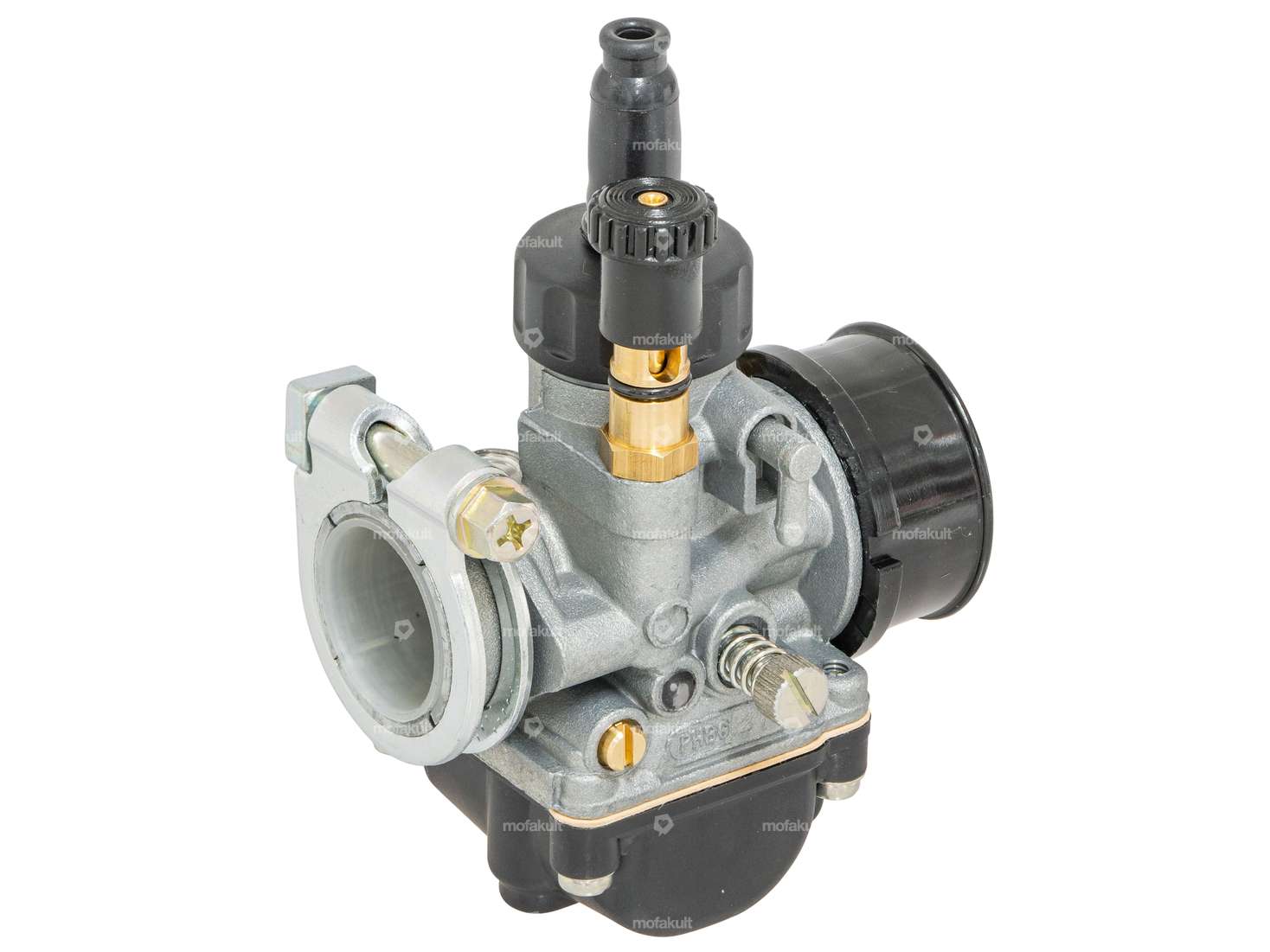

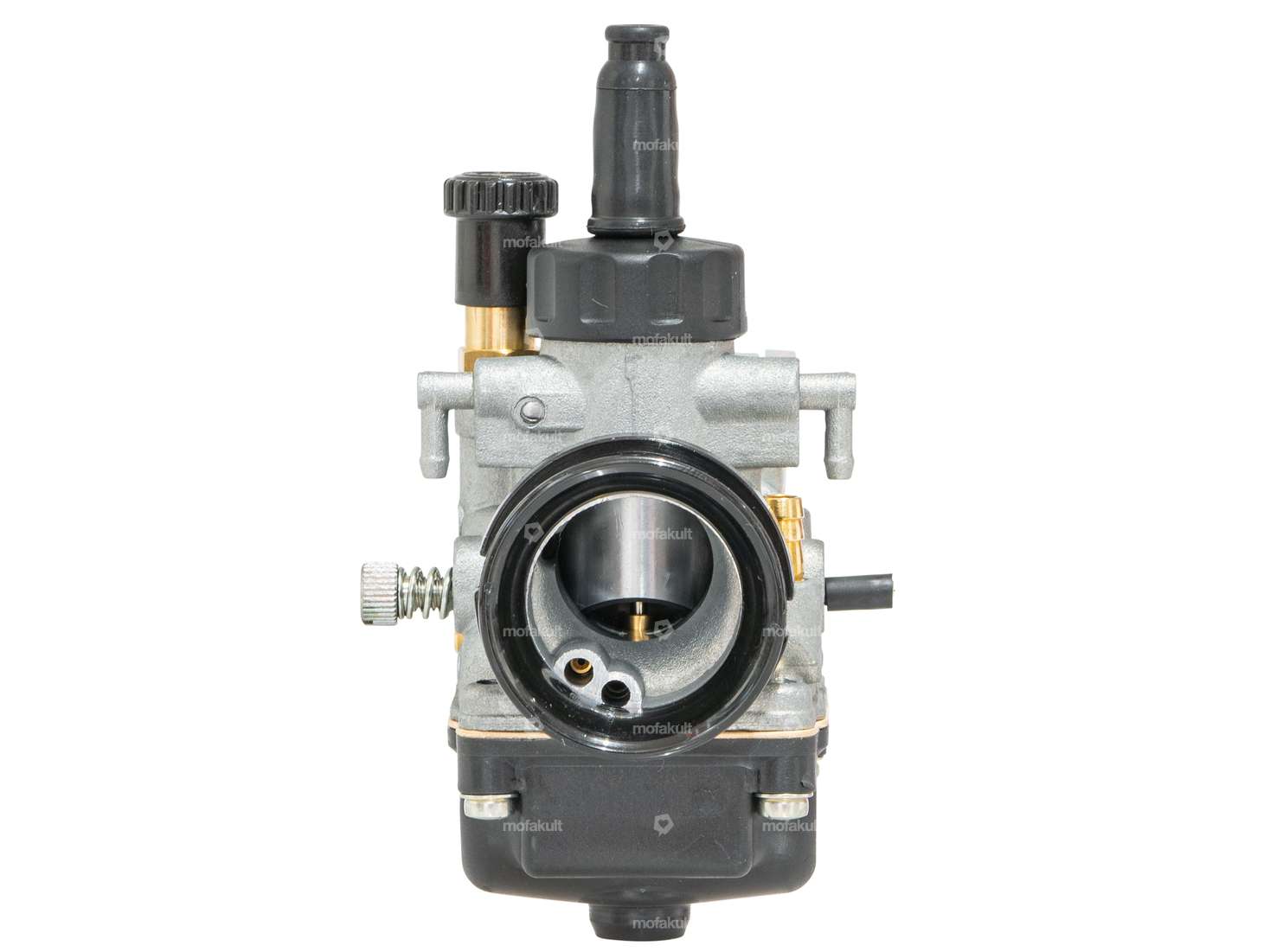

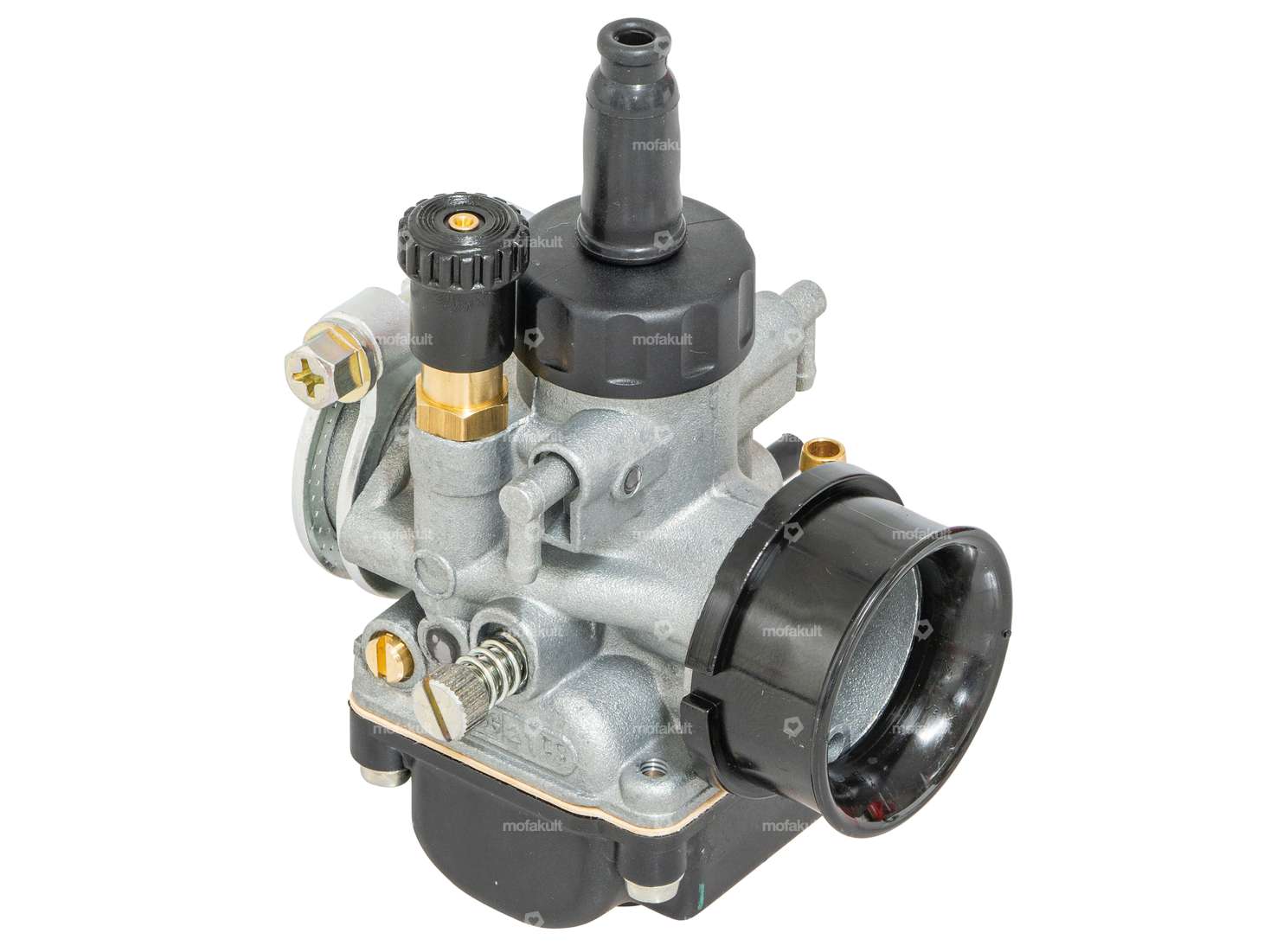

Dell'Orto 21 mm PHBG CS carburetor hand choke

EUR 147.00

Incl. 25% VAT.

Description

21 mm PHBG racing carburetor for universal use for your moped, moped and small motorcycle.
This high-quality racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 75 cc.

The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary lines and the mixture adjustment screw.

On the air filter side, the carburetor has an M32x1.25 thread on which an intake funnel is mounted. If required, this can be removed in order to attach the air filter directly to the thread.

Main thread size (M5): 92
Side thread size (idle thread): 50
Choked thread size: 60
Connection diameter of air filter without intake funnel: 32 mm (M32 x 1.25)
Connection diameter of air filter with intake funnel: 38 mm
Connection diameter of intake manifold: 24 mm (resp. 26 mm after removing the reduction sleeve)
Total height: 130 mm
Total width: 80 mm

Matching nozzles, air filters and intake manifolds can be found in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

Nominal diameter21 mm
ManufacturerDell'Orto
CamouflagedNo
MaterialAluminum
Component group CarburetorCarburetor complete
Carburetor typePHBG AS
Colorblack
Choke controlHand choke
Ø fuel hose connection6 mm, 5.4 mm
Ø without reducing sleeve26 mm
Ø Internal connection24 mm
Ø Air filter connection32 mm, 38 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Mixed oil connectionYes
Vacuum connectionYes
Mounting typePlug connection clamped
Choke nozzle size60
Nozzle threadM5x0.8 (standard thread)
Total length82 mm
Area of applicationTuning
Nozzle block262AU
Width72 mm
Nozzle size92
Height125 mm
Size of secondary nozzle50
