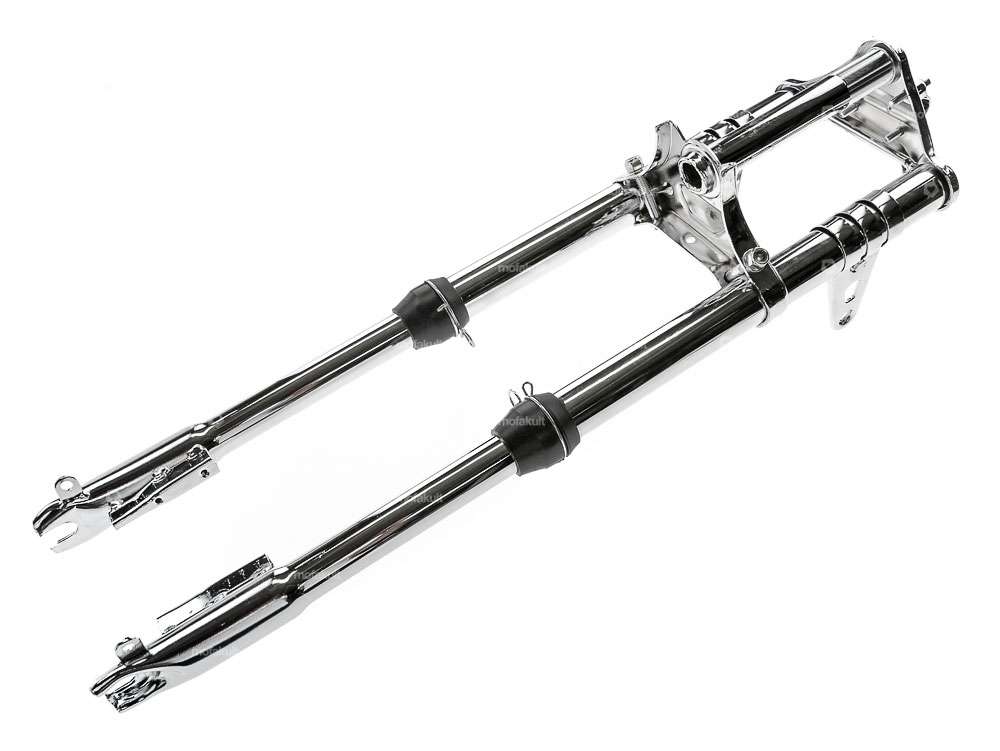

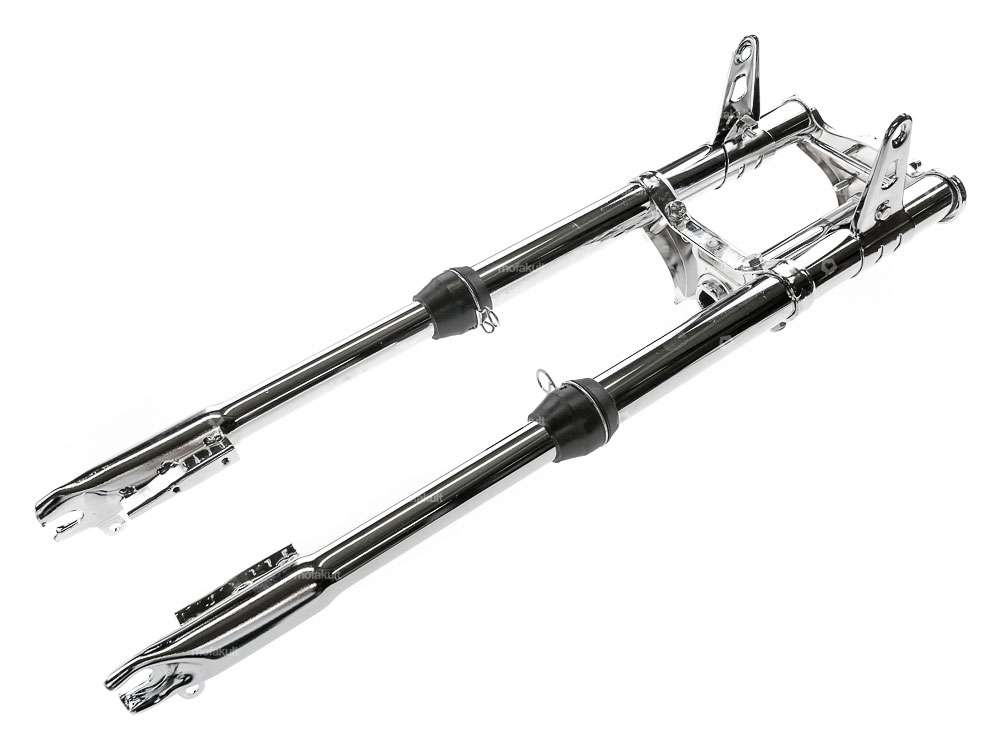

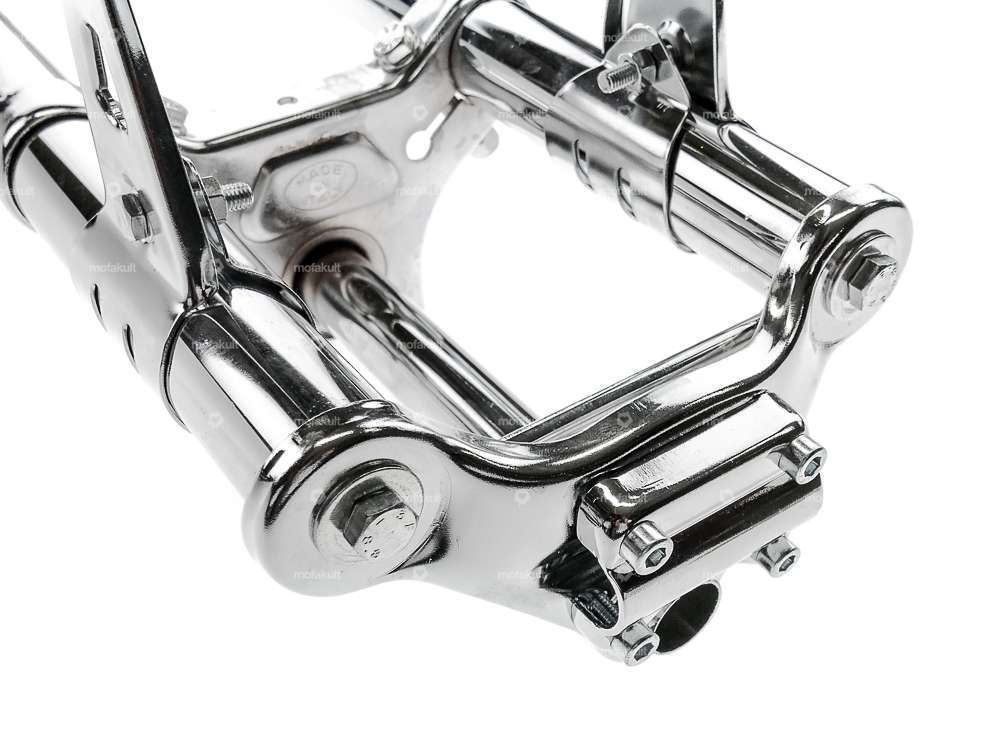

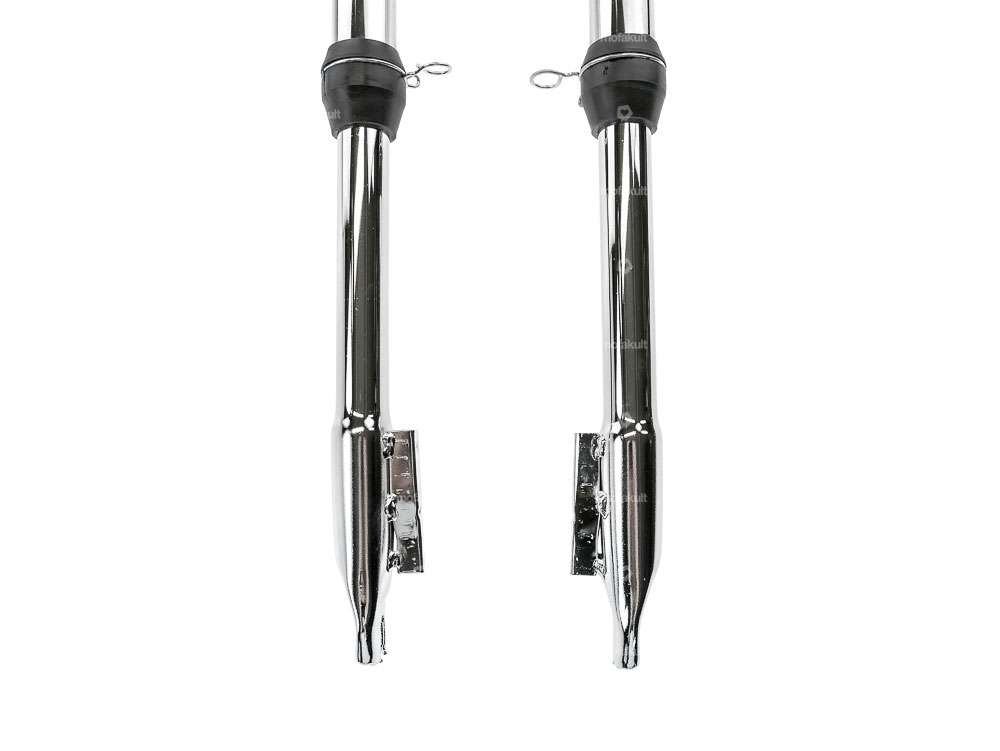

Reinforced upside-down fork from the EBR brand suitable for various Puch mopeds.
The chrome-plated, solid fork was modeled on the original Puch chopper fork.
You can find the matching headset set and other accessories below.
Total length: 69 cm
Head tube length: 180 mm
Ø stanchion tube: 28 mm
Ø fork tube: 35 mm
Internal diameter of head tube (for stem mounting): 22 mm
Branded product from the Italian manufacturer EBR.
Details
| Manufacturer | EWC |
| Material | Steel |
| Surface | chrome-plated |
| Thread type | MF26x1 (fine pitch thread) |
| Color | Chrome |
| Adjustable | No |
| Spar end distance (center-center) | 139 mm |
| Ø outer head tube | 26.1 mm |
| Total length | 675 mm |
| Ø spars | 28 mm |
| Ø head tube inside | 22.2 mm |
| Head tube length | 180 mm |
| Thread length | 58 mm |
| Fork bridge - center wheel axle | 454 mm |
| Distance brake cam to wheel axle center-center | 38 mm |
Suitable for the following models
| Puch |
