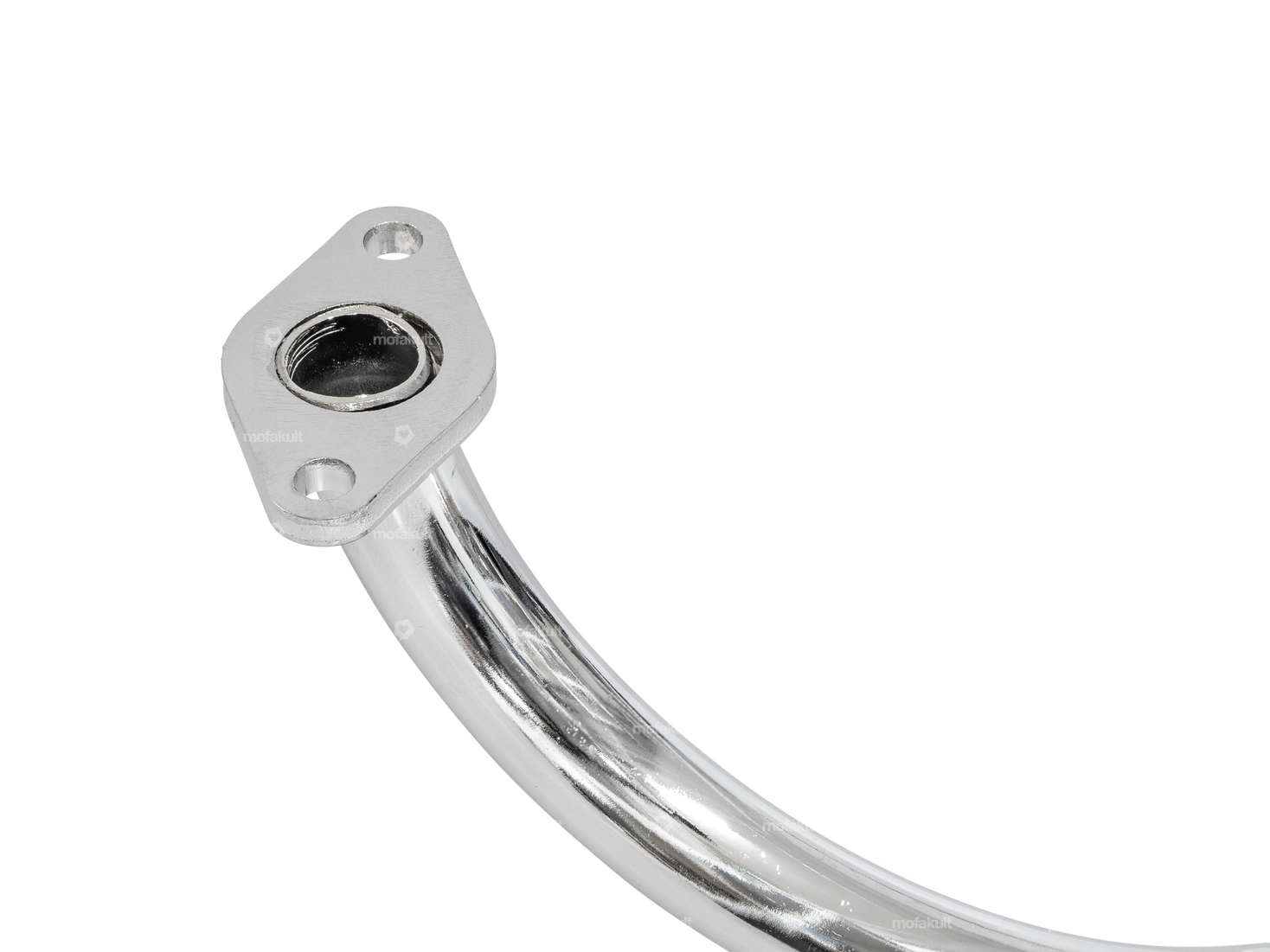

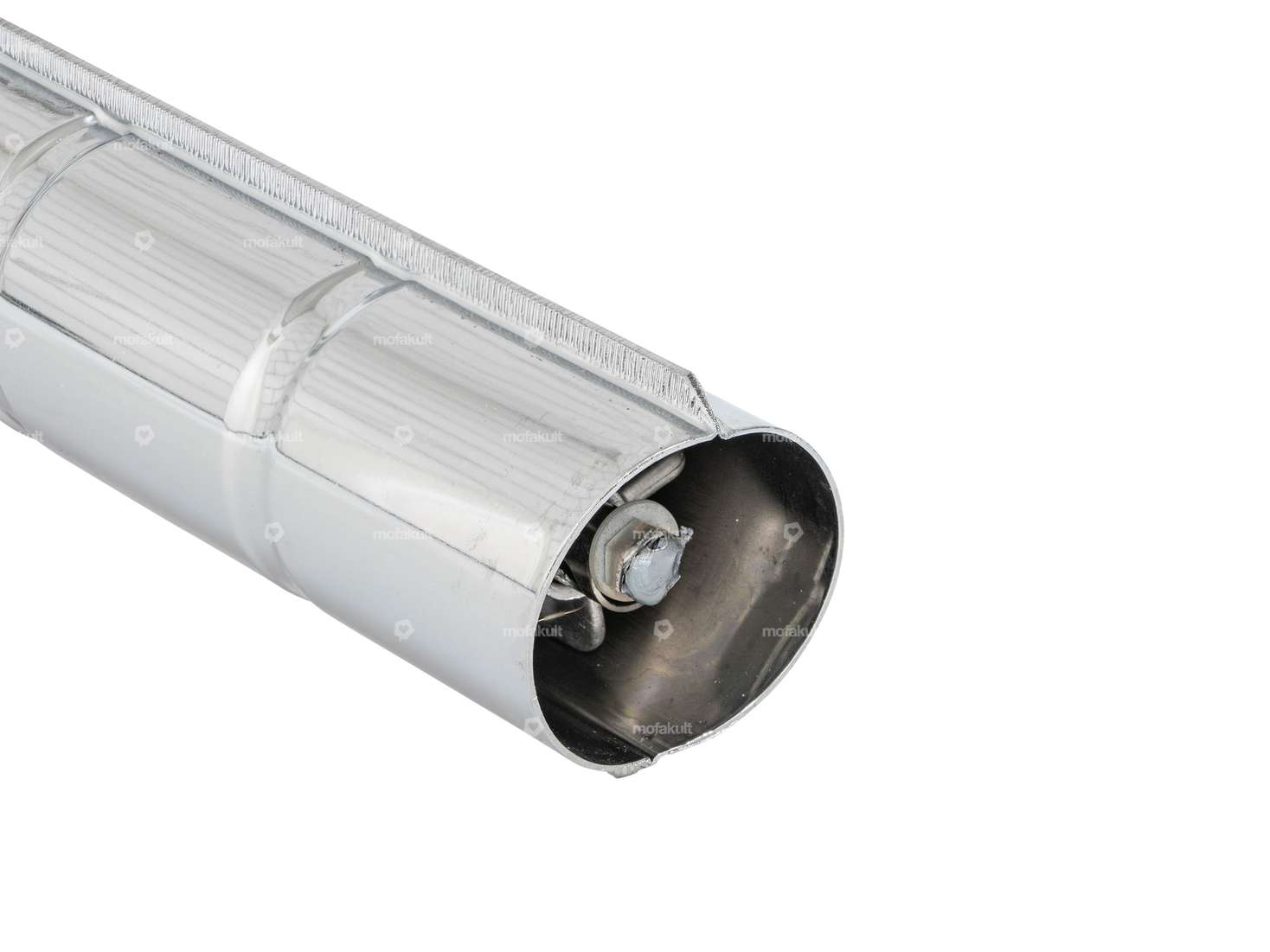

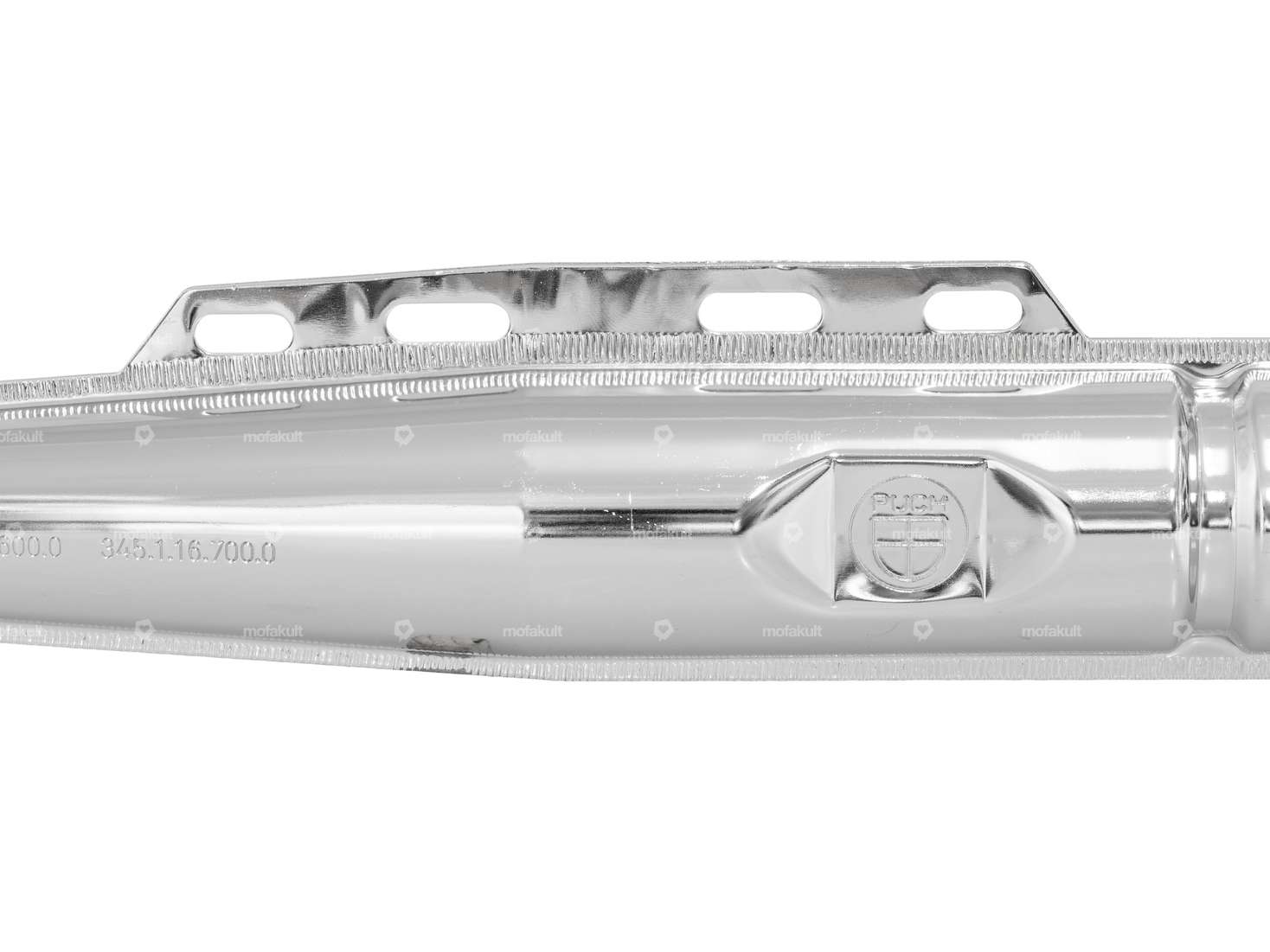

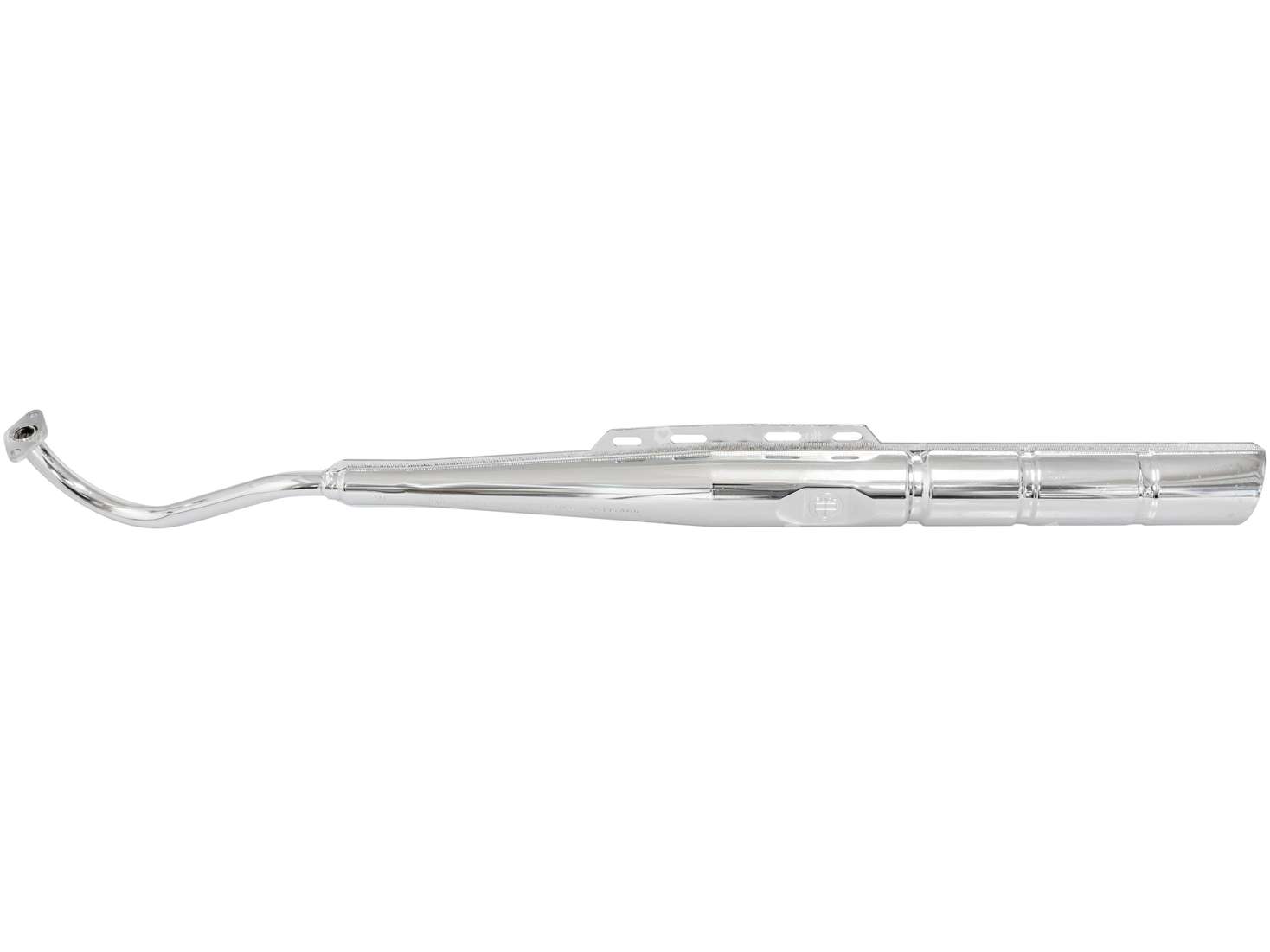

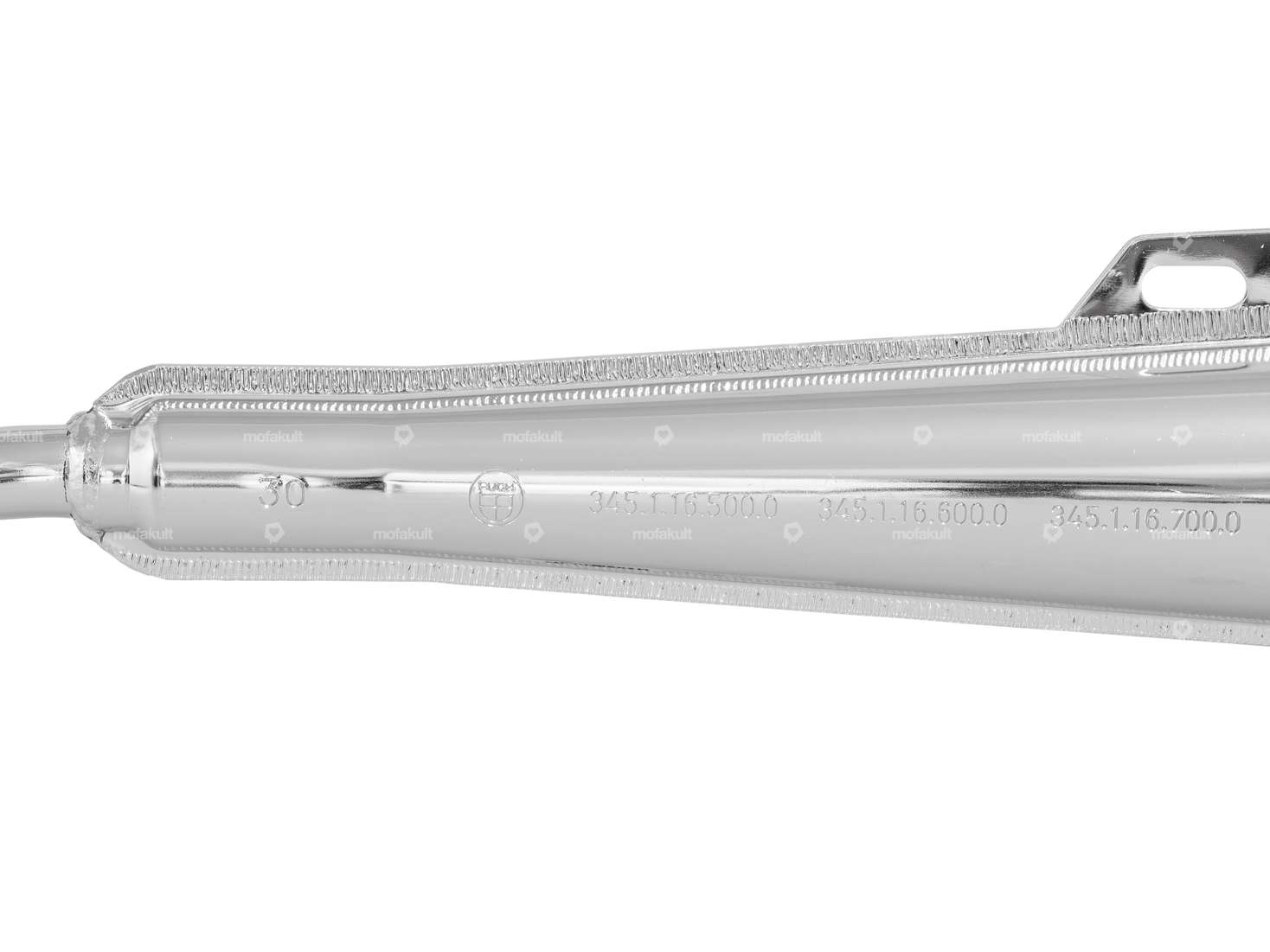

Exhaust 18 mm original 1-piece | Puch Maxi S, N

Stop nut M7 galvanized

Drive: External hexagon · Width across flats SW: 11 mm · Thread type: M7x1 (standard thread) · Material: Steel · Surface: galvanized (blue) · Nut type: Self-securing nut · Height: 7.3 mm · Area of application: Standard · Thread depth: 4.8 mm · Strength class: 8

Silicone seal Ø 45 x 2 silencer | Puch

Nominal diameter: 45 mm · Ø inside: 45 mm · Thickness: 2.9 mm · Manufacturer: Puch · Material: Silicone · Ø outside: 52 mm · Place of use: Exhaust · Area of application: Standard

Flute insert replica | Puch

Ø inside: 11.8 mm · Material: Steel · Surface: galvanized (blue) · Color: silver · Total length: 102 mm · Ø outside: 13.8 mm

Washer special silencer | Puch

Thickness: 2.9 mm · Material: Steel · Surface: galvanized (blue) · Ø inside: 7 mm · Ø outside: 16 mm · Nominal diameter (thread): 7 mm · Thread size: M6 · Area of application: Standard

Outlet gasket 18 - 22 mm metal ring

Ø inside: 22 mm · Thickness: 2 mm · Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Ø mounting hole: 6.7 mm · Hole spacing: 38 - 42.5 mm · Number of fixing points: 2 pcs

Stop nut M7 Inox

Material: Chrome steel (known as Nirosta®) · Nut type: Self-securing nut · Drive: External hexagon · Thread type: M10x1.5 (standard thread) · Thread type: M4x0.7 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Thread type: M7x1 (standard thread) · Thread type: M8x1.25 (standard thread)

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 38 mm · Total length: 135 mm · Width: 125 mm · Height: 55 mm · Candle thread: short · Decompressor: No · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Area of application: Standard

GPO sprocket 13 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Recording type: Interlocking · Number of teeth: 13 pcs · Total thickness: 4.6 mm · Ø inside: 13.7 mm · Ø inside: 16.9 mm

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder · Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Area of application: Standard

Outlet gasket 18 - 22 mm metal ring

Ø inside: 22 mm · Thickness: 2 mm · Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Ø mounting hole: 6.7 mm · Hole spacing: 38 - 42.5 mm · Number of fixing points: 2 pcs

swiing® revival 12 mm carburetor "Original" | Puch

Nominal diameter: 12 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: gray · Mounting type: Plug connection clamped · Carburetor type: SRE · Total length: 65 mm · Width: 50 mm · Height: 108 mm · Ø Inside entrance: 12 mm · Ø Internal connection: 20 mm · Ø Output inside: 12 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.15 · Camouflaged: No · Nozzle size: 52 · Area of application: Standard · Clamping screw torque (max.): 4 N/m · Puch OEM number: 349.6.15.400.0 · Puch OEM number: 349.7.15.700.0

swiing® revival 12 mm intake manifold | Puch E50

Ø inside: 12 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Total height: 53 mm · Mounting type: Screws · Total length: 45.5 mm · Ø External connection: 20 mm · Hole spacing inlet: 38 mm · Height flange center hole: 43 mm · Number of fixing points: 2 pcs · Camouflaged: No · Area of application: Original

swiing® revival 38 mm cylinder kit 1.6 hp CH12 "Original" | Puch

Manufacturer: swiing® revival parts · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 38 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 19 mm · Ø Inlet inside: 9 mm · Number of fixing points: 4 pcs · Thread inlet: M6x1 (standard thread) · Area of application: Standard · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Camouflaged: Yes · Hole spacing inlet: 38 mm · Alternative version of the Puch OEM number: 349.7.10.105.0

swiing® revival nozzle set M3.5 (50 - 60) Bing SRE, SRA, SRC, SRF

Drive: Slot · Manufacturer: swiing® revival parts · Material: Brass · Quantity: 11 pcs · Component group Carburetor: Spraying · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Nozzle type: Main nozzle · Total length: 6 mm · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60

GPO air filter "Original" mounted & sealed (1A quality) | Puch Maxi S, N

Manufacturer: GPO · Color: black · Mounting type: Plug connection clamped · Filter type: Standard sieve · Ø Internal connection: 20 mm · Area of application: Original · Area of application: Standard
