Brake anchor plate & accessories

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø Stranded wire: 1.8 mm · Nipple shape: Pears · Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Manufacturer: Made in Germany · Number of components: 1 pcs · Material: Steel · Surface: galvanized (blue) · Cable length: 2200 mm · Area of application: Standard

Magura cable clamp Ø 8 x 15 mm

Screw head: Hexagon · Width across flats SW: 7 mm · Manufacturer: Magura · Ø Cable bushing: 2.3 mm · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Drive: External hexagon · Drive: Slot · Ø outside: 8 mm · Total length: 15 mm · Ø Bundle: 6 mm · Thread type: M6x1 (standard thread) · Thread length: 7 mm · Area of application: Standard

swiing® revival clamp brake cable | Pony / Cilo (P8343)

Screw head: Hexagon · Width across flats SW: 10 mm · Manufacturer: swiing® revival parts · Ø Cable bushing: 2.9 mm · Number of components: 3 pcs · Ø shaft: 8.5 mm · Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Ø outside: 12 mm · Total length: 17 mm · Thread type: M6x1 (standard thread) · Thread length: 9 mm

Fork piece cable holder | Puch / Sachs / Pony

Material: Steel · Surface: galvanized (blue) · Color: silver · Total length: 27.2 mm · Area of application: Standard · Sachs OEM no.: F5114 · Puch OEM number: 320.4.40.020.0

CIF Clamping screw front brake | Piaggio Ciao, SI, Bravo, Boxer

Screw head: Hexagon · Width across flats SW: 11 mm · Manufacturer: CIF · Number of components: 6 pcs · Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Ø outside: 11 mm · Total length: 25 mm · Thread type: M7x1 (standard thread) · Thread length: 19.5 mm · Area of application: Standard

swiing® revival rear brake disk cap (Leleu) red | Puch

Manufacturer: swiing® revival parts · Material: Hard plastic · Surface: raw · Ø Bundle: 12.2 mm · Ø outside: 14.7 mm · Ø inside: 11.5 mm · Color: red · Area of application: Standard · Height: 4.3 mm

Return spring brake plate | Puch Maxi

Spring design: Nose feather · Spring design: Torsion spring · Ø wire: 2.4 mm · Leg length: 45 mm · Length spring hook: 50 mm · Material: Spring steel · Surface: galvanized (blue) · Ø outside: 30 mm · Ø inside: 25.5 mm · Total length: 125 mm · Area of application: Original · Area of application: Standard

swiing® revival clamping screw rear brake | Piaggio Ciao, SI, Bravo, Boxer

Screw head: Hexagon · Width across flats SW: 11 mm · Width across flats SW: 14 mm · Manufacturer: swiing® revival parts · Ø Cable bushing: 2.1 mm · Number of components: 3 pcs · Ø shaft: 10.5 mm · Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Total length: 21.5 mm · Thread type: M7x1 (standard thread) · Thread length: 11 mm · Alternative version of the Piaggio OEM number: 154533

swiing® revival rear brake anchor plate | Puch Maxi S, X30 NG

Manufacturer: swiing® revival parts · Ø shaft: 10 mm · Material: Steel · Surface: galvanized (blue) · Ø External brake pads: 80 mm · Ø outside: 91 mm · Total length: 187 mm · Ø axle: 12 mm · Ø screw holder: 6.5 mm · Cranking (offset): 8 mm · Ø bore: 12.2 mm · Wide cam holder: 12 mm · Brake lever length (lever length): 55 mm

swiing® revival clamping screw front brake | Piaggio Ciao, SI, Bravo, Boxer

Screw head: Hexagon · Width across flats SW: 11 mm · Width across flats SW: 14 mm · Manufacturer: swiing® revival parts · Ø Cable bushing: 2.1 mm · Number of components: 3 pcs · Ø shaft: 10.9 mm · Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Total length: 21 mm · Thread type: M7x1 (standard thread) · Thread length: 9.5 mm · Alternative version of the Piaggio OEM number: 27348

swiing® revival front brake disk cap | Puch

Manufacturer: swiing® revival parts · Color: black · Ø inside: 9 mm · Ø outside: 12 mm · Ø Bundle: 14.5 mm · Clamping diameter: 12.5 mm

swiing® revival brake support bolt short Inox | Puch Maxi, Supermaxi

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Thread type: MF10x1 (fine pitch thread) · Ø shaft: 9.8 mm · Drive: Outer edge · Ø External head: 14 mm · Total length: 32 mm · Area of application: Standard · Thread length: 13 mm · Shank: Yes · Shank length: 9.5 mm · Width across flats SW: 13 mm · Width across flats SW: 17 mm · Number of components: 3 pcs

swiing® revival front brake disk cap (Leleu) red | Puch

Manufacturer: swiing® revival parts · Ø outside: 12 mm · Ø Bundle: 14 mm · Color: red · Height: 10.5 mm

Fuse rear brake pad original | Piaggio Ciao, SI, Bravo, Boxer

Fuse type: Inside · Manufacturer: Piaggio · Material: Steel · Surface: galvanized (blue) · Place of use: Brake · Piaggio OEM number: 103112

Foot brake | Puch Maxi S

Manufacturer: Made in Portugal · Material: Steel · Surface: galvanized (blue) · Surface: varnished · Color: black · Color: silver · Ø mounting hole: 16.2 mm

swiing® revival rear brake disk cap | Puch

Manufacturer: swiing® revival parts · Color: black

Rear brake plate incl. brake shoes | Puch Maxi S

swiing® revival rear brake anchor plate | Puch Maxi N

Manufacturer: swiing® revival parts · Ø shaft: 10 mm · Material: Steel · Surface: galvanized (blue) · Ø External brake pads: 80 mm · Ø outside: 92 mm · Total length: 135 mm · Ø axle: 12 mm · Ø screw holder: 6.5 mm · Cranking (offset): 10 mm · Ø bore: 12.2 mm · Wide cam holder: 12 mm · Brake lever length (lever length): 68 mm

Brake anchor plate front 11 mm axle (1A quality) | Puch Maxi S, N / X30 Sport NS, NL / Velux

Manufacturer: GPO · Material: Aluminum · Thread size: M6 · Ø External brake pads: 80 mm · Ø axle: 11 mm · Ø outside: 95 mm · Ø bore: 11.3 mm · Wide cam holder: 12 mm · Brake lever length (lever length): 78 mm

GPO brake cam & retaining plate set | Puch Maxi N

Manufacturer: GPO · Material: Chrome steel (known as Nirosta®) · Material: Steel · Surface: galvanized (blue)

swiing® revival return spring brake plate Inox | Puch Maxi

Spring design: Torsion spring · Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®)

Brake return spring rear wheel Inox | Pony GTX Beta 521 (P8926)

Spring design: Torsion spring · Manufacturer: Pony

Clamping screw brake lever vo. & hi. Tomos

Manufacturer: Tomos · Thread type: M6x1 (standard thread) · Ø shaft: 7 mm · Total length: 17 mm · Tomos OEM number: 222581

Brake anchor plate front 12 mm axle (1A quality) | Puch Maxi S, N / X30 Sport NS, NL / Velux

Manufacturer: GPO · Material: Aluminum · Ø External brake pads: 80 mm · Ø outside: 95 mm · Ø axle: 12 mm · Ø bore: 12.1 mm · Thread size: M6 · Wide cam holder: 12 mm · Brake lever length (lever length): 78 mm · Puch OEM number: 349.1.40.007.2 · Puch OEM number: 349.1.40.807.9

swiing® revival shim ring coaster 3.5 mm | Puch / Sachs

Manufacturer: swiing® revival parts · Surface: gas nitrided · Nominal diameter (thread): 10 mm · Thickness: 3.5 mm · Ø inside: 10.7 mm · Ø outside: 19 mm

swiing® revival nose washer M10.5 (10.7/20/1.7) Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Nominal diameter (thread): 10 mm · Thickness: 1.7 mm · Ø inside: 10.7 mm · Ø outside: 20 mm

Clamp clamp 19 - 21 mm Brake anchor plate Inox

Material: Chrome steel (known as Nirosta®) · Ø inside: 19 - 21 mm · Width: 15 mm

Clamp clamp 16 - 18 mm Brake anchor plate

Manufacturer: Made in Germany · Width: 15 mm · Ø inside: 16 - 18 mm

Grimeca rear cap

Manufacturer: Made in Germany · Color: black

GPO Brake support bolt Inox | Puch X30 NS, NL, NG-2AH, NG-2A, N-2A (long version)

Manufacturer: GPO · Total length: 38.5 mm · Number of components: 3 pcs · Material: Chrome steel (known as Nirosta®) · Thread type: MF10x1 (fine pitch thread) · Shank: Yes · Ø shaft: 9.8 mm

swiing® revival brake cam disk anchor plate cast rim | Piaggio Ciao, SI, Bravo / Pony GTX 521

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø outside: 20.5 mm · Ø inside: 6.5 mm · Ø inside: 10 mm · Thickness: 1.7 mm · Piaggio OEM number: 184468

swiing® revival shim ring coaster brake 7 mm | Puch / Sachs

Manufacturer: swiing® revival parts · Surface: gas nitrided · Thickness: 7 mm · Ø inside: 10.7 mm · Ø outside: 19 mm

Plastic insert for clamp (20 x 45 mm)

Manufacturer: Made in Germany · Material: Plastic · Color: black · Total length: 45 mm · Width: 20 mm

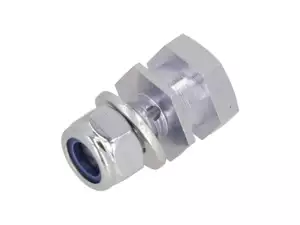

swiing® ingenious clamping screw rear brake reinforced M8 | Piaggio Ciao, SI, Bravo, Boxer

Screw head: Hexagon · Width across flats SW: 13 mm · Width across flats SW: 14 mm · Manufacturer: swiing® ingenious parts · Ø Cable bushing: 2.1 mm · Number of components: 3 pcs · Ø shaft: 10.5 mm · Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Total length: 21.5 mm · Thread type: M8x1.25 (standard thread) · Thread length: 11 mm · Alternative version of the Piaggio OEM number: 154533

Grimeca front cap

Manufacturer: Made in Germany · Color: transparent

Nut M8x1 half-height Inox

Width across flats SW: 13 mm · Material: Chrome steel (known as Nirosta®) · Drive: External hexagon · Nut type: Hexagon nut · Thread type: MF8x1 (fine pitch thread)

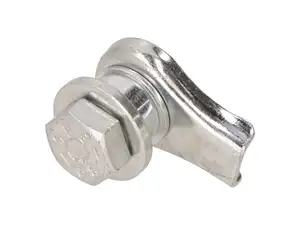

Clamping screw front brake original | Piaggio Ciao, SI, Bravo, Boxer

Screw head: Hexagon · Width across flats SW: 11 mm · Manufacturer: Piaggio · Number of components: 7 pcs · Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Total length: 20.5 mm · Thread type: M7x1 (standard thread) · Thread length: 13.5 mm · Area of application: Original · Piaggio OEM number: 154533

Spring Cam Lever Front Wheel | Pony Cross Beta 521 (P8351)

Spring design: Torsion spring · Manufacturer: Pony

Brake lever rear wheel NOS | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: galvanized (blue) · Color: silver

Brake anchor plate H905 Ø 90 mm front & rear | Sachs / Hercules Prima, Optima

Material: Steel · Ø drum: 90 mm · Surface: galvanized (blue) · Ø axle: 11 mm · Ø outside: 107 mm · Ø bore: 12.2 mm · Wide cam holder: 10 mm · Brake lever length (lever length): 65 mm · Cranking (offset): 15 mm

swiing® ingenious clamping screw front brake reinforced M8 | Piaggio Ciao, SI, Bravo, Boxer

Thread length: 9.5 mm · Ø Cable bushing: 2.1 mm · Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Total length: 21 mm · Ø shaft: 10.9 mm · Screw head: Hexagon · Drive: External hexagon · Thread type: M8x1.25 (standard thread) · Width across flats SW: 13 mm · Width across flats SW: 14 mm · Number of components: 3 pcs · Alternative version of the Piaggio OEM number: 154533

Clamp clamp 16 - 18 mm Brake anchor plate Inox

Manufacturer: Made in Germany · Material: Chrome steel (known as Nirosta®) · Ø inside: 16 - 18 mm · Width: 15 mm

swiing® revival dust cover for coaster brake cam Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Ø inside: 17.4 mm · Ø outside: 20 mm · Ø bore: 8 mm · Sachs OEM no.: F1637 · Puch OEM number: 320.4.41.009.0

swiing® revival return spring front brake plate Inox | Puch

Spring design: Ironing spring · Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®)

Torsion spring brake plate front & rear Puch DS50, VZ50, VS50, MV50

Spring design: Torsion spring · Material: Spring steel · Surface: galvanized (blue)

swiing® ingenious brake lever front wheel EBR telescopic fork | Piaggio Ciao

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Place of use: Brake anchor plate · Total length: 60 mm · Thickness: 4 mm

Brake cam coaster brake NOS

Manufacturer: Puch

swiing® revival brake lever rear wheel cranked | Sachs

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thickness: 4 mm · Total length: 70 mm

Solid brake cable clamping screw

Ø Cable bushing: 2.6 mm · Material: Steel · Surface: galvanized (blue) · Total length: 35 mm

Clamp clip 14 - 16 mm Brake anchor plate Inox

Manufacturer: Made in Germany · Material: Chrome steel (known as Nirosta®) · Ø inside: 14 - 16 mm · Width: 15 mm

Nut M6 linkage foot brake

Thread type: M6x1 (standard thread) · Drive: External hexagon · Height: 12.5 mm · Width across flats SW: 10 mm

LELEU Brake anchor plate front 12 mm axle | Puch Maxi S, N, X30 Sport NS, NL, Velux

Manufacturer: LELEU · Material: Aluminum · Ø drum: 80 mm · Ø axle: 12 mm · Ø bore: 12.1 mm · Puch OEM number: 349.1.40.007.2 · Puch OEM number: 349.1.40.807.9

swiing® revival brake lever front wheel | Piaggio SI PTT

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Place of use: Brake anchor plate · Color: silver · Total length: 72 mm · Thickness: 4 mm · Height: 8 mm

swiing® revival shoulder bushing Ø 11 mm brake anchor plate front Sachs V90 VE wheel hub

Manufacturer: swiing® revival parts · Nominal diameter inside: 11 mm · Ø outside: 14.1 mm · Ø Bundle: 20 mm · Ø inside: 11.1 mm · Total length: 8 mm · Sachs OEM no.: 0843 079 000
