For: Puch

33577

Gilardoni italkit piston 38 mm No. 3 | Puch Maxi

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 97.90

Incl. 25% VAT.

Description

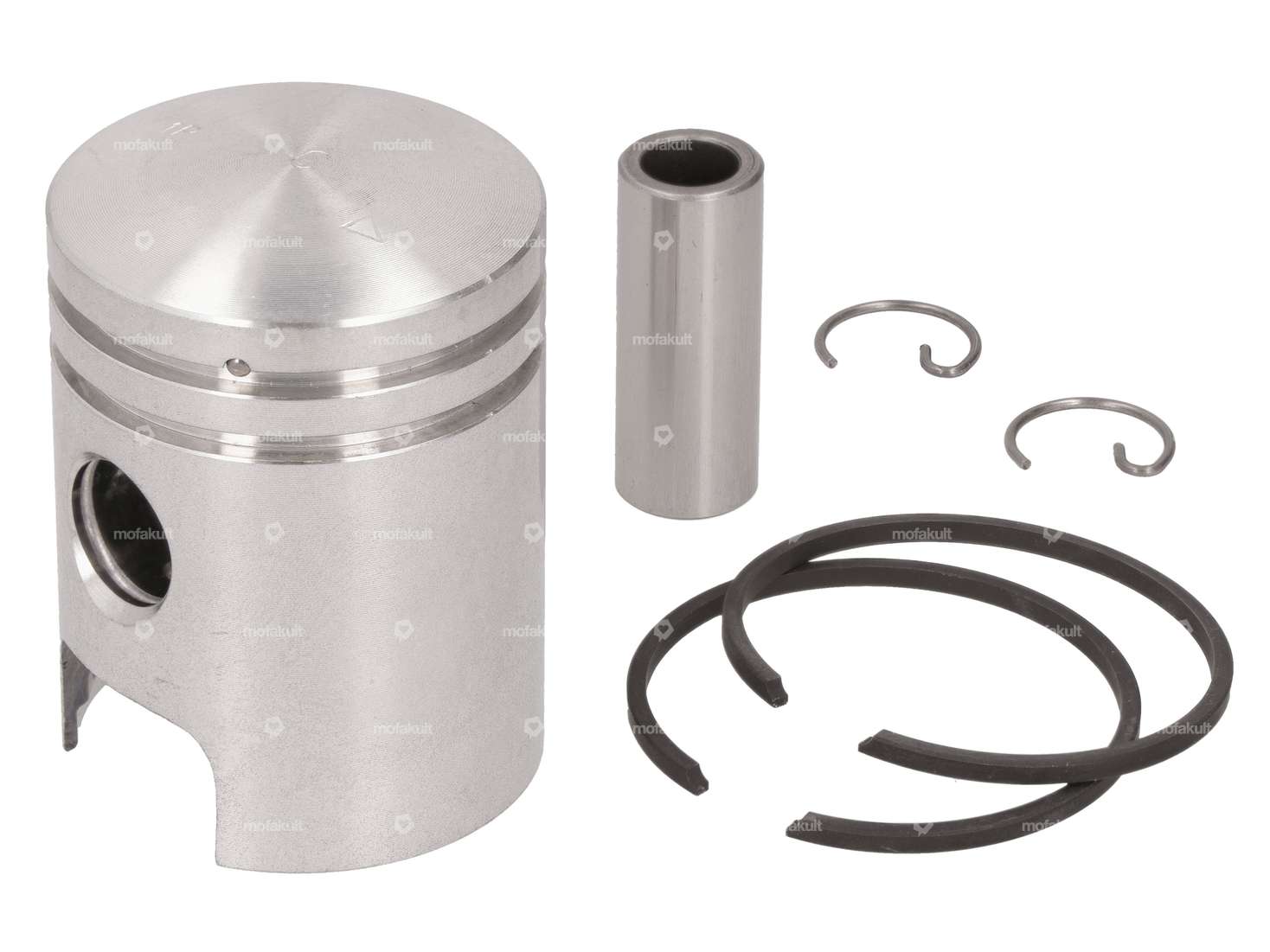

38 mm piston kit with two 2 mm rectangular piston rings with flank lock (FS) for your Puch Maxi moped / moped.

The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

The piston kit contains piston pins, piston clips and piston rings.

Corresponding installation tools, piston pin locks and alternative pistons can be found in the accessories section.

Quality product from the Italian manufacturer Gilardoni under the italkit brand.

Nominal diameter38 mm
ManufacturerGilardoni italkit
Ø outside piston (A)37.96 mm
Compression height (C)22.7 mm
Curvature (D)3.9 mm
Total piston height (E)52.6 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Ø piston pin (B)12 mm
Weight piston kit81 g
Puch

E50
