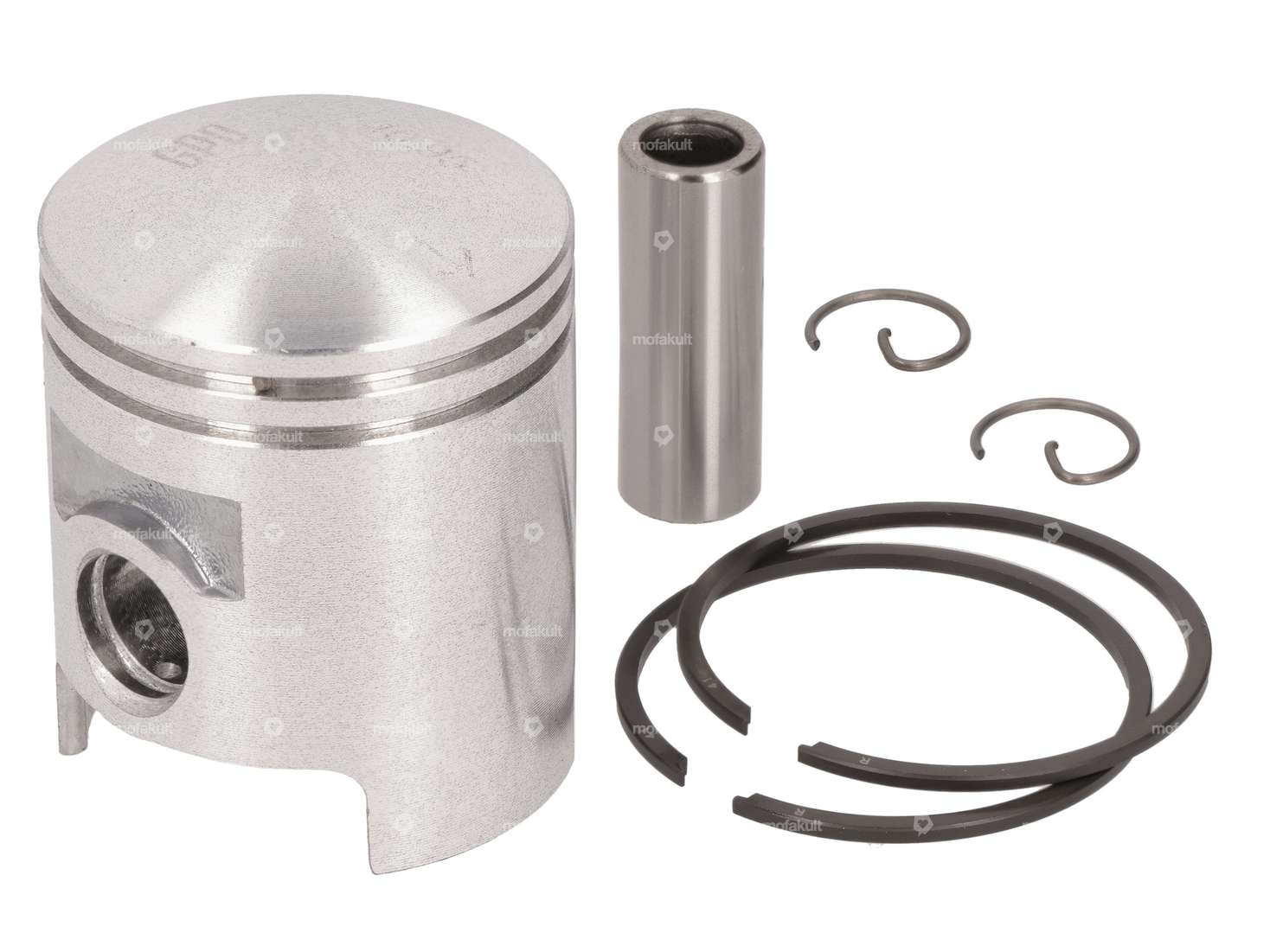

41.0 mm replacement piston with two 1.5 mm rectangular piston rings with internal circlip (IS) to fit the GPO «Divertimento» 41 mm racing kit on your moped / moped with Sachs 50, 502, 50/2, 50/3, 50/4 engine.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Manufacturer | GPO |
| Material | Aluminum |
| Ø outside piston (A) | 40.95 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 3.4 mm |
| Total piston height (E) | 50.5 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 41 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Thick piston ring | 1.7 mm |
| Ø piston pin (B) | 12 mm |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 |
