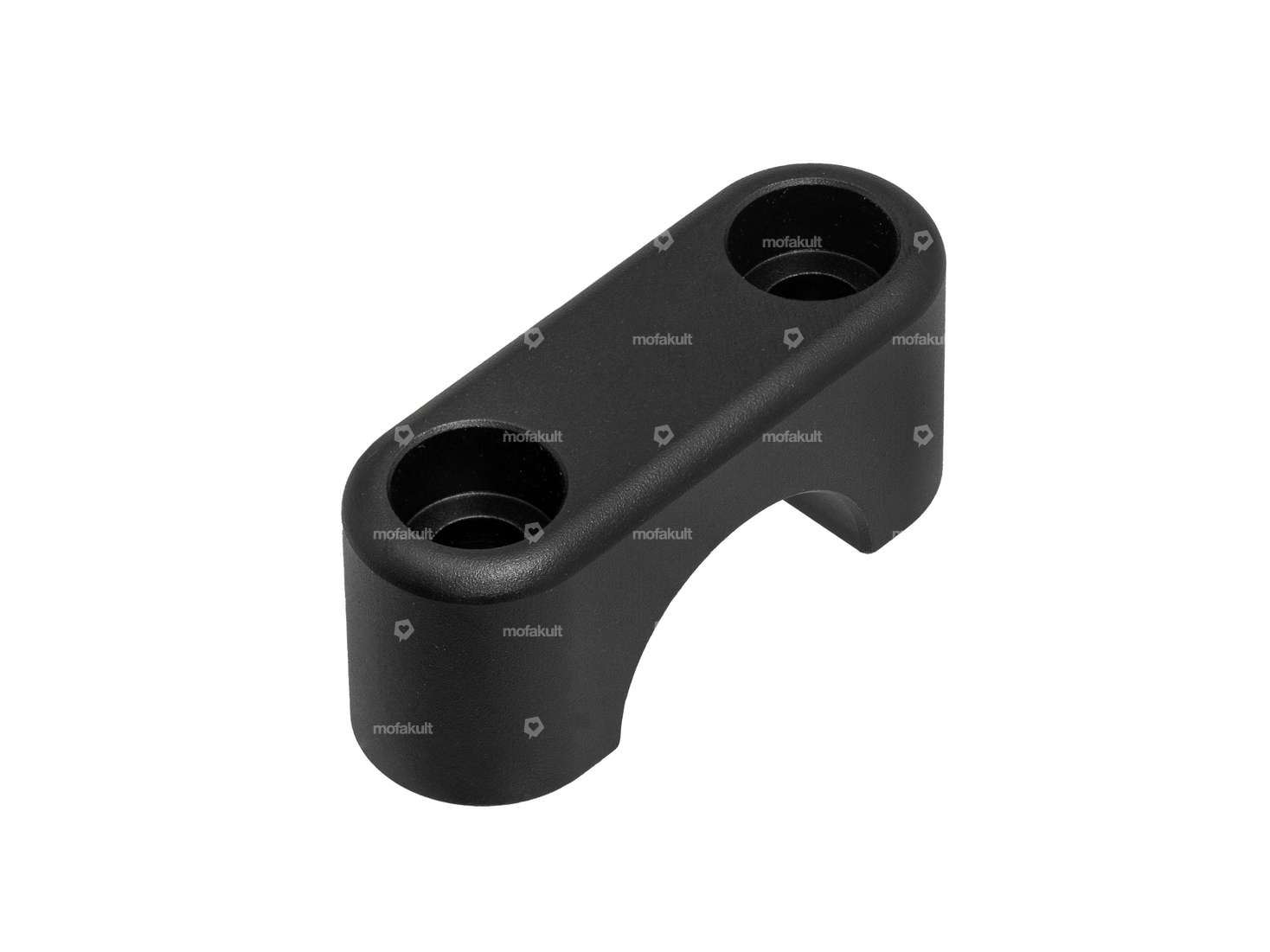

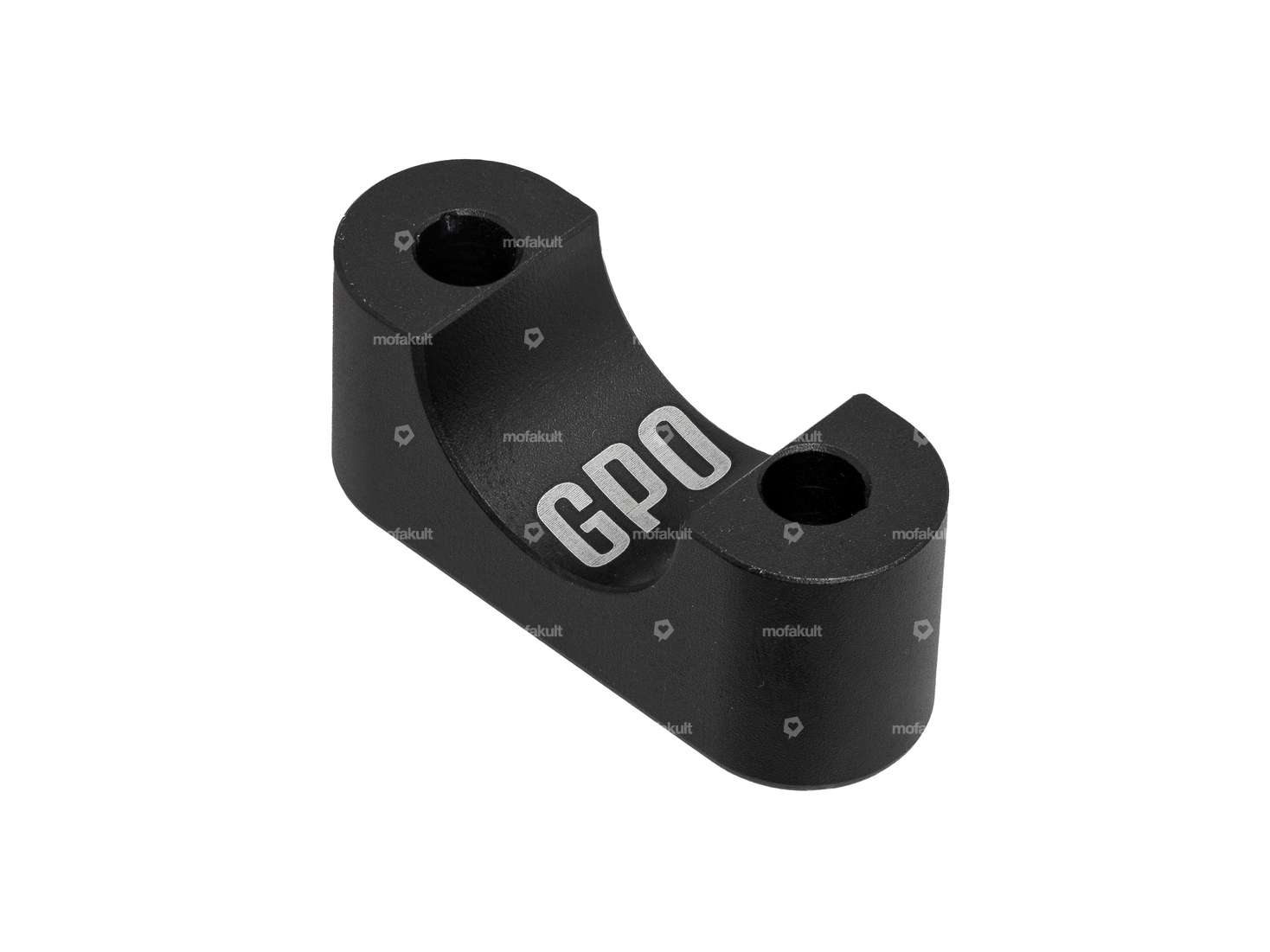

Single handlebar clamp for mounting the handlebars on EBR forks where the upper fork clamp is made of cast aluminium.
The mounting clamp is made of aluminium and has a black matt anodized finish.
Hole spacing: 30 mm
Ø hole: 6.4 mm
Outer dimensions (L x W x H): 47 x 17 x 20.4 mm
Alternative clamps and forks can be found in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
| Manufacturer | GPO |
| Material | Aluminum |
| Surface | anodized |
| Color | black |
| Total length | 47 mm |
| Ø mounting hole | 6.4 mm |
| Width | 17 mm |
| Height | 20.4 mm |
| Clamping diameter | 22 mm |
| Hole spacing | 30 mm |
| Number of fixing points | 2 pcs |
| Universal |
| Puch |
| Sachs |
| Pony / Cilo (Beta 521 & 512) |
| Piaggio |
Ratings
Accessories & related products
EBR telescopic fork hydraulic silver | Puch
Manufacturer: EWC · Material: Aluminum · Material: Steel · Color: Chrome · Surface: chrome-plated · Color: silver · Surface: varnished · Thread type: MF26x1 (fine pitch thread) · Adjustable: Yes · Spar end distance (center-center): 150 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22.3 mm · Ø spars: 28 mm · Head tube length: 200 mm · Thread length: 58 mm · Fork bridge - center wheel axle: 410 mm · Total length: 635 mm · Distance brake cam to wheel axle center-center: 35 mm
EUR 387.60
GPO clamping bridge EBR cast fork plate aluminum silver
Manufacturer: GPO · Material: Aluminum · Surface: anodized · Color: silver · Width: 17 mm · Height: 20.4 mm · Clamping diameter: 22 mm · Number of fixing points: 2 pcs · Ø mounting hole: 6.4 mm · Total length: 47 mm · Hole spacing: 30 mm
EUR 11.00
EBR telescopic fork hydraulic black | Puch
Manufacturer: EWC · Material: Aluminum · Material: Steel · Color: Chrome · Color: black · Surface: chrome-plated · Surface: varnished · Thread type: MF26x1 (fine pitch thread) · Adjustable: Yes · Spar end distance (center-center): 150 mm · Ø outer head tube: 25.9 mm · Ø head tube inside: 22 mm · Ø spars: 28 mm · Head tube length: 200 mm · Thread length: 58 mm · Fork bridge - center wheel axle: 410 mm · Total length: 635 mm · Distance brake cam to wheel axle center-center: 35 mm
EUR 387.60
EBR telescopic fork hydraulic black EXTRA | Puch
Manufacturer: EWC · Thread length: 60 mm · Material: Aluminum · Material: Steel · Surface: chrome-plated · Surface: varnished · Thread type: MF26x1 (fine pitch thread) · Adjustable: Yes · Spar end distance (center-center): 150 mm · Ø outer head tube: 26 mm · Total length: 680 mm · Ø head tube inside: 22 mm · Ø spars: 28 mm · Head tube length: 200 mm · Fork bridge - center wheel axle: 605 mm · Color: Chrome · Color: black
EUR 492.20
EBR telescopic fork hydraulic extended black (with tabs for disc brake) | Puch
Manufacturer: EWC · Thread length: 58 mm · Material: Aluminum · Material: Steel · Surface: chrome-plated · Surface: varnished · Thread type: MF26x1 (fine pitch thread) · Adjustable: Yes · Spar end distance (center-center): 150 mm · Ø outer head tube: 26 mm · Total length: 675 mm · Ø head tube inside: 22.15 mm · Ø spars: 28 mm · Head tube length: 200 mm · Fork bridge - center wheel axle: 445 mm · Distance brake cam to wheel axle center-center: 35 mm · Color: Chrome · Color: black
EUR 393.70
GPO clamping bridge EBR cast fork plate aluminum chrome
Manufacturer: GPO · Material: Aluminum · Surface: chrome-plated · Clamping diameter: 22 mm · Number of fixing points: 2 pcs · Color: Chrome · Hole spacing: 30 mm · Total length: 47 mm · Height: 20.4 mm · Ø mounting hole: 6.4 mm · Width: 17 mm
EUR 13.40
EBR telescopic fork hydraulic black | Sachs / Pony
Manufacturer: EWC · Material: Aluminum · Material: Steel · Surface: chrome-plated · Surface: varnished · Adjustable: Yes · Thread type: MF26x1 (fine pitch thread) · Spar end distance (center-center): 150 mm · Ø outer head tube: 26 mm · Total length: 640 mm · Ø head tube inside: 22 mm · Ø spars: 28 mm · Head tube length: 220 mm · Fork bridge - center wheel axle: 385 mm · Distance brake cam to wheel axle center-center: 35 mm · Thread length: 55 mm · Color: Chrome · Color: black
EUR 399.90

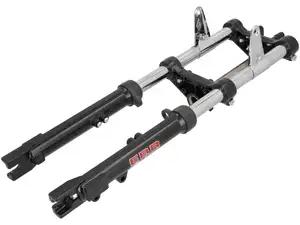

EBR fork hydraulic reinforced black (with tabs for disc brake) | Piaggio Ciao
