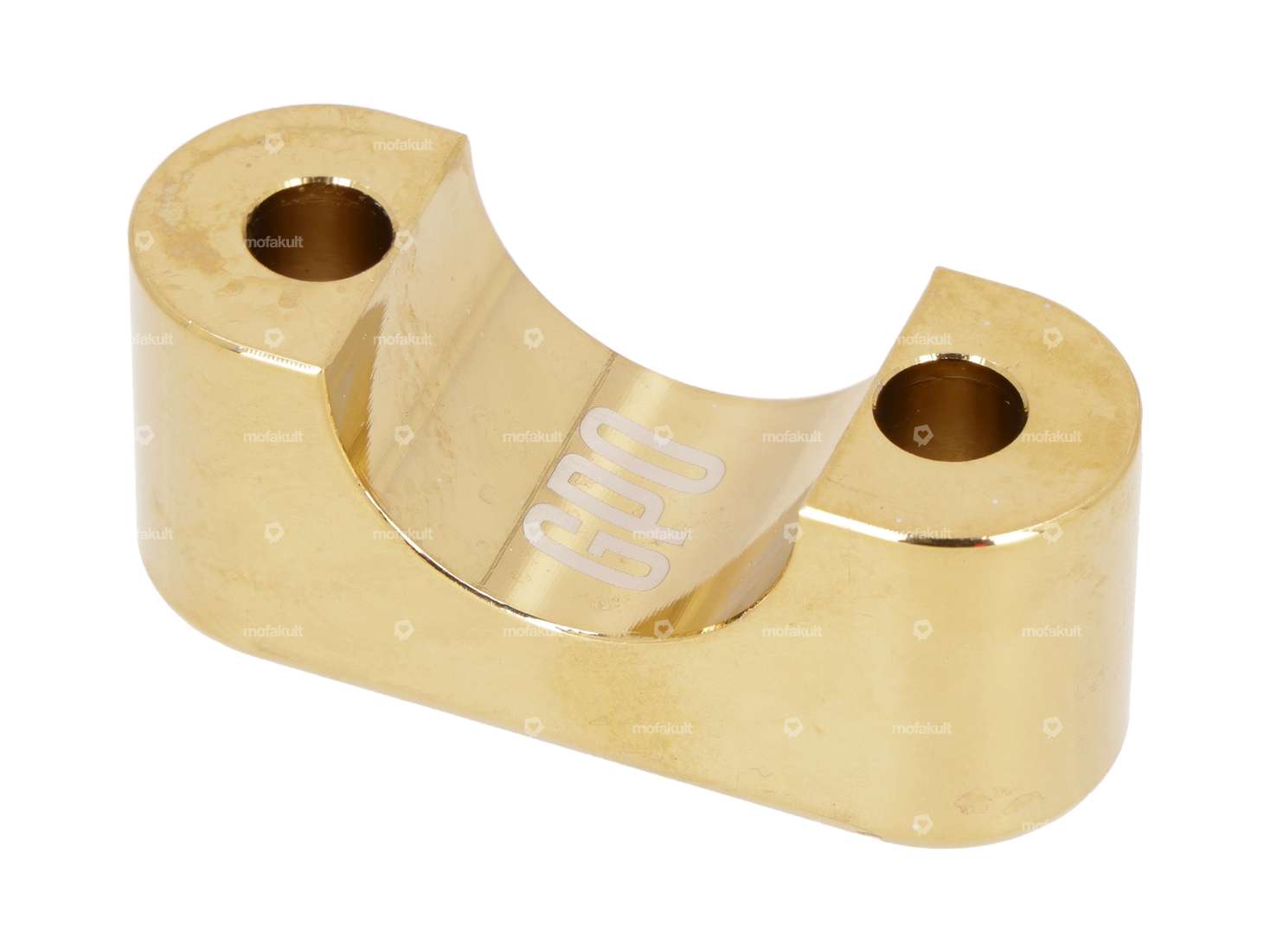

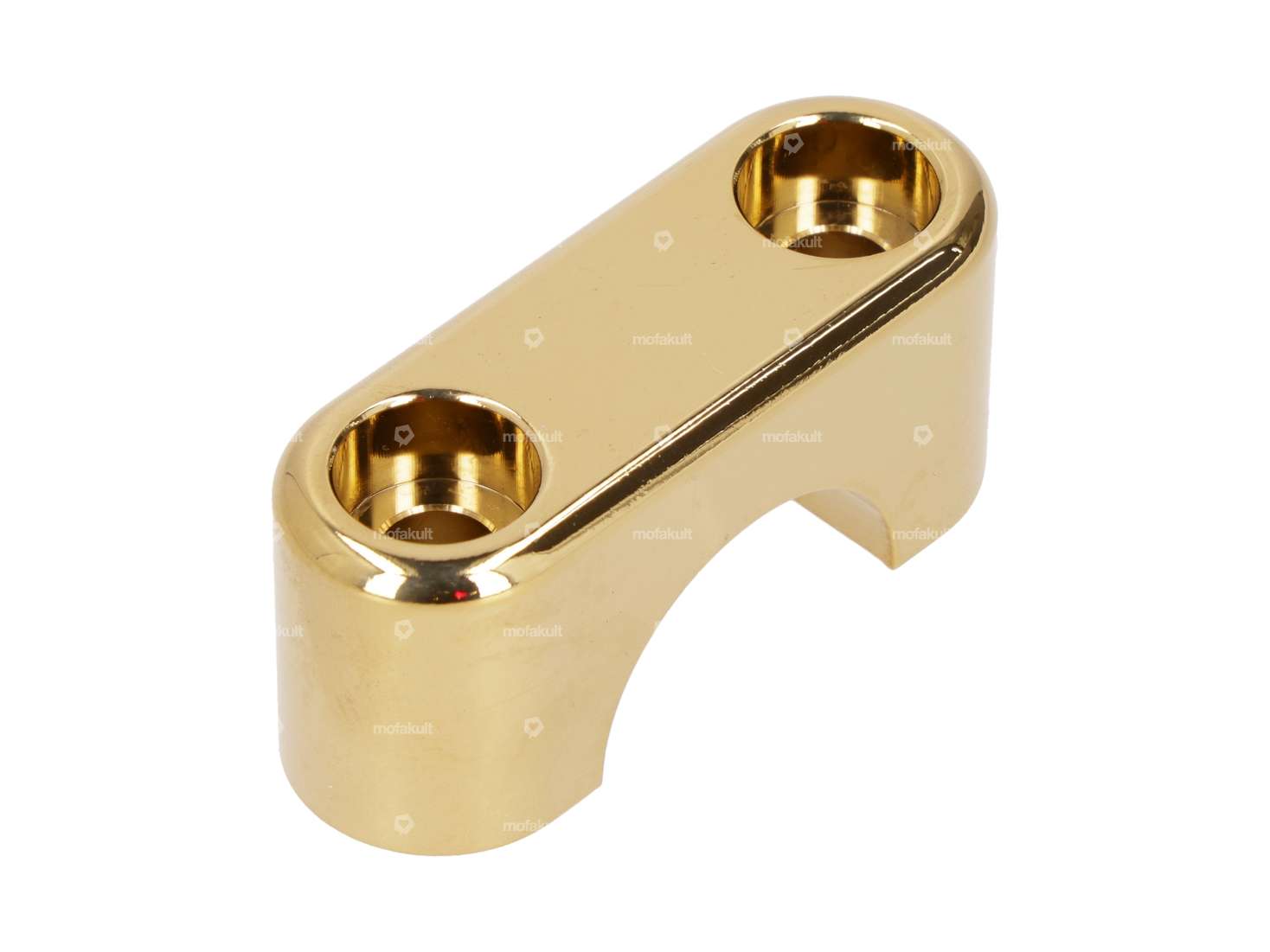

GPO clamping bridge EBR cast fork plate gold

swiing® revival screw M7x35 clamping bridge | Puch

Manufacturer: swiing® revival parts · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Drive: Hexagon socket · Number of components: 1 pcs · Thread type: M7x1 (standard thread) · Nominal diameter (thread): 7 mm · Thread length: 34.6 mm · Total length: 41.6 mm · Screw head: Cylinder head · Ø External head: 10.5 mm · Shank: No · Width across flats: 5 mm · Strength class: 8.8

Nut M7 Inox

Nut type: Hexagon nut · Nominal diameter (thread): 7 mm · Drive: External hexagon · Thread type: M7x1 (standard thread) · Height: 5.5 mm · Material: Chrome steel (colloquially known as stainless steel) · Width across flats: 11 mm · Piaggio OEM number: 020107, 1107, 226745

Washer M7 7.4/14/1.6 galvanized

Material: Steel · Surface: galvanized (blue) · Thread size: M7 · Nominal diameter inside: 7 mm · Nominal diameter (thread): 7 mm · Piaggio OEM number: 003057, 3057, S.13842

GPO clamping bridge EBR cast fork plate aluminum silver

Manufacturer: GPO · Surface: anodized · Color: silver · Material: Aluminum · Ø mounting hole: 6.4 mm · Total length: 47 mm · Width: 17 mm · Height: 20.4 mm · Clamping diameter: 22 mm · Number of fixing points: 2 pcs · Hole spacing: 30 mm

SW6 Hex Socket Cap, M8, Black

Color: black · Thread size: M8 · Material: Plastic · Drive: Hexagon socket · Screw head: Cylinder head

GPO clamping bridge EBR cast fork plate aluminum chrome

Manufacturer: GPO · Material: Aluminum · Color: Chrome · Surface: chrome-plated · Total length: 47 mm · Number of fixing points: 2 pcs · Ø mounting hole: 6.4 mm · Width: 17 mm · Height: 20.4 mm · Clamping diameter: 22 mm · Hole spacing: 30 mm

GPO clamping bridge EBR cast fork plate aluminum black

Manufacturer: GPO · Surface: anodized · Total length: 47 mm · Number of fixing points: 2 pcs · Ø mounting hole: 6.4 mm · Width: 17 mm · Height: 20.4 mm · Clamping diameter: 22 mm · Hole spacing: 30 mm · Material: Aluminum · Color: black

Screw M7x40 cylinder head hexagon socket, galvanized (clamping bridge)

Manufacturer: Made in Italy · Material: Steel · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Drive: Hexagon socket · Screw head: Cylinder head · Nominal diameter (thread): 7 mm · Thread length: 40 mm · Shank: No · Width across flats: 6 mm · Strength class: 8.8

swiing® revival screw set clamping bridge EBR Staco / hydraulic

Manufacturer: swiing® revival parts · Number of components: 8 pcs · Nominal diameter (thread): 6 mm · Thread type: M6x1 (standard thread)

Magura cable clamp Ø 8 x 15 mm

Ø Cable bushing: 2.3 mm · Manufacturer: Magura · Material: Brass · Material: Steel · Drive: External hexagon · Drive: Slot · Surface: galvanized (blue) · Surface: nickel-plated · Total length: 15 mm · Screw head: Hexagon · Ø Bundle: 6 mm · Thread type: M6x1 (standard thread) · Thread length: 7 mm · Ø outside: 8 mm · Width across flats: 7 mm · Area of application: Standard

GPO clutch trigger | Puch E50

Manufacturer: GPO · Material: Steel · Surface: blackened · Area of application: (Dis)assembly tool

Outlet seal Ø 27 Steel ring

Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Reinforced: Yes · Ø outlet inside: 27 mm · Thickness: 2.1 mm · Ø screw holder: 6.3 mm · Hole spacing outlet: 42.5 mm · Area of application: Tuning

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Manufacturer: GPO · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Thread type: MF12x1 (fine pitch thread) · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut

Ø 9.5 mm Wedge 4.5° Pedal crank galvanized

Material: Steel · Color: silver · Surface: galvanized (blue) · Angle crank wedge: 4.5° · Thread type: M6x1 (standard thread) · Total length: 43 mm · Ø outside: 9.5 mm

30 cm gasoline hose, 5/8" diameter, gold

Material: Plastic · Color: gold · Total length: 300 mm · Ø inside: 5 mm · Ø outside: 8 mm

Clutch cable / brake cable Ø 1.5 mm x 225 cm (pear-shaped nipple)

Ø nipple: 3.5 mm · Ø nipple: 6 mm · Manufacturer: Made in Germany · Number of components: 1 pcs · Material: Steel · Surface: galvanized (blue) · Ø Stranded wire: 1.5 mm · Cable length: 2250 mm · Nipple shape: Pears · Nipple length: 10 mm · Area of application: Standard · Piaggio OEM number: 270460

GPO steerer tube nut M26x1 closed fork plate chrome

Ø outside: 28.9 mm · Ø outside: 36.4 mm · Manufacturer: GPO · Height: 13.8 mm · Material: Steel · Surface: chrome-plated · Nut type: Cap nut · Thread type: MF26x1 (fine pitch thread) · Nominal diameter (thread): 26 mm · Drive: External hexagon · Width across flats: 30 mm · Thread depth: 12 mm · Area of application: Standard
