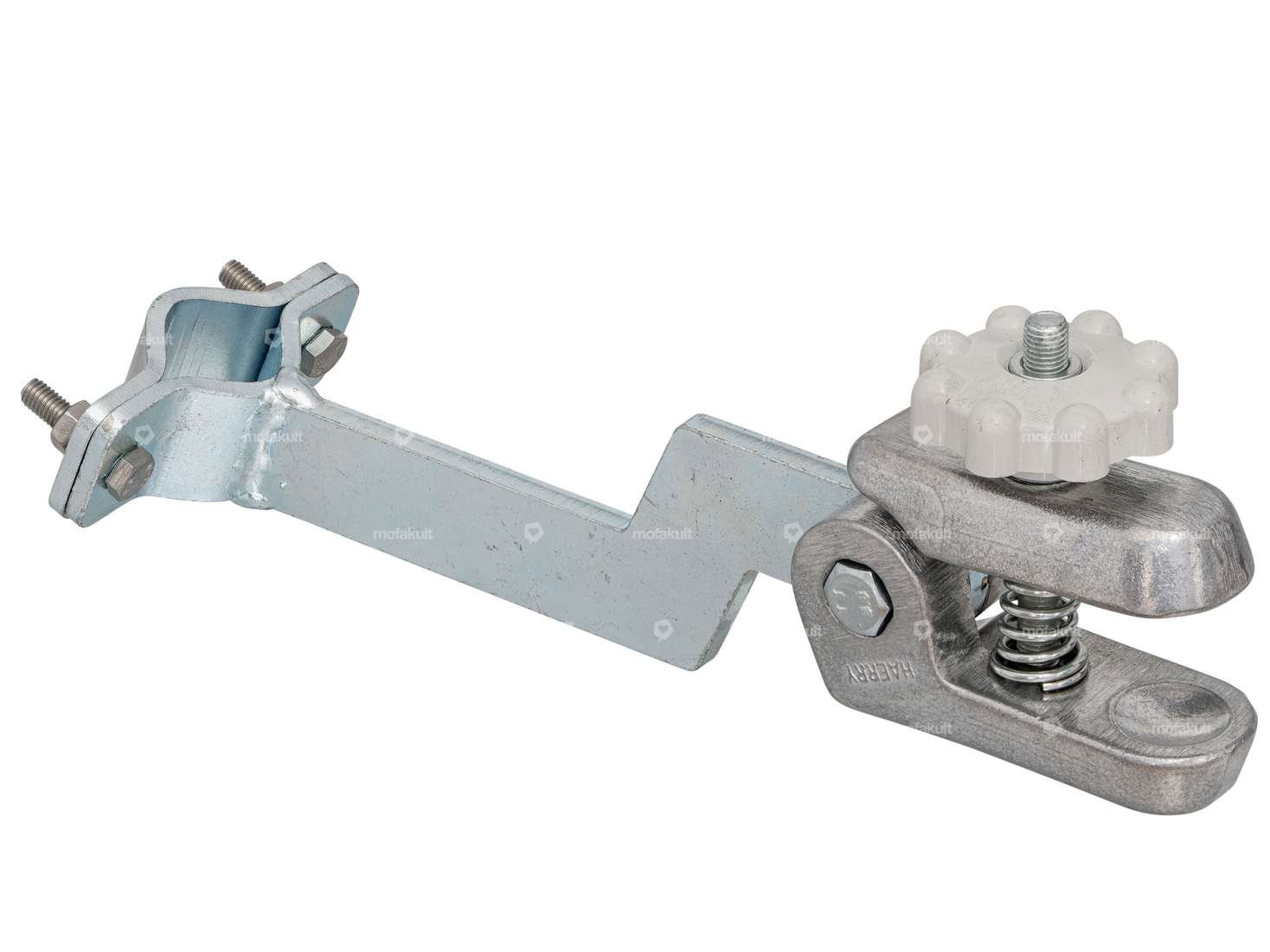

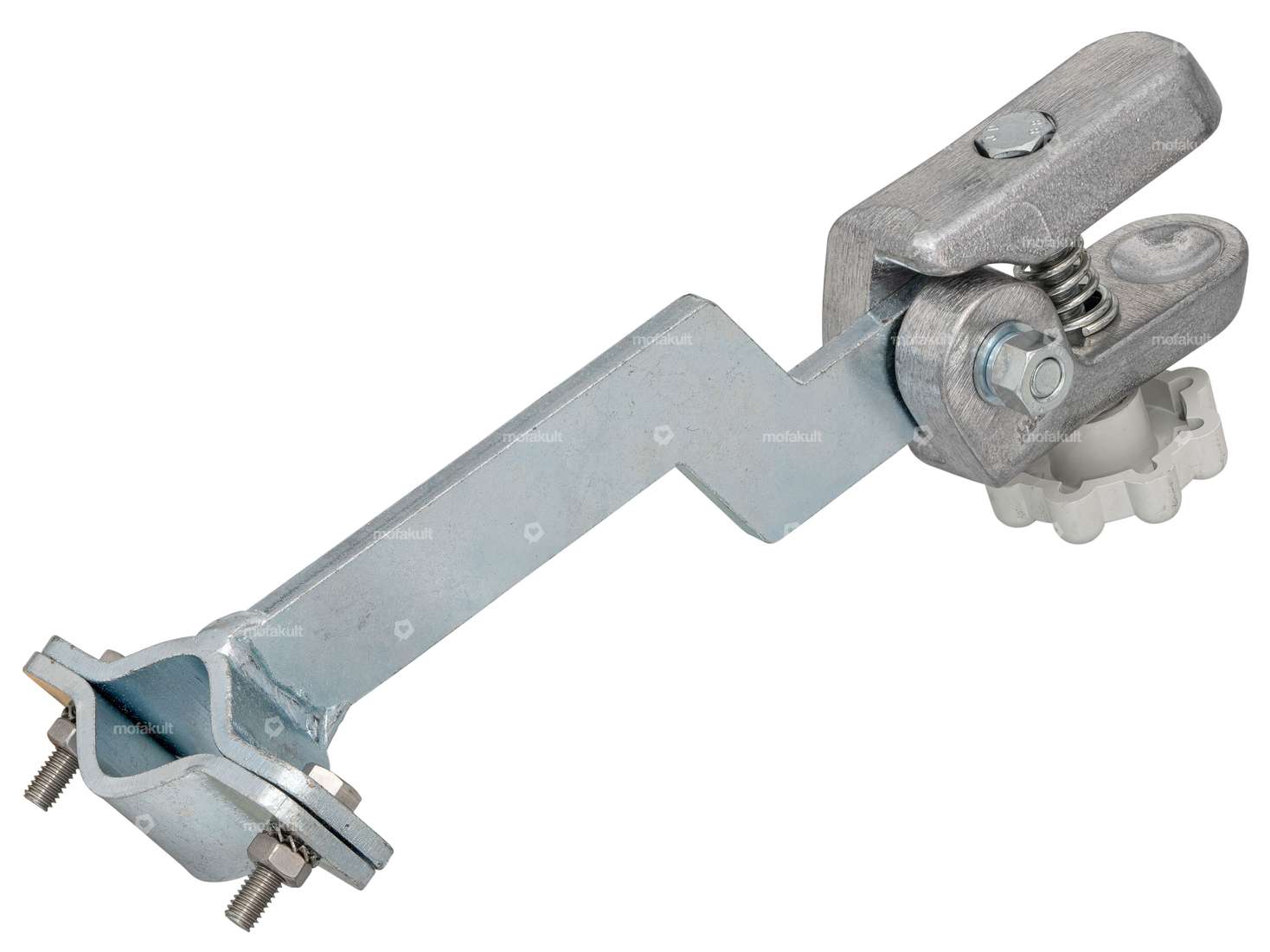

High-quality trailer hitch for your bike, e-bike, moped or moped.
The HAERRY hitch is durable and virtually indestructible thanks to its solid construction and high-quality galvanization.
The sturdy trailer clamp can be easily mounted on all seat tubes with an outer diameter of at least 25 mm. For seat tubes with an outer diameter of less than 25 mm, additional reducer shells should be used.
The extended and raised mounting profile means that the hanger does not bump anywhere and can also be ridden with luggage. Thanks to the swivel head, the towbar can be perfectly adjusted to fit your trailer.
Ø seat tube: 25 - 32 mm
Saddle tube length to ball: 215 mm
Hitch connection: Ø 30 mm ball head
Alternative towbars, reducing shells and other travel accessories can be found in the accessories section.
HAERRY – Swiss quality towbars.
Details
| Manufacturer | HAERRY |
| Width | 75 mm |
| Ø ball | 30 mm |
| Material | Steel, Aluminum |
| Surface | galvanized (blue) |
| Thread type | MF8x1 (fine pitch thread) |
| Total length | 260 mm |
| Thickness | 6 mm |
| Height | 85 mm |
| Clamping diameter | 30 mm |
| Hole spacing | 56 mm |
| Wide intake | 75 mm |
