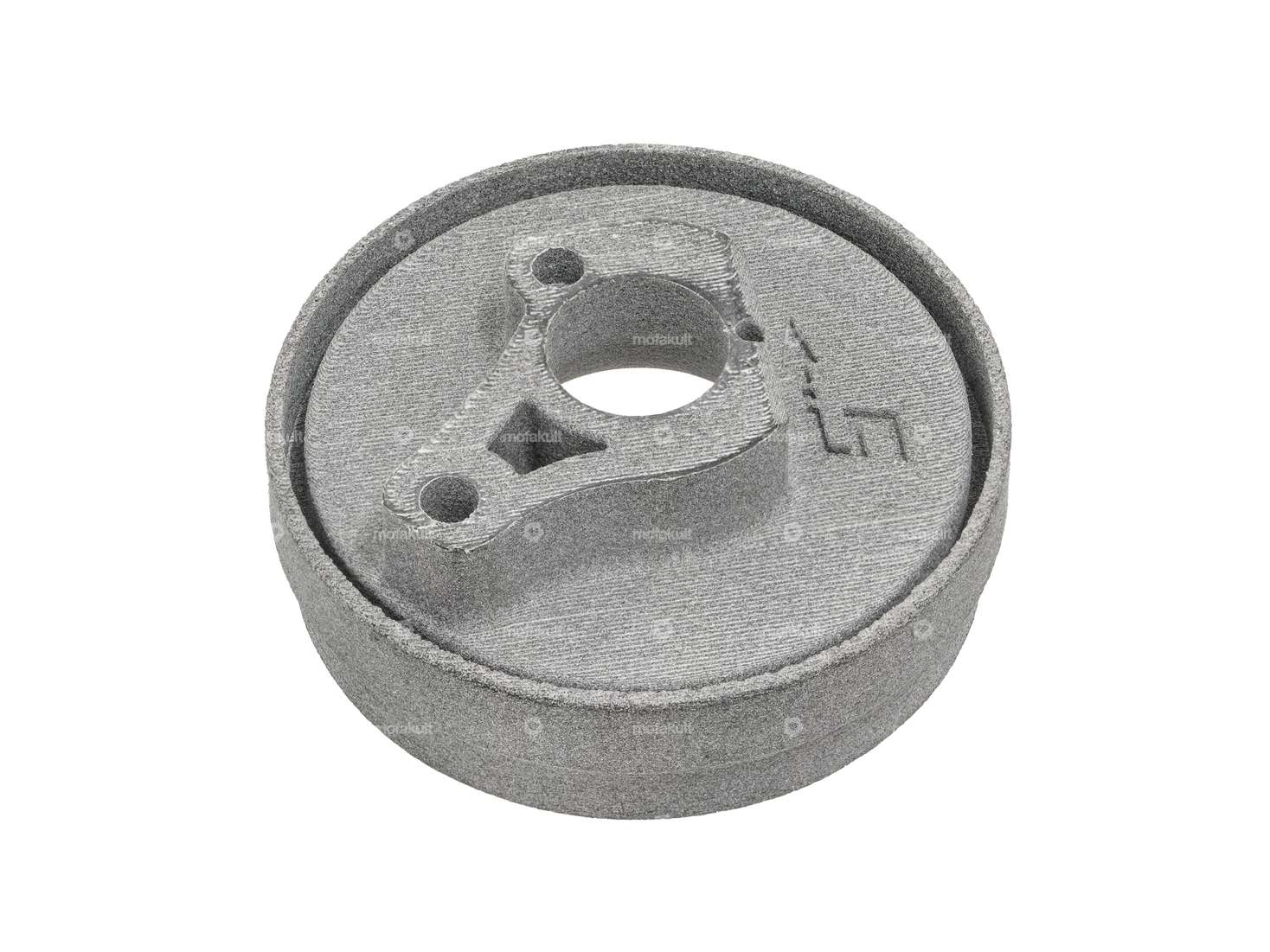

Specially manufactured intake funnel for the large 14 - 16 mm Type 4 Dell'Orto SHA carburettors which can be fitted to Puch Maxi S / N, Tomos, Pony / Cilo Cross etc., among others. Moped / moped can be installed.
This air funnel optimizes the gas flow and ensures that the air can flow into the venturi area of the carburettor in a controlled and bundled manner thanks to its streamlined design.
This achieves a performance increase of up to 20 % with the appropriate setup. The increased power is noticeable across the entire rev range.

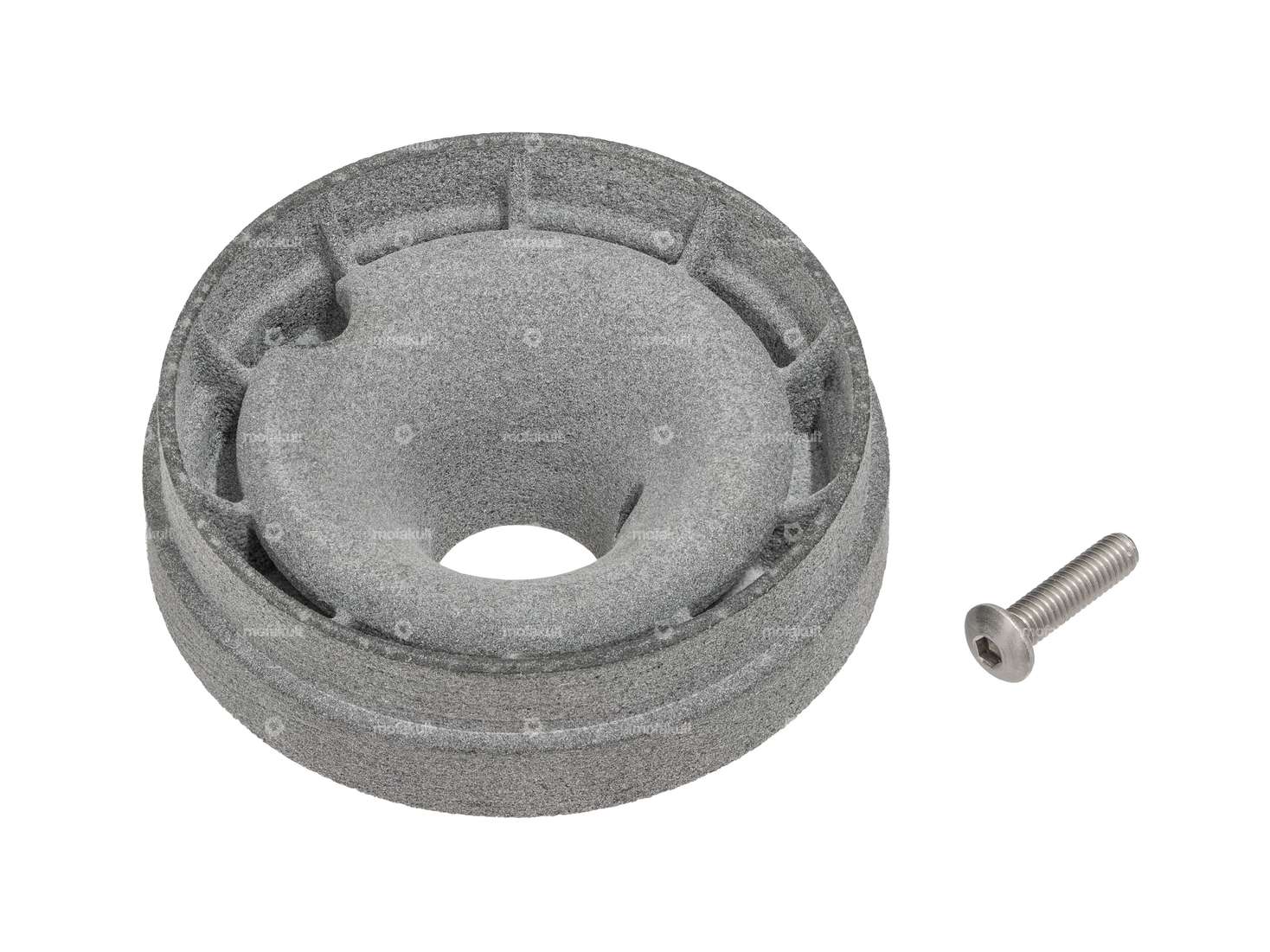

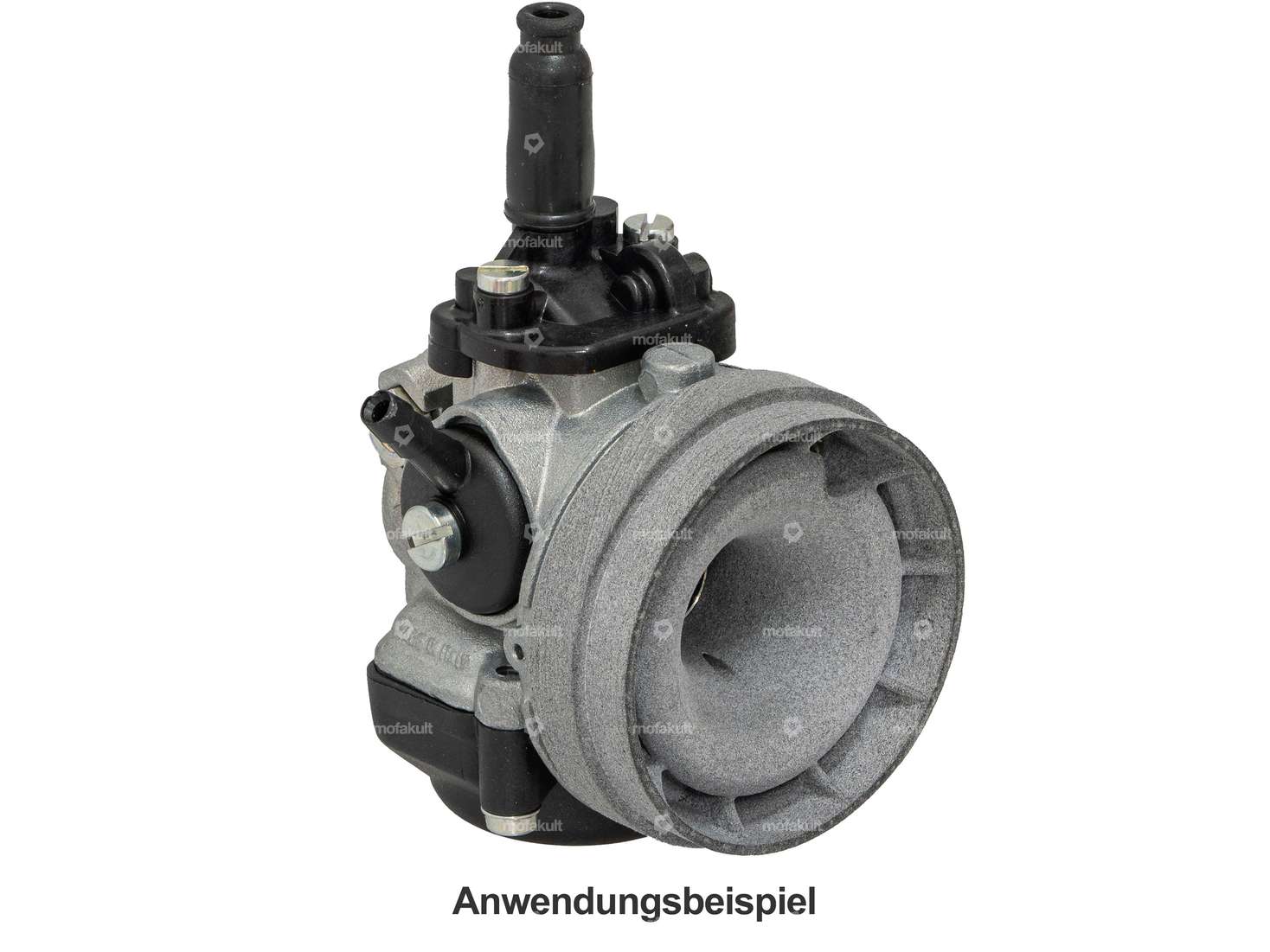

The Venturi filter is attached directly to the carburetor using the screw supplied. The original air filter cover can be fitted as usual.
Attention: Please note that the choke lever must be removed.
The scope of delivery includes installation instructions and a performance diagram in English.
A quality product manufactured in Germany.
Details
| Manufacturer | Made in Germany |
| Mounting type | Screws |
Suitable for the following models
| Universal | |
| Tomos |
