For: Sachs

20300

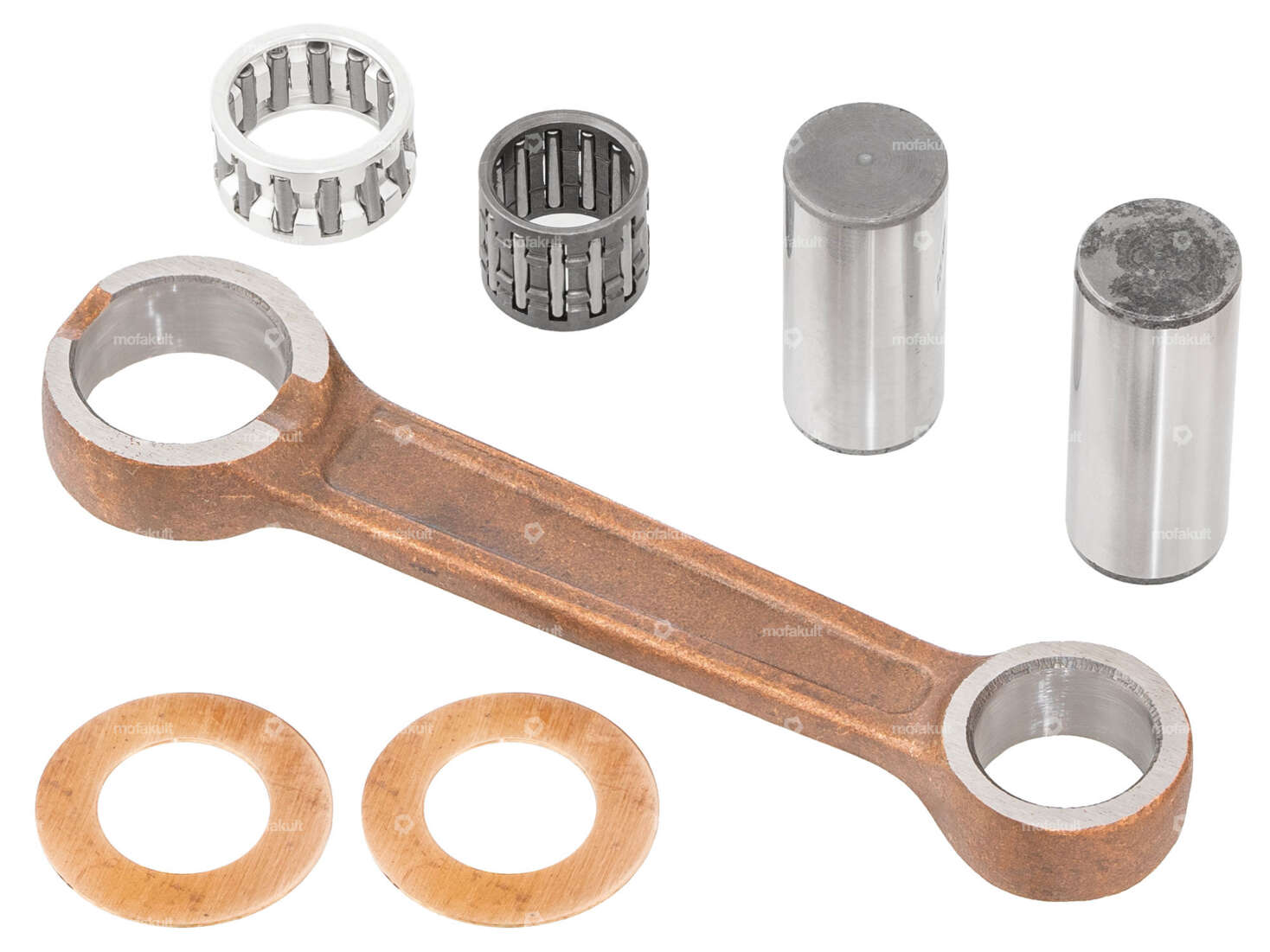

Jasil connecting rod axe 14 mm | Sachs

EUR 85.70

Incl. 25% VAT.

Description

Complete connecting rod suitable for crankshafts of various mopeds, mopeds and small motorcycles with Sachs engines.
The replacement connecting rod comes with two connecting rod bolts of different lengths, which are used depending on the crankshaft. The connecting rod requires a 14 mm piston pin.

  • Dimension connecting rod pin 1: Ø14 x 30.2 mm
  • Dimension connecting rod pin 2: Ø 14 x 34.4 mm
  • Pleuellänge (center - center): 85 mm
  • Total connecting rod length: 107.4 mm
  • Thickness: 10 mm
  • Outer diameter of the lower connecting rod eye: 24.75 mm
  • Outer diameter of the upper connecting rod eye: 20.85 mm
  • Lower needle roller bearing (silver ball): Ø18/14 x 9.75 mm
  • Upper needle bearing: Ø15/12 x 12.7 mm
  • Ø für piston pin: 12 mm

The two brass spacers are included.

Branded product from the Portuguese manufacturer Jasil under the Top Racing brand.

ManufacturerJasil
MaterialSteel
Surfacecopper-coated
Connecting rod length center-center85 mm
Ø Connecting rod bolt14 mm
Ø lower connecting rod eye outside24.75 mm
Ø upper connecting rod eye outside20.85 mm
Ø lower bearing inside18 mm
Total length107.4 mm
Ø inside upper bearing15 mm
Thickness10 mm
Dimension lower bearing14/18 x 9.75 mm
Dimension upper bearing12/15 x 12.7 mm
Ø piston pin (B)12 mm
Connecting rod pin length30.2 mm, 34.4 mm
Area of applicationStandard, Tuning
Sachs

502 (Saxonette) - AL , AML

50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS)

50/3

50/4 - MLFB (2.6 PS) , LKH (4.5 PS)

50/5

503 - AAL , ABL , 2AL / 2BL , AB , AC , ADV

504 (without pedal shaft)

505 (with pedal shaft) - 1A (AT) , 2A (HG)

508 - 1 A

535
