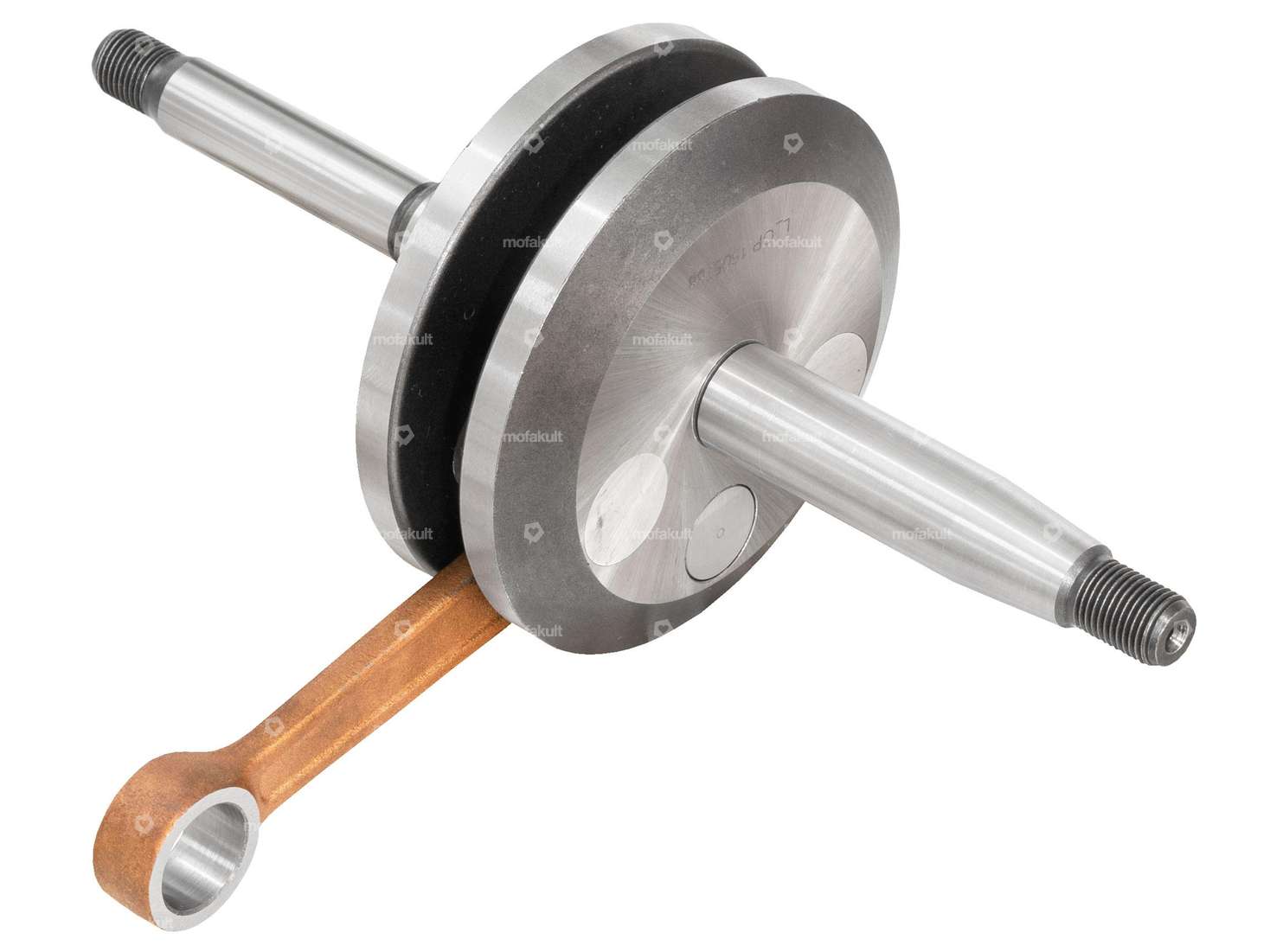

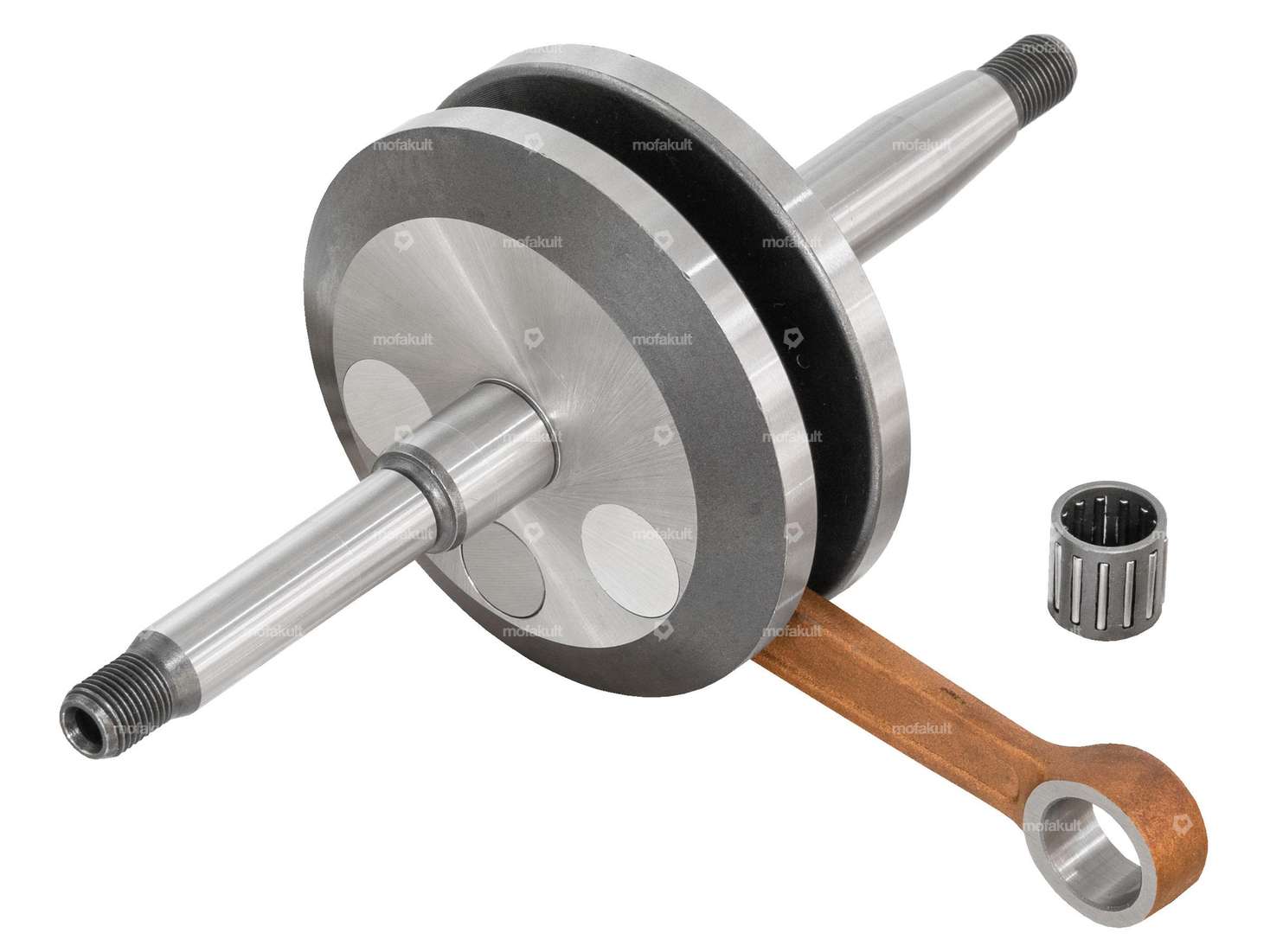

Full-flange crankshaft suitable for Sachs mopeds / mopeds with 505, 535 A1 and 535 AV engines. Among others, this shaft is suitable for Hercules Prima 2, 3, 4, 5 and Optima models.
| Manufacturer | Jasil |
| Cheek type | Full cheeks |
| Crankshaft stroke | 44 mm |
| Total length of crankpin on clutch side | 77.5 mm |
| Total length crankpin ignition side | 74 mm |
| Ø Bearing seat (clutch side) | 14.95 mm |
| Ø Bearing seat (ignition side) | 14.95 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Area of application | Standard |
| Alternative version of the Sachs OEM number | A4477 |
| Sachs | 505 (with pedal shaft) |
| Hercules | Great - 2, 3, 4, 5, Optima |
Ratings
Accessories & related products
Crankshaft | Sachs 505, 535 A1, 535 AV (A4477)
Material: Steel · Crankshaft stroke: 44 mm · Connecting rod length center-center: 85 mm · Weight: 956 g · Number of gears: 1 pcs · Number of gears: 2 pcs · Total length of crankpin on clutch side: 77.5 mm · Total length crankpin ignition side: 73.5 mm · Thread length: 12 mm · Ø crank webs: 79.9 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Area of application: Standard · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34.3 mm · Length 1st paragraph: 18 mm · Length 2nd paragraph: 44 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 11.6 mm · Length of shoulder (ignition side): 42.5 mm · Pony OEM number: A4477
EUR 209.70
Athena 45 mm cylinder kit incl. mounting parts | Sachs (504), 505, 508
Nominal diameter: 45 mm · Material: Aluminum · Number of fixing points: 4 pcs · Manufacturer: Athena · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.7 mm · Ø Outlet outside: 25.9 mm · Ø outlet inside: 19.5 mm · Ø Inlet inside: 14.3 mm · Inlet window: 23.4 x 12.6 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 31.5 mm · Area of application: Tuning · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Hole pattern [mm]: 56 (61) x 56 · Decompressor: M10x1.5 · Camouflaged: No
EUR 370.10
Jasil crankshaft original | Sachs 505, 535 A1, 535 AV (A4477)
Manufacturer: Jasil · Area of application: Standard · Cheek type: standard · Thread type: MF10x1 (fine pitch thread) · Total length of crankpin on clutch side: 77.5 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Pony OEM number: A4477
EUR 164.00
RITO crankshaft solid cheeks | Sachs 505, 535 A1, 535 AV
Manufacturer: Rito · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 77.8 mm · Total length crankpin ignition side: 73.8 mm · Ø crank webs: 79.5 mm · Ø Connecting rod eye: 16 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 9.5 mm · Thread length: 13 mm · Dimension needle bearing: 12 / 16 x 15.8 (axe 12) · Wide crank webs: 34.2 mm · Length 2nd paragraph: 16.8 mm · Length 3rd paragraph: 15 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 11.7 mm · Length of shoulder (ignition side): 42 mm · Weight: 878 g · Number of gears: 1 pcs
EUR 222.00
Moped fans also bought
Oil seal NBR 15/32/5.5 A main shaft | Sachs 504, 505, 535 (A4216)
Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Ø outside: 32 mm · Width: 5.5 mm · Ø inside: 15 mm
EUR 11.00
Oil seal NBR 15/30/5.5 A crankshaft | Sachs (A4215 & A5602)
Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Width: 5.5 mm · Ø inside: 15 mm · Temperature resistance (min.): -30 - 100 °C · Ø outside: 30 mm · Pony OEM number: A5602 · Sachs OEM no.: 0230 111 100
EUR 9.75
Oil seal NBR 15/35/7 AS crankshaft | Sachs 504, 535 (A4214)
Temperature resistance (min.): -30 - 100 °C · Material: NBR · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Manufacturer: Sachs · Ø outside: 35 mm · Place of use: Crankshaft · Surface: rubberized · Width: 7 mm
EUR 11.00
NTN 6202 Ball bearing 15/35/11
Material: Steel · Bearing cage: Sheet steel cage ball-guided · Inner ring width: 11 mm · Ø inside: 15 mm · Manufacturer: NTN · Ø outside: 35 mm · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Surface: blank · Stock number: 6202 · Bearing type: Deep groove ball bearing · Width: 11 mm · Ball bearing closed: No
EUR 8.50
Elring Dirko HT sealing compound red (silicone) high temp. 70 ml elastic up to 315°C
Manufacturer: Elring · Contents: 70 ml · Color: red · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Gap dimension (max.): 2 mm · Temperature resistance (min.): -60 - 300 °C · Area of application: Chemistry
EUR 28.30
EUR 404.29/l
Collection only possible with online purchase and appointment.
