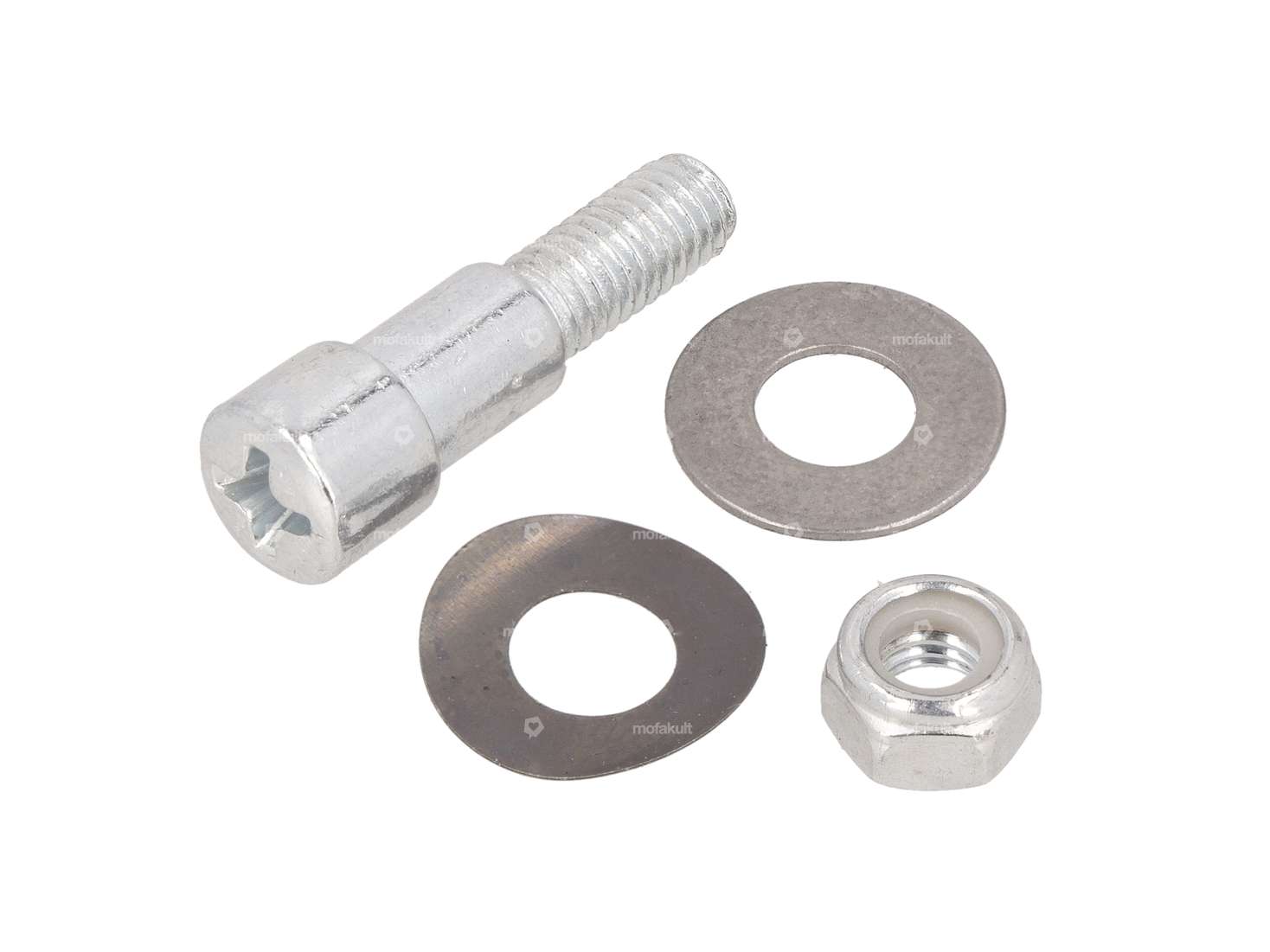

M5 lever screw in the form of a special shaft screw for attaching brake and clutch levers, suitable for your Vespa P, PX, T5, GT, GTR, Sprint, TS, GL, Sprint V., SS180, Rally, Super, V50, V50 Pedalo, V90, V100, VMA, PV and ET3 scooters
.The Phillips drive ensures easy installation, while the M5 thread enables the lever to be securely attached to the lever holder.
Drive: Phillips
Thread: M5 x 0.8 mm
Ø Head: 8.3 mm
Ø Shank: 6.35 mm
Shaft length: 8.25 mm
Total length: 26 mm
Nut (key width): 8 mm
Scope of delivery:
• Lever bolt
• Washer
• Spring washer
• Stop nut
Original Piaggio spare part number: 150235, 012136, 008520
| Total length | 26 mm |
| Ø shaft | 6.35 mm |
| Drive | Cross recess |
| Ø External head | 8.3 mm |
| Thread length | 11 mm |
| Shank length | 8.25 mm |
| Thread type | M5x0.8 (standard thread) |
| Piaggio OEM number | 150235, 012136, 008520 |
| Vespa | Vespa PX, T5, Cosa - PX80 E Lusso · V8X1T · 1983 - 1993 Lusso / Arcobaleno , PX100E · VIX1T · Indien , P125X · VNX1T · 1977 - 1982 (PX alt) Aussenverschluss , P125X · VNX2T · 1981 - 1984 (PX alt) Innenverschluss , PX125 E · VNX2T · 1982 - 1993 / Lusso / Arcobaleno , PX125 · VNX2T · 1993 - 1996 Classic , PX125 · VNX2T · 1997 - 1999 (Disc) , T5 125 · VNX5T · 1985 - 1993 , PX125 · ZAPM471 · 2001 MY Katalysator (Millenium) , P150X · VLX1T · 1978 - 1993 , P150S · VBX1T · 1978 - 1990 , PX150 · ZAPM742 · 2001 MY Katalysator (Millenium) , P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , PX200 · VSX1T · 1984 - 1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993 - 1996 Classic , PX200 · VSX1T · 1997 - 1999 (Disc) , P80X · V8X1T · alt (Zündschloss Lenkkopf) |
