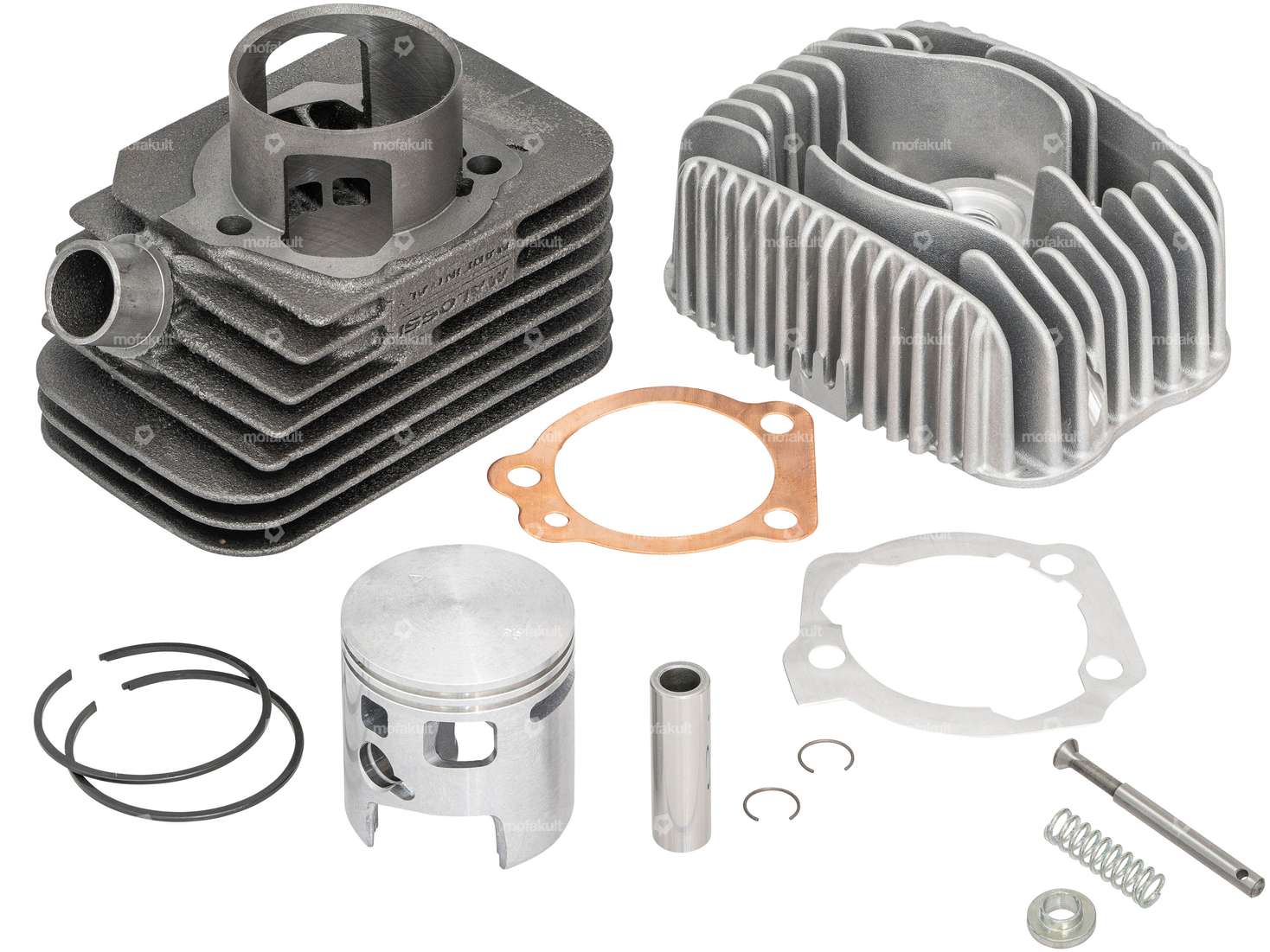

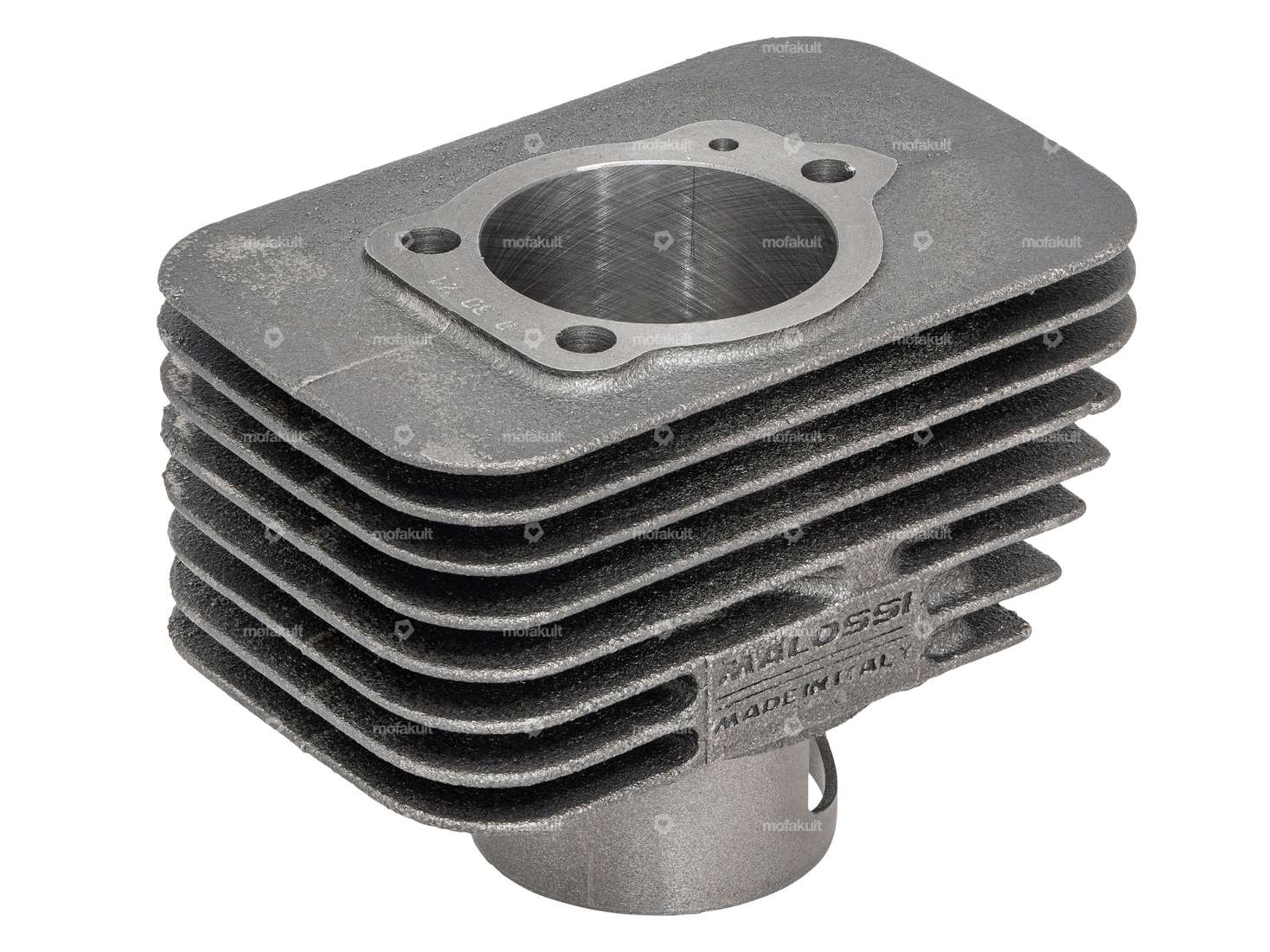

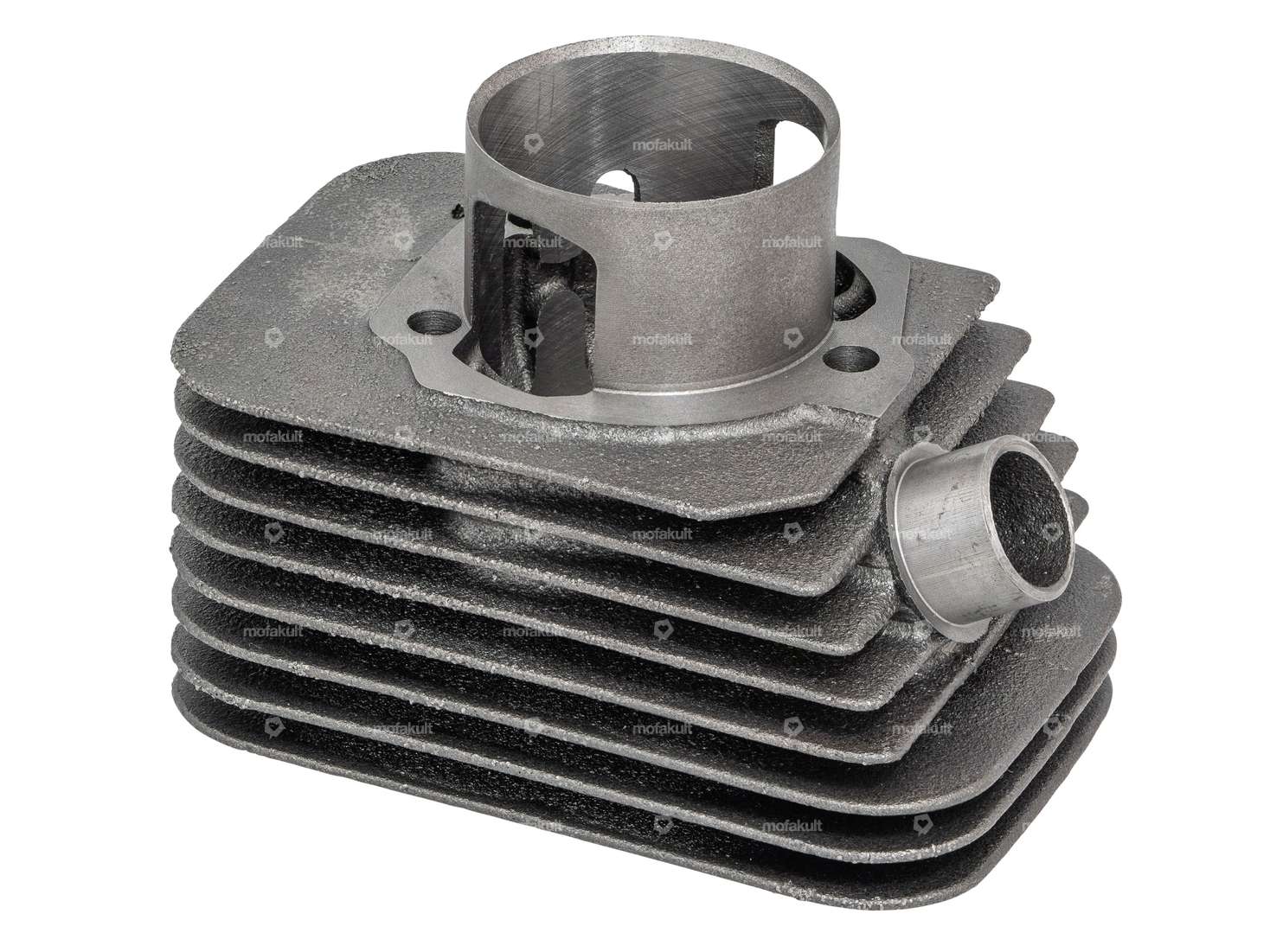

Revised 2021 version of one of the best cylinders available including cylinder head suitable for your Piaggio Ciao, Si, Bravo, Boxer moped / moped with 12 mm piston pin.
This cast iron cylinder offers a very good power increase over the entire speed range and makes it one of the most popular 73.5 cc racing cylinders for Piaggio engines.
The workmanship is very clean and the matching of the piston windows to the overflow channels and boost parts is very good. The webs in the area of the cylinder head significantly reduce the risk of piston jamming and make the cylinder extremely durable. The cylinder head with its small combustion chamber and large flat sealing surface ensures good compression. Thanks to the additional cooling fins on the sides, this racing cylinder head can dissipate the resulting heat even better and thus protects the racing set from overheating.
Manufacturer: Malossi · Material: Gray cast iron · Surface: sandblasted · Displacement: 73 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 46.5 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Decompressor: Yes · Camouflaged: No · Area of application: Tuning · Ø cylinder neck: 50 mm · Ø Outlet outside: 22.4 mm · Ø outlet inside: 18.1 mm · Hole pattern [mm]: 55 x 34
Hole pattern [mm]: 35 x 55 · Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Ø cylinder: 44 - 47 mm · Camouflaged: No · Number of fixing points: 3 pcs · Candle thread: long · Decompressor: Yes · Total length: 122 mm · Width: 87 mm · Height: 60 mm · Area of application: Racing
| Nominal diameter | 46.5 mm |
| Manufacturer | Malossi |
| Area of application | Tuning |
| Material | Gray cast iron |
| Surface | sandblasted |
| Displacement | 70 ccm |
| Crankshaft stroke | 43 mm |
| Number of fixing points | 3 pcs |
| Ø piston pin (B) | 12 mm |
| Outlet type | clamped |
| Decompressor | Yes |
| Camouflaged | No |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo Gilera CBA Gilera Citta |
Ratings
Accessories & related products
Dell'Orto 19 mm PHBG CS carburetor hand choke
Nominal diameter: 19 mm · Material: Aluminum · Color: black · Total length: 82 mm · Height: 124 mm · Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Carburetor type: PHBG CS · Width: 70 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 26 mm · Nozzle size: 75 · Ø Inside entrance: 19 mm · Ø Internal connection: 24 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Area of application: Racing · Area of application: Tuning · Mixed oil connection: Yes · Vacuum connection: Yes · Choke nozzle size: 60 · Camouflaged: No · Size of secondary nozzle: 45
EUR 147.60
GPO piston pin extractor Ø 10, 12, 14 mm
Material: Steel · Total length: 130 mm · Manufacturer: GPO · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool · Number of components: 7 pcs
EUR 24.50
Malossi piston 46.5 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Ø outside piston (A): 46.4 mm · Compression height (C): 25.9 mm · Curvature (D): 2.4 mm · Total piston height (E): 52.8 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 46.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 101 g
EUR 108.20
Polini Speed Engine engine housing electronic ignition | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Aluminum · Crankshaft stroke: 43 mm · Surface: sandblasted · Total length: 215 mm · Color: silver · Ignition type: Electronic · Stock number: 6202 · Width: 175 mm · Height: 104 mm
EUR 258.30
Malossi 46.5 mm cylinder kit incl. head 12 mm KoBo | Piaggio SI, Bravo, Grillo
Manufacturer: Malossi · Material: Gray cast iron · Surface: sandblasted · Area of application: Tuning · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 46.5 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Decompressor: Yes · Camouflaged: No
EUR 221.40
Not in stock
NGK B7ES spark plug long thread
Manufacturer: NGK · Candle designation: B7ES · Candle thread type: long · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Width across flats: 21 mm · Thread type: MF14x1.25 (fine pitch thread) · Area of application: Performance · Area of application: Racing · Area of application: Tuning
EUR 8.00
swiing® ingenious needle roller bearing 12/15/14.2 original silver cage
Bearing type: Needle roller and cage assembly · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Ø inside: 12 mm · Ø outside: 15 mm · Width: 14.2 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001
EUR 14.70
swiing® ingenious 19 mm PHBG intake manifold Speed Engine | Piaggio Ciao, SI, Bravo
Manufacturer: swiing® ingenious parts · Material: Aluminum · Ø inside: 19 mm · Surface: anodized · Color: graphite colors · Hole spacing inlet: 36 mm · Ø External connection: 24 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Tuning
EUR 36.80

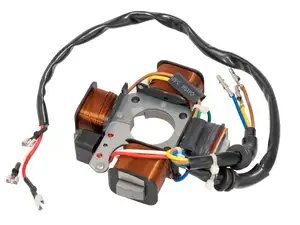

GPO stator electronic ignition with light (three outputs) | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: GPO · Number of cables: 6 pcs · Tension: 12 V · Cable length: 100 mm · Ø outside: 105 mm · Cable length: 400 mm · Performance: 90 W · Ø inside: 29.5 mm · Hole spacing: 34.5 mm · Number of fixing points: 3 pcs · Piaggio OEM number: 219965
EUR 147.60
swiing® ingenious stud bolt M7x120 / Ø 7.3 shank (10.9 strength)
Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Diameter: 7.3 mm · Total length: 120 mm · Strength class: 10.9 · Thread type: M7x1 (standard thread) · Thread length: 20 mm · Thread length: 30 mm
EUR 6.05
Moped fans also bought
Dell'Orto 19 mm PHBG CS carburetor hand choke
Nominal diameter: 19 mm · Material: Aluminum · Color: black · Total length: 82 mm · Height: 124 mm · Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Carburetor type: PHBG CS · Width: 70 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 26 mm · Nozzle size: 75 · Ø Inside entrance: 19 mm · Ø Internal connection: 24 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Area of application: Racing · Area of application: Tuning · Mixed oil connection: Yes · Vacuum connection: Yes · Choke nozzle size: 60 · Camouflaged: No · Size of secondary nozzle: 45
EUR 147.60
EFFE Condenser with cable | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: EFFE · Capacity: 0.26 µF · Area of application: Original · Area of application: Standard · Mounting type: Tab for screwing · Height: 26 mm · Connection type: Cable for screwing · Ø mounting hole: 4.4 mm · Ø outside: 18 mm · Total height: 31 mm · Piaggio OEM number: 102939
EUR 14.70
Jasil crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Jasil · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 91.5 mm · Thread type: M8x1.25 (standard thread) · Ø Connecting rod eye: 15 mm · Area of application: Racing · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.9 mm · Length 1st paragraph: 21.5 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 64.9 mm
EUR 159.90
swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer
Width across flats trigger: 10 mm · Width across flats trigger: 17 mm · Manufacturer: swiing® ingenious parts · Diameter: 12 mm · Diameter: 24 mm · Width across flats Screw: 19 mm · Material: Steel · Number of components: 2 pcs · Surface: blackened · Surface: galvanized (blue) · Total length: 100 mm · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread) · Area of application: (Dis)assembly tool
EUR 22.00
Malossi cylinder head for 44 - 47 mm cylinder kit | Piaggio Ciao, Bravo 1, Boxer
Width: 87 mm · Height: 60 mm · Manufacturer: Malossi · Material: Aluminum · Camouflaged: No · Area of application: Racing · Surface: sandblasted · Ø cylinder: 44 - 47 mm · Number of fixing points: 3 pcs · Total length: 122 mm · Candle thread: long · Hole pattern [mm]: 35 x 55 · Decompressor: Yes
EUR 98.30
Not in stock

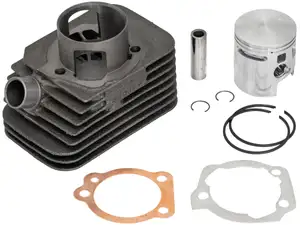

Malossi 46.5 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
