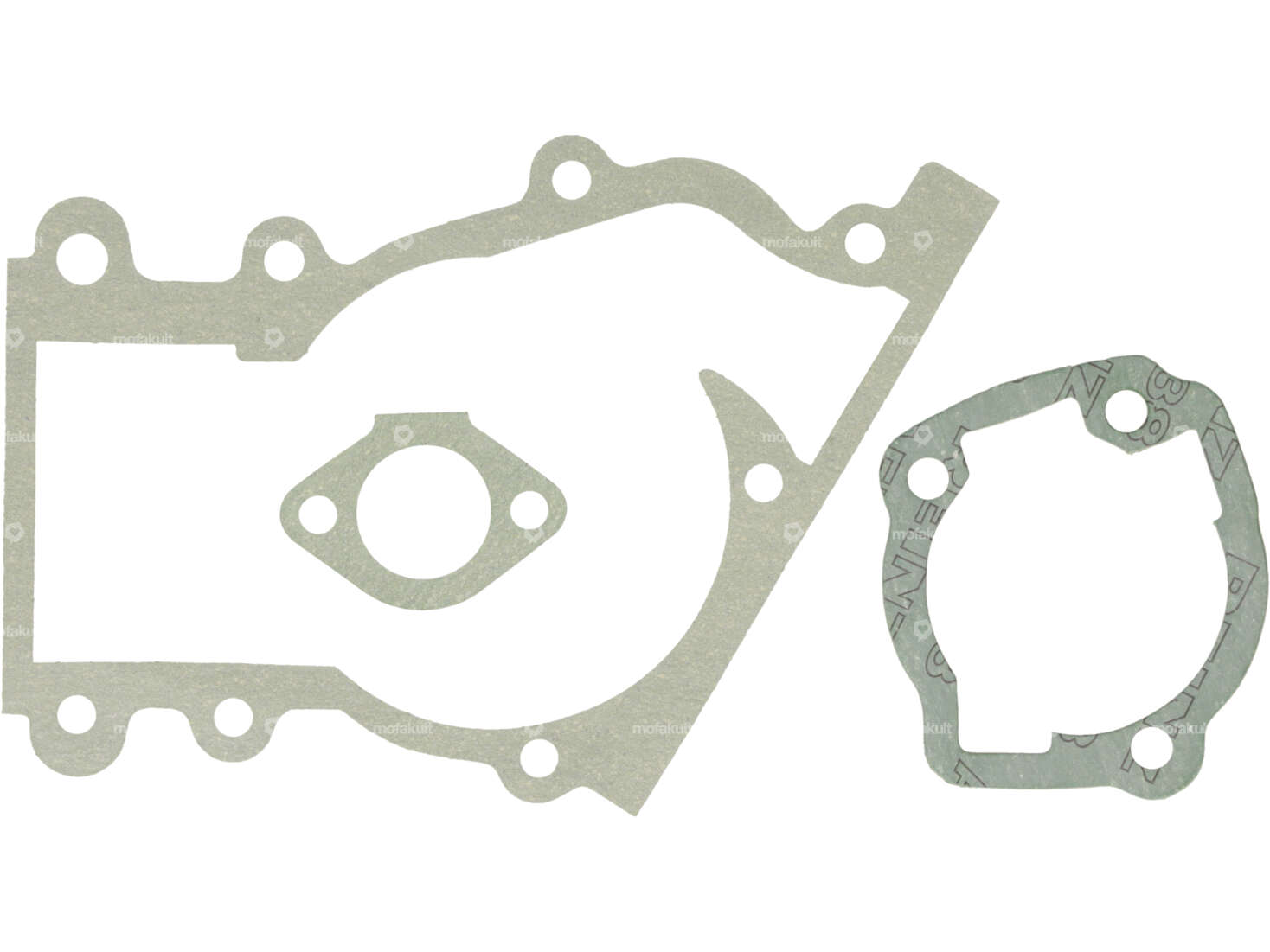

Malossi gasket set racing case | Piaggio Ciao, SI, Bravo, Boxer

Sealing paper set 4 pcs.

Place of use: Universal · Manufacturer: Made in Spain · Material: Sealing carton · Material: Sealing paper · Thickness: 0.25 mm · Thickness: 0.4 mm · Thickness: 0.5 mm · Thickness: 1.2 mm

Malossi MP-One engine case breaker ignition | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Width: 104 mm · Height: 174 mm · Material: Aluminum · Surface: sandblasted · Color: silver · Ø inside: 24 mm · Total length: 220 mm · Ignition type: Breaker

Malossi MP-One engine case electronic ignition | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Width: 104 mm · Height: 174 mm · Material: Aluminum · Surface: sandblasted · Color: silver · Ø inside: 24 mm · Total length: 220 mm · Ø outside: 140 mm · Ignition type: Electronic

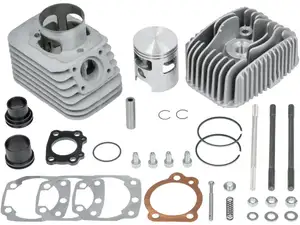

Malossi 47 mm cylinder kit BIG DEPS incl. head 10 mm KoBo | Piaggio Ciao, Bravo, Boxer

Manufacturer: Malossi · Camouflaged: No · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Displacement: 75 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 49.9 mm · Ø Outlet outside: 22 mm · Ø Outlet outside: 27 mm · Nominal diameter: 47 mm · Ø outlet inside: 18 mm · Ø outlet inside: 24 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Hole spacing outlet: 23 mm · Hole spacing outlet: 38.5 mm · Outlet type: clamped · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 55 x 34 · Decompressor: Yes

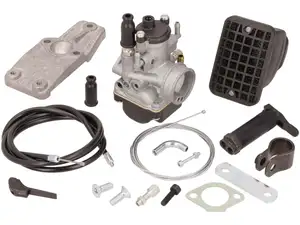

Malossi carburetor set Dellorto 19/19 racing case | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Dell'Orto · Manufacturer: Malossi · Width: 65 mm · Height: 110 mm · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Area of application: Racing · Area of application: Tuning · Color: black · Total length: 60 mm · Carburetor type: PHBG · Mounting type: Flange · Nozzle thread: M5x0.8 (standard thread) · Nominal diameter: 19 mm · Ø Inside entrance: 19 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Hole spacing inlet: 35 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Cable choke · Choke nozzle size: 60 · Nozzle size: 85 · Size of secondary nozzle: 45

Malossi 46.5 mm cylinder kit incl. head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 46.5 mm · Manufacturer: Malossi · Material: Gray cast iron · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 10 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Decompressor: Yes · Camouflaged: No · Area of application: Tuning

Malossi 46.5 mm cylinder kit incl. head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Gray cast iron · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 43 mm · Nominal diameter: 46.5 mm · Displacement: 70 ccm · Ø piston pin (B): 12 mm · Number of fixing points: 3 pcs · Outlet type: clamped · Decompressor: Yes · Camouflaged: No

Elring Dirko HT sealing compound red (silicone) high temp. 70 ml elastic up to 315°C

Manufacturer: Elring · Area of application: Chemistry · Contents: 70 ml · Color: red · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Temperature resistance (min.): -60 - 300 °C · Gap dimension (max.): 2 mm

SKF Bearing Set & Oil Seal Engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: SKF · Area of application: Standard · Material: Plastic · Material: Steel · Number of components: 3 pcs

Malossi cylinder head for 44 - 47 mm cylinder | Piaggio Ciao, Bravo 1, Boxer

Manufacturer: Malossi · Width: 87 mm · Height: 60 mm · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Area of application: Racing · Ø cylinder: 44 - 47 mm · Total length: 122 mm · Number of fixing points: 3 pcs · Candle thread: long · Hole pattern [mm]: 35 x 55 · Decompressor: Yes

Malossi 46.5 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Gray cast iron · Camouflaged: No · Surface: sandblasted · Area of application: Tuning · Displacement: 73 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 50 mm · Ø Outlet outside: 22.4 mm · Nominal diameter: 46.5 mm · Ø outlet inside: 18.1 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Outlet type: clamped · Hole pattern [mm]: 55 x 34 · Decompressor: Yes

Malossi gasket set 46.5 mm cylinder kit | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Number of components: 2 pcs · Material: Aluminum · Material: Copper · Area of application: Tuning · Ø cylinder: 46.5 mm · Decompressor: Yes

Malossi MP-One engine case breaker ignition | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Width: 104 mm · Height: 174 mm · Material: Aluminum · Surface: sandblasted · Color: silver · Ø inside: 24 mm · Total length: 220 mm · Ignition type: Breaker

Malossi MP-One engine case electronic ignition | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Width: 104 mm · Height: 174 mm · Material: Aluminum · Surface: sandblasted · Color: silver · Ø inside: 24 mm · Total length: 220 mm · Ø outside: 140 mm · Ignition type: Electronic

Malossi crankshaft 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Cheek type: Full cheeks · Material: Steel · Area of application: Racing · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.95 mm · Thread type: M10x1.5 (standard thread) · Ø Connecting rod eye: 15 mm · Thread length: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.4 mm · Length 1st paragraph: 21.3 mm · Length 2nd paragraph: 43.7 mm · Length 3rd paragraph: 63 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Weight: 813 g · Number of gears: 1 pcs

AKOA 19 mm intake flange engine case Malossi MP-One | Piaggio

Manufacturer: AKOA · Material: Aluminum · Ø inside: 19 mm · Ø External connection: 24 mm · Mounting type: Screws · Number of fixing points: 3 pcs · Area of application: Tuning
