Sachs engine & gearbox

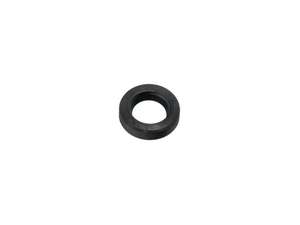

Shaft seal NBR 10/16/4.5 A Shift shaft | Sachs 50/3, 50/4

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 10 mm · Width: 4.5 mm · Ø outside: 16 mm · Manufacturer: Sachs · Material: NBR · Place of use: Shift shaft

GPO 41 mm cylinder square inlet | Sachs 50/3, 50/4 large fan cooling (DE)

Manufacturer: GPO · Material: Gray cast iron · Camouflaged: No · Crankshaft stroke: 42 mm · Displacement: 55 ccm · Number of fixing points: 4 pcs · Nominal diameter: 41 mm · Hole spacing inlet: 31 mm · Outlet type: Union nut

ADDY clutch plate (4-plate clutch) green sintered technology (stage 3) | Sachs 503

Ø inside: 63.5 mm · Ø inside: 68.5 mm · Ø outside: 94 mm · Thickness: 3.5 mm · Manufacturer: ADDY · Material: Composite materials · Recording type: Interlocking · Number of slats: 4 pcs · Area of application: Tuning

Cylinder base gasket Sachs 535 (A4425)

Manufacturer: Sachs · Place of use: Cylinder base

Sliding block circuit old version | Sachs 50/2, 503 2AL/2BL (A1910)

Width: 4.4 mm · Material: Steel · Surface: Hardened · Total length: 18.4 mm · Ø Pin: 3.95 mm · Total height: 10.4 mm · Pony OEM number: A1910 · Sachs OEM no.: 0259 021 000

Shaft seal set 2-speed pedal start | Sachs

Ø inside: 12.96 mm · Ø inside: 13.8 mm · Ø inside: 15 mm · Ø inside: 16 mm · Ø inside: 31.4 mm · Width: 2.5 mm · Width: 3.5 mm · Width: 4 mm · Width: 7 mm · Ø outside: 19 mm · Ø outside: 24 mm · Ø outside: 24.8 mm · Ø outside: 30 mm · Ø outside: 31.5 mm

Normio Notched Rivet, Ø 2 mm, Engine Nameplate | Sachs 502, 503

Manufacturer: Normio · Ø External head: 3 mm · Total length: 4.4 mm · Ø Pin: 2 mm

Athena piston 48 mm #A | Sachs 503 AB, AC, ADV

Manufacturer: Athena · Ø outside piston (A): 47.92 mm · Compression height (C): 29.3 mm · Curvature (D): 2.1 mm · Total piston height (E): 52 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 48 mm · Piston ring mold: L-ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Tolerance group: A · Weight piston kit: 114 g

Foot control mounting plate | Sachs 50/3, 50/4

Material: Steel · Surface: chrome-plated

Exhaust manifold 28 mm left (1A quality) | Sachs 504, 505, 508, 535 / Hercules Prima, Optima

Ø inside: 26 mm · Ø outside: 28 mm · Material: Steel · Color: Chrome · Surface: chrome-plated · Number of fixing points: 2 pcs · Total length: 350 mm · Mounting type: Flange · Hole spacing outlet: 50 mm · Flame tube attachment: Stud bolts & nuts · Sachs OEM no.: 927 190 01 10

Exhaust manifold 28 mm Custom | Sachs 50/2, 50/3

Ø inside: 25 mm · Ø outside: 28 mm · Material: Steel · Color: Chrome · Surface: chrome-plated · Total length: 400 mm · Mounting type: Union nut

Exhaust gasket sheet metal / sealing compound | Sachs 503 AB, AC, ADV

Ø inside: 23.1 mm · Ø outside: 30 mm · Thickness: 3.8 mm · Material: Sealing compound · Material: Sheet metal (steel) · Place of use: Outlet

Malossi needle bearing 12/15/15

Bearing type: Needle roller and cage assembly · Ø inside: 12 mm · Ø outside: 15 mm · Width: 15 mm · Manufacturer: Malossi · Bearing cage: Sheet steel cage · Dimension needle bearing: 12/15 x 15

swiing® ingenious crankshaft "Wolfram-Edition" | Sachs 50/2, 50/3

Manufacturer: swiing® ingenious parts · Cheek type: standard · Crankshaft stroke: 42 mm · Weight: 895 g · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 40.7 mm · Total length crankpin ignition side: 63.4 mm · Ø crank webs: 85 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 30 mm

Crankshaft Sachs 50/2 AML (A2733)

Cheek type: standard · Total length of crankpin on clutch side: 94.5 mm · Area of application: Standard · Pony OEM number: A2733 · Sachs OEM no.: 0286 346 000

Karcoma decompressor M10x1.5 45° NOS | Hercules / Sachs 504, 505

Manufacturer: Karcoma · Material: Steel · Surface: galvanized (blue) · Thread type: M10x1.5 (standard thread) · Width across flats: 14 mm · Area of application: Standard · Angle: 45 ° · Total length: 57 mm · Thread length: 5.5 mm · Pony OEM number: A4389

GPO 41 mm cylinder "Pomodoro" | Sachs 503

Manufacturer: GPO · Material: Gray cast iron · Camouflaged: No · Crankshaft stroke: 43 mm · Displacement: 57 ccm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Nominal diameter: 41 mm · Area of application: Racing · Area of application: Tuning · Hole spacing inlet: 32 mm · Outlet type: clamped

Parmakit 38 mm cylinder kit tuning | Sachs 50 S, 501, 50/4 EKF

Manufacturer: Parmakit · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Displacement: 50 ccm · Number of fixing points: 4 pcs · Nominal diameter: 38 mm · Ø piston pin (B): 14 mm · Area of application: Tuning · Outlet type: slanted

Meteor piston 38.9 mm oversize | Sachs 50/2 & 503

Manufacturer: Meteor · Ø outside piston (A): 38.85 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Weight piston kit: 86 g · Pony OEM number: A2775 · Sachs OEM no.: 0286 377 013

Outer ring 21/31.5/6 Main shaft left | Sachs 50, 502, 50/2 (A1160)

Ø inside: 21 mm · Width: 6 mm · Ø outside: 31.5 mm · Material: Steel · Surface: hardened & ground · Pony OEM number: A1160 · Sachs OEM no.: 0232 103 000

Collar bushing conversion kickstarter | Sachs 50/2 (502), 50/3, 50/4

Ø inside: 13.05 mm · Ø outside: 25.04 mm · Ø outside: 30.98 mm · Manufacturer: Made in Europe · Material: Steel · Total length: 30.2 mm

NTN HK1616 drawn cup needle roller sleeve 16/22/16 clutch | Sachs 503 ABL (A1164)

Bearing type: Needle sleeve · Ø inside: 16 mm · Stock number: HK1616 · Width: 16 mm · Ø outside: 22 mm · Manufacturer: NTN · Dimension needle bearing: 16/22 x 16

swiing® ingenious gasket set 40 mm cylinder | Sachs 503

Manufacturer: swiing® ingenious parts · Ø cylinder: 40 mm · Area of application: Tuning · Hole spacing inlet: 32 mm · Number of components: 3 pcs · Hole pattern [mm]: 60 x 40 mm / 37 x 37 mm

Jasil crankshaft (axe 14 mm) | Sachs 50/5 & 50/6

Manufacturer: Jasil · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Thread type: MF10x1 (fine pitch thread) · Thread type: MF12x1.5 (fine pitch thread) · Total length of crankpin on clutch side: 72 mm · Total length crankpin ignition side: 72 mm · Ø piston pin (B): 14 mm · Area of application: Standard · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Number of gears: 5 pcs · Number of gears: 6 pcs

swiing® ingenious lever for decompressor | Sachs 503 (A1782)

Manufacturer: swiing® ingenious parts · Color: silver · Alternative version of the Pony OEM number: A1782 · Alternative version of the Sachs OEM number: 0248 149 000

Ratchet wheel kickstart mechanism | Sachs

Material: Metal

swiing® revival bolt set cylinder head galvanized | Sachs 503 / 50/2 / 50/3 / 50/4

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Drive: External hexagon · Screw head: Hexagon · Width across flats: 10 mm · Area of application: Standard · Shank: Yes · Ø shaft: 5.85 mm · Shank length: 8 mm · Total length: 34 mm · Thread length: 22 mm · Strength class: 10.9 · Number of components: 12 pcs

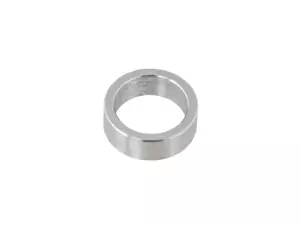

swiing® revival Beilagring shift lever Inox | Sachs 50/2 ML/AML (A1723)

Ø inside: 13.2 mm · Nominal diameter inside: 13 mm · Ø outside: 17 mm · Thickness: 6 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Nominal diameter (thread): 13 mm · Pony OEM number: A1723 · Sachs OEM no.: 0247 000 000

Athena piston 48 mm #B | Sachs 503 AB, AC, ADV

Manufacturer: Athena · Ø outside piston (A): 47.93 mm · Compression height (C): 29.1 mm · Curvature (D): 2.1 mm · Total piston height (E): 52 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 48 mm · Piston ring mold: L-ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Tolerance group: B · Weight piston kit: 113 g

GPO cylinder gasket set BAD ASS Pandora 41 & 43 mm | Sachs 503, 50/2, 502

Thickness: 0.3 mm · Thickness: 1 mm · Manufacturer: GPO · Material: Oiled paper · Ø cylinder: 41 mm · Ø cylinder: 43 mm · Area of application: Tuning · Hole spacing inlet: 32 mm · Number of components: 2 pcs · Hole pattern [mm]: 60 x 40 mm / 37 x 37 mm

Shift pressure spring set Sachs 50/3, 50/4

Spring design: Pressure spring · Ø outside: 8.5 mm · Total length: 14.25 mm · Number of components: 3 pcs

Clutch linkage | Sachs 50/3, 50/4

Material: Steel · Area of application: Standard · Total length: 95 mm

Sachs 50/3, 50/4 dabber rod without lever

Material: Steel · Component group Carburetor: Adjusting screws, float, etc. · Carburetor type: SSB · Total length: 150 mm

Jasil connecting rod axe 16 mm | Sachs

Thickness: 10 mm · Manufacturer: Jasil · Material: Steel · Surface: copper-coated · Connecting rod length center-center: 85 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 24.75 mm · Ø upper connecting rod eye outside: 20.85 mm · Ø piston pin (B): 12 mm · Ø lower bearing inside: 21 mm · Area of application: Standard · Area of application: Tuning · Ø inside upper bearing: 15 mm · Total length: 107.4 mm · Dimension lower bearing: 16/21 x 9.75 mm · Dimension upper bearing: 12/15 x 12.7 mm · Connecting rod pin length: 30 mm

swiing® revival shim 24.8/44/0.8 clutch | Sachs 504, 505, 535 (A4252)

Ø inside: 24.8 mm · Nominal diameter inside: 25 mm · Ø outside: 44 mm · Thickness: 0.8 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Pony OEM number: A4252

Spacer disk 24.8/44/1 clutch | Sachs 504, 535 (A4253)

Ø inside: 24.8 mm · Nominal diameter inside: 25 mm · Ø outside: 44 mm · Thickness: 1 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Pony OEM number: A4253 · Sachs OEM no.: 0244 154 002

swiing® revival thrust washer 14.3/20/0.5 crankshaft | Sachs 503 ABL (A5649)

Ø inside: 14.3 mm · Ø outside: 20 mm · Thickness: 0.5 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Pony OEM number: A5649 · Sachs OEM no.: 0644 002 121

38 mm cylinder kit 30 km/h version | Sachs 504, 505, 535, (508)

Material: Aluminum · Displacement: 50 ccm · Ø cylinder neck: 49.4 mm · Ø cylinder neck: 51.9 mm · Number of fixing points: 4 pcs · Ø Outlet outside: 25.9 mm · Nominal diameter: 38 mm · Ø outlet inside: 22.5 mm · Ø piston pin (B): 12 mm · Inlet window: 18 x 13.4 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 31.5 mm · Outlet type: straight · Hole pattern [mm]: 55 x 55 · Decompressor: M10x1.5

Shaft seal set | Sachs 506

Shaft seal type: A - With rubberized outer part / one sealing lip. · Shaft seal type: B - With sheet metal outer casing / one sealing lip. · Material: NBR · Place of use: Motor housing

Disc 7.2/10.5/1 clutch shoes | Sachs 503 AB, ABL (A5656)

Ø inside: 7.2 mm · Ø outside: 10.5 mm · Thickness: 1 mm · Manufacturer: Sachs · Material: Steel · Surface: hardened & ground · Pony OEM number: A5656 · Sachs OEM no.: 2844 032 011

Housing cover | Sachs 504, 505 (A4322)

Material: Aluminum · Surface: glass bead blasted · Pony OEM number: A4322 · Sachs OEM no.: 0277 117 000

Crankshaft Sachs 50/3 & 50/4

Cheek type: standard · Crankshaft stroke: 42 mm · Thread type: MF10x1 (fine pitch thread) · Total length of crankpin on clutch side: 42.8 mm · Total length crankpin ignition side: 70.5 mm · Area of application: Standard · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Number of gears: 3 pcs · Number of gears: 4 pcs

Gearwheel with drive ring Occ. | Sachs 50/2 Automatic, 503 AAL (A2723)

Ø inside: 17 mm · Ø inside: 20 mm · Manufacturer: Sachs · Toothing type: helical toothed · Number of teeth: 60 pcs · Pony OEM number: A2723 · Sachs OEM no.: 0286 330 001

swiing® revival Clutch Spring Spacer | Sachs 502 1A / 1B

Manufacturer: swiing® revival parts · Material: Spring steel · Total length: 250 mm · Material thickness: 0.3 mm

swiing® revival clutch plates (2 pcs.) | Sachs 50/2, 503 2AL/2BL (A3887)

Ø inside: 29.7 mm · Ø inside: 36 mm · Ø outside: 93.7 mm · Thickness: 3.3 mm · Manufacturer: swiing® revival parts · Material: Composite materials · Material: Steel · Recording type: Interlocking · Number of slats: 2 pcs · Area of application: Standard · Pony OEM number: A3887 · Sachs OEM no.: 0659 010 006

Malossi needle bearing 12/15/17.5

Bearing type: Needle roller and cage assembly · Ø inside: 12 mm · Ø outside: 15 mm · Width: 17.5 mm · Manufacturer: Malossi · Bearing cage: Sheet steel cage · Dimension needle bearing: 12/15 x 17.5

3-speed foot-shift transmission | Sachs 50/3 (DE)

Sachs OEM no.: 0234 056 100 · Sachs OEM no.: 0234 058 100 · Sachs OEM no.: 0234 057 200 · Sachs OEM no.: 0247 020 000 · Sachs OEM no.: 0285 107 008 · Sachs OEM no.: 0286 205 000

Kickstarter shaft | Sachs 501/3, 501/4

Ø outside: 13.7 mm · Material: Metal · Ø Shaft: 12 mm · Number of teeth: 4 pcs · Total length: 190 mm

GPO Intake Gasket "Pomodoro" & "Pandora" | Sachs 503 AAL / ABL / 2AL / 2BL, 50/2

Ø inside: 19 mm · Thickness: 1 mm · Manufacturer: GPO · Material: Oiled paper · Place of use: Admission · Hole spacing inlet: 32 mm · Ø screw holder: 6.5 mm

Rito crankshaft High End Sachs 50/3, 50/4 L17 bearing (14 mm KoBo)

Manufacturer: Rito · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 42 mm · Weight: 1067 g · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 43.2 mm · Total length crankpin ignition side: 69.7 mm · Ø crank webs: 85 mm · Ø piston pin (B): 14 mm · Area of application: High End · Ø Connecting rod eye: 18 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 8 mm · Thread length: 13 mm · Dimension needle bearing: 14 / 18 x 15.8 mm (axe 14) · Wide crank webs: 29.9 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 13.7 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Length of shoulder (ignition side): 29.6 mm · Number of gears: 3 pcs · Number of gears: 4 pcs
